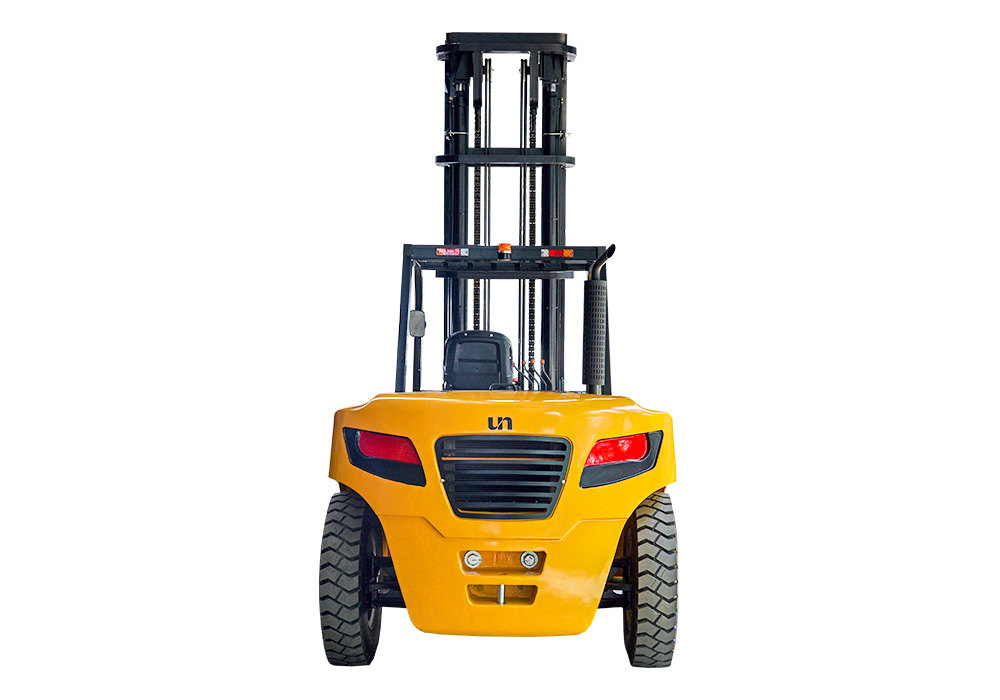

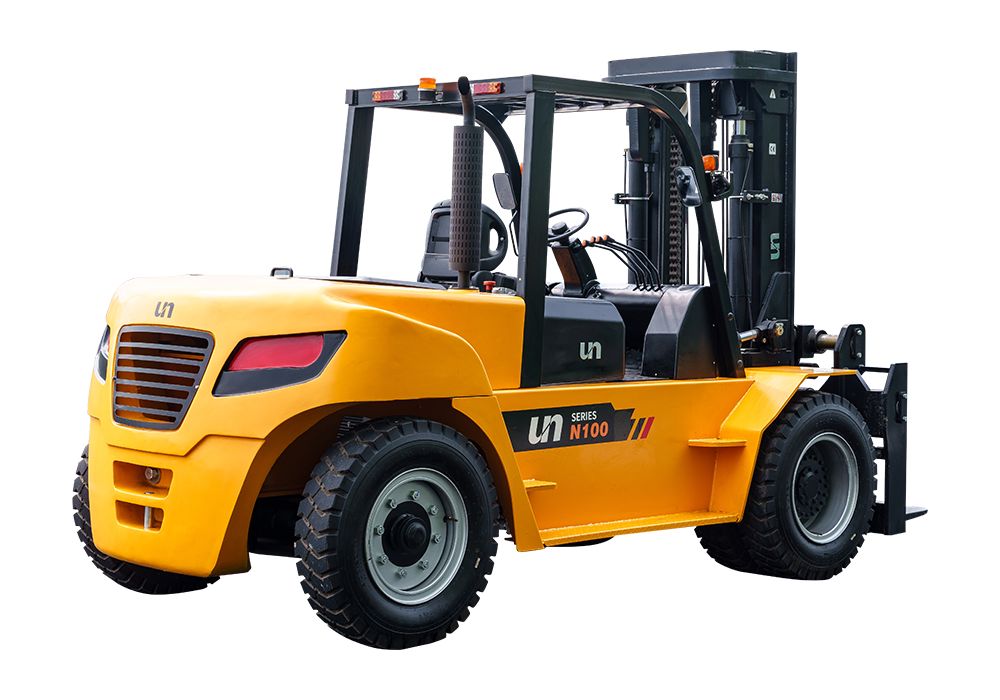

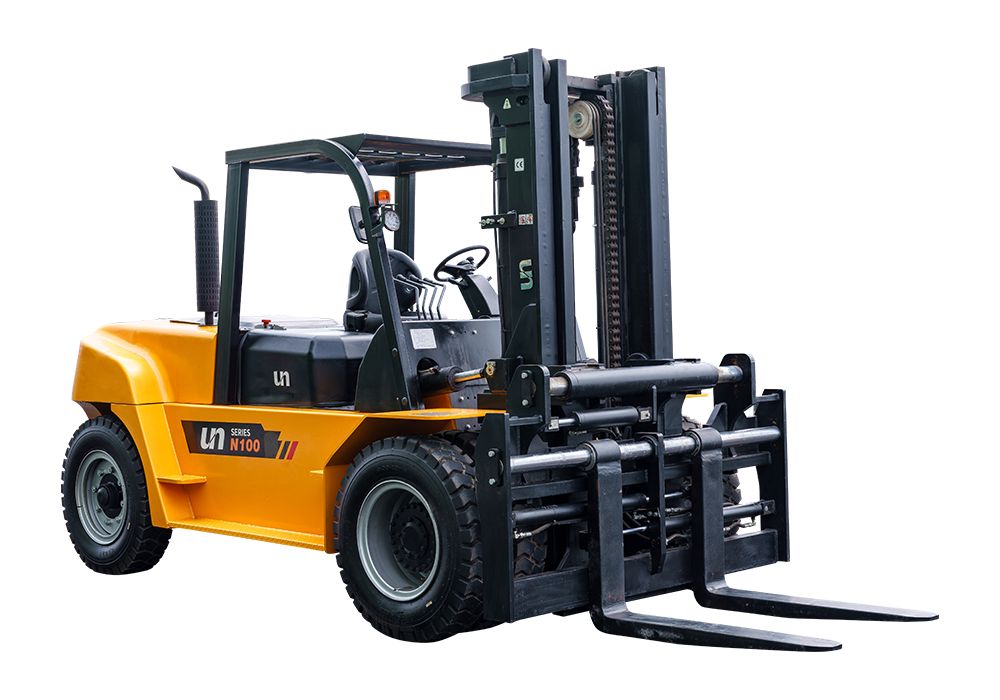

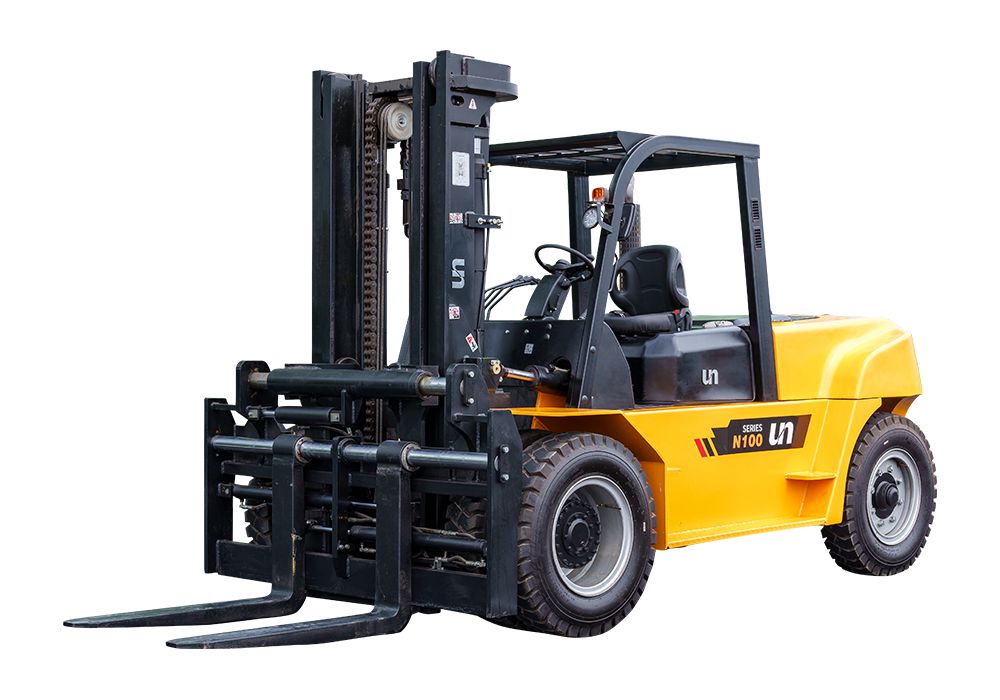

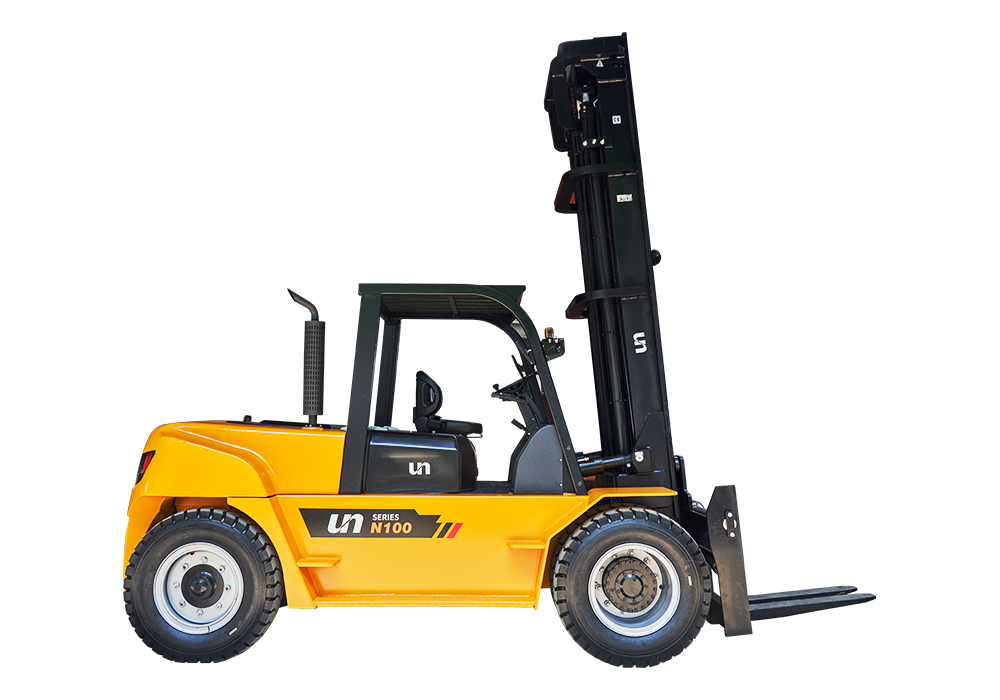

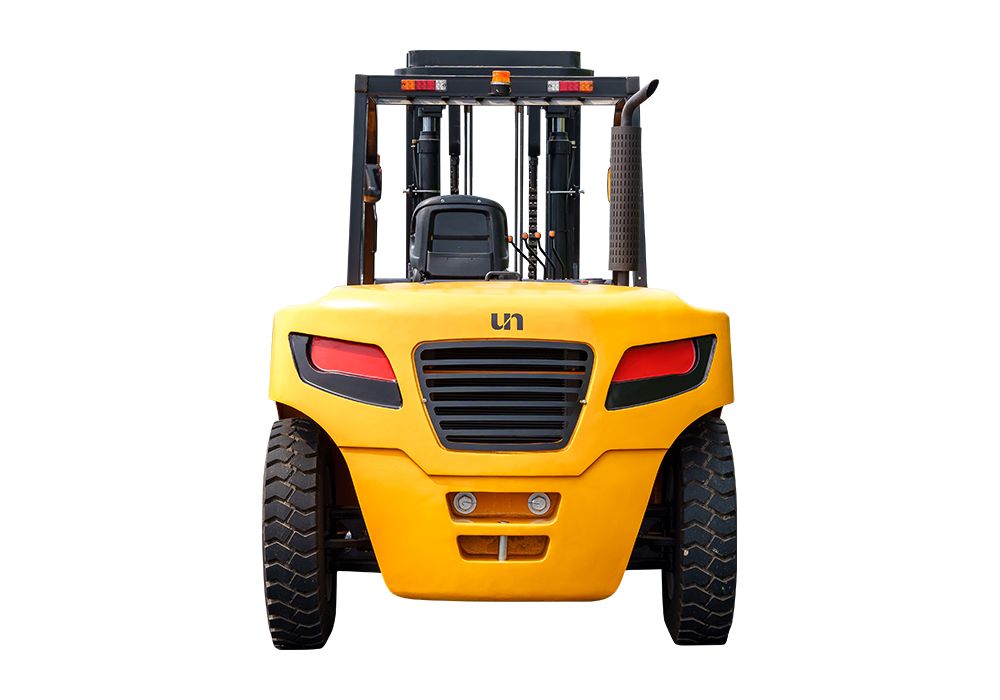

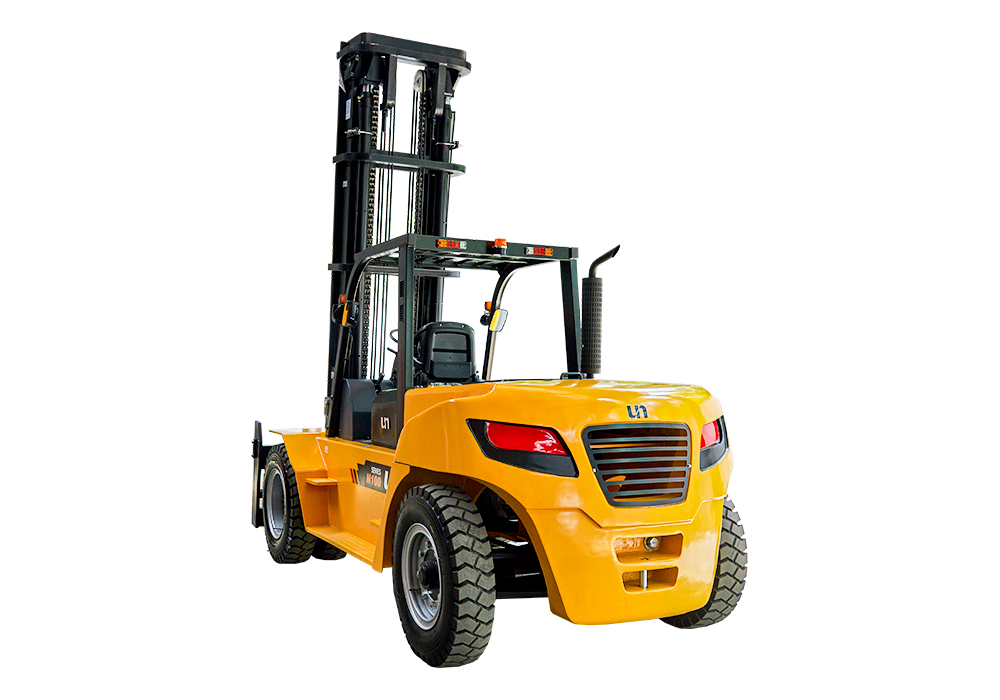

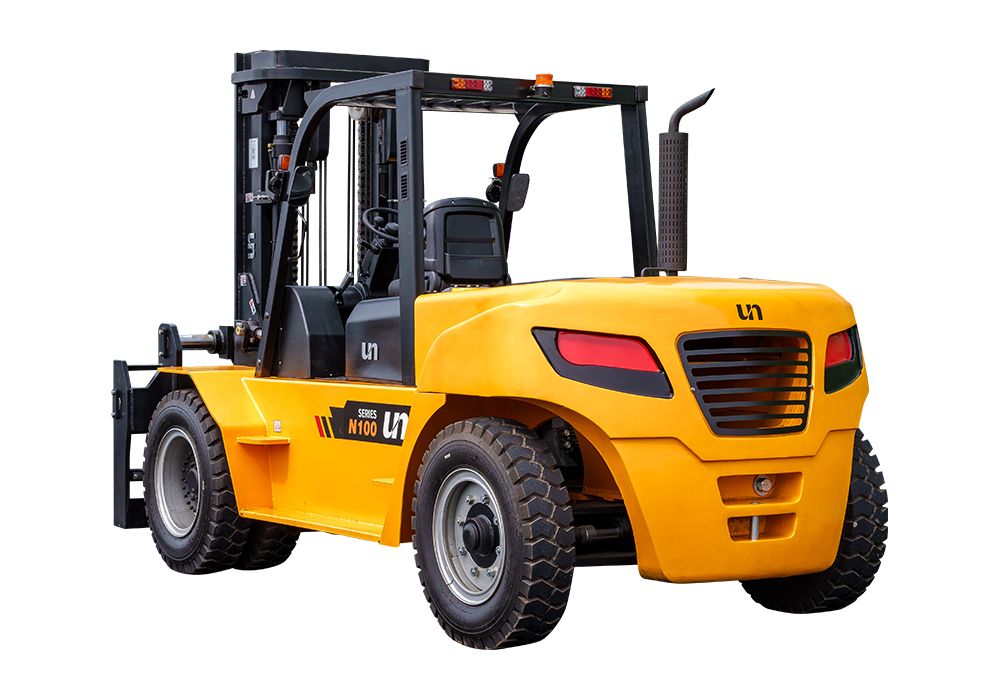

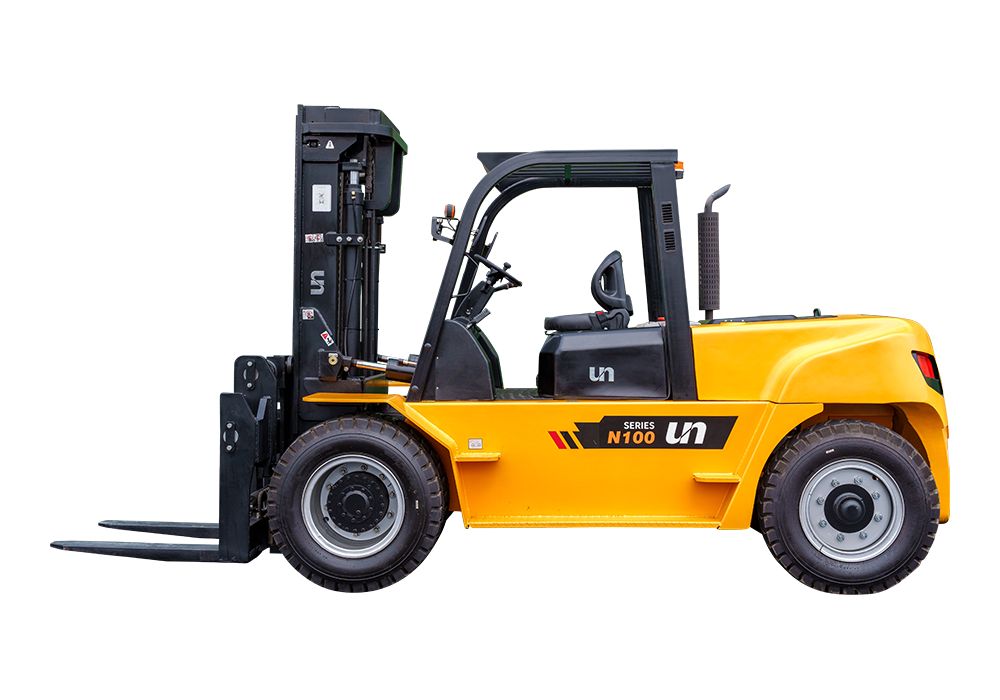

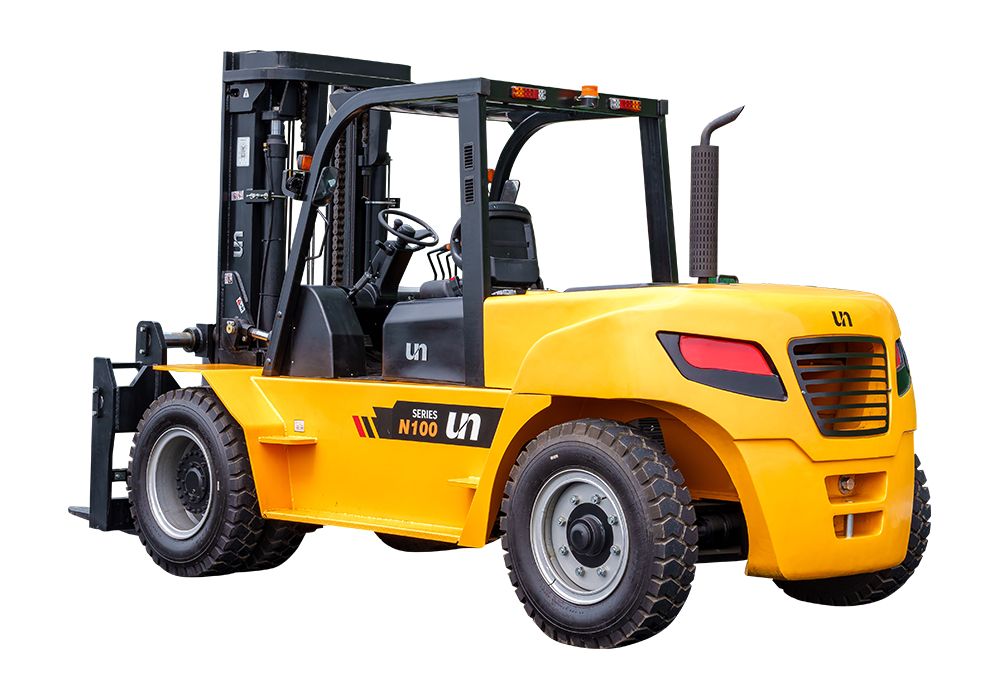

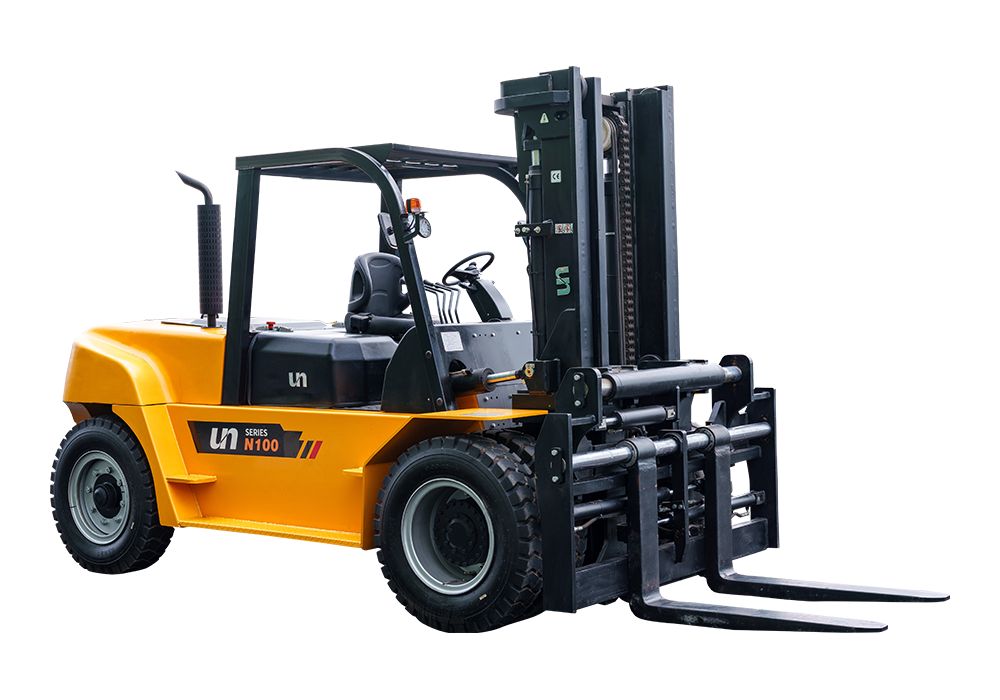

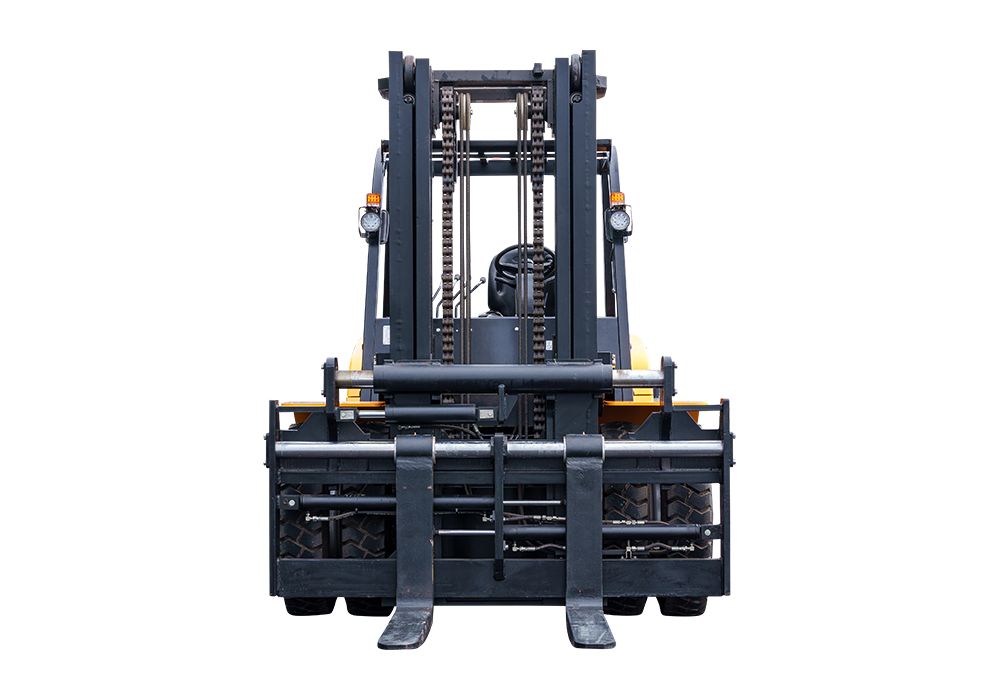

N Series 8.0T-10.0T Heavy Duty Diesel Forklift

Get brochure

Product Description

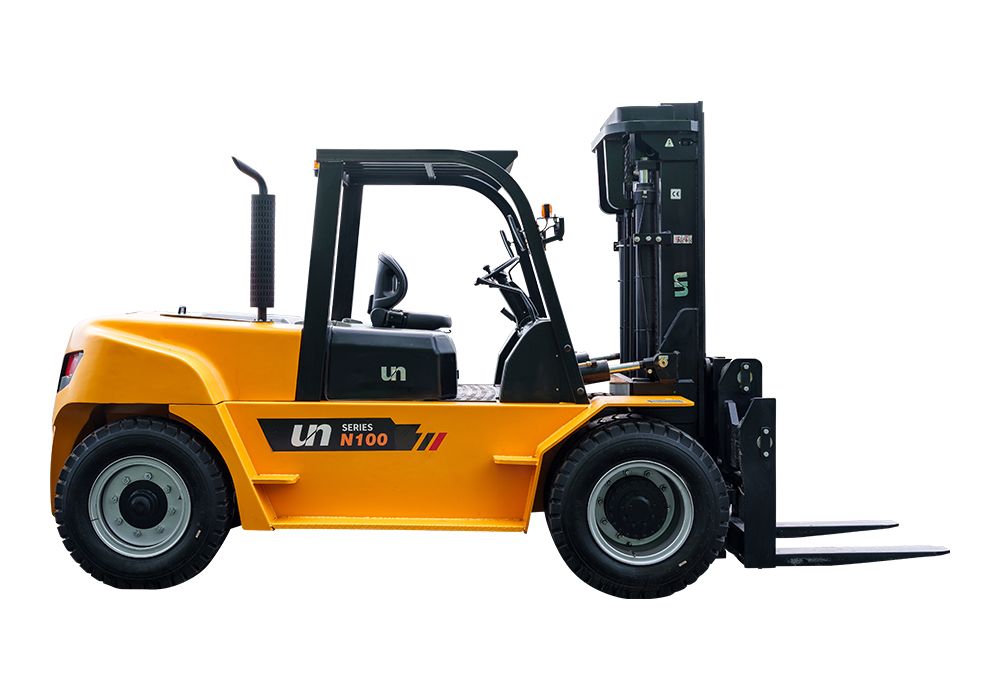

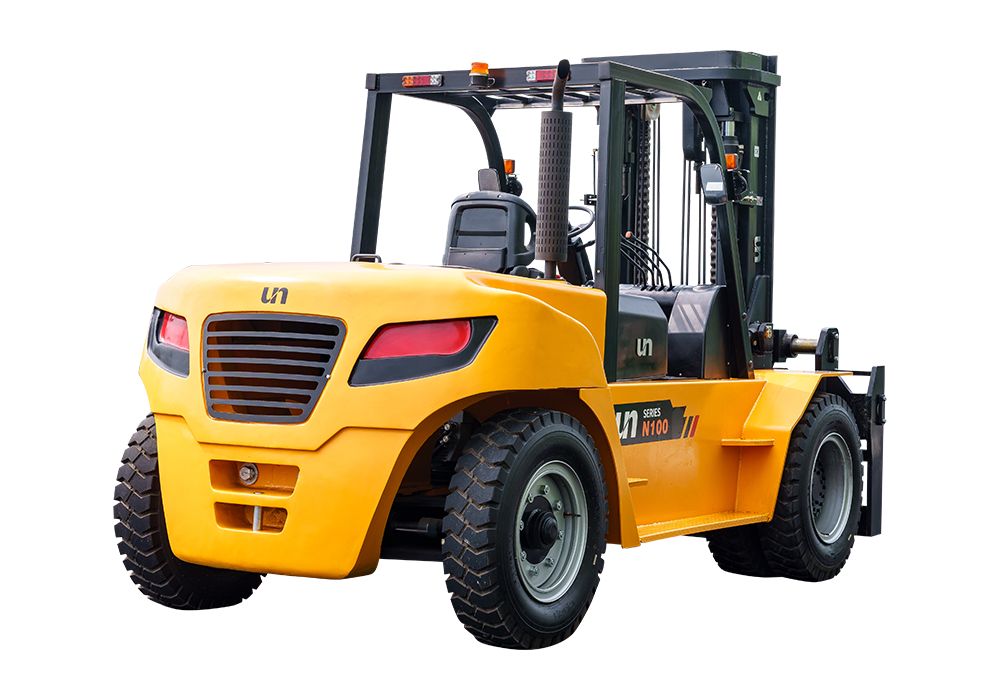

N Series 8.0–10.0T Heavy-Duty Diesel Forklift is engineered for heavy loads and harsh outdoor environments.

It features a reinforced high-load chassis, oversized cooling system, and full-floating transmission system to ensure reliable performance during long periods of full-capacity operation. The powerful drive system enables efficient lifting and transport of large-tonnage materials, with outstanding stability and safety.

With ultra-high load capacity, exceptional structural durability, and all-weather adaptability, it serves as core equipment for heavy-duty material handling, ideal for operations in ports, docks, and similar environments.

E-mail: [email protected]

Product Details

MAIN SPECIFICATIONS

Model		FD80T-NJB3	FD100T-NJB3	FD80T-NGP1	FD100T-NGP1	FD80T-NGR1	FD100T-NGR1
Rated Load Capacity	Q(kg)	8000	10000	8000	10000	8000	10000
Load Centre	C(mm)	600	600	600	600	600	600
Length to Face of Fork (Without Fork)	L1(mm)	3981	4281	3981	4281	3981	4281
Overall Width	B1(mm)	2165	2165	2165	2165	2165	2165
Overhead Guard Height	H5(mm)	2520	2540	2520	2540	2520	2540
Turning Radius (Outside)	Wa(mm)	3700	3900	3700	3900	3700	3900
Travel Speed (No Load)	km/h	20	20	20	20	20	20
Max.Gradeability (Full Load)	%	20	20	20	20	20	20
Wheelbase	Y(mm)	2500	2800	2500	2800	2500	2800
Total Weight	kg	11850	12900	11850	12900	11850	12900
Engine Model		6BG1	6BG1	CA4DF3- 12GCG3U	CA4DF3- 12GCG3U	QSF3.8	QSF3.8

General	1	Manufacturer		UN
	2	Model		FD80T-NJB3	FD100T-NJB3	FD80T-NGP1	FD100T-NGP1	FD80T-NGR1	FD100T-NGR1
	3	Power Type		Diesel
	4	Rated Load Capacity	Q(kg)	8000	10000	8000	10000	8000	10000
	5	Load Centre	C(mm)	600	600	600	600	600	600

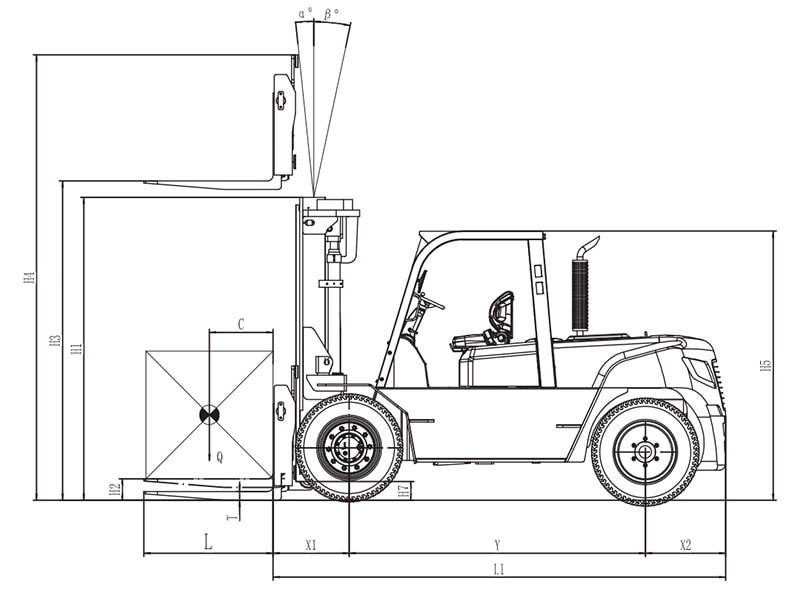

Characteristic & Dimension	6	Rated Lift Height	H3(mm)	3000	3000	3000	3000	3000	3000
	7	Free Lift Height	H2(mm)	220	220	220	220	220	220
	8	Fork Size (L×W×T)	mm	1220×175×80	1220×175×80	1220×175×80	1220×175×80	1220×175×80	1220×175×80
	9	Mast Tilt Angle (F/R, α°/β°)	deg	6°/12°	6°/12°	6°/12°	6°/12°	6°/12°	6°/12°
	10	Fork Overhang (Wheel Center to Fork Face)	X1(mm)	721	721	721	721	721	721
	11	Rear Overhang	X2(mm)	760	760	760	760	760	760
	12	Ground Clearance (Bottom of Mast)	H7(mm)	245	245	245	245	245	245
	13	Length to Face of Fork (Without Fork)	L1(mm)	3981	4281	3981	4281	3981	4281
	14	Overall Width	B1(mm)	2165	2165	2165	2165	2165	2165
	15	Mast Lowered Height	H1(mm)	2845		2845		2845
	16	Mast Extended Height (With Backrest)	H4(mm)	4270		4270		4270
	17	Side Shift	X(mm)	340-2000	440-2140	340-2000	440-2140	340-2000	440-2140
	18	Overhead Guard Height	H5(mm)	2520	2540	2520	2540	2520	2540
	19	Turning Radius (Outside)	Wa(mm)	3700	3900	3700	3900	3700	3900

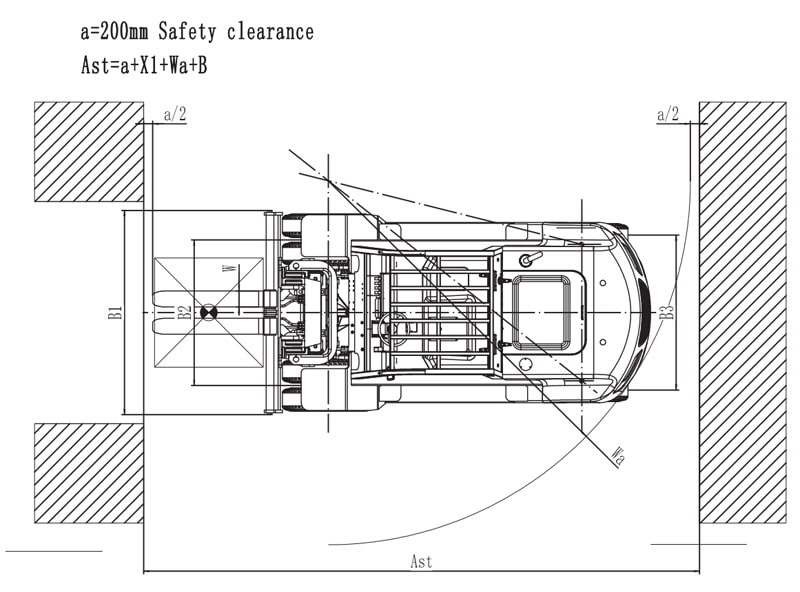

	20	Min.Aisle width for pallets	Ast(mm)	5845	6045	5845	6045	5845	6045
Performance	21	Travel Speed (No Load)	km/h	20	20	20	20	20	20
	22	Lifting Speed (Full Load)	mm/sec	380	310	380	310	380	310
	23	Lowering Speed (Full Load/No Load)	mm/sec	No Load≥300 Full Load≤600
	24	Max.Drawbar Pull (Full Load)	KN	58	58	58	58	58	58
	25	Max.Gradeability (Full Load)	%	20	20	20	20	20	20
Chassis	26	Tyre (Front x 4)		8.25-20-14PR	9.00-20-14PR	8.25-20-14PR	9.00-20-14PR	8.25-20-14PR	9.00-20-14PR
	27	Tyre (Rear x 2)		8.25-20-14PR	9.00-20-14PR	8.25-20-14PR	9.00-20-14PR	8.25-20-14PR	9.00-20-14PR
	28	Front Tread	B2(mm)	1600	1600	1600	1600	1600	1600
	29	Rear Tread	B3(mm)	1700	1700	1700	1700	1700	1700
	30	Wheelbase	Y(mm)	2500	2800	2500	2800	2500	2800
Weight	31	Total Weight	kg	11850	12900	11850	12900	11850	12900
	32	Front Axle Weight Distribution (Full Load)	kg	17800	20610	17800	20610	17800	20610
	33	Rear Axle Weight Distribution (Full Load)	kg	2050	2290	2050	2290	2050	2290
	34	Front Axle Weight Distribution (No Load)	kg	4740	5660	4740	5660	4740	5660
	35	Rear Axle Weight Distribution (No Load)	kg	7110	8240	7110	8240	7110	8240
Power & Transmission	36	Battery	V/Ah	24/90
	37	Engine Model		6BG1		CA4DF3-12GCG3U		QSF3.8
	38	Engine Manufacturer		ISUZU		XICHAI		CUMMINS
	39	Rated Output / r.p.m.	kw	82/2000		85/2200		86/2200
	40	Rated Torque / r.p.m.	N·m	416/1400-1600		460/1300-1700		470/1100-1700
	41	No.of Cylinder		6		4		4
	42	Bore x Stroke	mm	105×125		110×125		102×115
	43	Displacement	L	6.494		4.75		3.76
	44	Fuel Tank Capacity	L	120	120	120	120	120	120
	45	Transmission Type		HYDRAULIC
	46	Transmission Stage (FWD/RVS)		2/1	2/1	2/1	2/1	2/1	2/1
	47	Operating Pressure (For Attachments)	Mpa	19.5	19.5	19.5	19.5	19.5	19.5

Product Features

Reliability & Performance

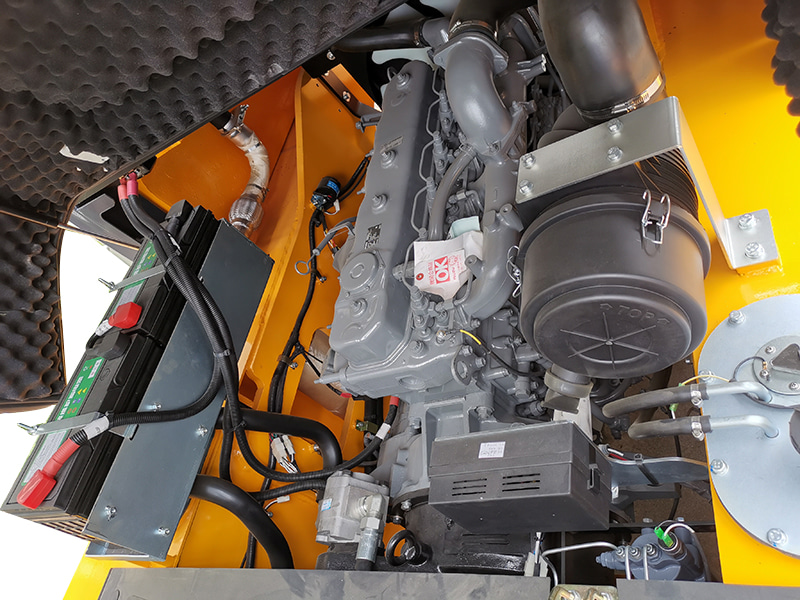

● The chassis, designed with scientific precision and manufactured to the highest standards, works seamlessly with a dependable floating power system to enhance overall performance and maneuverability. It is powered by globally recognized engines including Isuzu, Cummins, and Xichai, and matched with transmissions of Japanese-level quality.

● The reliable hydraulic system, incorporating high-quality pumps and valves or equivalent components, improves both lifting efficiency and steering agility.

● A high-capacity radiator integrated with advanced cooling design ensures the forklift operates consistently even under extreme heat conditions.

● The braking system, fitted with an accumulator, delivers faster response and smoother operation for improved safety and comfort.
Safety & Ergonomics

● Equipped with OPS and a seat switch system, the truck guarantees reliable safety throughout the operation.

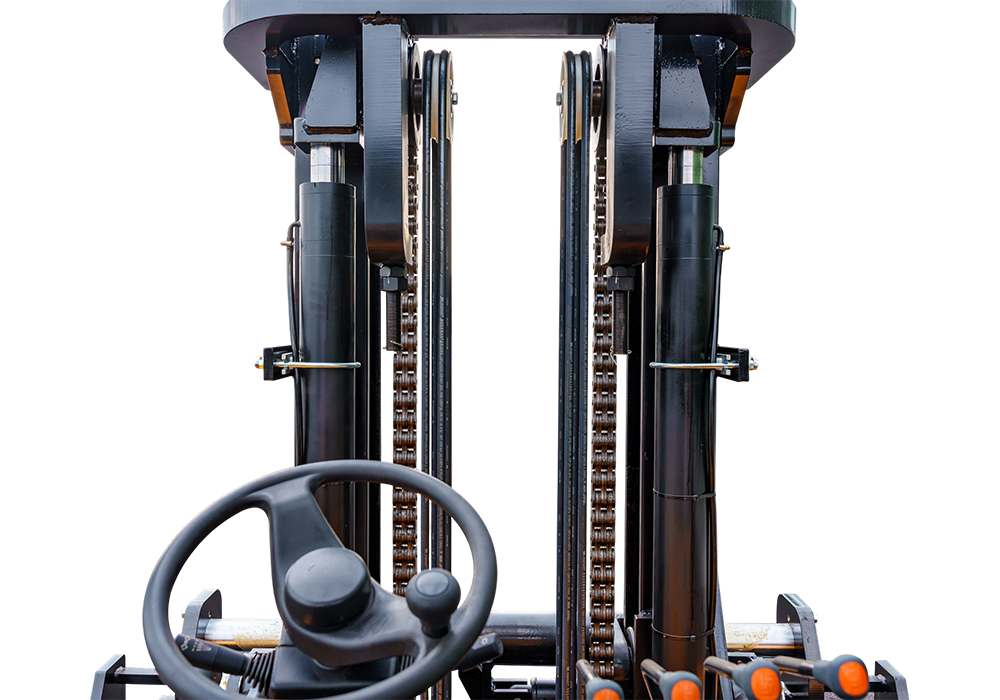

● The wide-view mast is engineered to maximize visibility, enabling operators to perform tasks with greater confidence and precision.

● A robust overhead guard delivers solid protection against potential falling objects.

● The operator's compartment is ergonomically designed, offering ample space for legs and head, an adjustable steering wheel, and a well-cushioned seat to ensure maximum comfort during long shifts.
Easy Maintenance

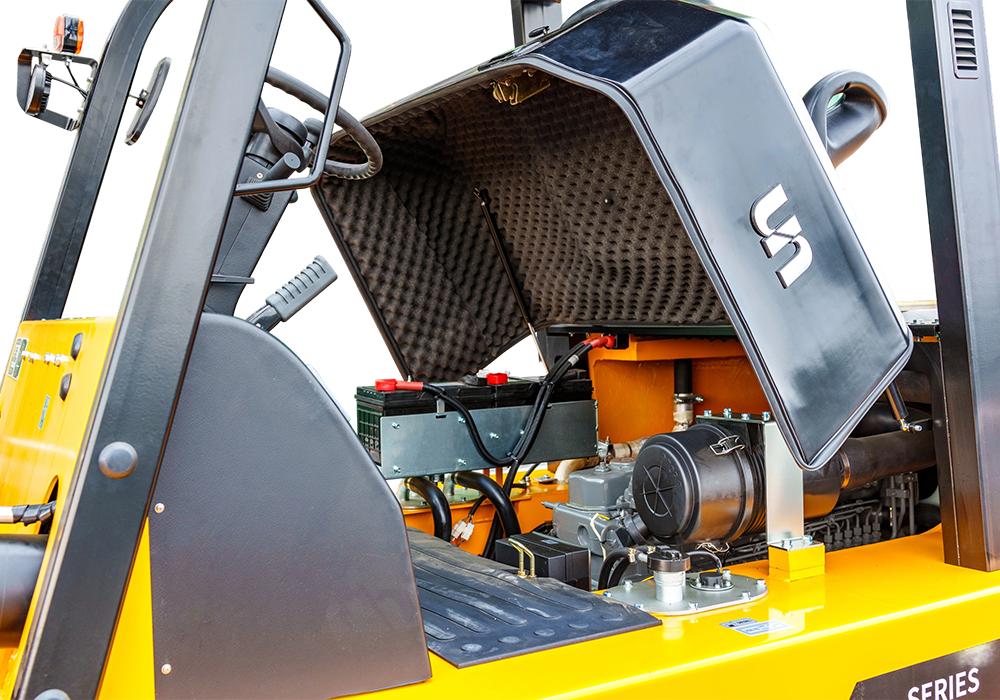

● The engine hood can be opened to almost 90°, enabling quick and easy access for routine maintenance and parts replacement.

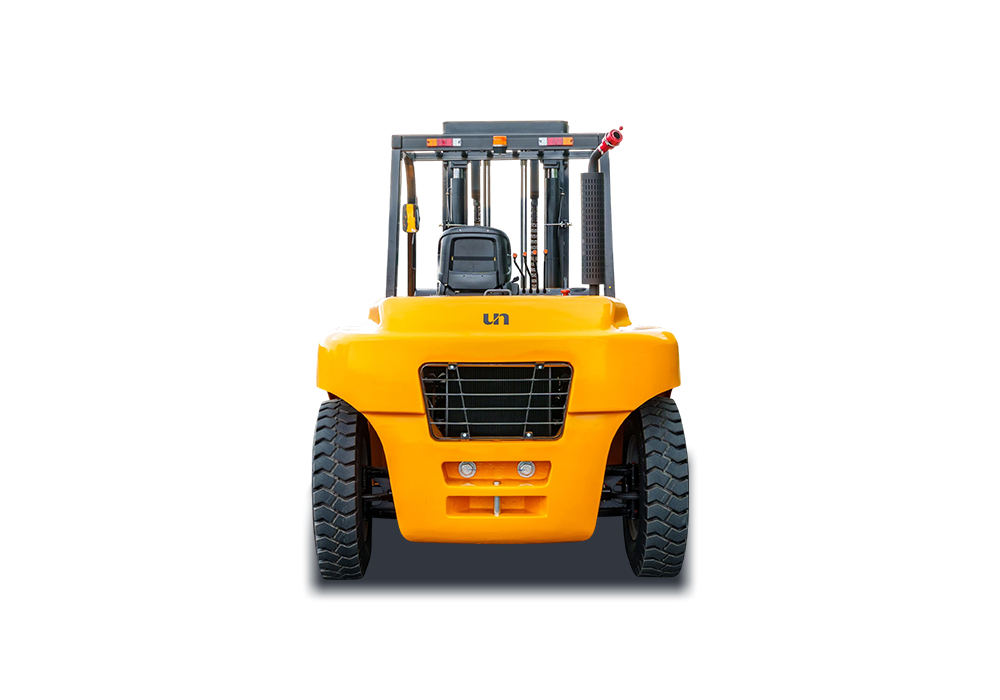

● Redesigned rear cover provides improved accessibility for radiator inspection.

● Internal components are strategically arranged to simplify servicing and reduce maintenance time.
