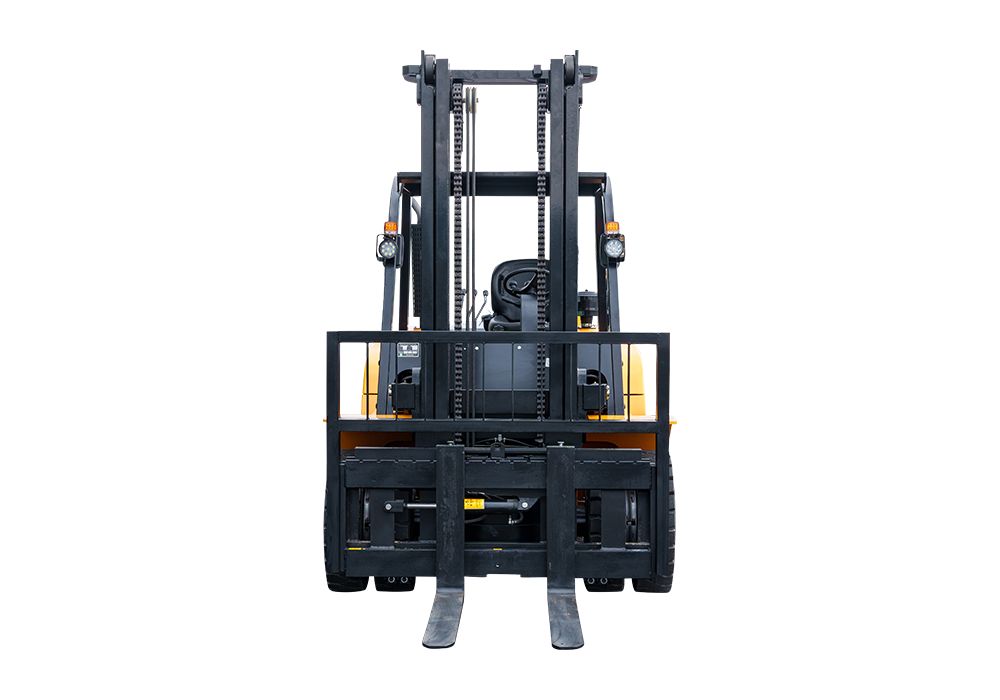

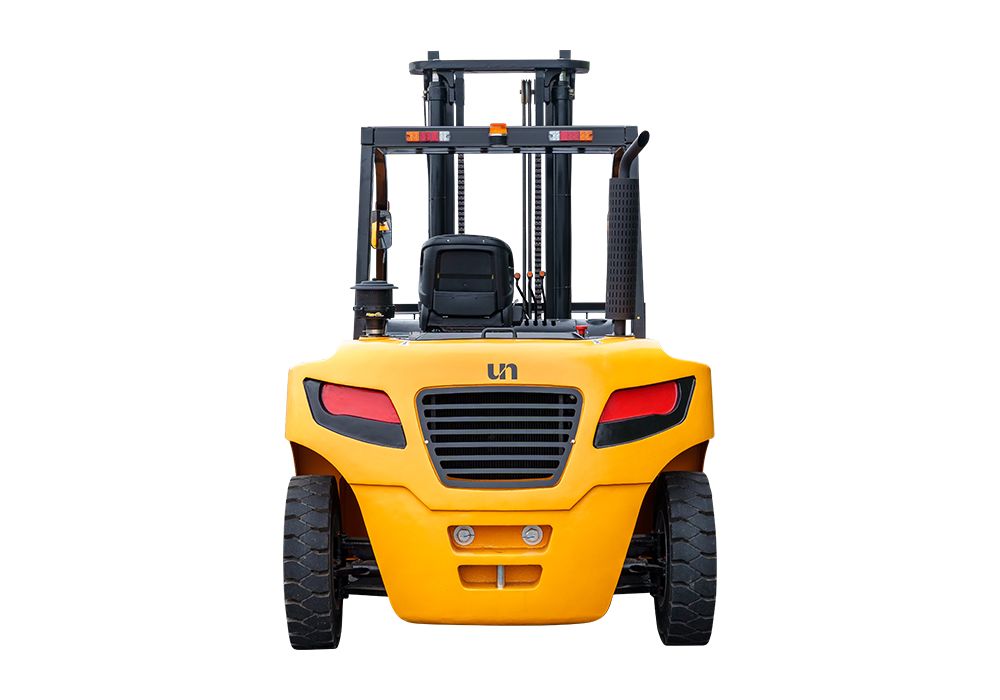

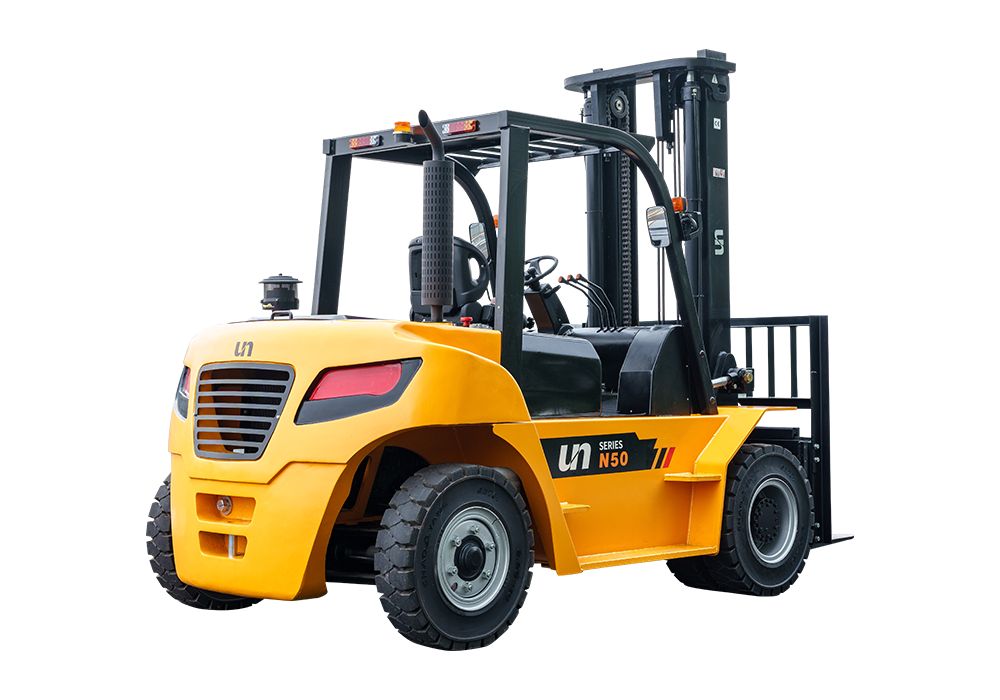

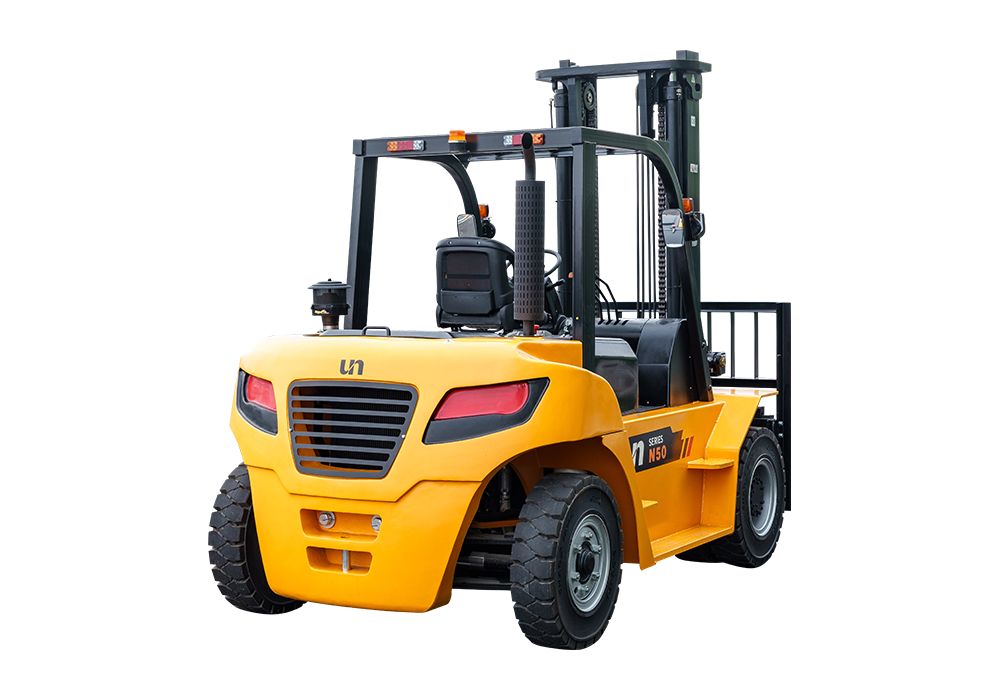

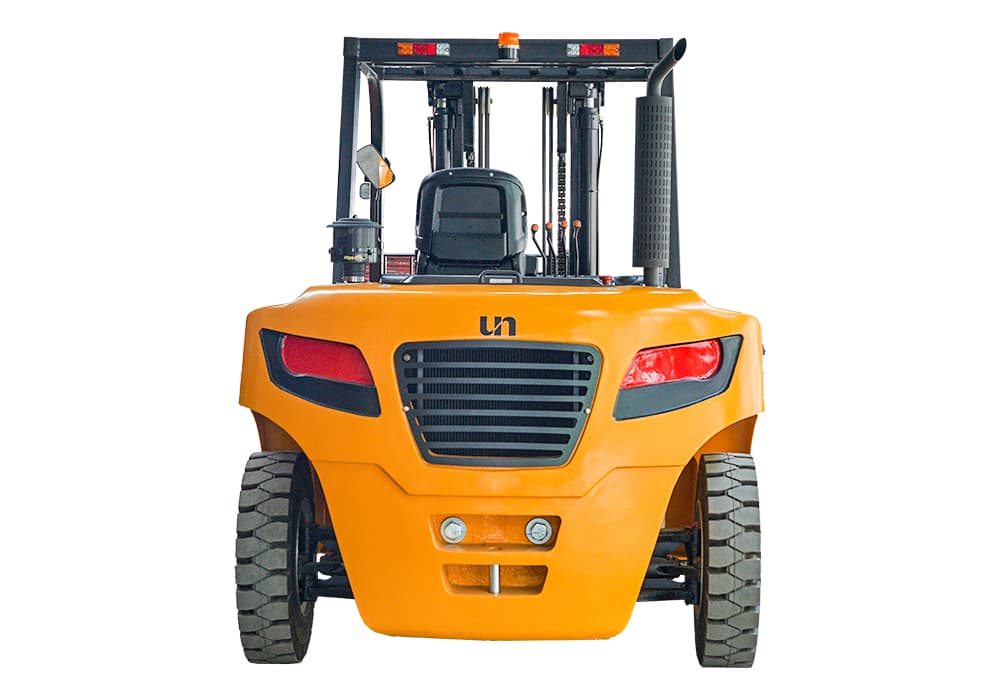

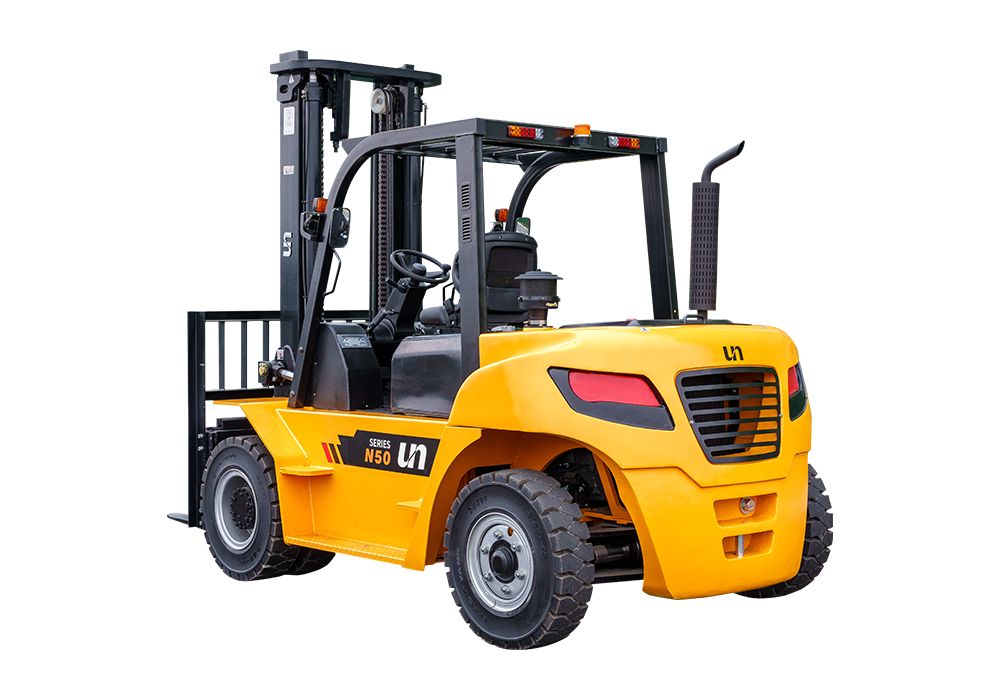

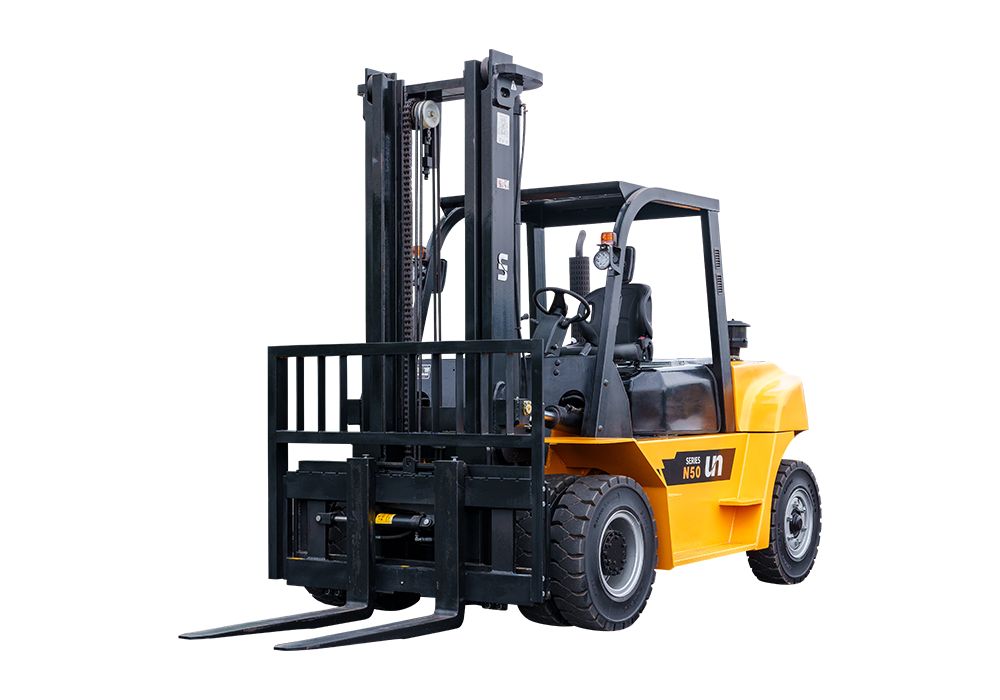

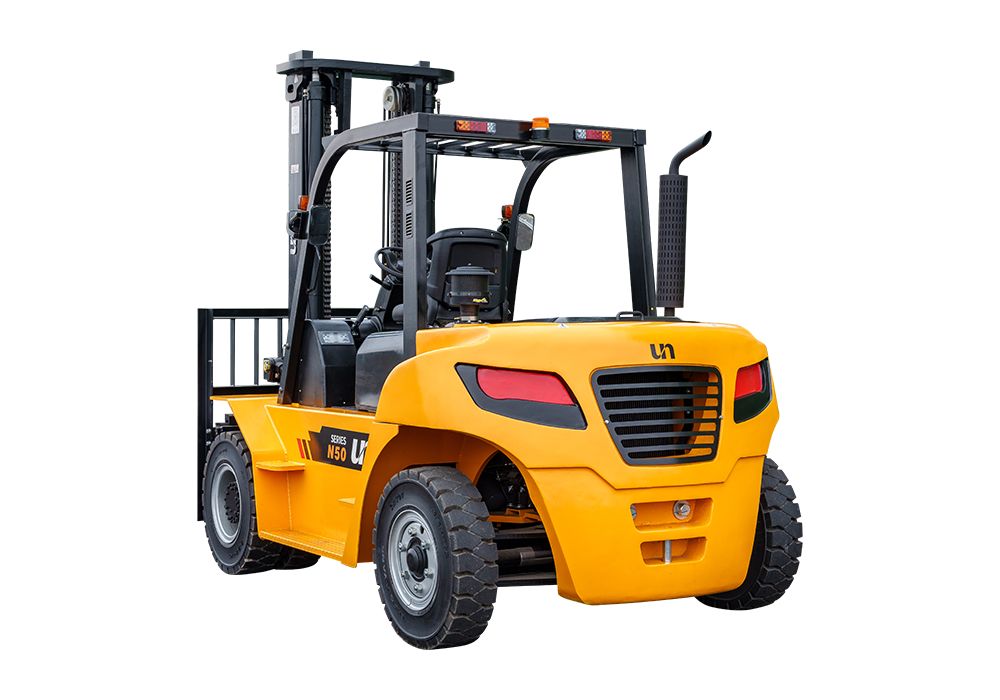

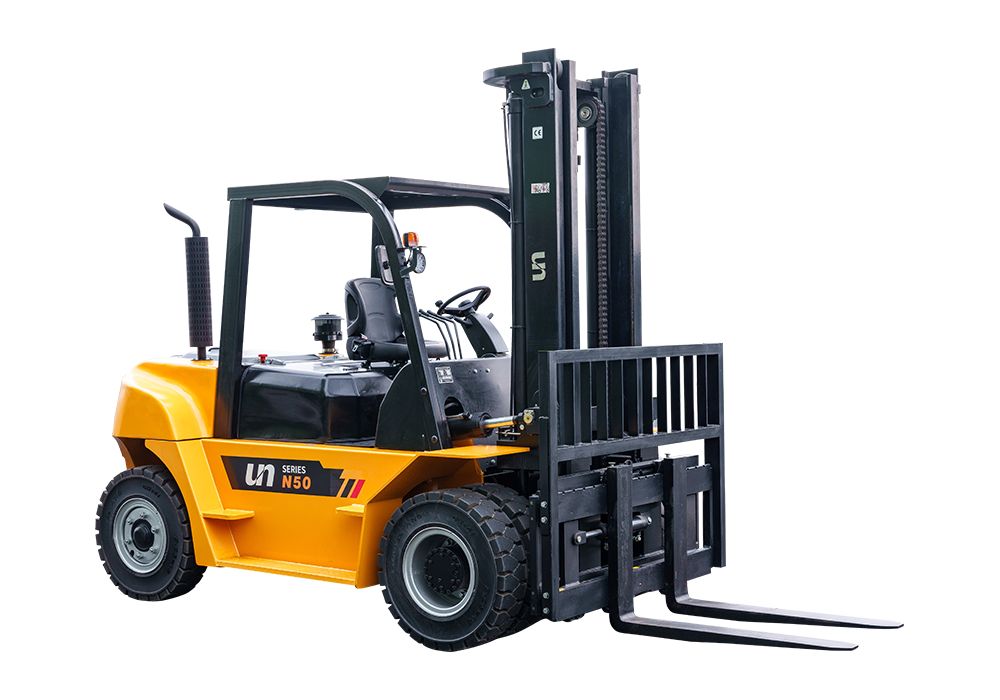

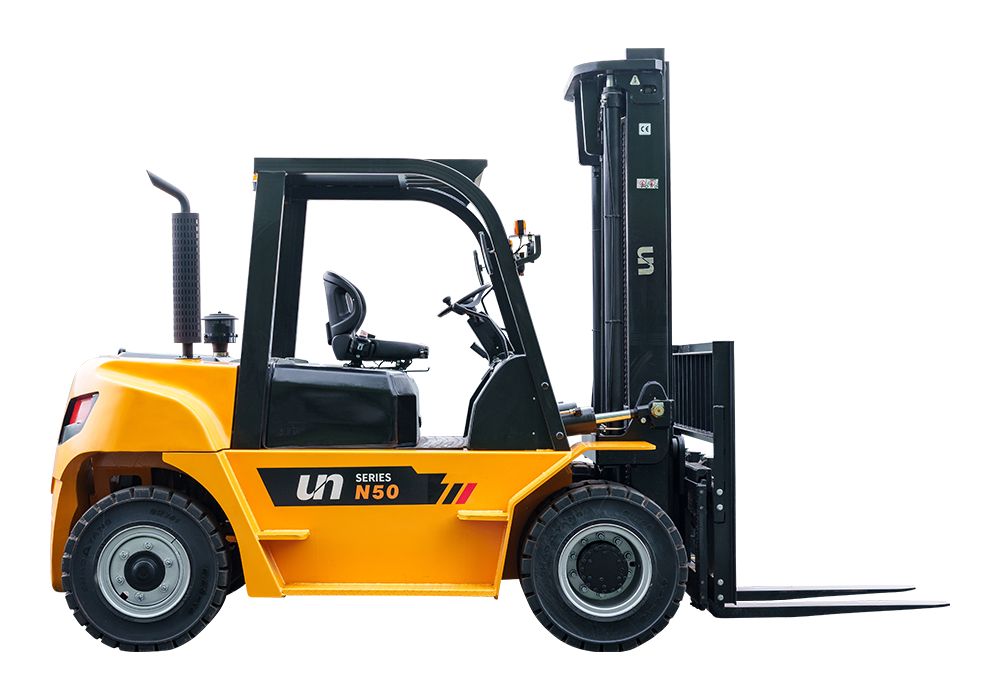

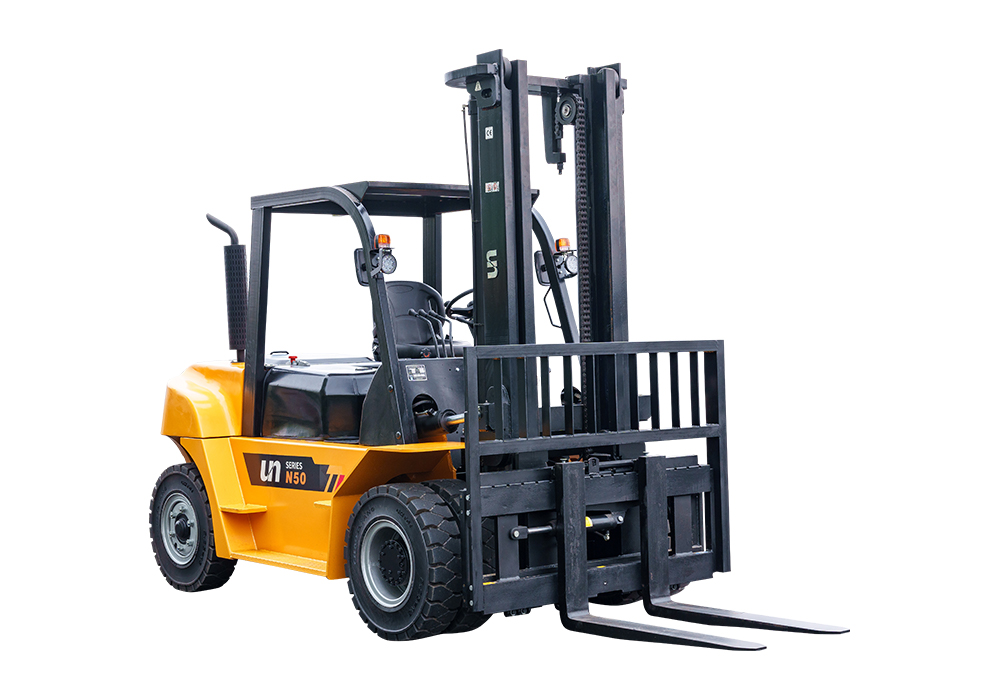

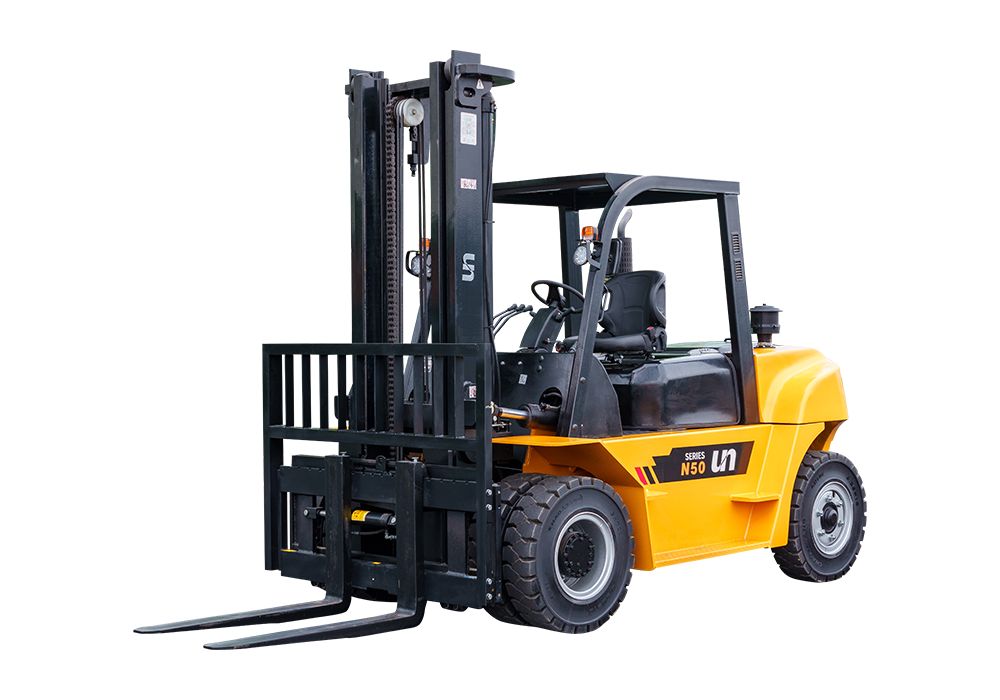

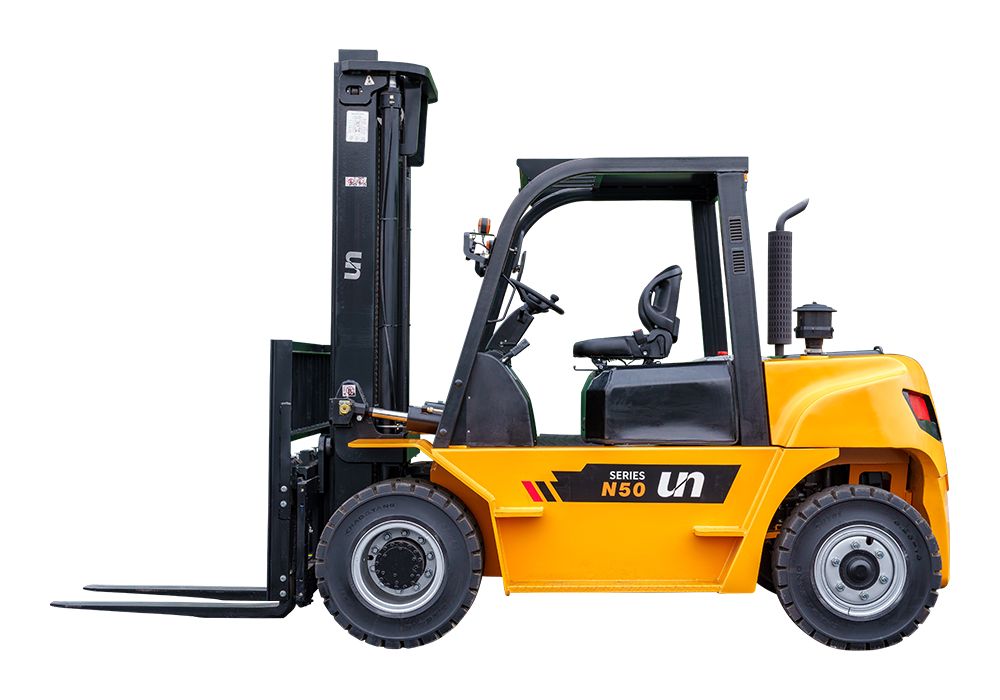

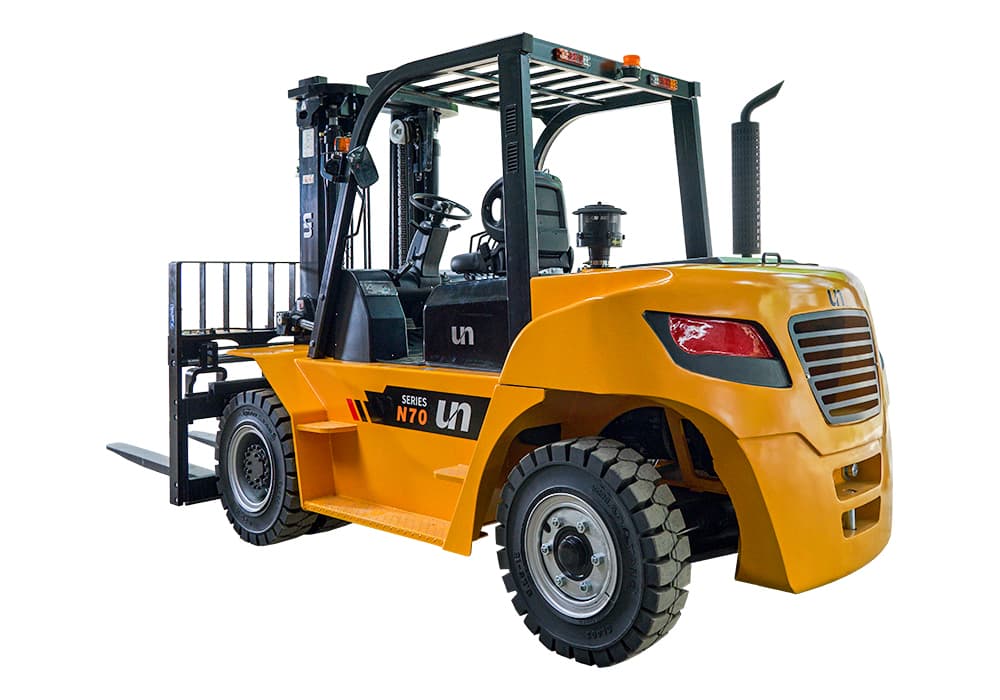

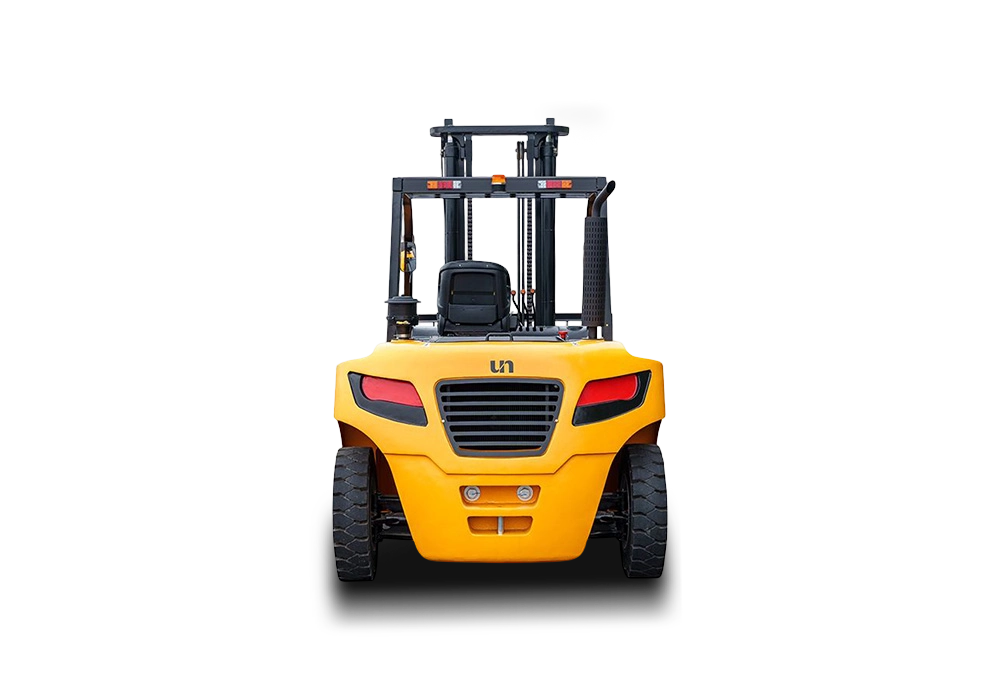

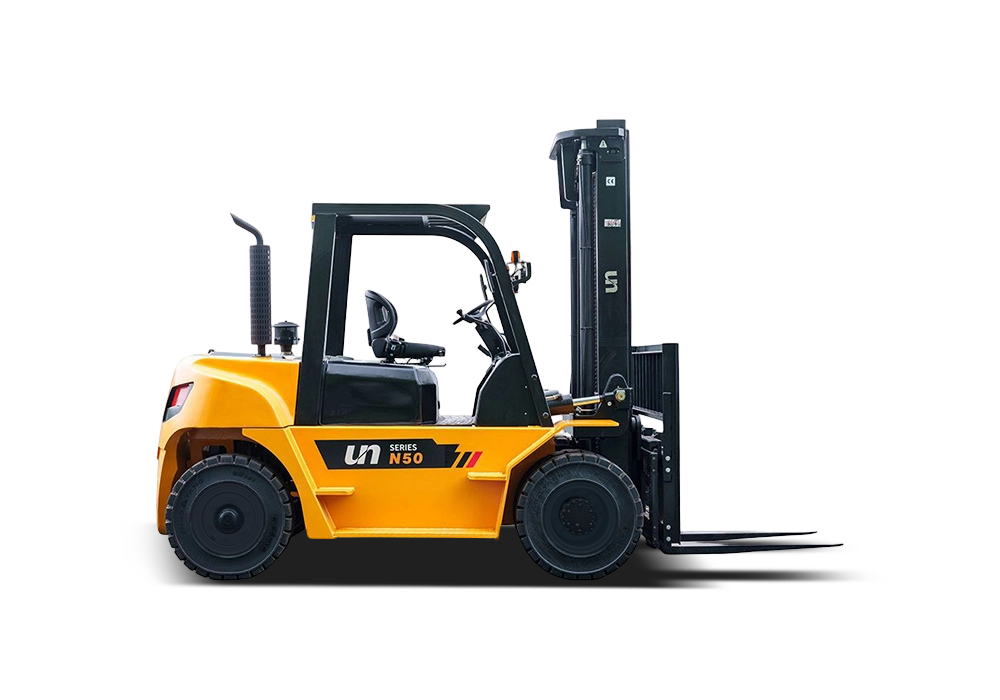

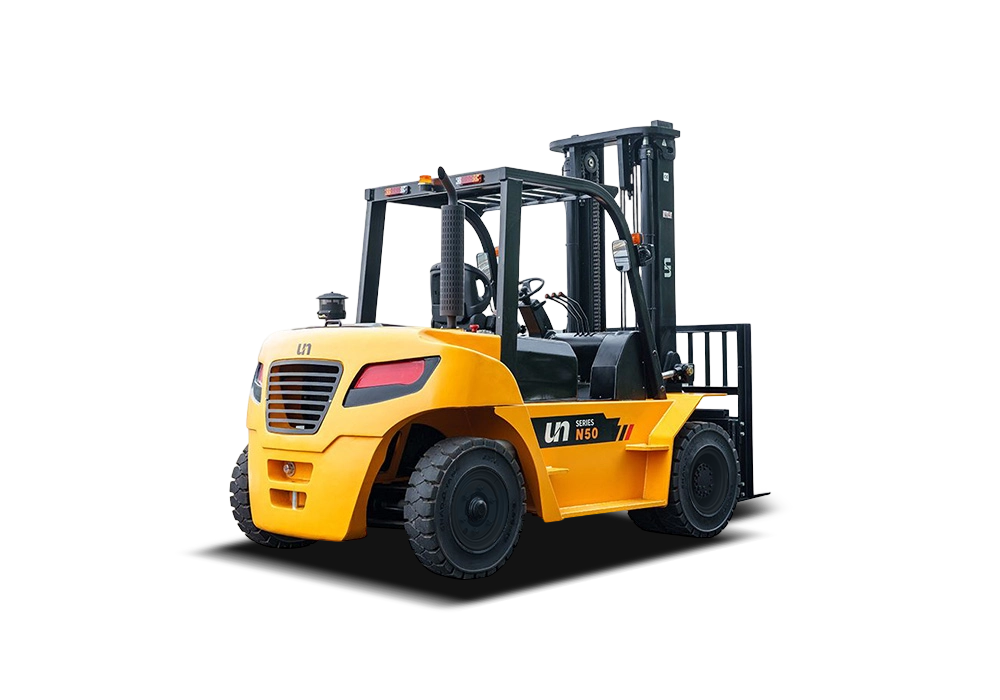

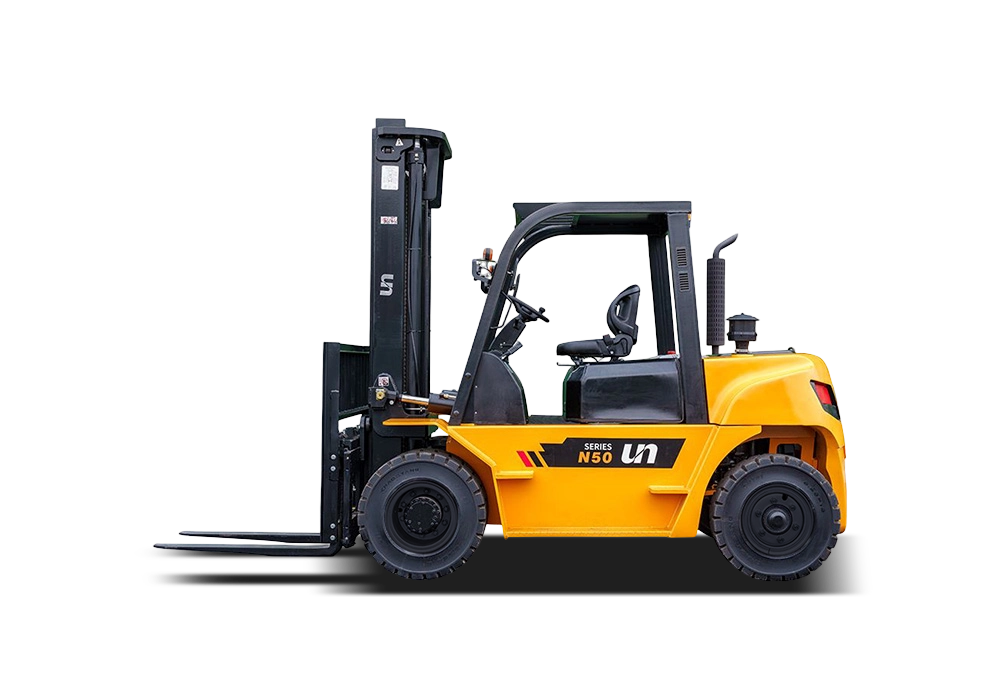

N Series 5.0T-7.0T Heavy Duty Diesel Forklift

Get brochure

Product Description

N Series 5.0–7.0T Heavy-Duty Diesel Forklift is designed to meet mainstream medium and heavy-duty handling demands. Built with a high-strength chassis and heavy-duty mast, it ensures stable performance even in challenging environments.

Equipped with a high-performance engine and a multi-stage filtration cooling system, it enhances reliability for continuous operations. It is specifically designed for medium to heavy-duty material handling, such as transporting empty containers.

E-mail: [email protected]

Product Details

MAIN SPECIFICATIONS

Model		FD50T- NGH1	FD70T- NGH1	FD50T- NJB3	FD70T- NJB3	FD50T- NGP1	FD70T- NGP1	FD50T- NJR1	FD70T- NJR1	FD50T- NJM4	FD70T- NJM4
Rated Load Capacity	Q(kg)	5000	7000	5000	7000	5000	7000	5000	7000	5000	7000
Load Centre	C(mm)	600	600	600	600	600	600	600	600	600	600
Length to Face of Fork (Without Fork)	L1(mm)	3477	3547	3477	3547	3477	3547	3477	3547	3477	3547
Overall Width	B1(mm)	1995	1995	1995	1995	1995	1995	1995	1995	1995	1995
Overhead Guard Height	H5(mm)	2450	2450	2450	2450	2450	2450	2450	2450	2450	2450
Turning Radius (Outside)	Wa(mm)	3280	3360	3280	3360	3280	3360	3280	3360	3280	3360
Travel Speed (No Load)	km/h	20	20	20	20	20	20	20	20	20	20
Max.Gradeability (Full Load)	%	32	24	35	29	35	29	35	29	35	29
Wheelbase	Y(mm)	2250	2250	2250	2250	2250	2250	2250	2250	2250	2250
Total Weight	kg	8260	9760	8260	9760	8260	9760	8260	9760	8260	9760
Engine Model		6102BG6	6102BG6	6BG1	6BG1	CA4DF3- 12GCG3U	CA4DF3- 12GCG3U	QSF3.8	QSF3.8	S6S-T	S6S-T

General	1	Manufacturer		UN
	2	Model		FD50T-NGH1	FD70T-NGH1	FD50T-NJB3	FD70T--NJB3	FD50T-NGP1	FD70T-NGP1	FD50T-NJR1	FD70T-NJR1	FD50T-NJM4	FD70T-NJM4
	3	Power Type		Diesel
	4	Rated Load Capacity	Q(kg)	5000	7000	5000	7000	5000	7000	5000	7000	5000	7000
	5	Load Centre	C(mm)	600
Characteristic & Dimension	6	Rated Lift Height	H3(mm)	3000
	7	Free Lift Height	H2(mm)	212	217	212	217	212	217	212	217	212	217
	8	Fork Size (L×W×T)	mm	1220×150×60	1220×150×65	1220×150×60	1220×150×65	1220×150×60	1220×150×65	1220×150×60	1220×150×65	1220×150×60	1220×150×65
	9	Mast Tilt Angle (F/R, α°/β°)	deg	6°/12°
	10	Fork Overhang (Wheel Center to Fork Face)	X1(mm)	587	592	587	592	587	592	587	592	587	592
	11	Rear Overhang	X2(mm)	640	705	640	705	640	705	640	705	640	705
	12	Ground Clearance (Bottom of Mast)	H7(mm)	200
	13	Length to Face of Fork (Without Fork)	L1(mm)	3477	3547	3477	3547	3477	3547	3477	3547	3477	3547
	14	Overall Width	B1(mm)	1995
	15	Mast Lowered Height	H1(mm)	2515	2615	2515	2615	2515	2615	2515	2615	2515	2615
	16	Mast Extended Height (With Backrest)	H4(mm)	4437
	17	Overhead Guard Height	H5(mm)	2450
	18	Turning Radius (Outside)	Wa(mm)	3280	3360	3280	3360	3280	3360	3280	3360	3280	3360
	19	Min.Aisle width for pallets	Ast(mm)	5285	5365	5285	5365	5285	5365	5285	5365	5285	5365
Performance	20	Travel Speed (No Load)	km/h	20
	21	Lifting Speed (Full Load)	mm/sec	400	330	500	460	400	330	400	330	400	330
	22	Lowering Speed (Full Load/No Load)	mm/sec	No Load≥300 Full Load≤600
	23	Max.Drawbar Pull (Full Load)	KN	54
	24	Max.Gradeability (Full Load)	%	32	24	35	29	35	29	35	29	35	29
Chassis	25	Tyre (Front x 4)	mm	8.25-15-14PR
	26	Tyre (Rear x 2)	mm	8.25-15-14PR
	27	Front Tread	mm	1470
	28	Rear Tread	mm	1700
	29	Wheelbase	Y(mm)	2250
Weight	30	Total Weight	kg	8260	9760	8260	9760	8260	9760	8260	9760	8260	9760
	31	Front Axle Weight Distribution (Full Load)	kg	11860	14870	11860	14870	11860	14870	11860	14870	11860	14870
	32	Rear Axle Weight Distribution (Full Load)	kg	1400	1890	1400	1890	1400	1890	1400	1890	1400	1890
	33	Front Axle Weight Distribution (No Load)	kg	4250	4170	4250	4170	4250	4170	4250	4170	4250	4170
	34	Rear Axle Weight Distribution (No Load)	kg	4010	5590	4010	5590	4010	5590	4010	5590	4010	5590
Power & Transmission	35	Battery	V/Ah	24/90
	36	Engine Model		6102BG6		6BG1		CA4DF3-12GCG3U		QSF3.8		S6S-T
	37	Engine Manufacturer		CHAOCHAI		ISUZU		XICHAI		CUMMINS		MITSUBISHI
	38	Rated Output / r.p.m.	kw	80.9/2500		82/2000		85/2200		86/2200		63.9/2300
	39	Rated Torque / r.p.m.	N·m	353/1650		416/1400－1600		460/1300-1700		470/1100-1700		285/1700
	40	No.of Cylinder		6				4				6
	41	Bore x Stroke	mm	102×118		105×125		110×125		102×115		94×120
	42	Displacement	L	5.785		6.494		4.75		3.76		4.996
	43	Fuel Tank Capacity	L	120
	44	Transmission Type		HYDRAULIC
	45	Transmission Stage (FWD/RVS)		2/1
	46	Operating Pressure (For Attachments)	Mpa	19.5

Product Features

Reliability & Performance

● Scientifically engineered and precisely manufactured chassis combined with a highly reliable floating power system delivers superior performance and handling. The powertrain is equipped with world-renowned engines such as Isuzu, Cummins, and Xichai, paired with transmissions that rival Japanese technology.

● Premium hydraulic system featuring high-quality pumps and valves, or equivalent brands, ensures faster lifting and steering response.

● Advanced cooling technology with a large-capacity radiator guarantees stable operation even in high-temperature environments.

● The accumulator-equipped braking system provides quicker, smoother braking response.
Safety & Ergonomics

● OPS and seat interlock switch ensure safe operation at all times.

● Wide-view mast design provides operators with enhanced visibility during work.

● Strong overhead guard protects drivers from falling objects.

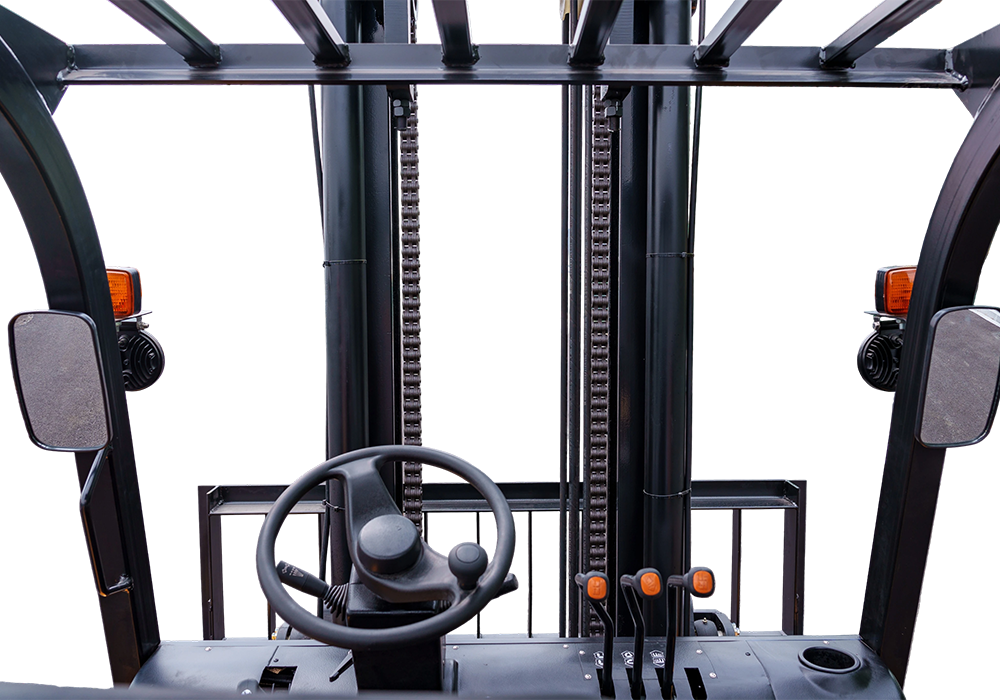

● Ergonomically designed cabin with generous legroom and headroom, adjustable steering wheel, and comfortable seating.
Easy Maintenance

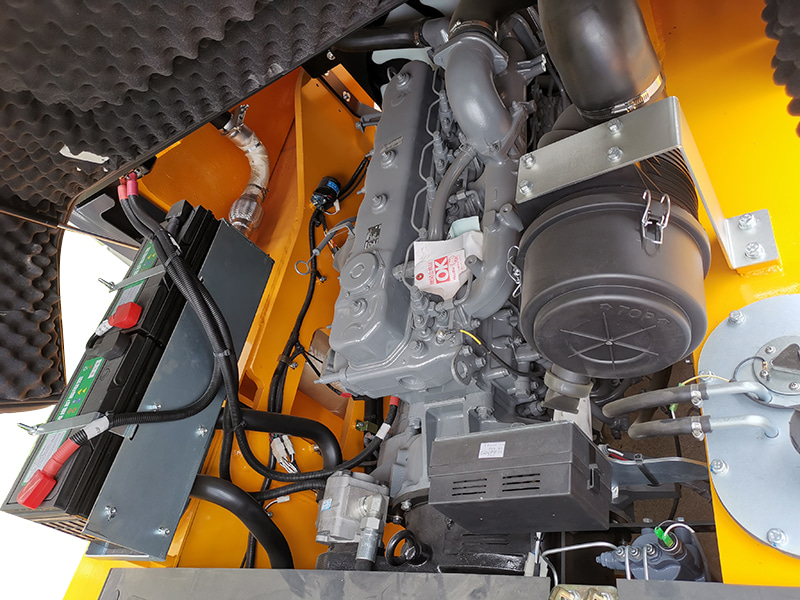

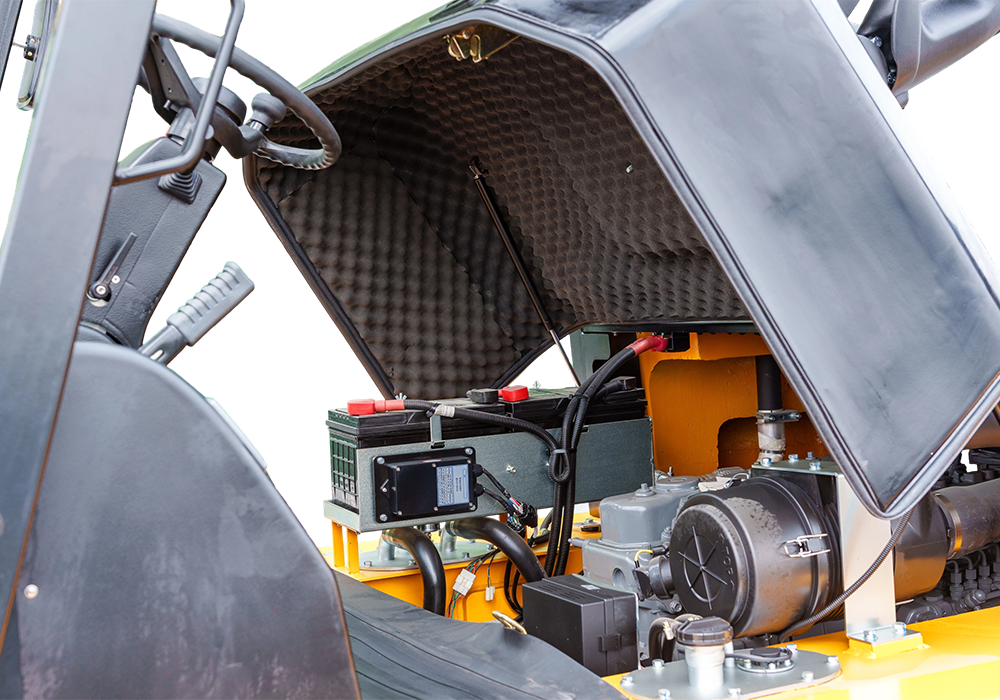

● Engine hood opens nearly 90°, allowing effortless daily inspection and component replacement.

● Optimized rear cover design makes radiator checks simple and convenient.

● Well-organized internal layout enhances maintenance efficiency.
