IC Cushion Tire Forklift

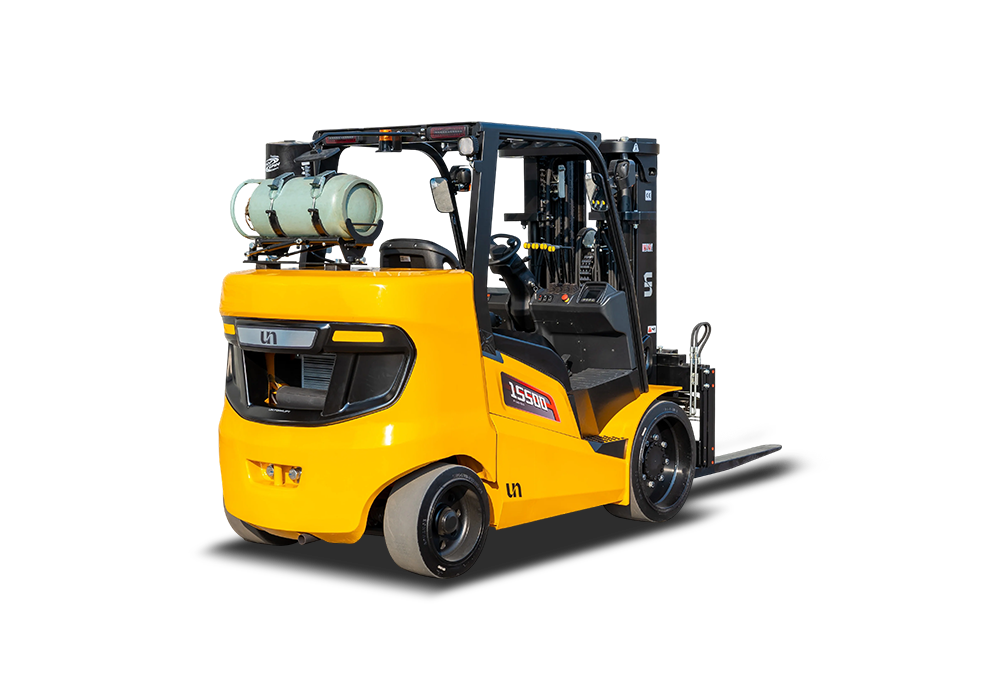

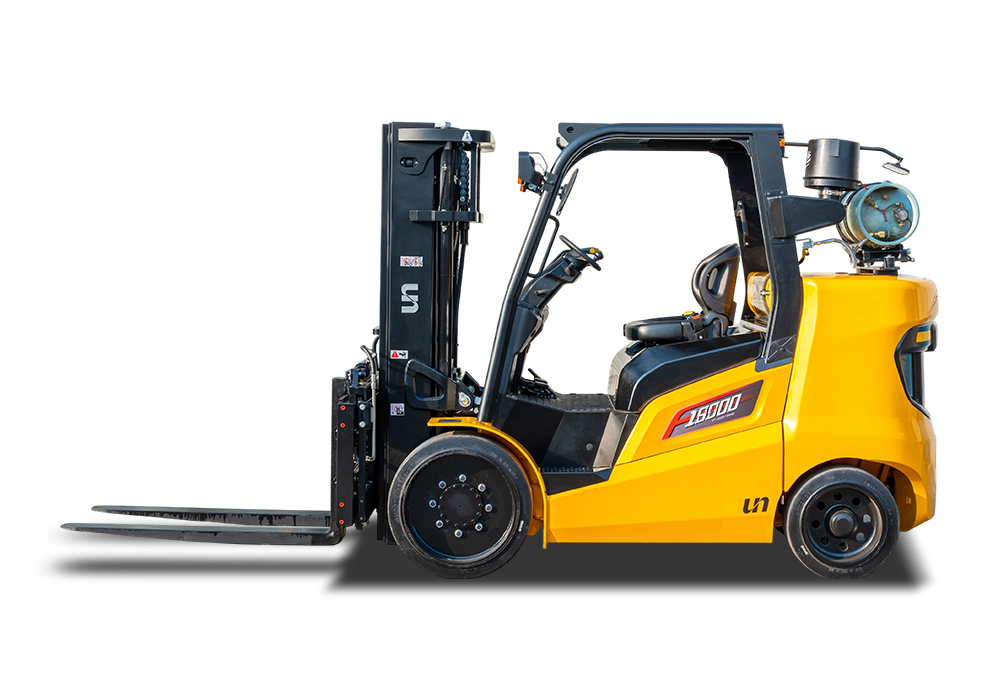

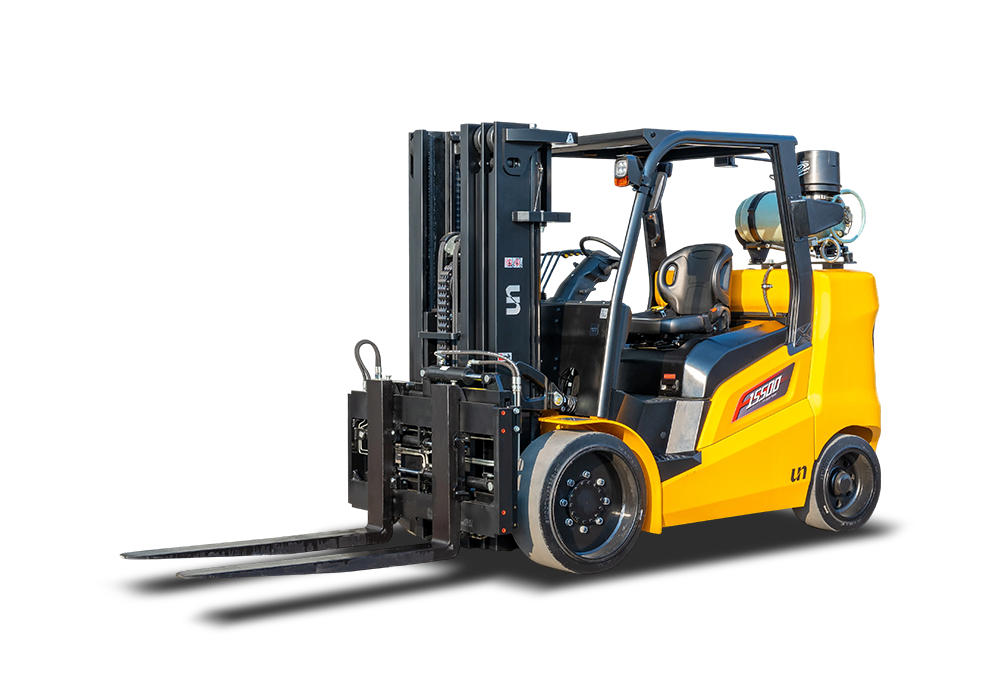

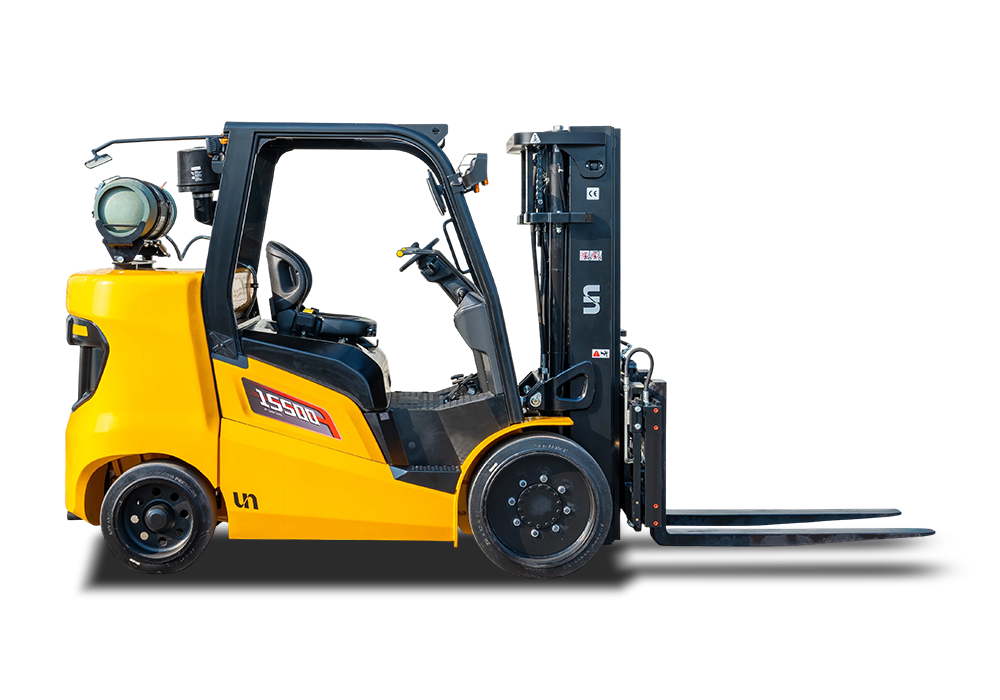

F Series 6.0T-7.0T LPG Forklift
(Cushion Tire)

Get brochure

Product Description

Developed for North American operating environments, the F Series LPG Cushion Tire Forklift combines strong lifting capability with a compact design.

Built with a focus on durability, efficiency, and ease of operation, it delivers consistent performance for demanding indoor and industrial applications.

E-mail: [email protected]

Product Details

MAIN SPECIFICATIONS

Model		FL60T	FL70T
Rated Load Capacity	lb（kg）	13,500 (6,000)	15500(7000)
Load Centre	in（mm）	24 (610)	24 (610)
Length to Face of Fork（Without Fork）	in（mm）	118(3000)	118(3000)
Overall Width	in（mm）	55.9(1420)	55.9(1420)
Overhead Guard Height	in（mm）	88(2235)	88(2235)
Turning Radius（Outside）	in（mm）	102(2590)	102(2590)
Travel Speed（No Load）	mph（km/h）	13/13(21/21)	13/13(21/21)
Max.Gradeability	%	31/24	27/23
Wheelbase	in（mm）	74.2 (1885)	74.2 (1885)
Total Weight	lb（kg）	19510(8850)	21319（9670）
Engine Model		Kubota WG3800	Kubota WG3800

Product Features

High Performance

● Implementation of a load-sensing steering system.

● Integration of a high-angle cast steering axle.

● Equipped with OPS.

● Equipped with a high-power certified KUBOTA engine.

● Dedicated wet clutch and hydraulic system designed for extreme operating conditions.

● Independent oil pump for drive axle cooling, oil service life >2,000 hours.

● Reinforced axle housing design, ensuring long-term durability and dependable performance in heavy-load applications.

● Floating transmission reduces seat vibration.

● Optimized control valves ensure smooth shifting and improved driving comfort.
Safety & Reliability

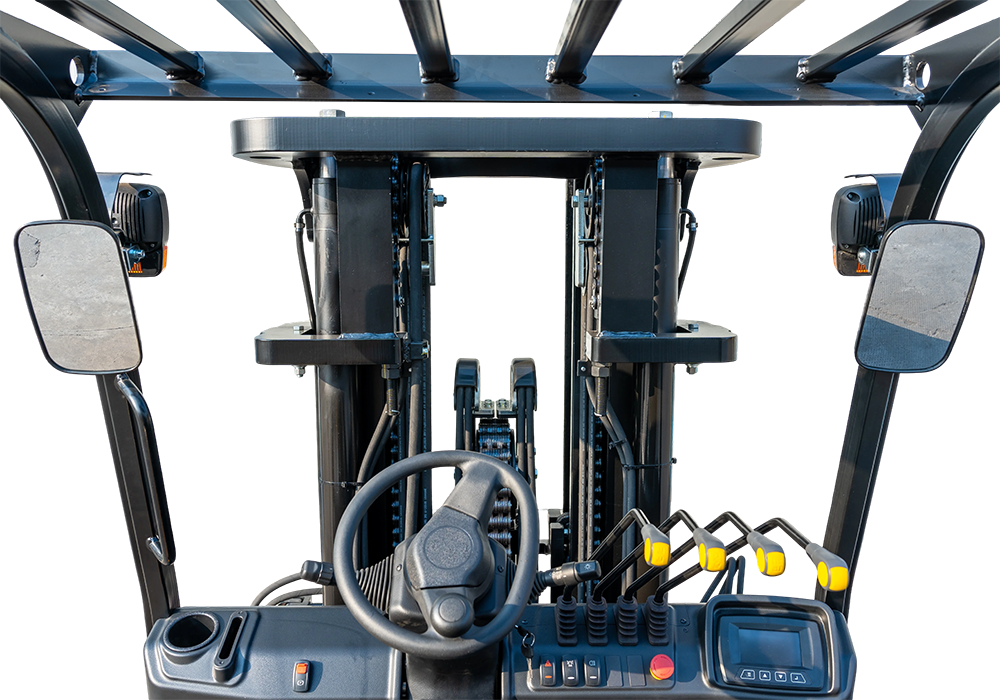

● Utilization of a small-diameter steering wheel, electro-hydraulic gear shift.

● Equipped with a fully suspension seat to enhance comfort.

● Multifunctional LCD instrument panel, offering real-time monitoring.

● Independent solenoid control valve for electronic parking brake, improving safety and reliability.

● Precision bevel gear face-milling process, reducing operating noise and improving durability.

● Durable electronic control wet brake, automatically applied when the operator leaves the seat without engaging the parking brake.

● High braking torque with fast response, delivering short stopping distances.
Easy Maintenance

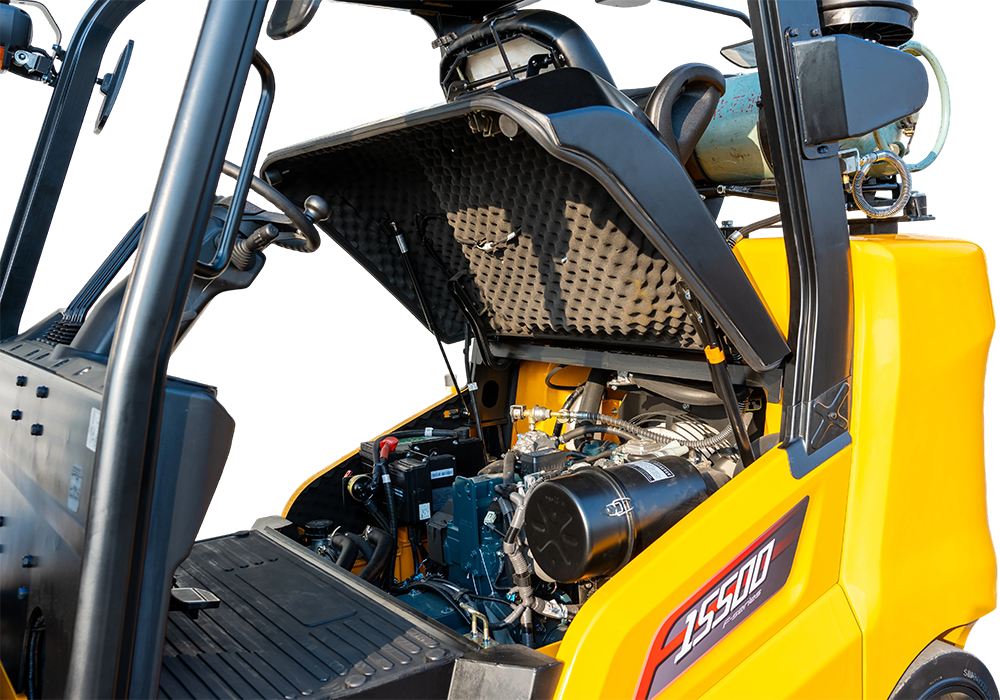

● Increased hood opening angle provides a more spacious working environment for inspection and maintenance tasks.

● Detachable left and right guard plates for convenient maintenance.
