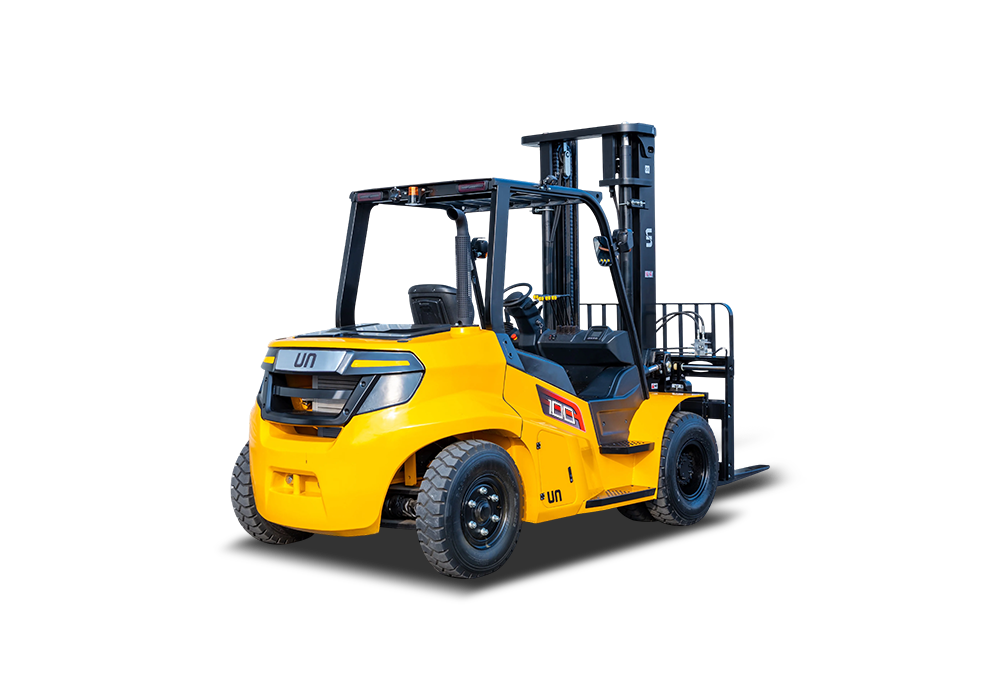

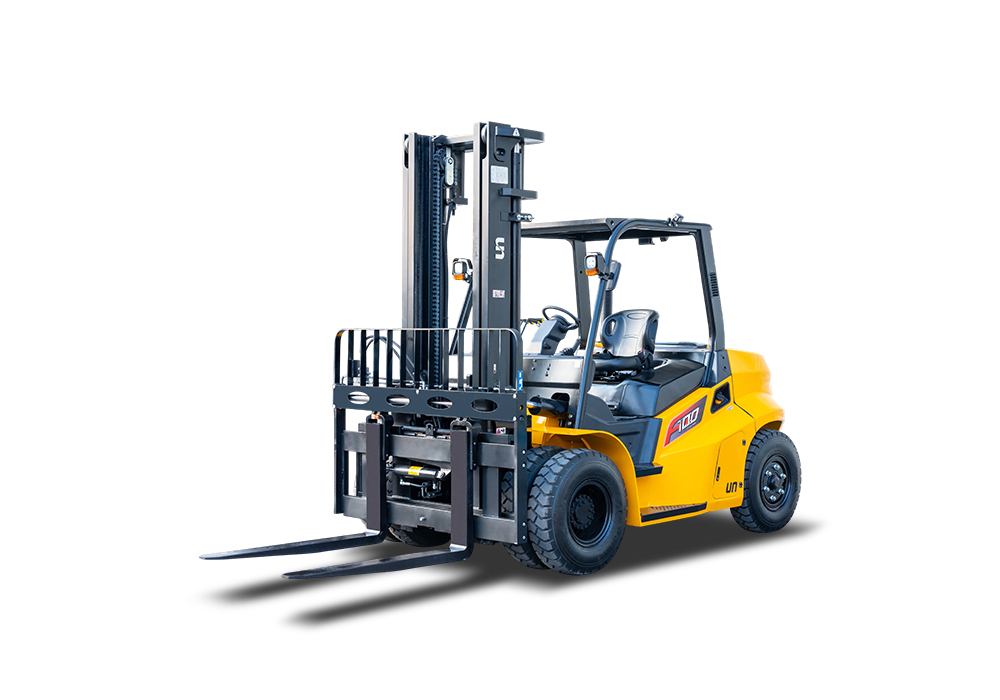

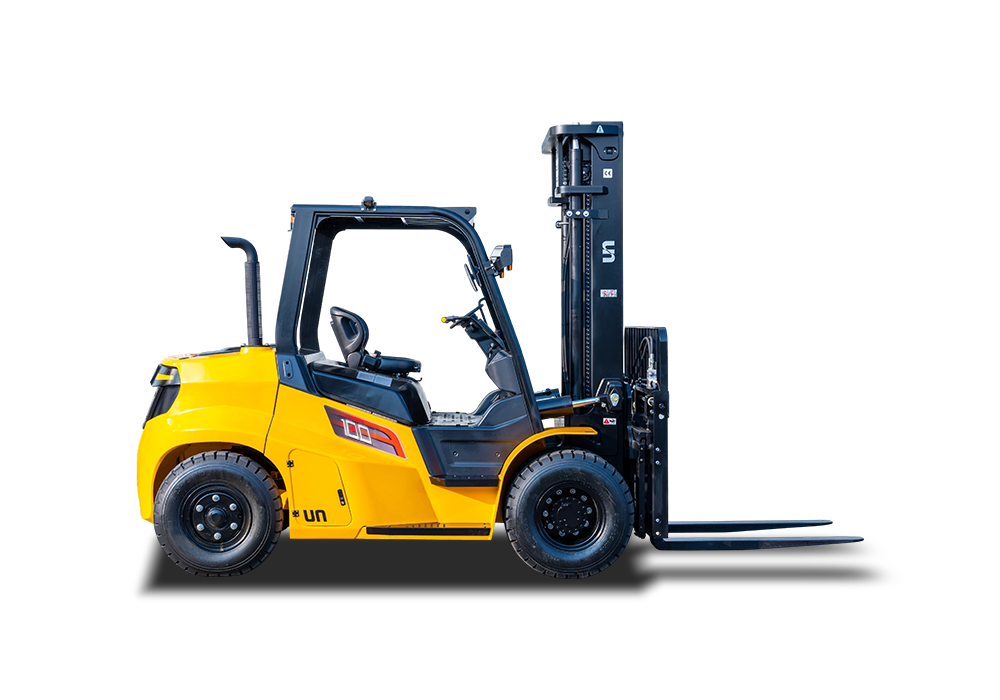

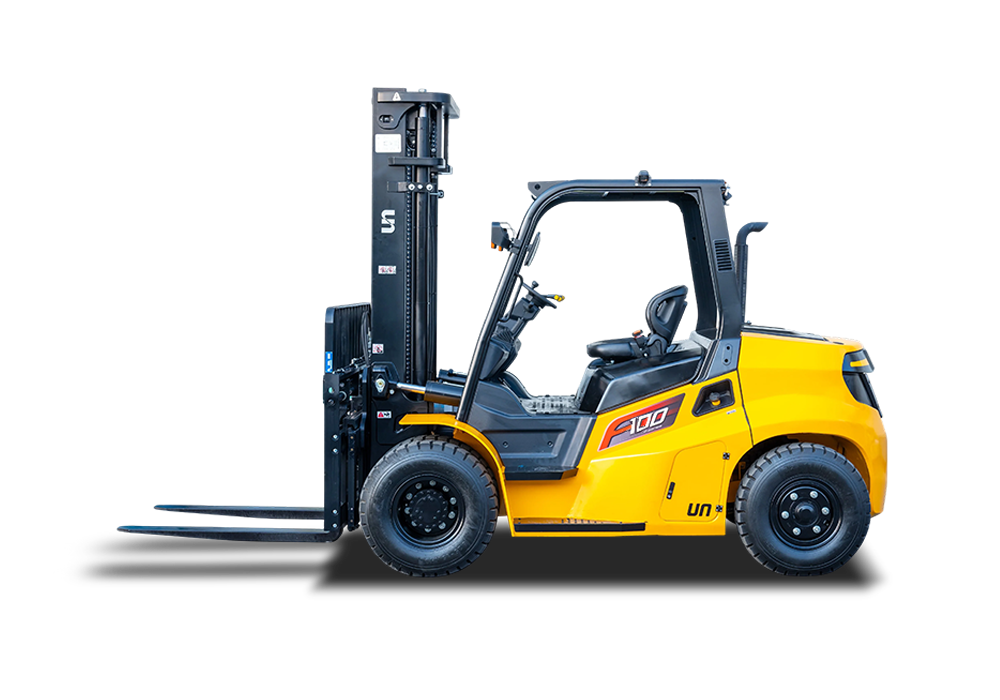

F Series 8.0T-10.0T Heavy Duty Diesel Forklift

Get brochure

Product Description

F Series 8.0-10.0 ton heavy-duty internal combustion forklifts feature a modern, robust, and streamlined design. Designed for high-intensity, long-duty, and heavy-load operations, they are ideal for demanding applications such as ports, steel, building materials, and logistics parks.

E-mail: [email protected]

Product Details

MAIN SPECIFICATIONS

Model		FD70T	FD100T
Rated Load Capacity	Q(kg)	7000	10000
Load Centre	C(mm)	600	600
Length to Face of Fork (Without Fork)	L1(mm)	3582	4200
Overall Width	B1(mm)	2045	2165
Overhead Guard Height	H5(mm)	2440	2550
Turning Radius (Outside)	Wa(mm)	3340	3940
Travel Speed (Full Load/No Load)	km/h	29/31	30/32
Max.Gradeability (Full Load/No Load)	%	32/20	21/20
Wheelbase	Y(mm)	2300	2800
Total Weight	kg	9400	12800
Engine Model		F3.8 / 6BG1	F3.8 / 6BG1

Product Features

High Performance

● Leading-brand multi-way valve with steering priority for efficient hydraulics.

● The dual-pump flow merging system enhances work efficiency and reduces energy loss.

● Optimized load capacity design for enhanced overall stability.

● The front 2/rear 2 gearboxes boost the driving speed by 20%, improving acceleration and climbing performance.

● High-performance cooling system increases heat dissipation by 20%, ensuring long-term reliability.

● Cummins F3.8 with DOC + DPF + SCR, EU Stage V & EPA Tier 4 Final compliant.

● Isuzu 6BG1 engine option for low-emission markets, proven durability.

● Heavy-duty, floating transmisslon with over 20 years of proven reliability, ensuring stable, efficient, and smooth operation.

● Load-sensing hydraulic system for high efficiency and lower energy consumption.

● Full LED lighting system for low energy use and long service life.
Safety & Reliability

● Integral cast drive axle for higher load capacity and long service life.

● High-strength box-frame steering axle ensures rigidity and durability.

● Reinforced transverse steering cylinder with protective cover.

● Heavy-duty overhead guard with reinforced top structure.

● Optional OPS disables travel and mast functions when the operator leaves the seat.

● Large capacity air filter with safety filter element and pressure alarmfunction.

● Heavy-duty radiator ensures reliable cooling under high-load conditions.
Ergonomic Design

● Adjustable semi-enclosed seat reduces fatigue during long operations.

● Ratchet-type parking brake for light operation and reliable braking.

● Wide-view mast improves lateral visibility by ~10%.

● Mast cylinder cushioning for smoother lift and lowering operation.

● Ample legroom and headroom for operator comfort.
Easy Maintenance

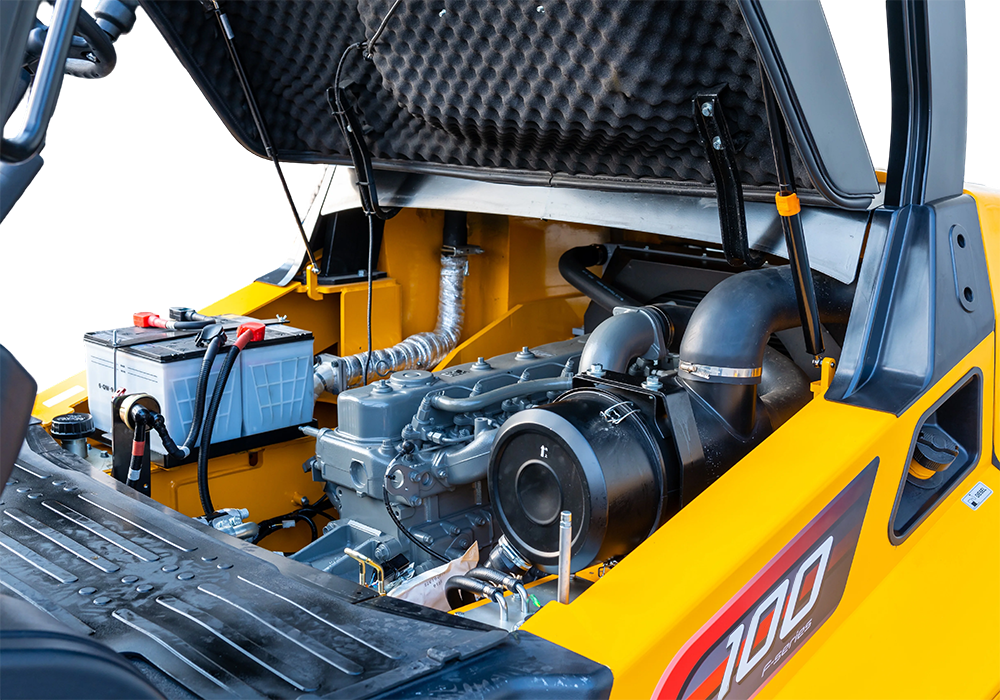

● Big opening engine hood with removable floor plates for easy servicing.

● Integrated side electrical cabinets for quick inspection, with extra storage space.
