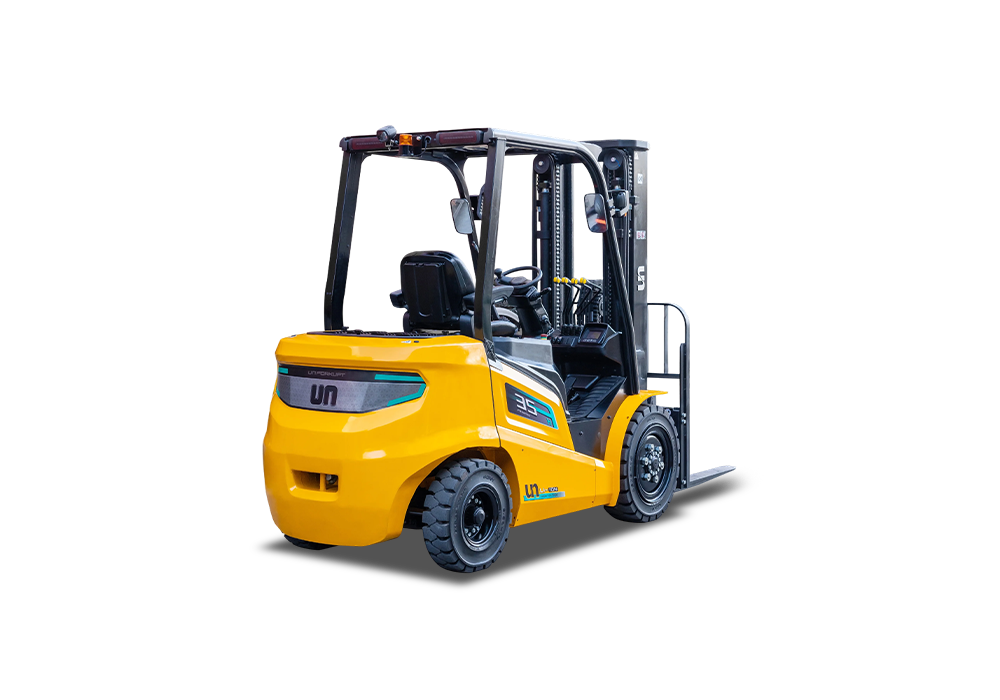

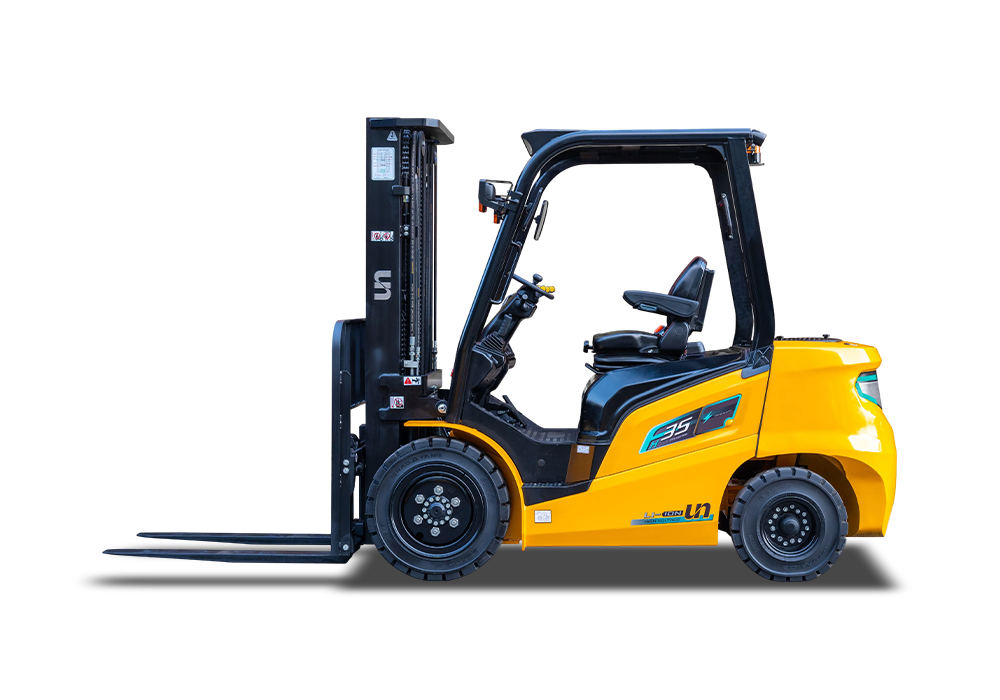

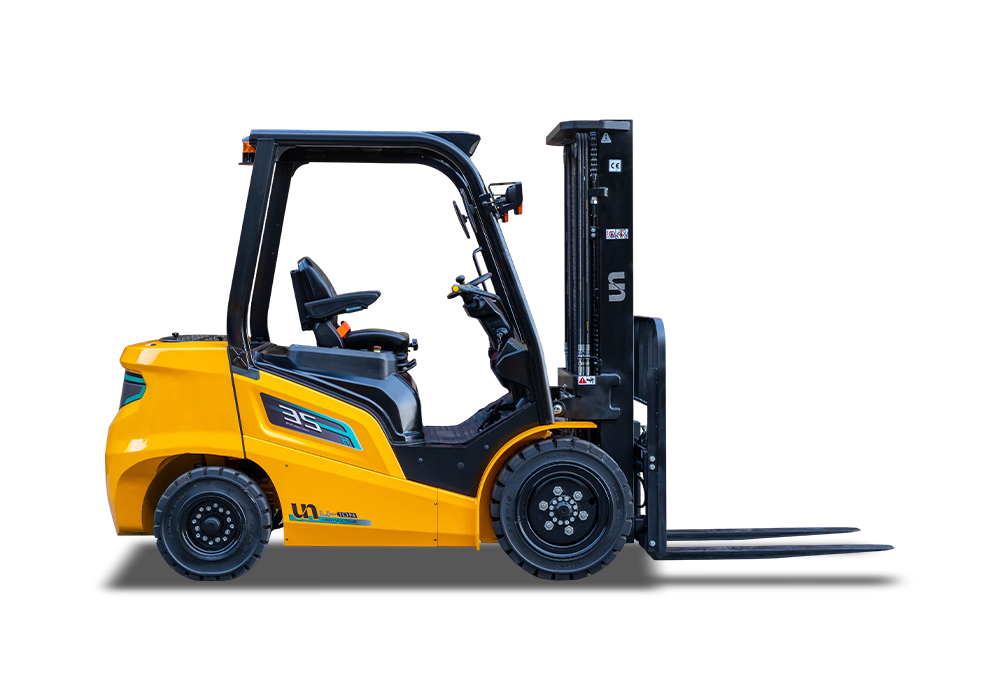

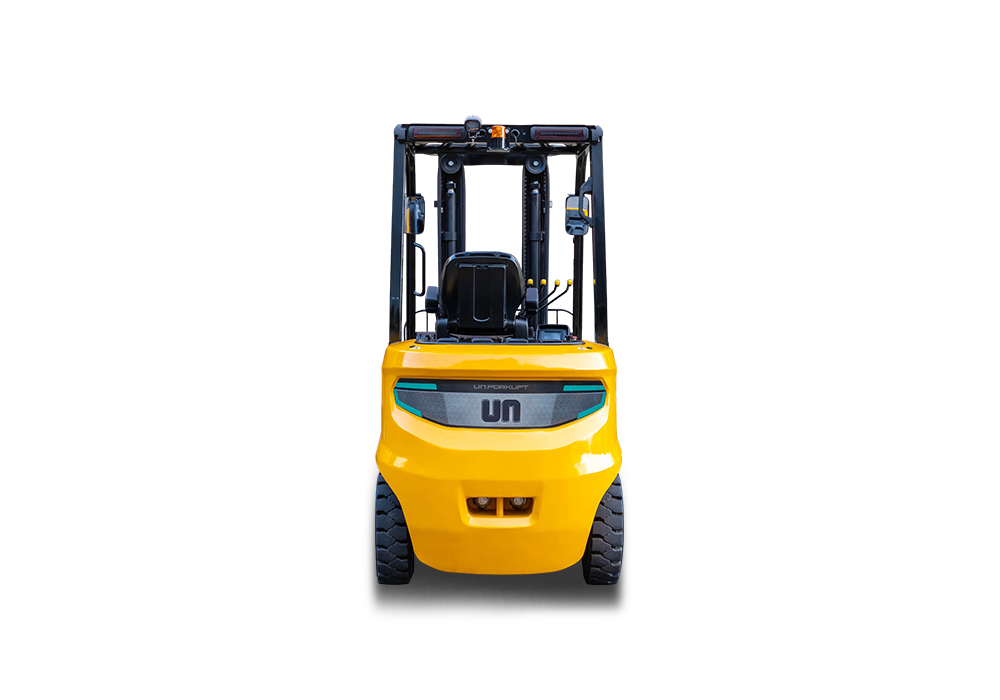

FH Series 3.0-3.5T High Voltage Li-Ion Battery Forklift
FH Series High-Voltage Lithium Forklift – “Green electric power, built on IC forklift strength.”
Built with the mast, drive axle, and steering axle of an internal combustion forklift, it delivers superior load capacity and outstanding reliability, ensuring stable operation even under heavy-duty and demanding conditions.
Adopting high-voltage technology from the electric vehicle sector for green and efficient forklift operation.
Product Details
MAIN SPECIFICATIONS
| Model | FB30-FHNLF | FB35-FHNLF | |
| Rated Load Capacity | Q(kg) | 3000 | 3500 |
| Load Centre | C(mm) | 500 | 500 |
|
Length to Face of Fork (Without Fork) |
L1(mm) | 2700 | 2770 |
| Overall Width | B1(mm) | 1220 | 1220 |
| Overhead Guard Height | H5(mm) | 2235 | 2235 |
|
Turning Radius (Outside) |
Wa(mm) | 2450 | 2500 |
|
Travel Speed (No Load) |
km/h | 20/20 | 20/20 |
|
Max.Gradeability (Full Load) |
% | 20 | 20 |
| Wheelbase | Y(mm) | 1700 | 1700 |
| Total Weight | kg | 4207 | 4567 |
| Battery | V/Ah | 309.12V/96AH | 309.12V/96AH |
Product Features
-
High Performance
● Automotive-grade PMSM delivers powerful efficiency and torque — beyond electrics, on par with or surpassing IC forklifts.
● High-voltage lithium cuts energy consumption by 10–15%.
● CAN bus communications network: provides superior dependability.
● Powerful CATL battery pack with IP67 protection, operable in environments from -20°C to +60°C.
● Outperforms IC forklifts
Travel speed: 20 km/h (laden & unladen);
Gradeability (laden): 20%;
Lifting speed (laden): 400–420 mm/s.● Integrated motor–controller system, IP67-rated.
● VCU (Vehicle Control Unit) supplied by Bosch (Germany), IP67-rated.
● VCU-controlled water pump & cooling fan for efficient heat dissipation, ensuring long-duration, high-intensity operation.
-
Safety & Reliability

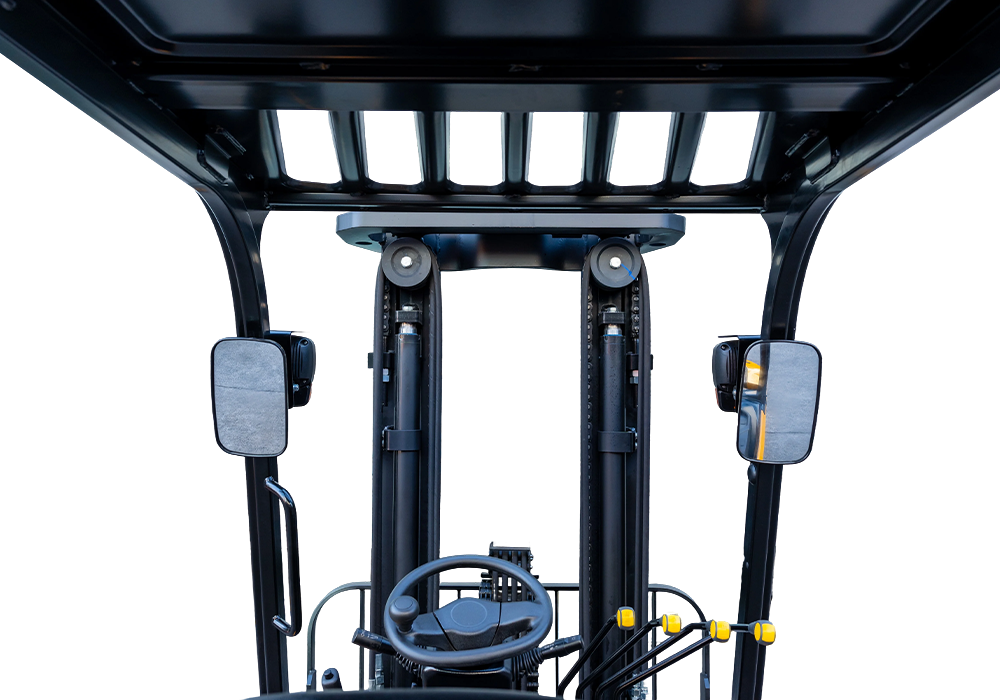

● Wide-view mast for enhanced visibility.
● Multifunctional color-screen instruments.
● MSD switch for one-touch cutoff of 309 V high-voltage power.
● One-touch 12 V auxiliary power cutoff.
● Cornering speed reduction enhances stability and reduces tipping risk.
● Water cooling & heating for the battery(Optional).
-
Fast Charging
● Super fast charger—fully charged in 1 hour, up to 8 hours of continuous operation.
● Compatible with EV charging stations for convenient charging.
● The battery provides 6-year or 10,000-hour warranty and and supports up to 7,000 charge cycles.
-
Easy Maintenance
● Detachable side panels, front plate, and chassis side covers allow for easy lithium battery replacement.
