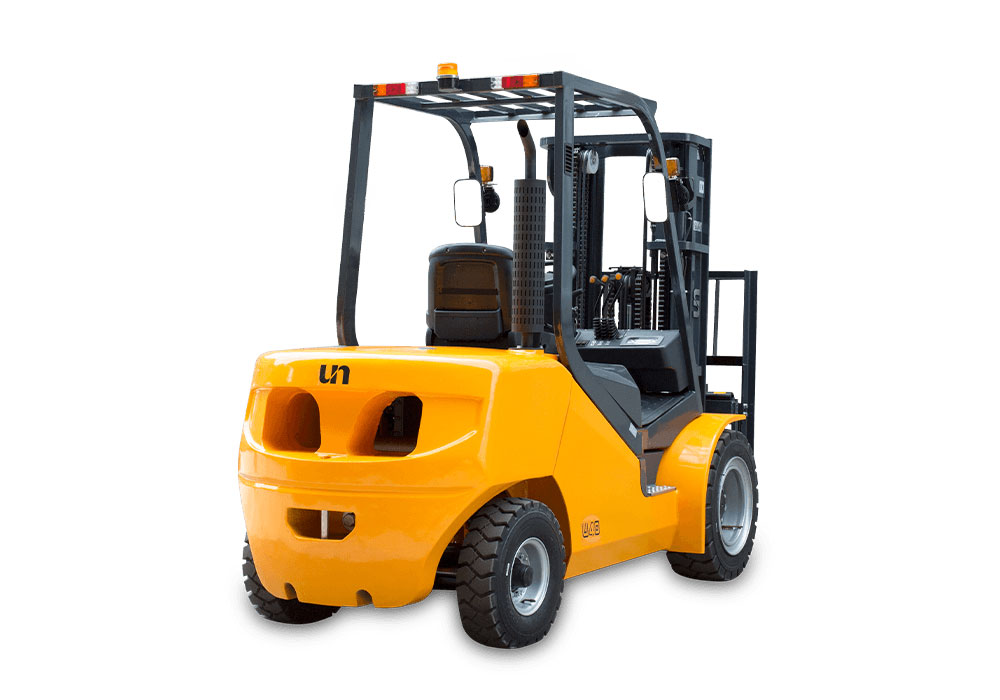

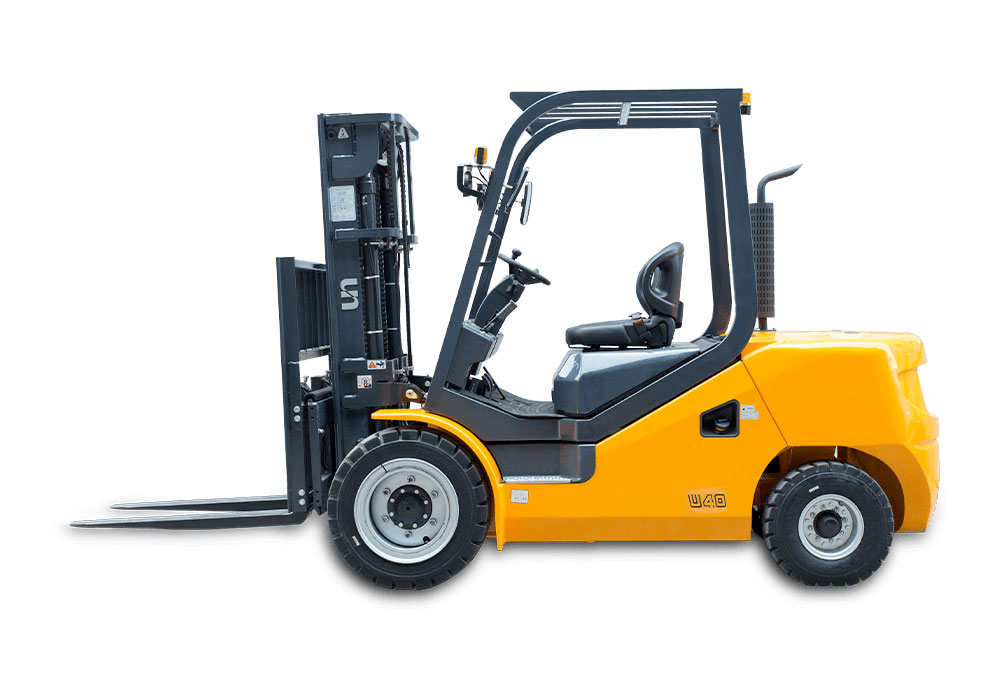

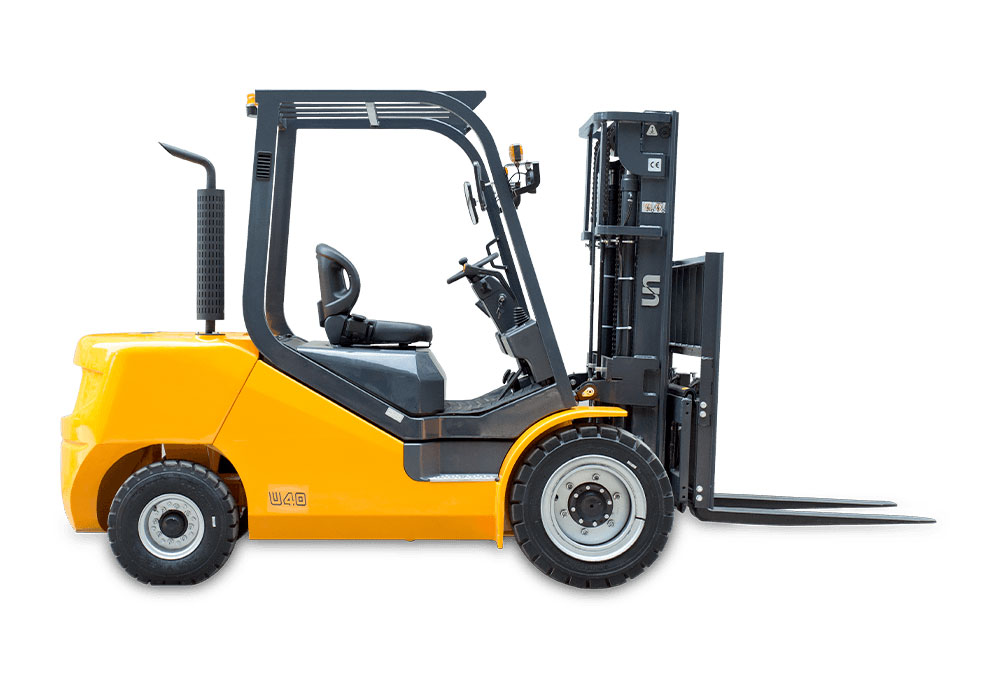

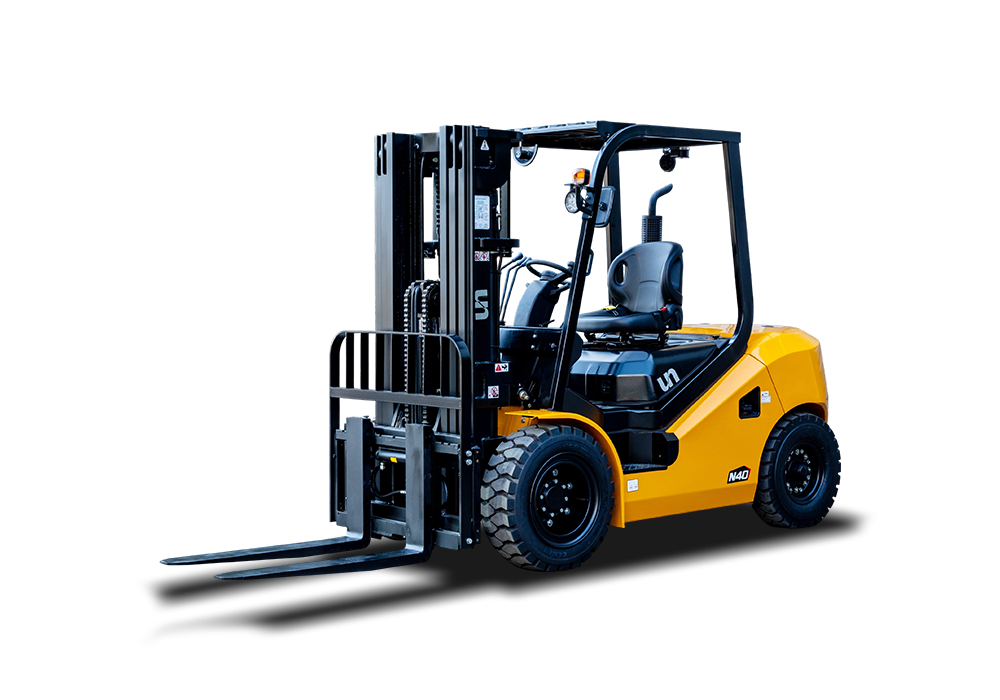

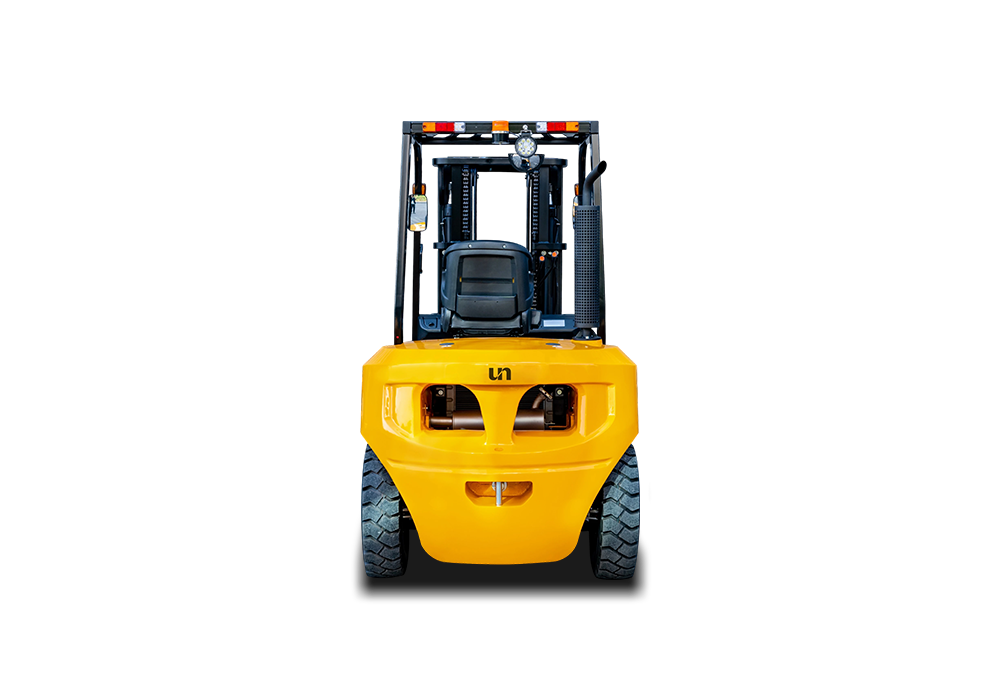

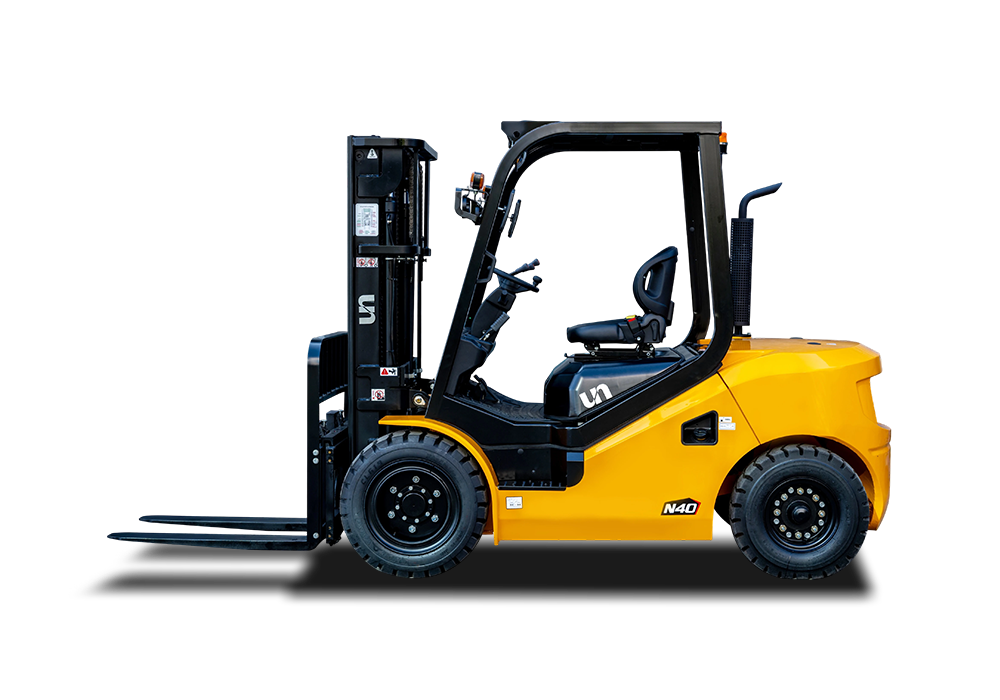

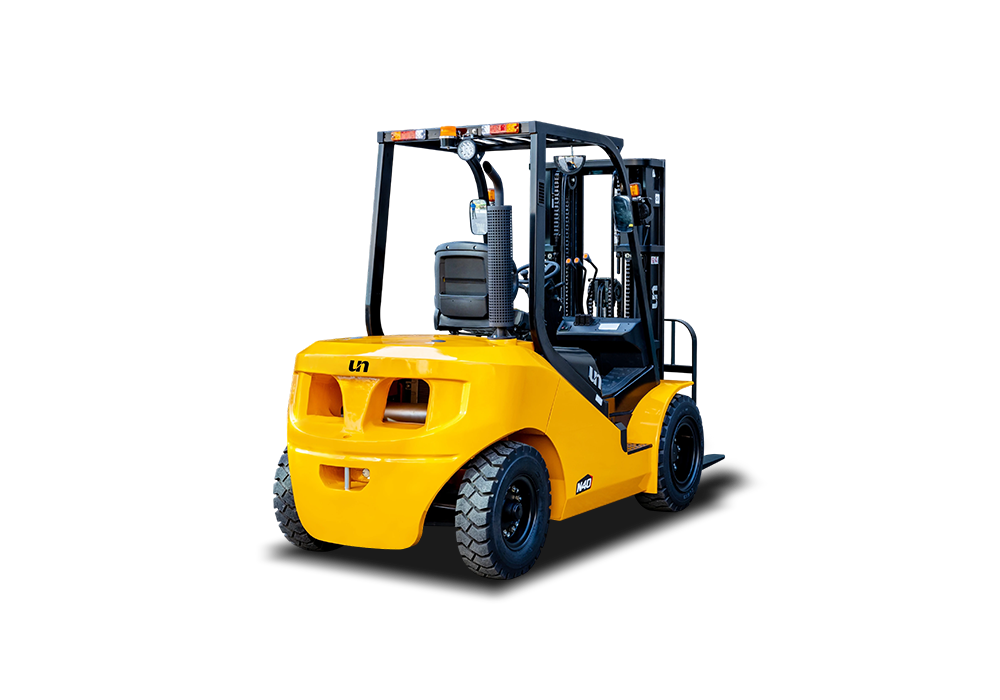

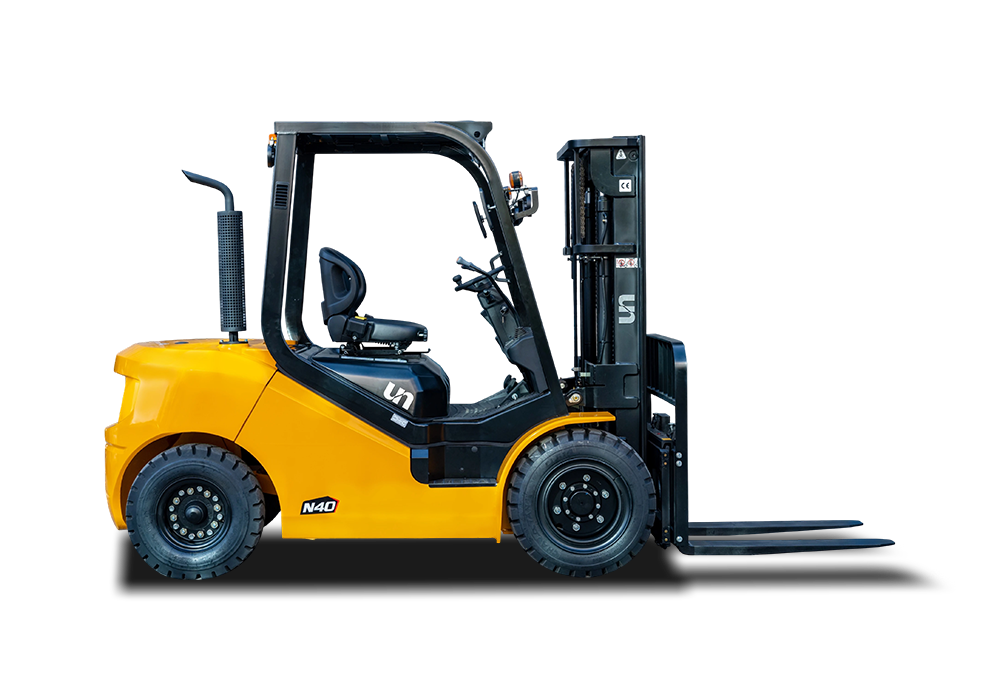

N Series Mini 4.0T Diesel Forklift

Get brochure

Product Description

N Series Mini 4.0T Diesel Forklift adopts the 3.5-ton chassis while delivering a 4-ton load capacity. It is equipped with an eco-friendly engine that improves fuel efficiency while reducing emissions.

With reliable heavy-duty performance and sustained power output, it is an ideal choice for high-intensity applications.

E-mail: [email protected]

Product Details

MAIN SPECIFICATIONS

Model		FD40T-XN2GA7	FD40T-XN2JB2
Rated Load Capacity	Q(kg)	4000	4000
Load Centre	C(mm)	500	500
Length to Face of Fork (Without Fork)	L1(mm)	2977	2977
Overall Width	B1(mm)	1410	1410
Overhead Guard Height	H5(mm)	2240	2240
Turning Radius (Outside)	Wa(mm)	2680	2680
Travel Speed (No Load)	km/h	20	20
Max.Gradeability (Full Load)	%	20	20
Wheelbase	Y(mm)	1900	1900
Total Weight	kg	5490	5490
Engine Model		A498BPG-521	4JG2

General	1	Manufacturer		UN
	2	Model		FD40T-XN1GA8	FD40T-XN1GA7	FD40T-XN1JB2
	3	Power Type		Diesel
	4	Rated Load Capacity	Q(kg)	4000
	5	Load Centre	C(mm)	500
Characteristic & Dimension	6	Rated Lift Height	H3(mm)	3000
	7	Free Lift Height	H2(mm)	150
	8	Fork Size (L×W×T)	mm	1070×150×50
	9	Mast Tilt Angle (F/R, α°/β°)	deg	6/12
	10	Fork Overhang (Wheel Center to Fork Face)	X1(mm)	487
	11	Rear Overhang	X2(mm)	590
	12	Ground Clearance (Bottom of Mast)	H7(mm)	130
	13	Length to Face of Fork (Without Fork)	L1(mm)	2977
	14	Overall Width	B1(mm)	1410
	15	Mast Lowered Height	H1(mm)	2175
	16	Mast Extended Height (With Backrest)	H4(mm)	4230
	17	Overhead Guard Height	H5(mm)	2240
	18	Turning Radius (Outside)	Wa(mm)	2740
	19	Min.Aisle width for pallets	Ast(mm)	4430
Performance	20	Travel Speed (No Load)	km/h	20
	21	Lifting Speed (Full Load)	mm/sec	450
	22	Lowering Speed (Full Load/No Load)	mm/sec	No Load≥300 Full Load≤600
	23	Max.Drawbar Pull (Full Load)	KN	22
	24	Max.Gradeability (Full Load)	%	20
Chassis	25	Tyre (Front x 2)	mm	250-15-16PR
	26	Tyre (Rear x 2)	mm	6.50-10
	27	Front Tread	B2(mm)	1160
	28	Rear Tread	B3(mm)	980
	29	Wheelbase	Y(mm)	1900
Weight	30	Total Weight	kg	5470
	31	Front Axle Weight Distribution (Full Load)	kg	8540
	32	Rear Axle Weight Distribution (Full Load)	kg	930
	33	Front Axle Weight Distribution (No Load)	kg	2170
	34	Rear Axle Weight Distribution (No Load)	kg	3300
Power & Transmission	35	Battery	V/Ah	12/90
	36	Engine Model		4D32G31-066	A498BPG-521	4JG2
	37	Engine Manufacturer		XINCHAI	XINCHAI	ISUZU
	38	Rated Output / r.p.m.	kw	36.8KW/2500	45KW/2500	46KW/2450
	39	Rated Torque / r.p.m.	N·m	186Nm/1600-1800	193Nm/1800	184.7Nm/1700
	40	No.of Cylinder		4
	41	Bore x Stroke	mm	98×105	98×105	95.4×107
	42	Displacement	L	3.167	3.167	3.059
	43	Fuel Tank Capacity	L	80
	44	Transmission Type		HYDRAULIC
	45	Transmission Stage (FWD/RVS)		1/1
	46	Operating Pressure (For Attachments)	Mpa	20.5

Product Features

Reliability & Performance

● Scientifically optimized chassis combined with a high-reliability engine system provides superior handling and operational efficiency. Engines include Isuzu, Mitsubishi, Yanmar, Kubota, and Xinchai, with transmissions matching Japanese quality standards.

● The hydraulic system is equipped with branded pumps and valves, ensuring efficient and stable lifting and steering operations.

● High-capacity radiators and effective cooling maintain forklift stability under extreme heat.
Safety & Ergonomics

● Safety meets comfort: OPS with seat switch ensures the driver is always protected.

● Wide-visibility mast keeps every operation in clear view.

● Heavy-duty OHG shields the operator from potential hazards.

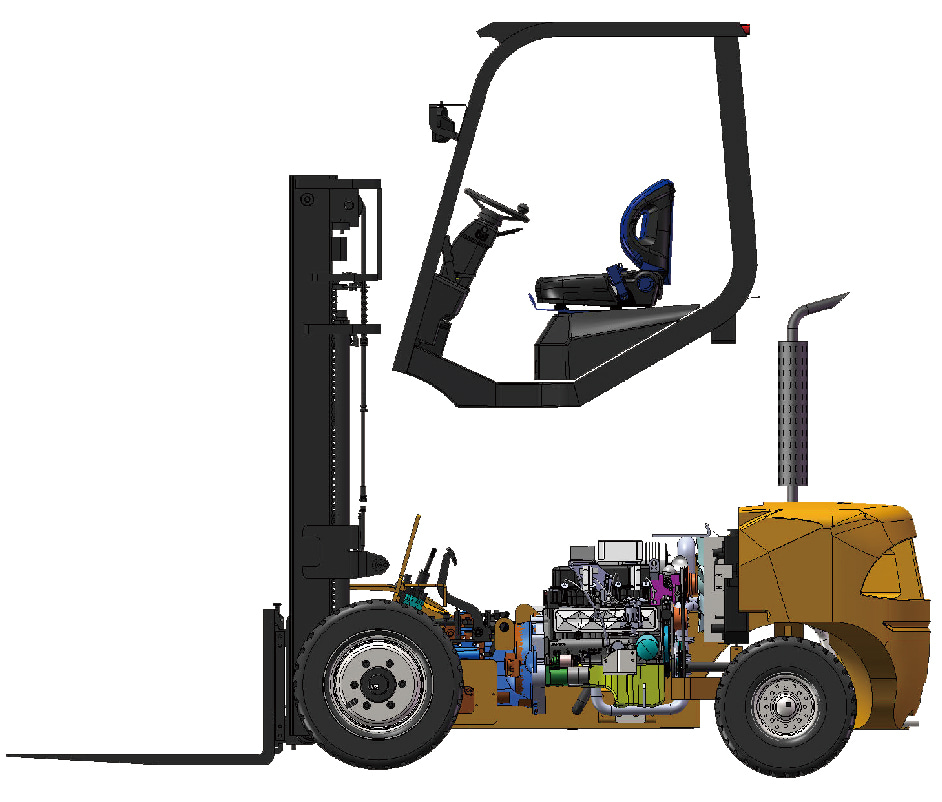

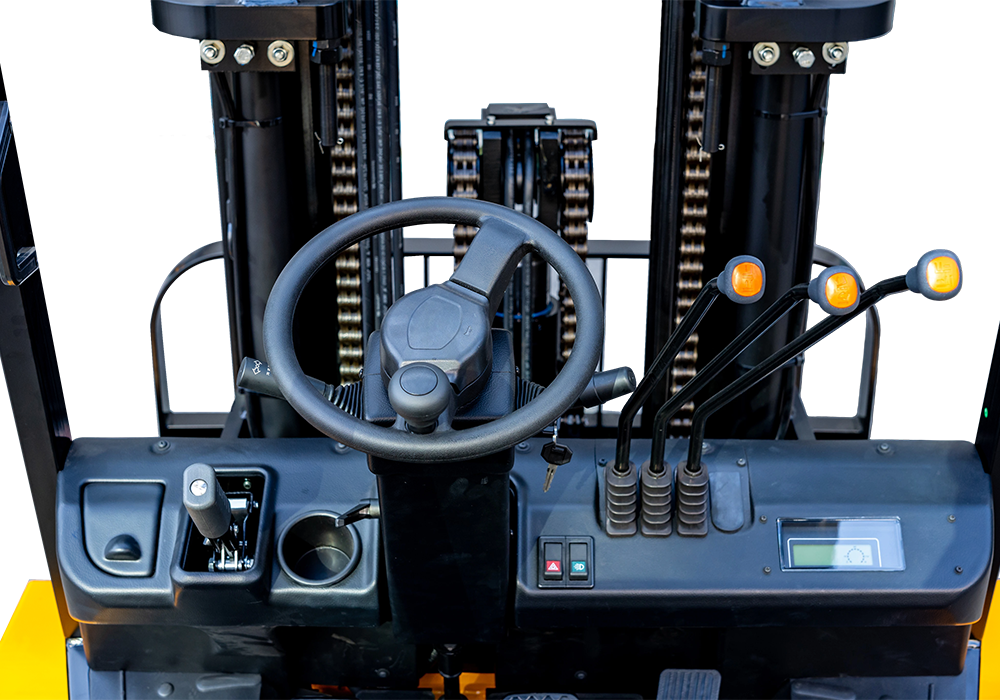

● Suspended frame design with extra legroom, adjustable steering, and comfortable seating enhances ergonomics.

● Optional suspended powertrain system allows customization for specific tasks.
Easy Maintenance

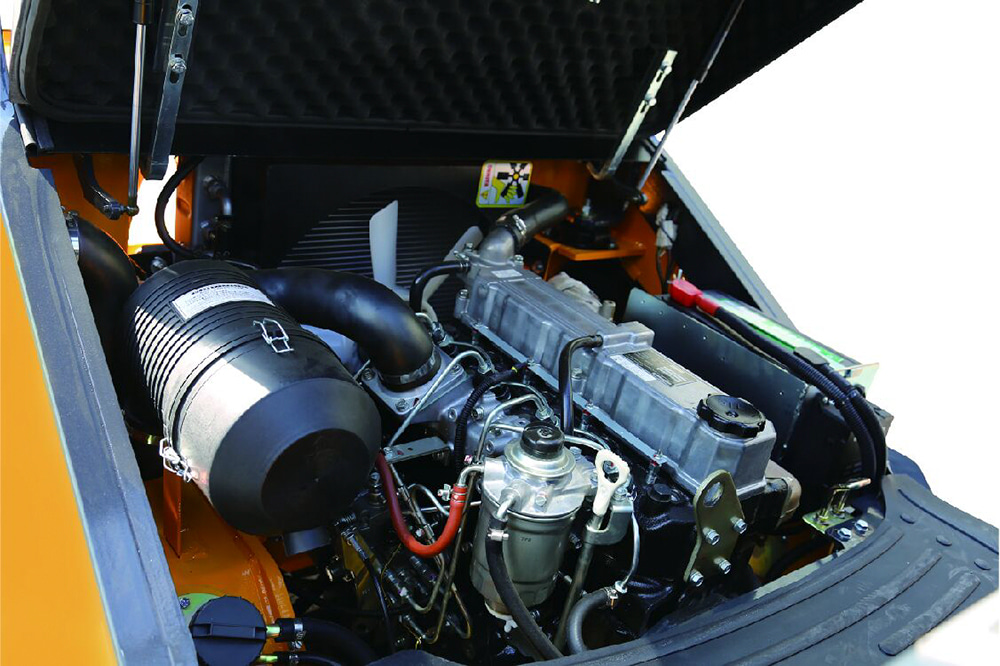

● Maintenance made easy: the engine hood flips nearly 90°for quick servicing and parts replacement.

● The transmission oil filter is designed for simple and convenient replacement.
