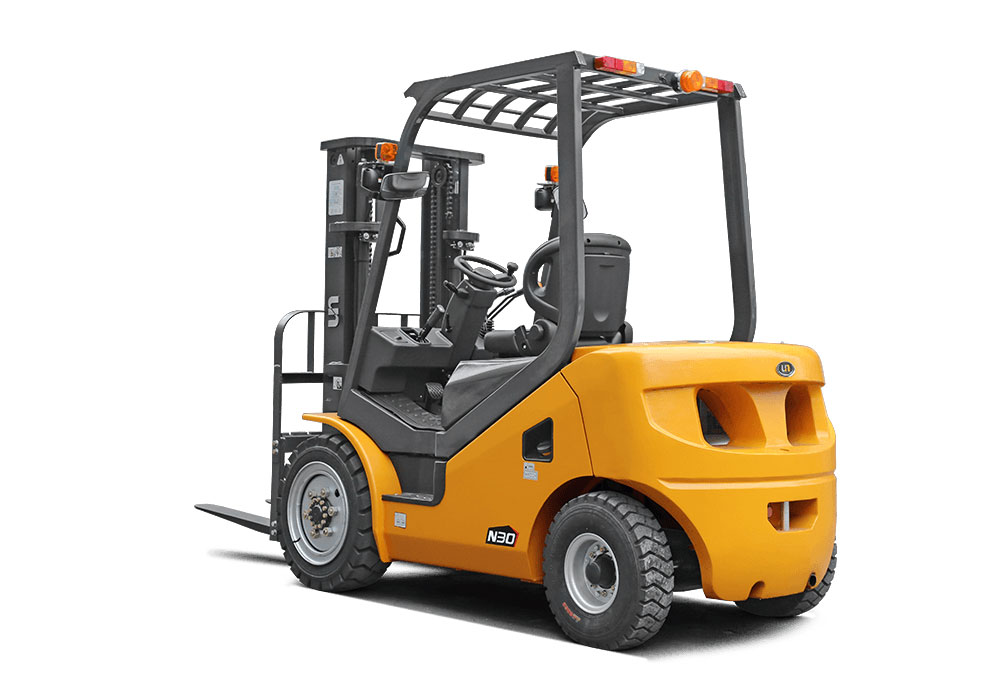

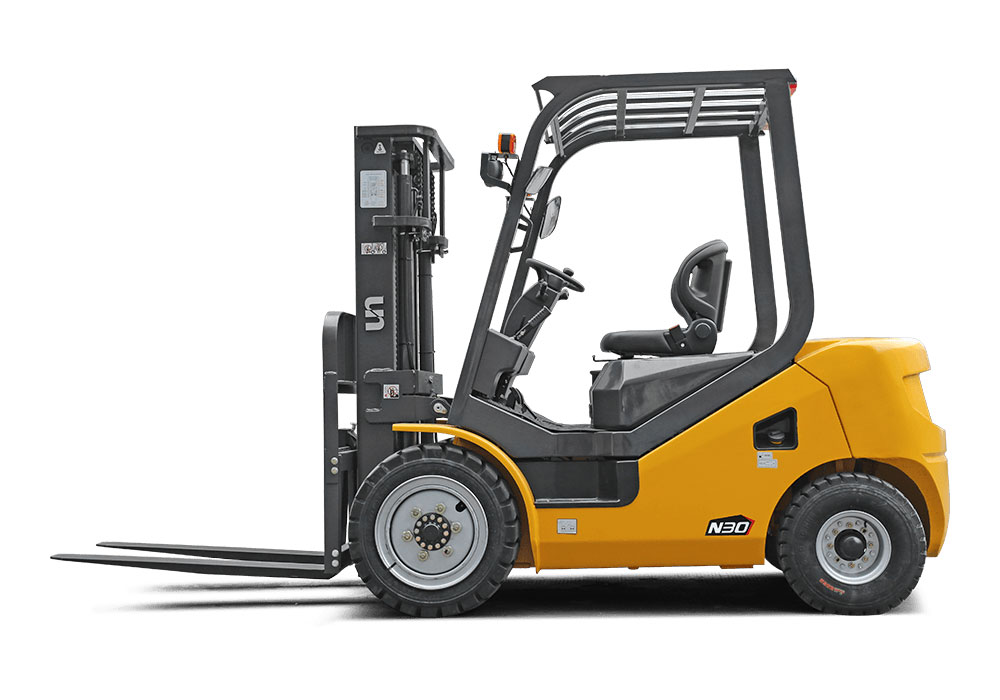

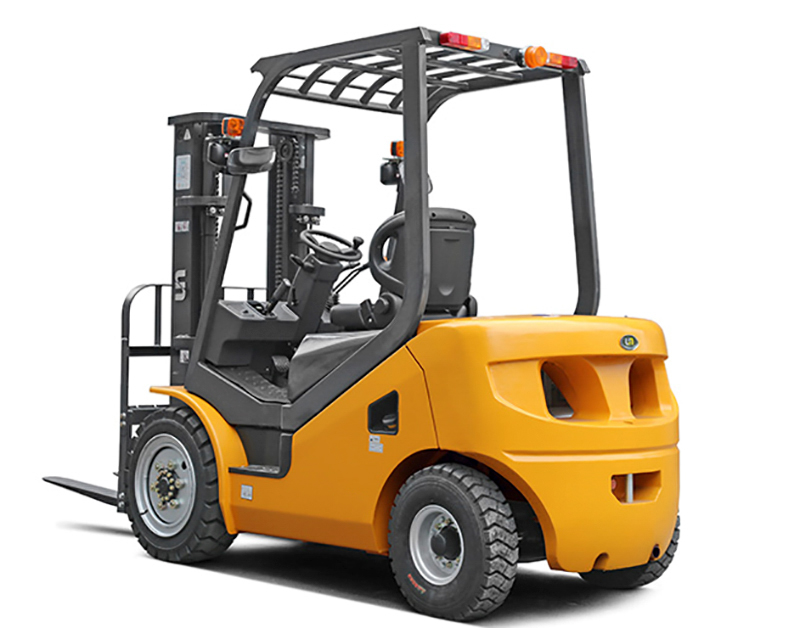

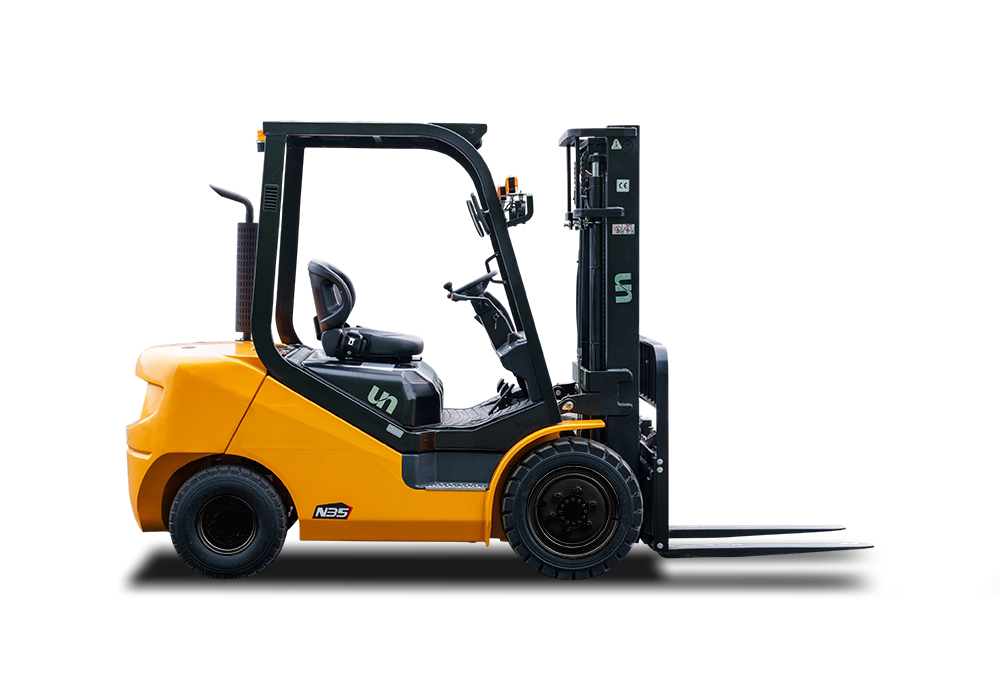

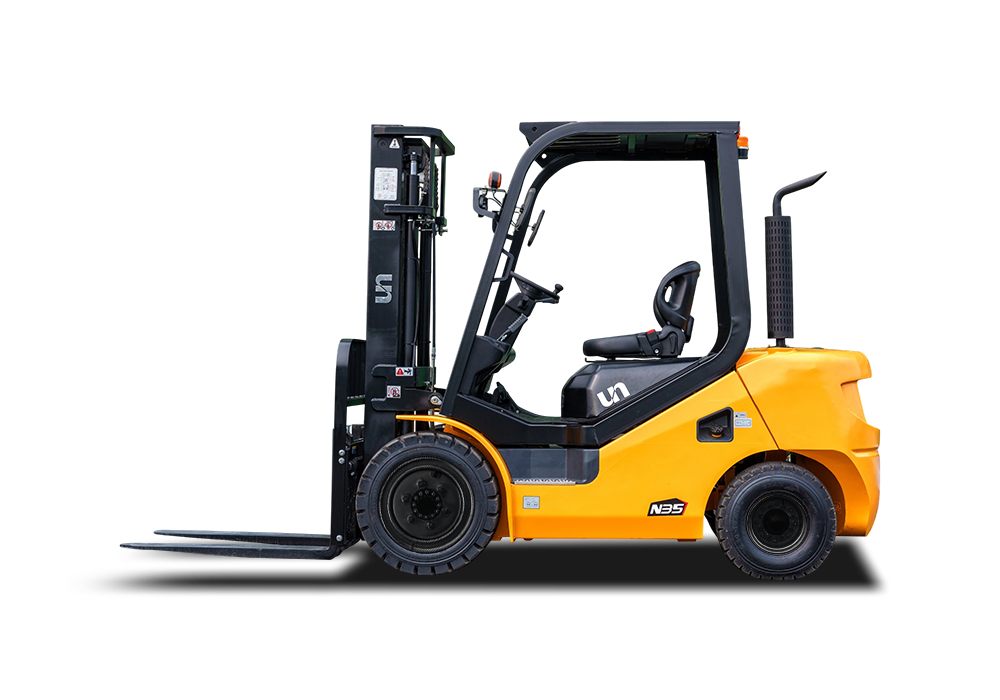

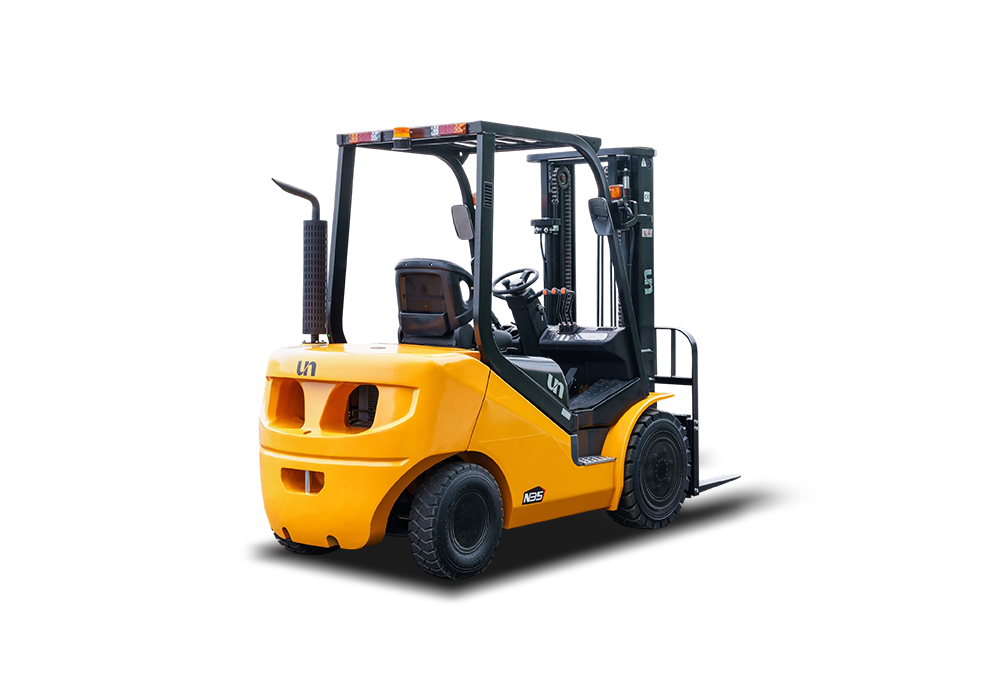

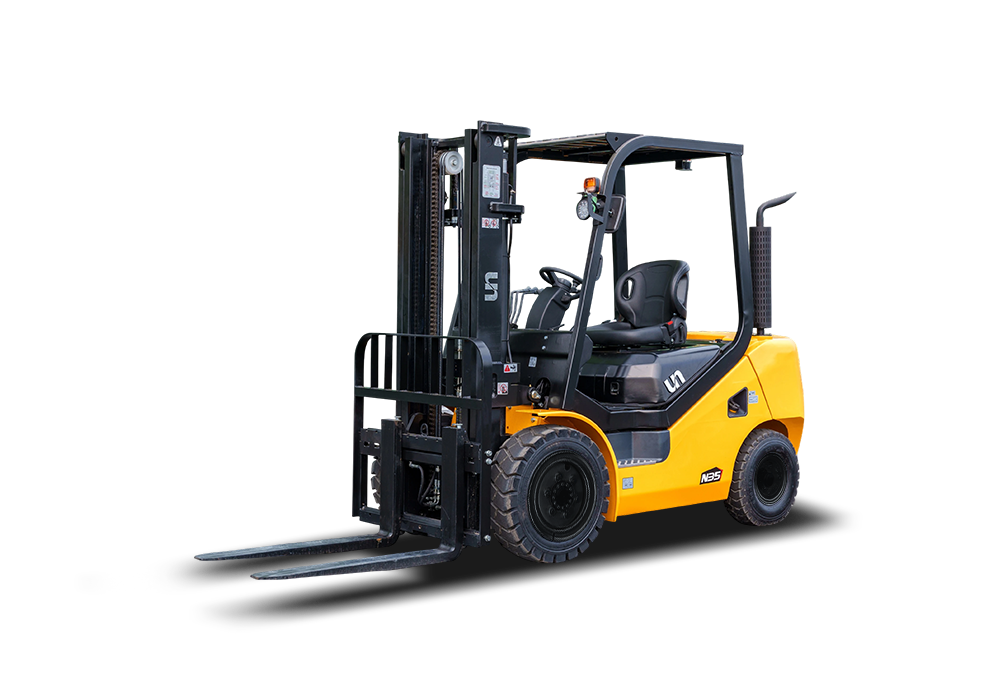

N Series 3.0T-3.5T Diesel Forklift

Get brochure

Product Description

N Series 3.0T–3.5T Diesel Forklift delivers strong power and comfortable operation, ideal for medium-duty handling tasks. It is the popular tonnage of internal combustion forklifts.

Equipped with a high-performance powertrain and enlarged radiator, they ensure stable performance under heavy loads.

Ergonomic design enhances the user's driving comfort. It is the popular tonnage of internal combustion forklifts.

E-mail: [email protected]

Product Details

MAIN SPECIFICATIONS

Model		FD30T-NJS1	FD35T-NJS1	FD30T-NJV1	FD35T-NJV1	FD30T-NGA9	FD35T-NGA9
Rated Load Capacity	Q(kg)	3000	3500	3000	3500	3000	3500
Load Centre	C(mm)	500	500	500	500	500	500
Length to Face of Fork (Without Fork)	L1(mm)	2695	2780	2695	2780	2695	2780
Overall Width	B1(mm)	1225	1225	1225	1225	1225	1225
Overhead Guard Height	H5(mm)	2235	2235	2235	2235	2235	2235
Turning Radius (Outside)	Wa(mm)	2425	2500	2425	2500	2425	2500
Travel Speed (No Load)	km/h	19	19	19	19	19	19
Max.Gradeability (Full Load)	%	20	20	20	20	20	20
Wheelbase	Y(mm)	1700	1700	1700	1700	1700	1700
Total Weight	kg	4460	4775	4460	4775	4460	4775
Engine Model		D24	D24	V2403	V2403	3E22YG51	3E22YG51

General	1	Manufacturer		UN
	2	Model		FD30T-NJS1	FD35T-NJS1	FD30T-NJV1	FD35T-NJV1	FD30T-NGA9	FD35T-NGA9
	3	Power Type		Diesel
	4	Rated Load Capacity	Q(kg)	3000	3500	3000	3500	3000	3500
	5	Load Centre	C(mm)	500	500	500	500	500	500
Characteristic & Dimension	6	Rated Lift Height	H3(mm)	3000	3000	3000	3000	3000	3000
	7	Free Lift Height	H2(mm)	145	150	145	150	145	150
	8	Fork Size (L×W×T)	mm	1070×125×45	1070×125×50	1070×125×45	1070×125×50	1070×125×45	1070×125×50
	9	Mast Tilt Angle (F/R, α°/β°)	deg	6°/12°
	10	Fork Overhang (Wheel Center to Fork Face)	X1(mm)	475	480	475	480	475	480
	11	Rear Overhang	X2(mm)	520	600	520	600	520	600
	12	Ground Clearance (Bottom of Mast)	H7(mm)	125	125	125	125	125	125
	13	Length to Face of Fork (Without Fork)	L1(mm)	2695	2780	2695	2780	2695	2780
	14	Overall Width	B1(mm)	1225	1225	1225	1225	1225	1225
	15	Mast Lowered Height	H1(mm)	2070	2070	2070	2070	2070	2070
	16	Mast Extended Height (With Backrest)	H4(mm)	4070	4070	4070	4070	4070	4070
	17	Overhead Guard Height	H5(mm)	2235	2235	2235	2235	2235	2235
	18	Turning Radius (Outside)	Wa(mm)	2425	2500	2425	2500	2425	2500
	19	Min.Aisle width for pallets	Ast(mm)	4180	4255	4180	4255	4180	4255
Performance	20	Travel Speed (No Load)	km/h	19	19	19	19	19	19
	21	Lifting Speed (Full Load)	mm/sec	450	430	430	400	430	400
	22	Lowering Speed (Full Load/No Load)	mm/sec	No Load≥300 Full Load≤600
	23	Max.Drawbar Pull (Full Load/No Load)	KN	26(21)
	24	Max.Gradeability (Full Load)	%	20
Chassis	25	Tyre (Front x 2)	mm	28×9-15-12PR
	26	Tyre (Rear x 2)	mm	6.50-10-10PR
	27	Front Tread	B2(mm)	1000	1000	1000	1000	1000	1000
	28	Rear Tread	B3(mm)	980	980	980	980	980	980
	29	Wheelbase	Y(mm)	1700	1700	1700	1700	1700	1700
Weight	30	Total Weight	kg	4460	4775	4460	4775	4460	4775
	31	Front Axle Weight Distribution (Full Load)	kg	6714	6997	6714	6997	6714	6997
	32	Rear Axle Weight Distribution (Full Load)	kg	746	777	746	777	746	777
	33	Front Axle Weight Distribution (No Load)	kg	1784	1910	1784	1910	1784	1910
	34	Rear Axle Weight Distribution (No Load)	kg	2676	2865	2676	2865	2676	2865
Power & Transmission	35	Battery	V/Ah	12/90
	36	Engine Model		D24		V2403		3E22YG51
	37	Engine Manufacturer		HYUNDAI		KUBOTA		XINCHAI
	38	Rated Output / r.p.m.	kw	48.2/2600		42.6/2400		44.8/2400
	39	Rated Torque / r.p.m.	N·m	214/1600		195.6/1500		210/1600-1800
	40	No.of Cylinder		4		4		3
	41	Bore x Stroke	mm	90x94		90×105		94x107
	42	Displacement	cc	2392		2670		2230
	43	Fuel Tank Capacity	L	50	50	50	50	50	50
	44	Transmission Type		HYDRAULIC
	45	Transmission Stage (FWD/RVS)		1/1	1/1	1/1	1/1	1/1	1/1
	46	Operating Pressure (For Attachments)	Mpa	18.5	20.5	18.5	20.5	18.5	20.5

Product Features

Reliability & Performance

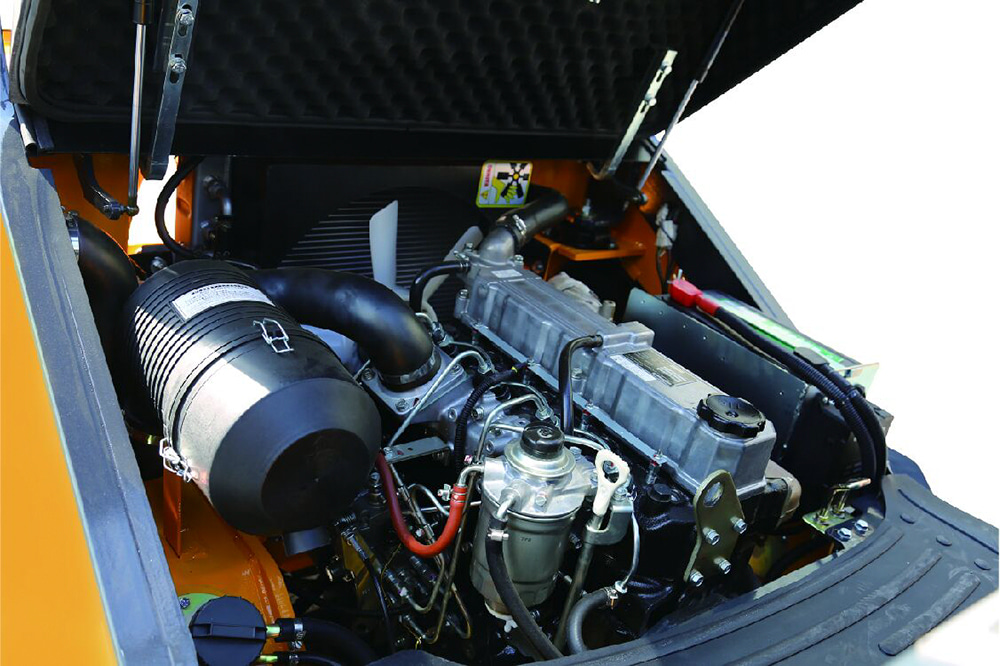

● The scientifically designed forklift body, combined with a reliable power system featuring engines from Isuzu, Mitsubishi, Yanmar, Kubota, and Xinchai, delivers outstanding performance and control.

● The hydraulic system is equipped with branded pumps and valves, ensuring efficient and stable lifting and steering operations.

● Advanced cooling technology with a large-capacity radiator keeps the forklift running reliably even in high-temperature conditions.
Safety & Ergonomics

● Operator safety is ensured through the OPS system and integrated seat switch.

● The wide-vision mast maintains optimal sightlines for safe handling.

● High-strength OHG offers reliable protection against falling objects.

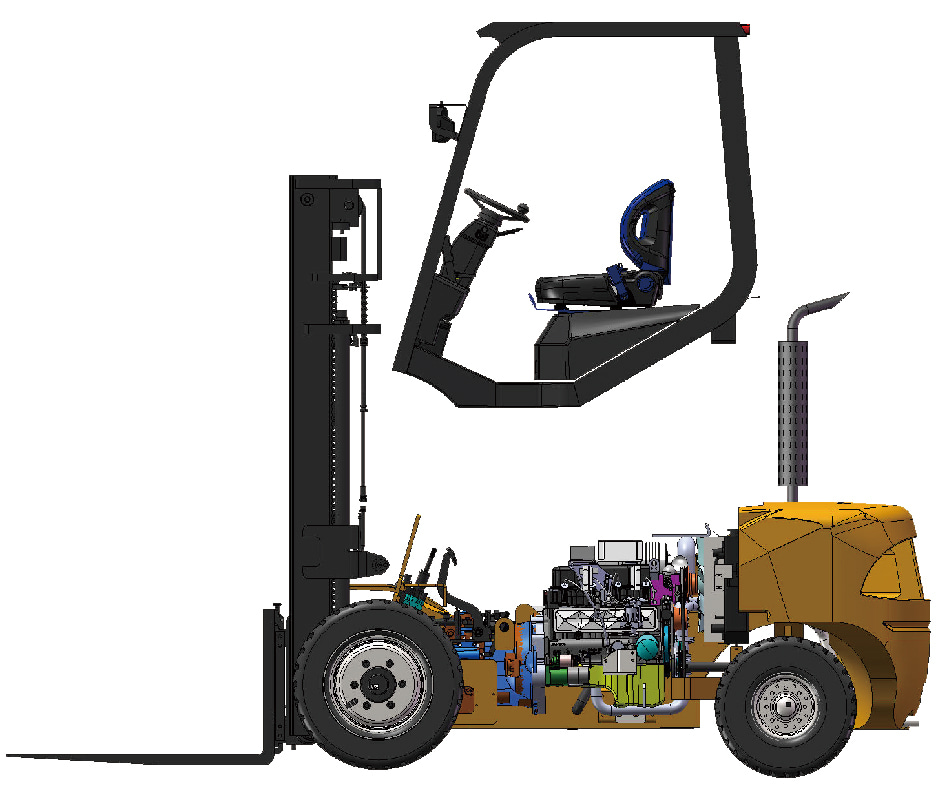

● Spacious suspended chassis, adjustable steering, and ergonomic seat improve comfort and safety.

● Suspended powertrain can be optionally fitted to meet specific operational requirements.
Easy Maintenance

● The engine cover rotates close to 90°, allowing fast and convenient access for maintenance and component changes.

● Changing the transmission oil filter is straightforward and efficient.
