N Series

4.0T-Mini5.0T

Diesel Forklift

Get brochure

Product Description

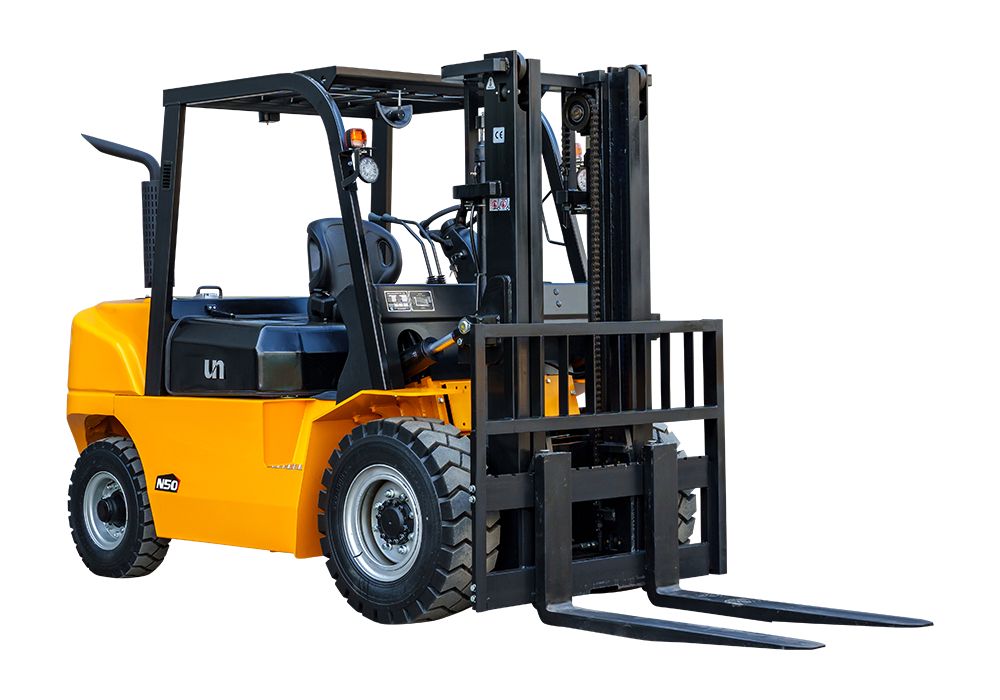

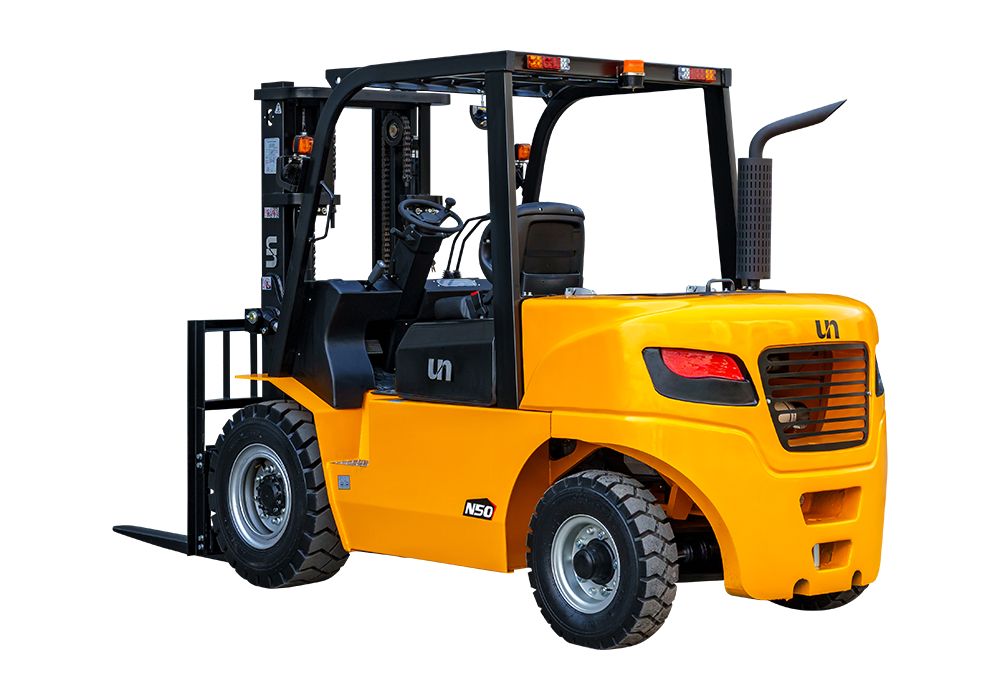

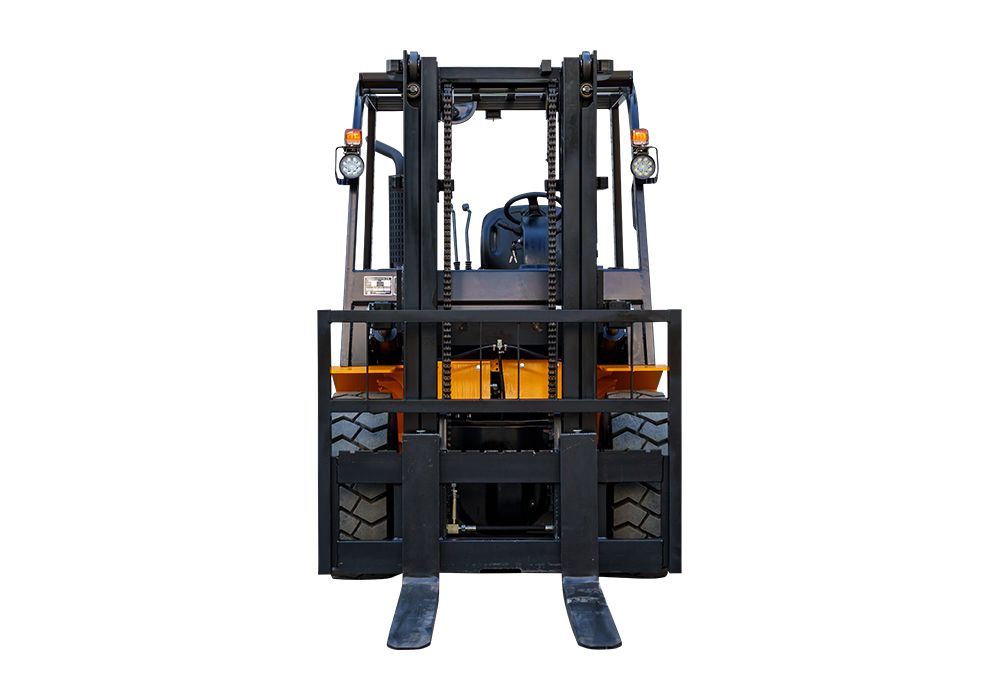

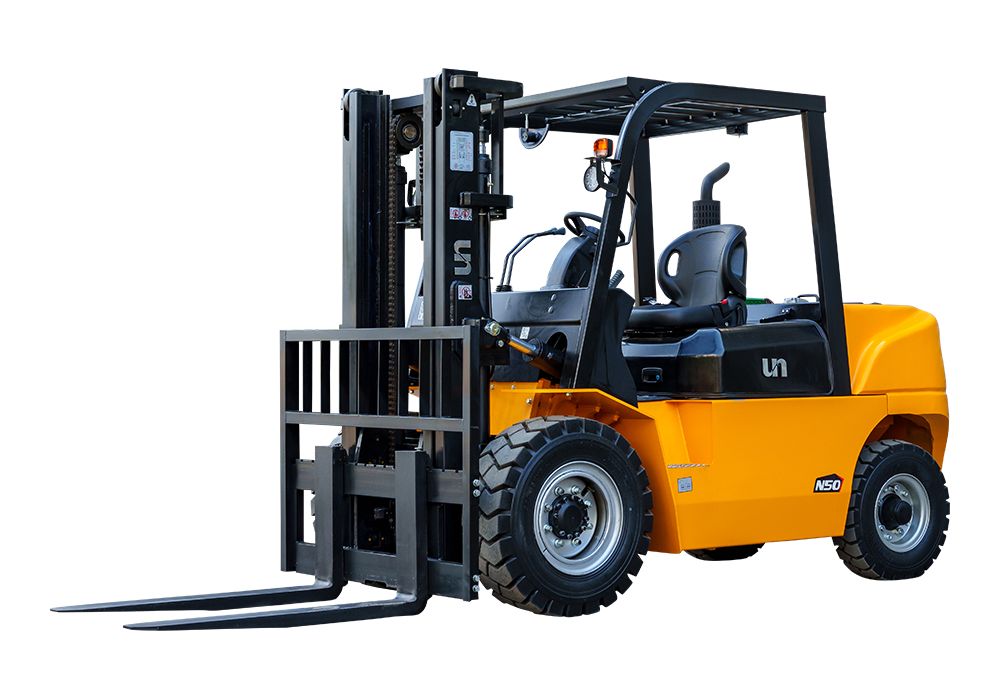

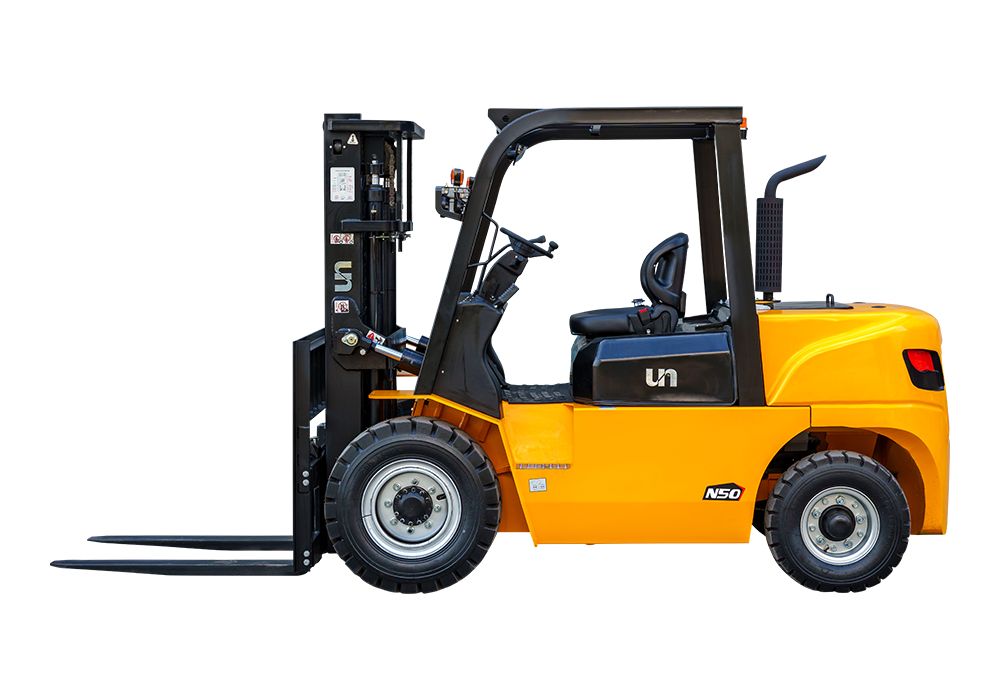

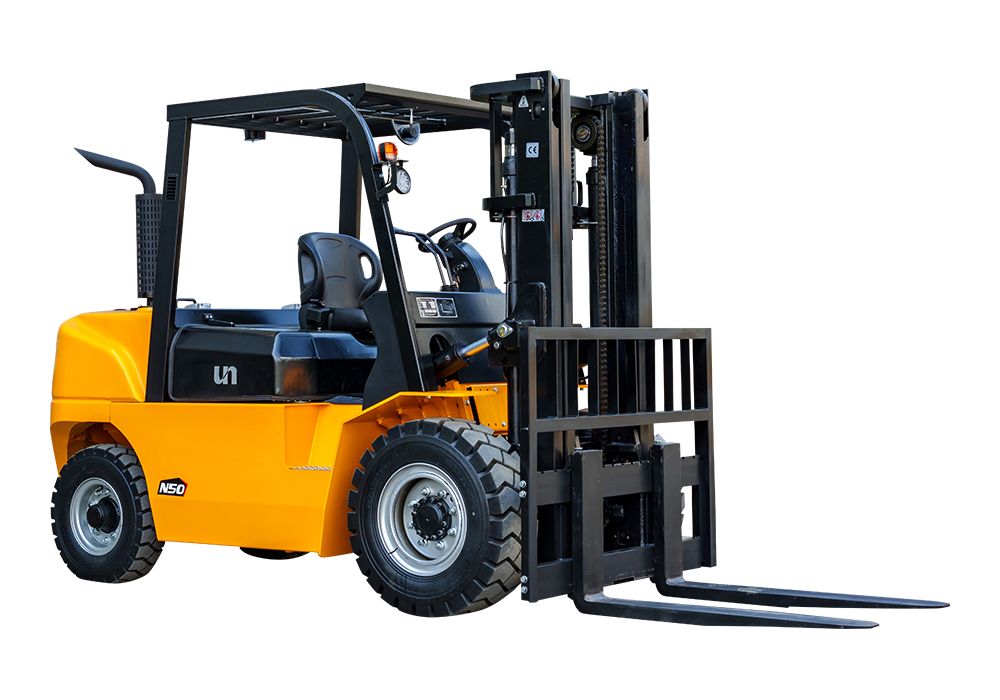

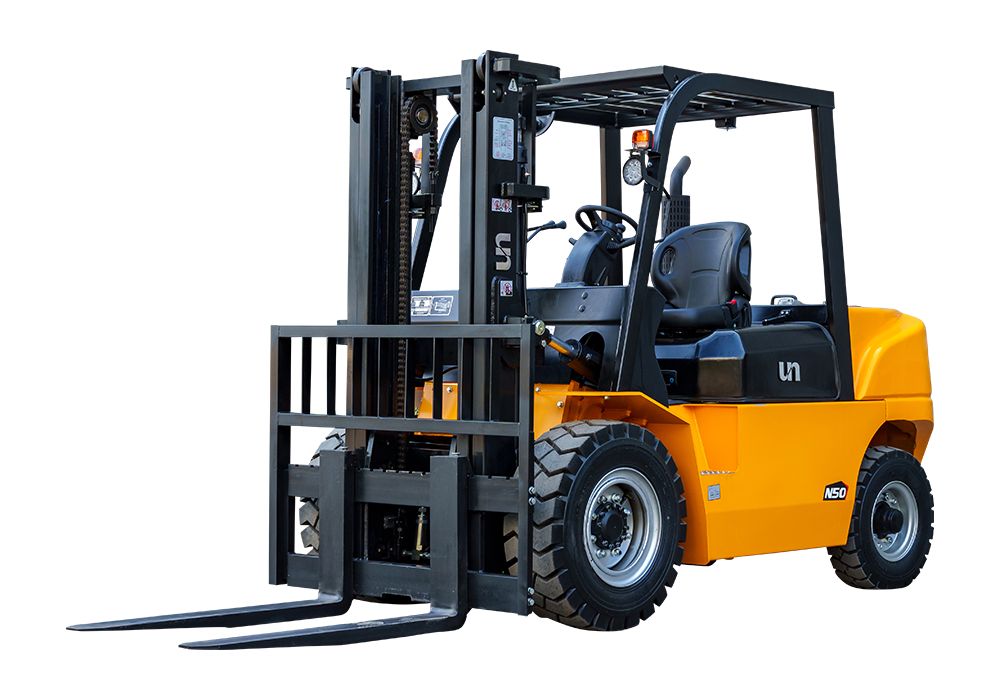

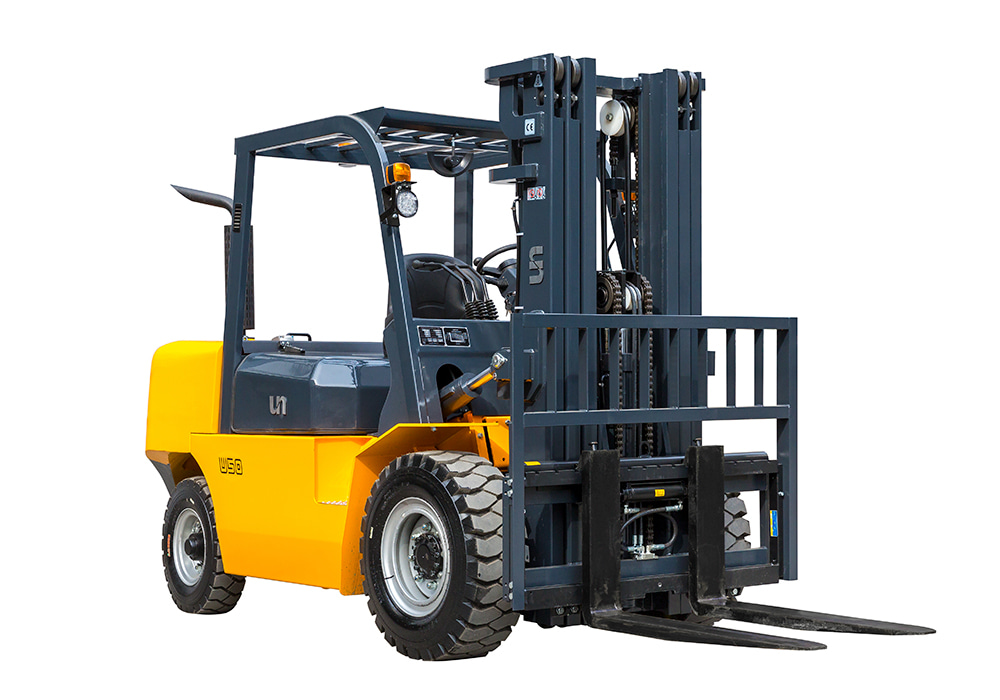

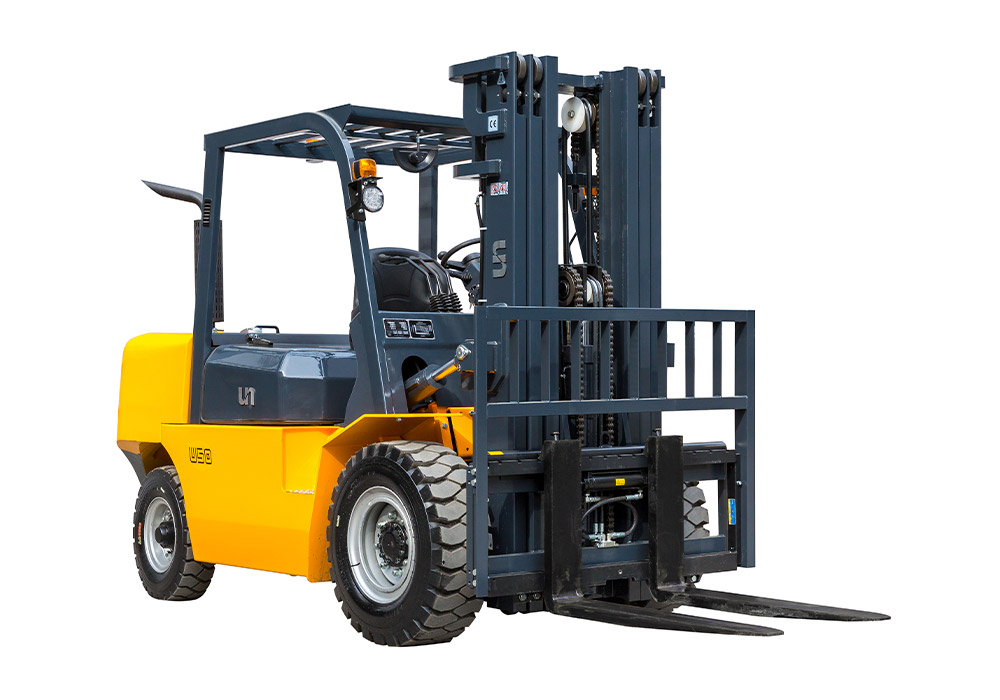

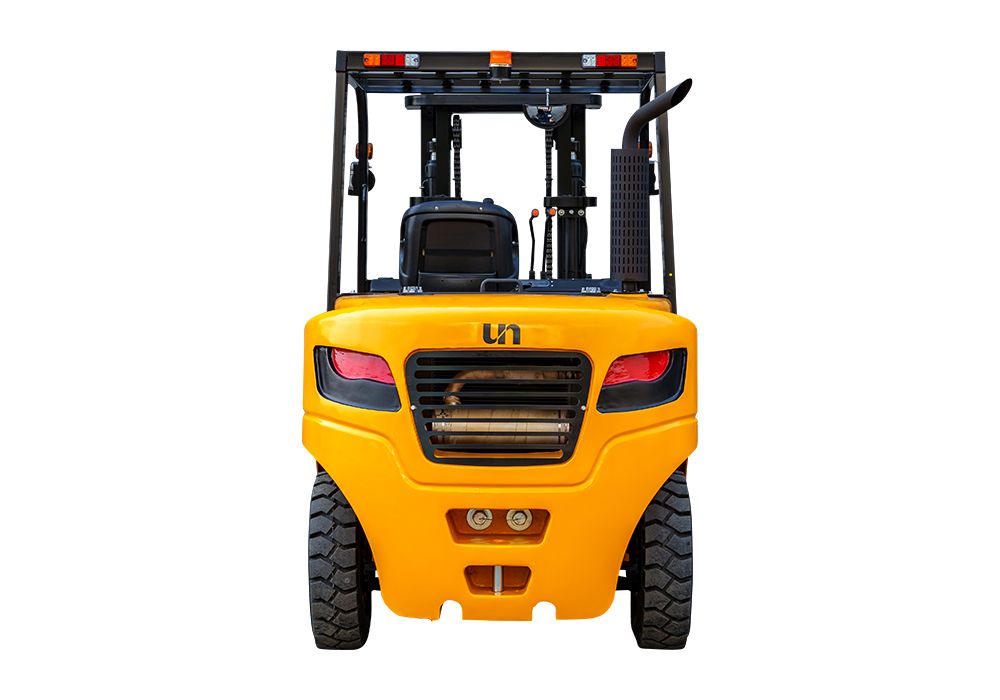

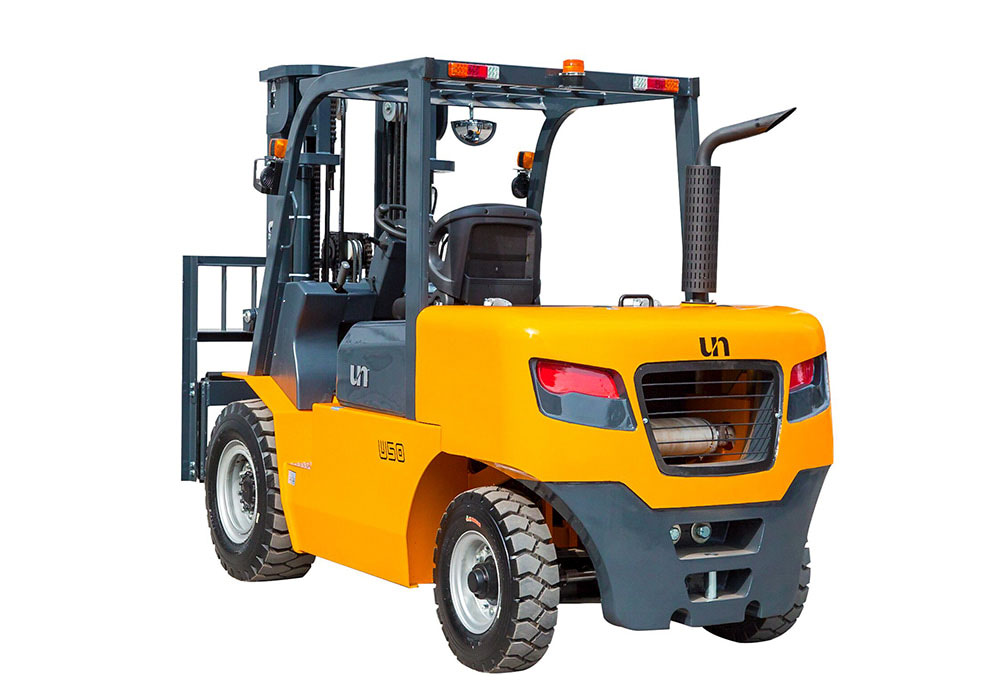

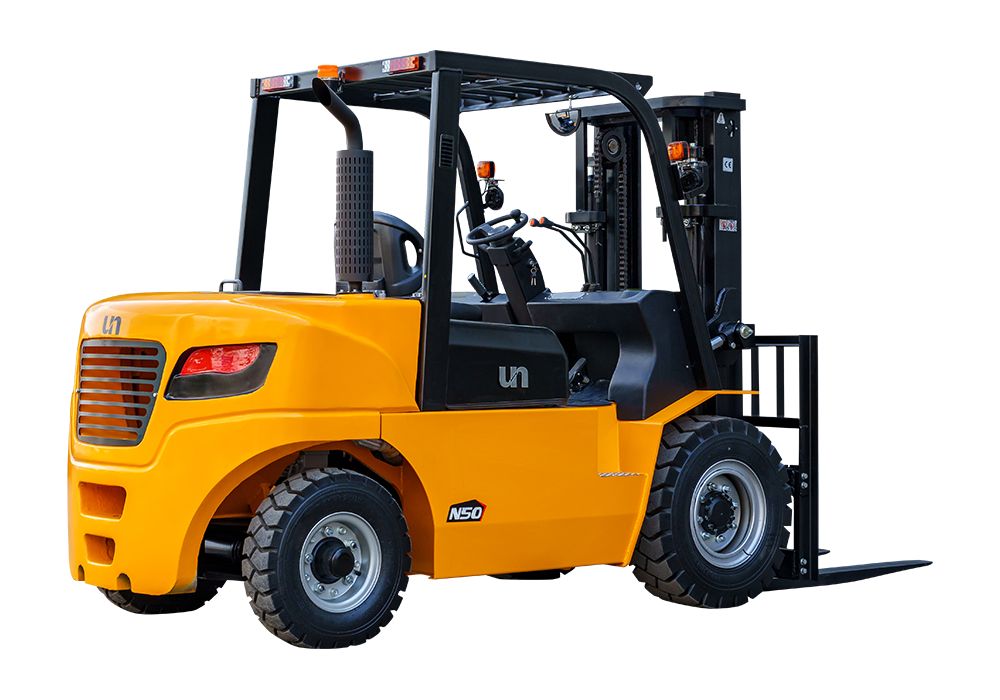

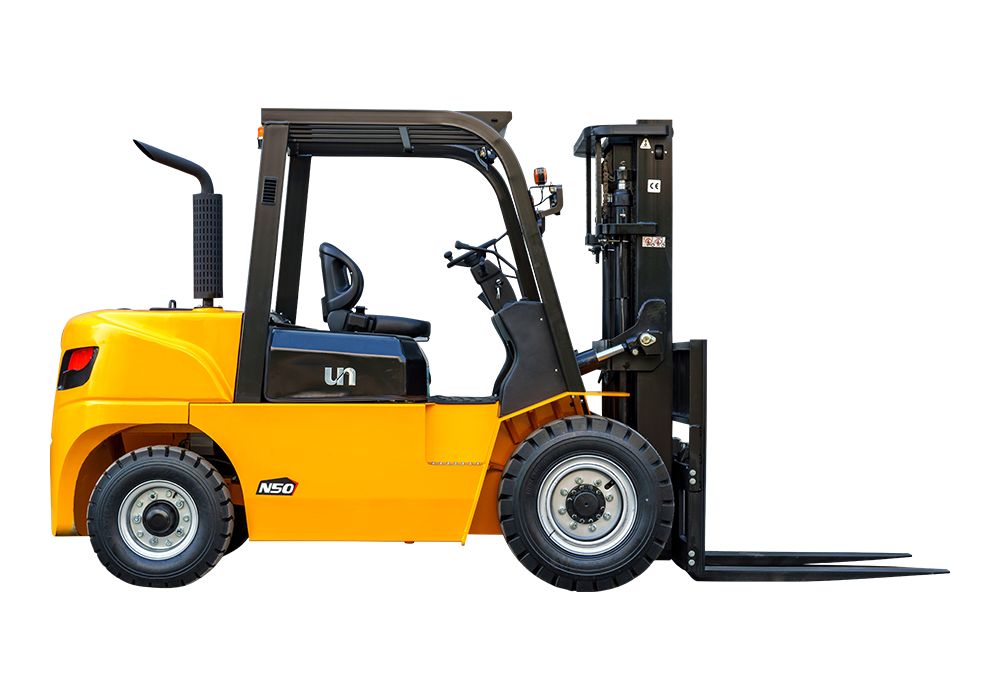

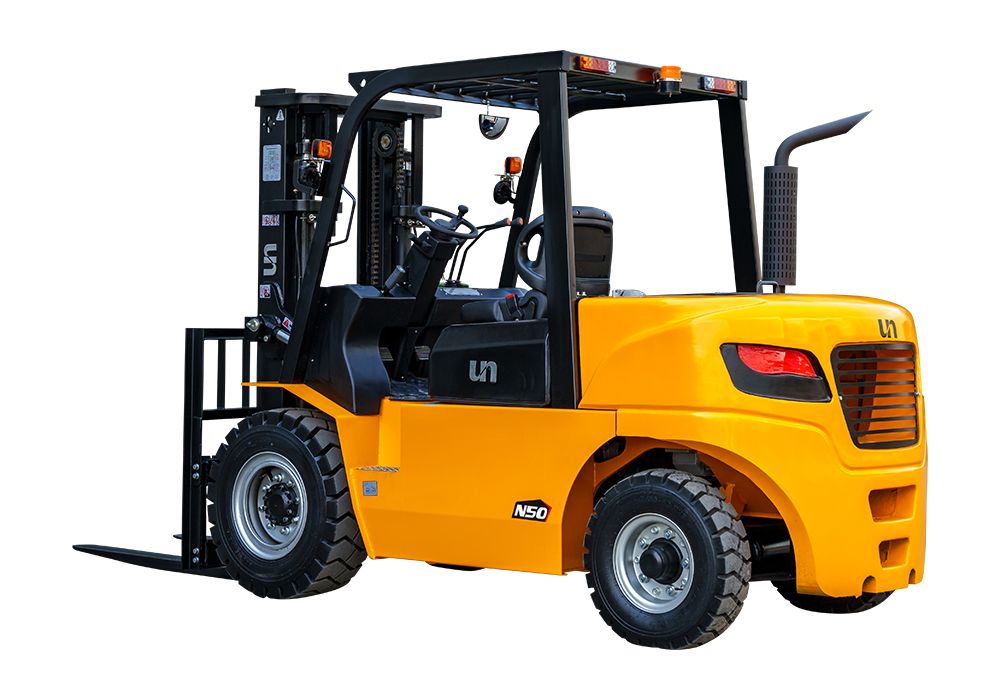

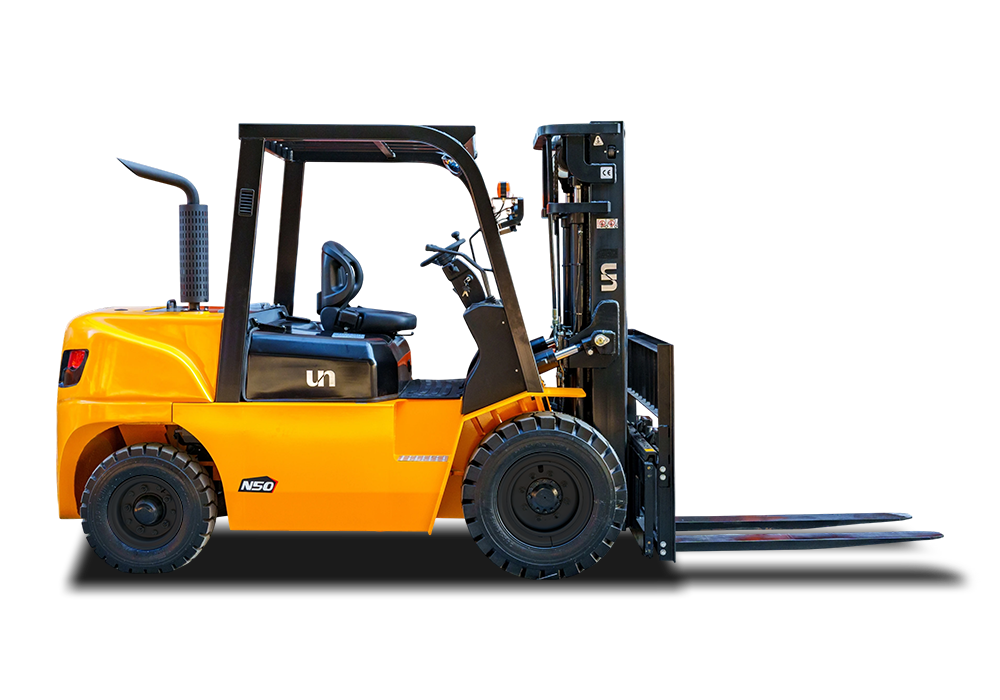

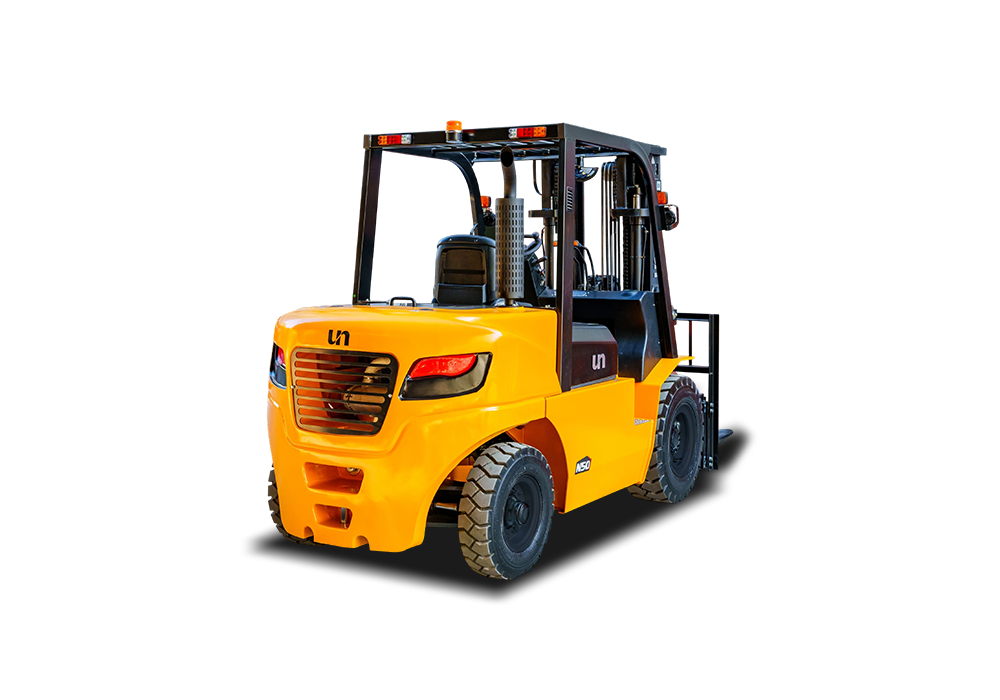

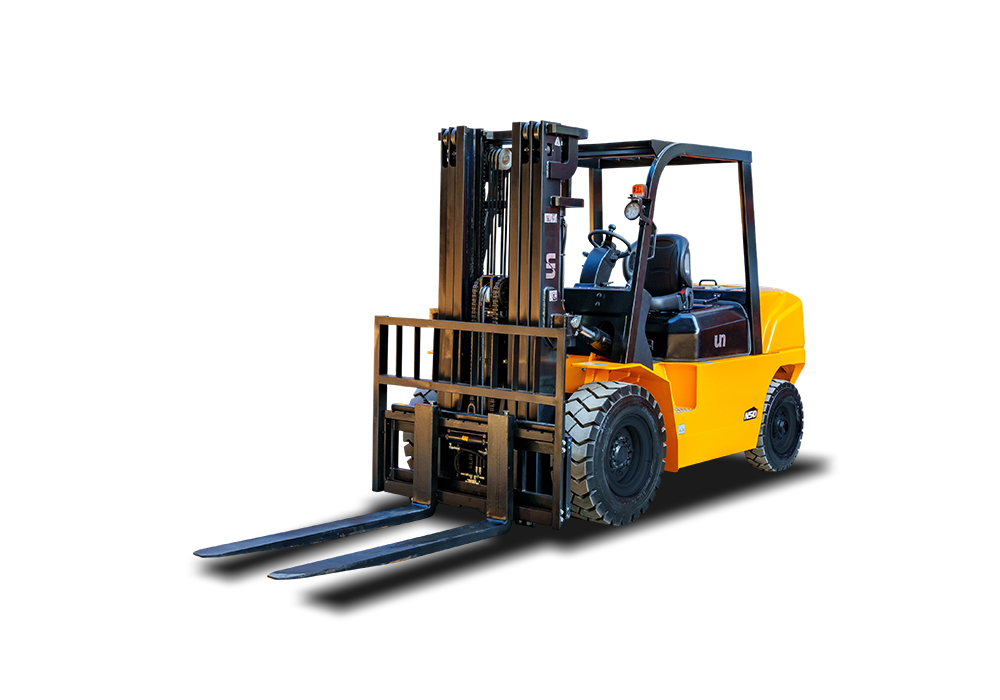

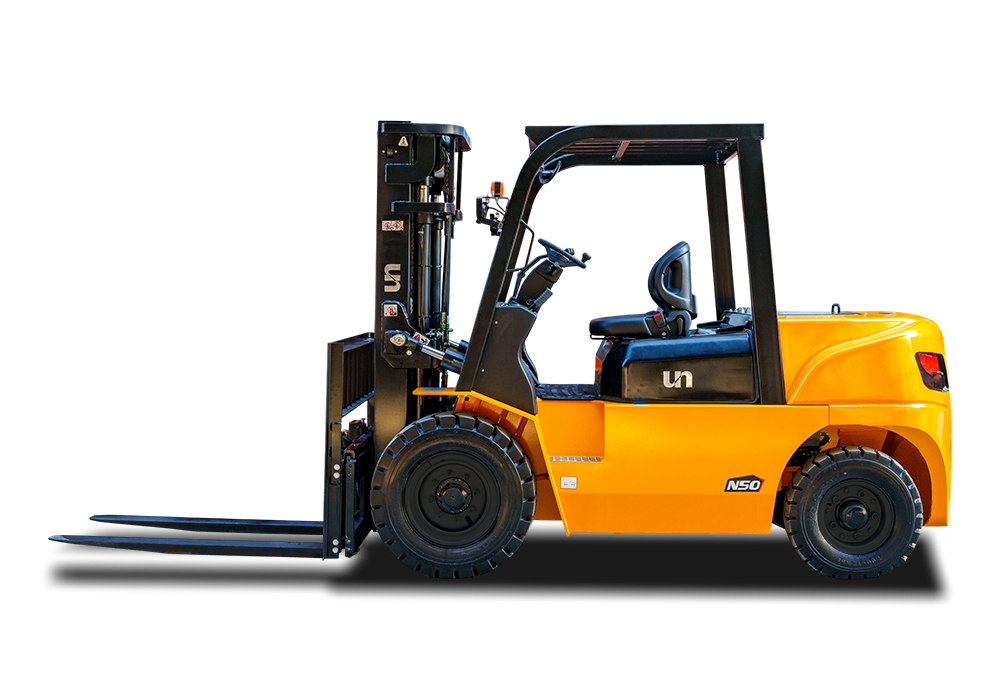

N Series 4.0T-Mini5.0T Diesle Forklift is designed for medium to heavy-duty applications, offering “big capacity in a compact body” for specialized environments where space is limited but heavy loads must be handled.

Its compact design ensures maneuverability, while the overall cost-performance ratio is outstanding, making it highly competitive.

E-mail: [email protected]

Product Details

MAIN SPECIFICATIONS

Model		FD40T-NJM2	FD45T-NJM2	FD50T-XNGP2	FD40T-NGP2	FD45T-NGP2	FD50T-XNJM2
Rated Load Capacity	Q(kg)	4000	4500	5000	4000	4500	5000
Load Centre	C(mm)	500	500	500	500	500	500
Length to Face of Fork (Without Fork)	L1(mm)	3170	3170	3170	3170	3170	3170
Overall Width	B1(mm)	1485	1485	1485	1485	1485	1485
Overhead Guard Height	H5(mm)	2260	2260	2260	2260	2260	2260
Turning Radius (Outside)	Wa(mm)	2830	2830	2830	2830	2830	2830
Travel Speed (No Load)	km/h	22	22	22	22	22	22
Max.Gradeability (Full Load)	%	20	20	20	20	20	20
Wheelbase	Y(mm)	2000	2000	2000	2000	2000	2000
Total Weight	kg	6305	6505	6805	6305	6505	6805
Engine Model		S6S	S6S	S6S	4DX23-82GG3U	4DX23-82GG3U	4DX23-82GG3U

General	1	Manufacturer		UN
	2	Model		FD40T-NJM2	FD45T-NJM2	FD50T-NJM2	FD40T-NGP2	FD45T-NGP2	FD50T-NGP2
	3	Power Type		Diesel
	4	Rated Load Capacity	Q(kg)	4000	4500	5000	4000	4500	5000
	5	Load Centre	C(mm)	500	500	500	500	500	500
Characteristic & Dimension	6	Rated Lift Height	H3(mm)	3000	3000	3000	3000	3000	3000
	7	Free Lift Height	H2(mm)	139	139	139	139	139	139
	8	Fork Size (L×W×T)	mm	1070×150×50
	9	Mast Tilt Angle (F/R, α°/β°)	deg	6°/12°	6°/12°	6°/12°	6°/12°	6°/12°	6°/12°
	10	Fork Overhang (Wheel Center to Fork Face)	X1(mm)	574	574	574	574	574	574
	11	Rear Overhang	X2(mm)	640	640	640	640	640	640
	12	Ground Clearance (Bottom of Mast)	H7(mm)	170	170	170	170	170	170
	13	Length to Face of Fork (Without Fork)	L1(mm)	3170	3170	3170	3170	3170	3170
	14	Overall Width	B1(mm)	1485	1485	1485	1485	1485	1485
	15	Mast Lowered Height	H1(mm)	2260	2260	2260	2260	2260	2260
	16	Mast Extended Height (With Backrest)	H4(mm)	4266	4266	4266	4266	4266	4266
	17	Overhead Guard Height	H5(mm)	2260	2260	2260	2260	2260	2260
	18	Turning Radius (Outside)	Wa(mm)	2830	2830	2830	2830	2830	2830
	19	Min.Aisle width for pallets	Ast(mm)	4640	4640	4640	4640	4640	4640
Performance	20	Travel Speed (No Load)	km/h	22	22	22	22	22	22
	21	Lifting Speed (Full Load)	mm/sec	450		430	450		430
	22	Lowering Speed (No Load/Full Load)	mm/sec	No Load≥300 Full Load≤600
	23	Max.Drawbar Pull (Full Load)	KN	21	21	21	21	21	21
	24	Max.Gradeability (Full Load)	%	20	20	20	20	20	20
Chassis	25	Tyre (Front x 2)	mm	300-15-18PR
	26	Tyre (Rear x 2)	mm	7.00-12-12PR
	27	Front Tread	B2(mm)	1180	1180	1180	1180	1180	1180
	28	Rear Tread	B3(mm)	1130	1130	1130	1130	1130	1130
	29	Wheelbase	Y(mm)	2000	2000	2000	2000	2000	2000
Weight	30	Total Weight	kg	6305	6505	6805	6305	6505	6805
	31	Front Axle Weight Distribution (Full Load)	kg	8810	9550	9750	8810	9550	9750
	32	Rear Axle Weight Distribution (Full Load)	kg	1495	1455	1555	1495	1455	1555
	33	Front Axle Weight Distribution (No Load)	kg	2650	2610	2710	2650	2610	2710
	34	Rear Axle Weight Distribution (No Load)	kg	3655	3895	4095	3655	3895	4095
Power & Transmission	35	Battery	V/Ah	24/90	24/90	24/90	24/90	24/90	24/90
	36	Engine Model		S6S			4DX23-82GG3U
	37	Engine Manufacturer		MITSUBISHI			XICHAI
	38	Rated Output / r.p.m.	kw	52/2300			60/2200
	39	Rated Torque / r.p.m.	N·m	248/1700			320/1300-1600
	40	No.of Cylinder		6			4
	41	Bore x Stroke	mm	94×120			102×118
	42	Displacement	L	4.966			3.857
	43	Fuel Tank Capacity	L	90	90	90	90	90	90
	44	Transmission Type		HYDRAULIC
	45	Transmission Stage (FWD/RVS)		2/1	2/1	2/1	2/1	2/1	2/1
	46	Operating Pressure (For Attachments)	Mpa	19	19	19	19	19	19

Product Features

Reliability & Performance

● Designed for reliability and performance! Our forklift’s scientifically crafted frame and trusted engines from Isuzu, Mitsubishi, Yanmar, Kubota, and Xinchai ensure smooth operation.

● Renowned hydraulic components make lifting and steering effortless.

● Big radiator + smart cooling = consistent performance even in hot conditions.
Safety & Ergonomics

● The forklift combines OPS and seat switch for safe driving.

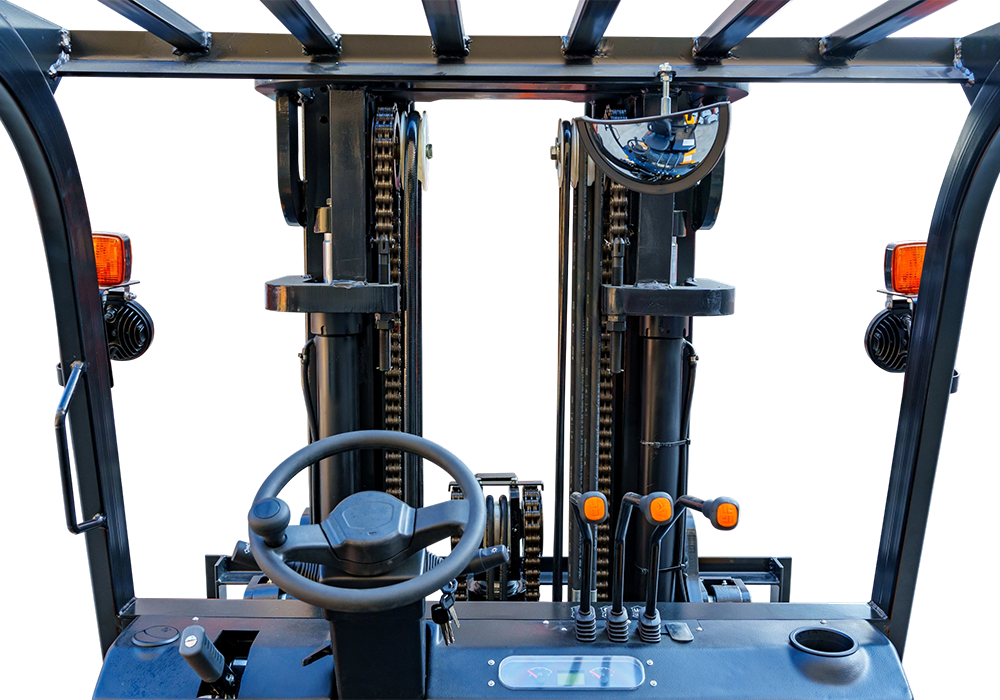

● Wide-vision mast provides excellent visibility for operators.

● Reinforced OHG ensures maximum safety.

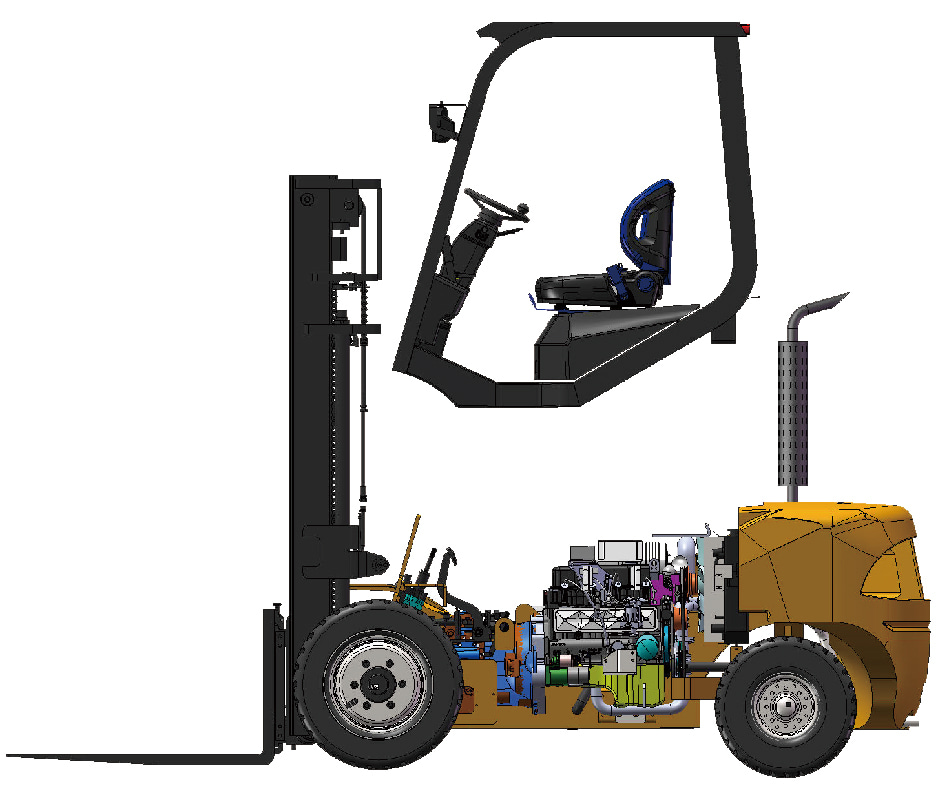

● Ergonomically designed suspended chassis offers generous foot space, adjustable steering, and a comfortable seat.

● Suspended powertrain system is available as an option to match operational needs
Easy Maintenance

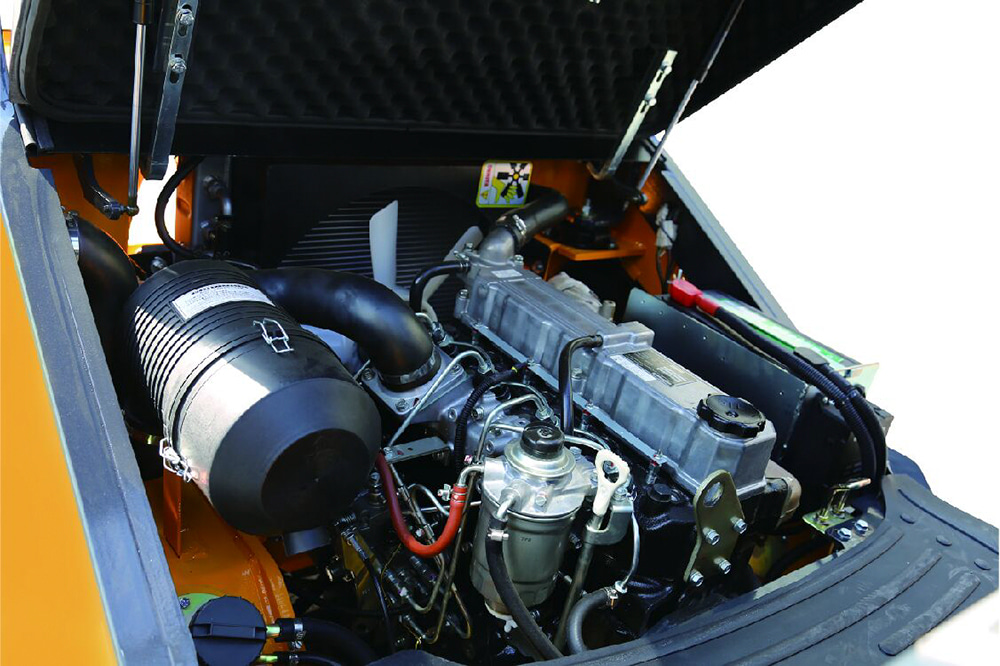

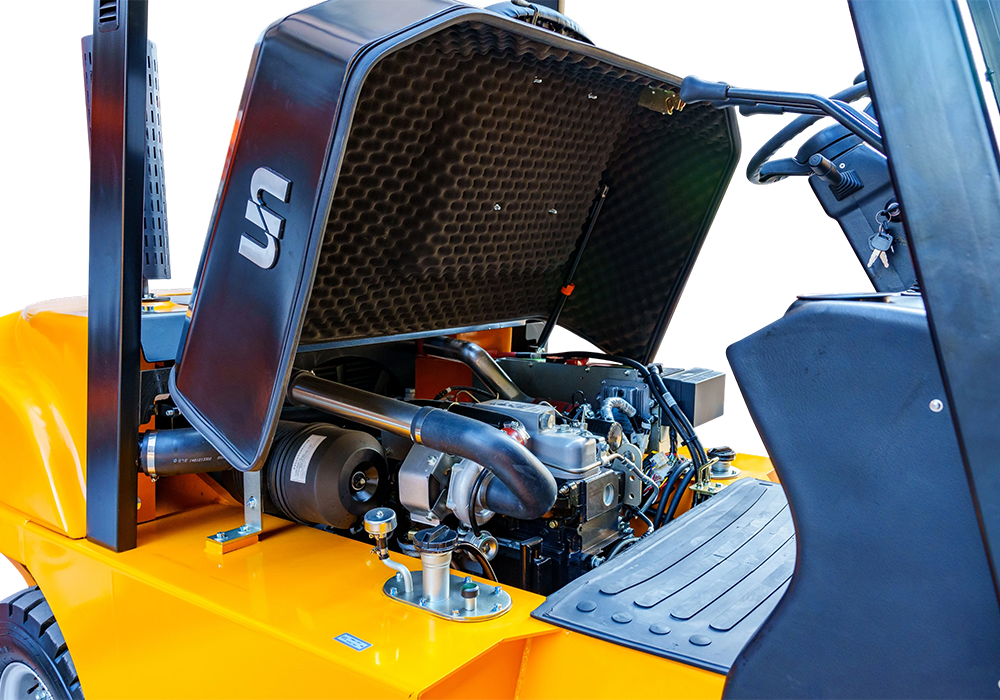

● Nearly 90° engine hood tilt enables efficient daily maintenance and easy component access.

● Transmission oil filter replacement is streamlined for operator convenience.
