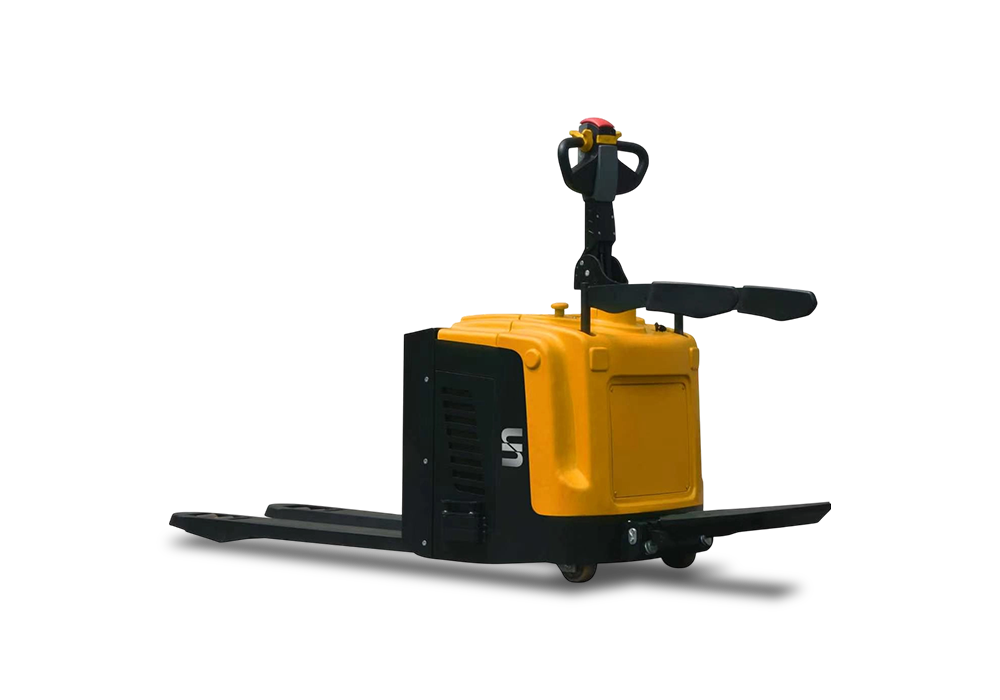

Electric pallet truck SL20/25/30GA

Product Description

1. Central floating propulsion system
A centrally mounted floating drive assembly provides exceptional vehicle stability and smooth maneuvering, ensuring smooth operation even on sharp turns or uneven surfaces.

2. Automatic shutdown brake
When the tiller is released or pushed fully down, the system automatically applies the brake and immediately cuts off power—resulting in responsive, reliable braking and increased operational safety.

3. Electronic Power Steering (EPS)
All models come standard with an advanced electronic power steering system that provides precise steering response, effortless control and a comfortable, ergonomic operating experience.

4. Hydraulic thrust cylinder
Equipped with a powerful hydraulic booster for faster lifting speed, higher power output and lower energy consumption. The system effectively prevents load slip in heavy-duty operations.

5. Side pull battery system
A standard side extraction battery design allows for quick and easy replacement, enabling continuous operation and greatly improving work efficiency in multi-shift applications.

Electric pallet truck PT20N
Zhejiang UN Forklift Co., Ltd. Product Details

MAIN SPECIFICATIONS

Model

SL20GA

SL25GA

SL30GA

Rated Load Capacity

Q(t)

2.0

2.5

3.0

Load Centre

c (mm)

600

600

600

Wheelbase

y (mm)

1560

1560

1560

Total Weight(with battery)

kg

750

760

770

Lowered height

h1 (mm)

85

85

85

Overall length

l1 (mm)

1910

1910

1910

Overall Width

b1/ b2 (mm)

808

808

808

Min Turning Radius

Wa (mm)

1746

1746

1746

Travel Speed(Full Load / No Load)

(km/h)

5.2/5.5

5.2/5.5

5.2/5.5

Max.Gradeability(Full Load / No Load)

(%)

6/10

6/15

6/15

Battery

(V/Ah)

24/210

24/210

24/210

MAIN SPECIFICATIONS

Model

SL20GA

SL25GA

SL30GA

Rated Load Capacity

Q(t)

2.0

2.5

3.0

Load Centre

c (mm)

600

600

600

Wheelbase

y (mm)

1560

1560

1560

Total Weight(with battery)

kg

750

760

770

Lowered height

h1 (mm)

85

85

85

Overall length

l1 (mm)

1910

1910

1910

Overall Width

b1/ b2 (mm)

808

808

808

Min Turning Radius

Wa (mm)

1746

1746

1746

Travel Speed(Full Load / No Load)

(km/h)

5.2/5.5

5.2/5.5

5.2/5.5

Max.Gradeability(Full Load / No Load)

(%)

6/10

6/15

6/15

Battery

(V/Ah)

24/210

24/210

24/210

Zhejiang UN Forklift Co., Ltd. Product Features
