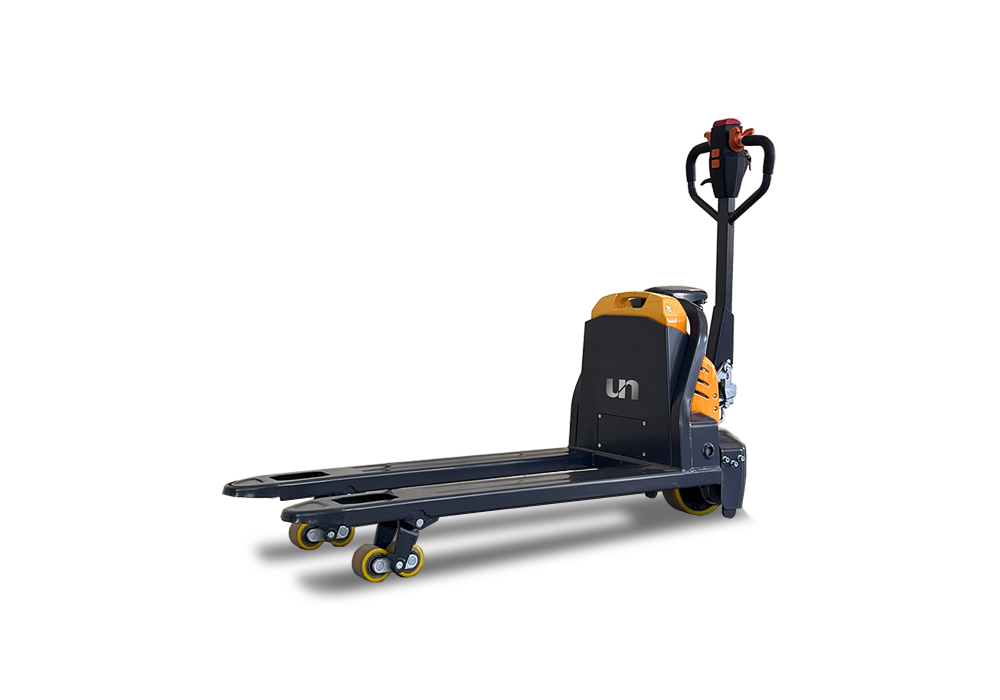

Electric Pallet Truck SL15/18/20L3

Get brochure

Product Description

The vehicle features a simple, compact, and reliable design, offering flexible operation and easy handling. With a small turning radius and lightweight structure, it is suitable for use in freight elevators. Low noise operation combined with high performance ensures efficient and comfortable use.

E-mail: [email protected]

Product Details

MAIN SPECIFICATIONS

Model

SL15L3

SL18L3

SL20L3

Rated Load Capacity

Q(t)

1.5

2.0

Load Centre

c (mm)

600

Wheelbase

y (mm)

1243

Total Weight（without battery）

142

146

Height of Mast（lowered）

h13 (mm)

Overall length

l1 (mm)

1603

Overall Width

b1/ b2 (mm)

550/685

Min Turning Radius

Wa (mm)

1398

Travel Speed（Full Load / No Load）

(km/h)

4.2/4.5

Max.Gradeability（Full Load / No Load）

(%)

5/10

Battery

(V/Ah)

24/20

24/30

24/40

24/60

24/20

24/30

24/40

24/60

48/20

48/30

Product Features

High Performance

● The structural design allows the vehicle to maintain alight weight while having a strong skeleton.

● The whole machine adopts open design, easy to disassemble and replace the battery, convenient for users to maintain the vehicle. When the battery runs out, another set of battery can be quickly replaced(optional), effectively extend working hours.

● Reverse anti-collision switch, dual guarantee of electromagnetic braking and motor braking is adopted for driving braking, which fully considers the operator's driving safety.

● The electric lifting function on the operating handle saves the operator energy. The manual descending function can adjust the descending speed by pulling the handle to improve safety.

● The sturdy metal cover protects the motor and wheels, while also reliably protecting the operator's feet to improve safety.
