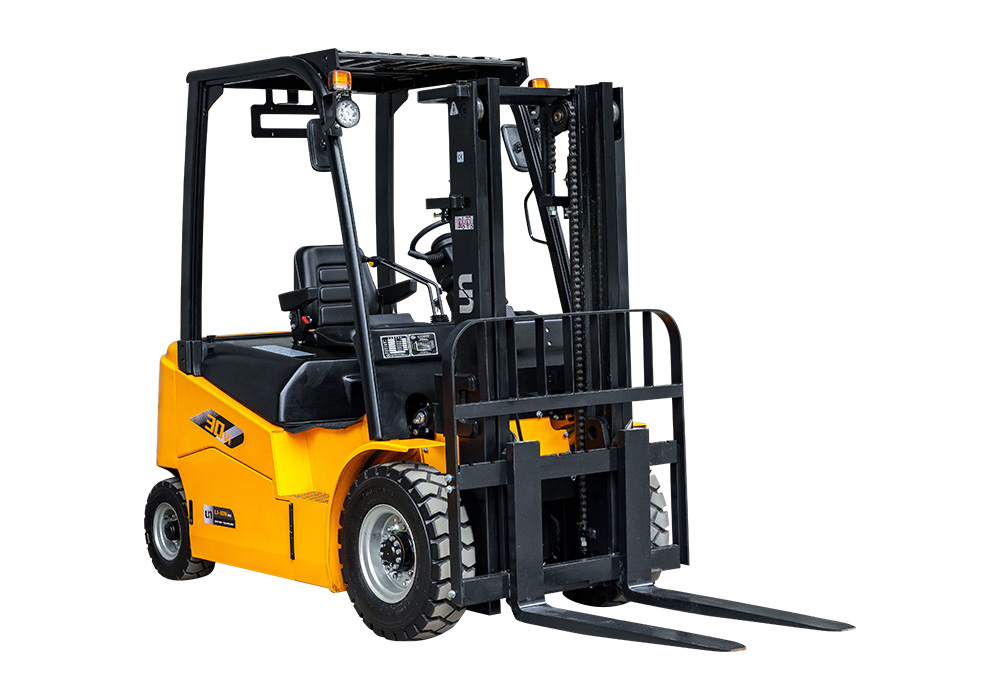

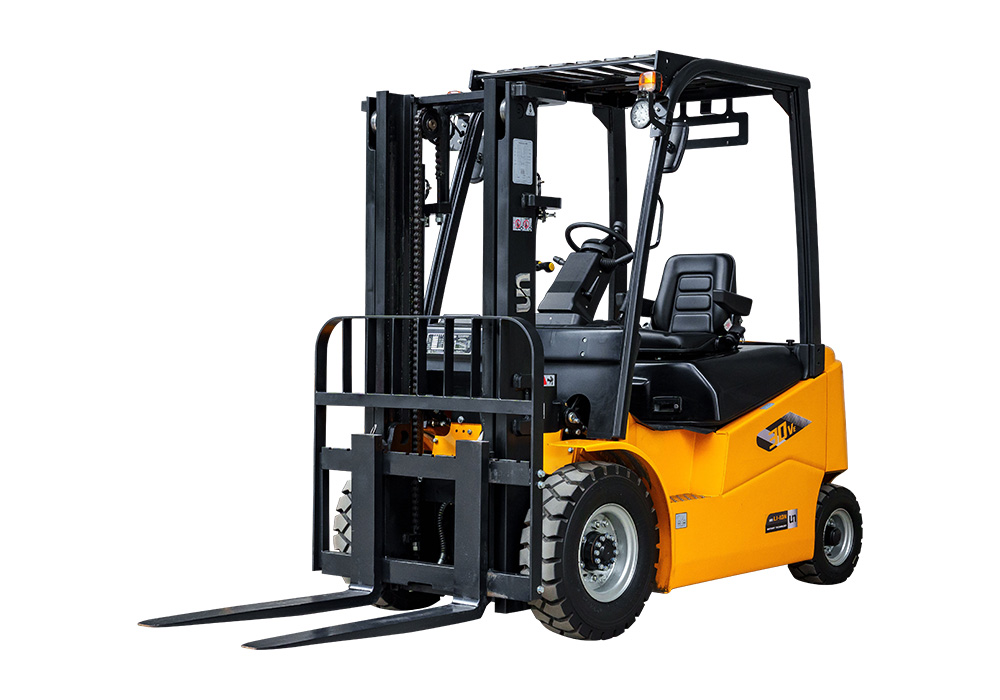

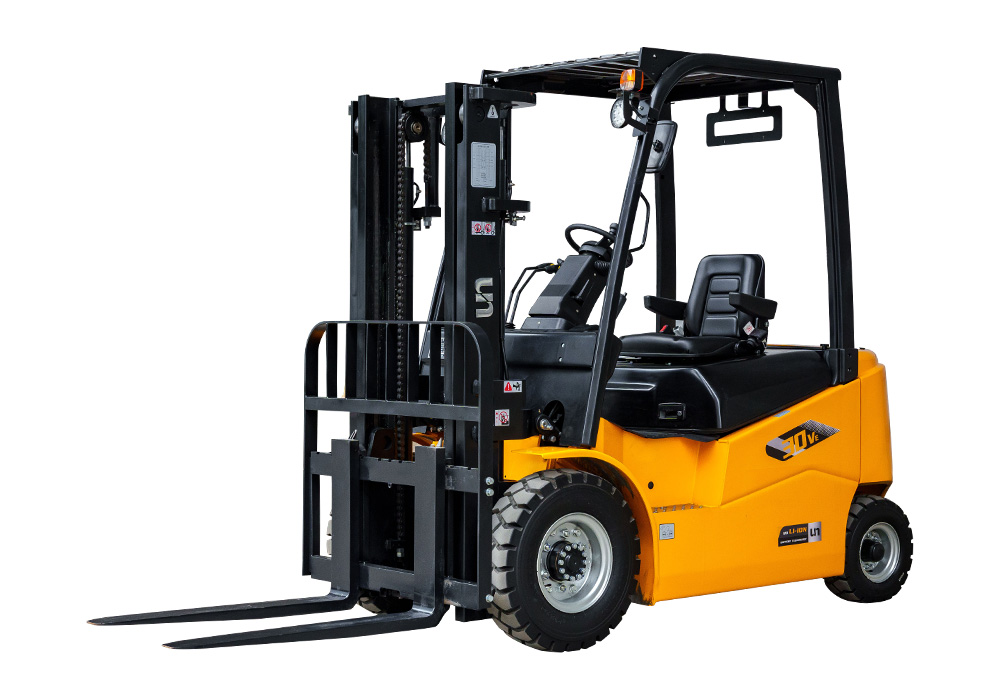

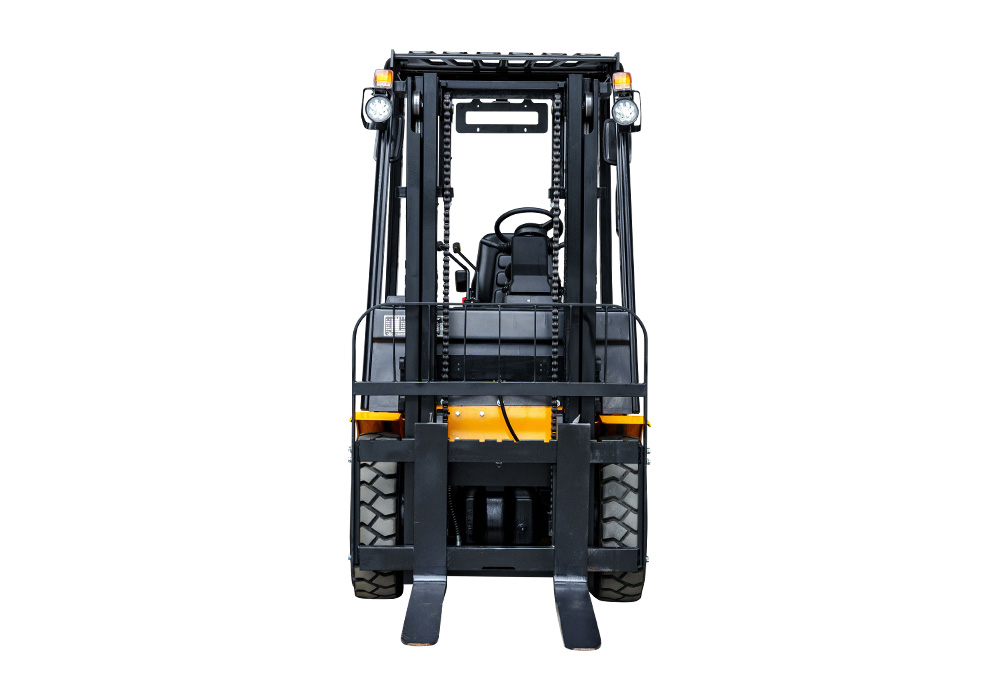

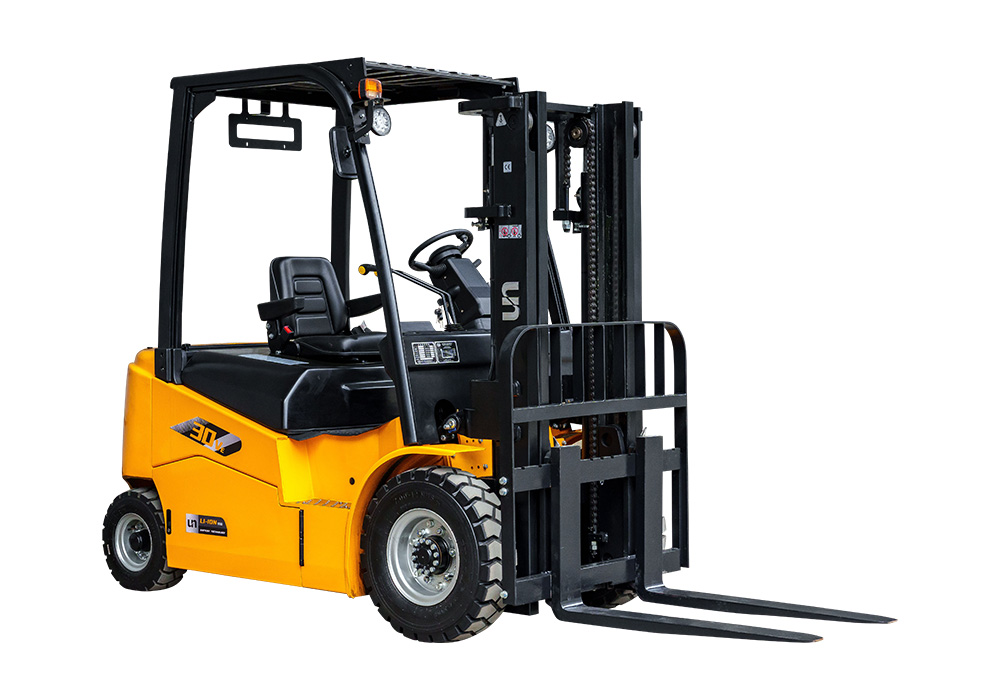

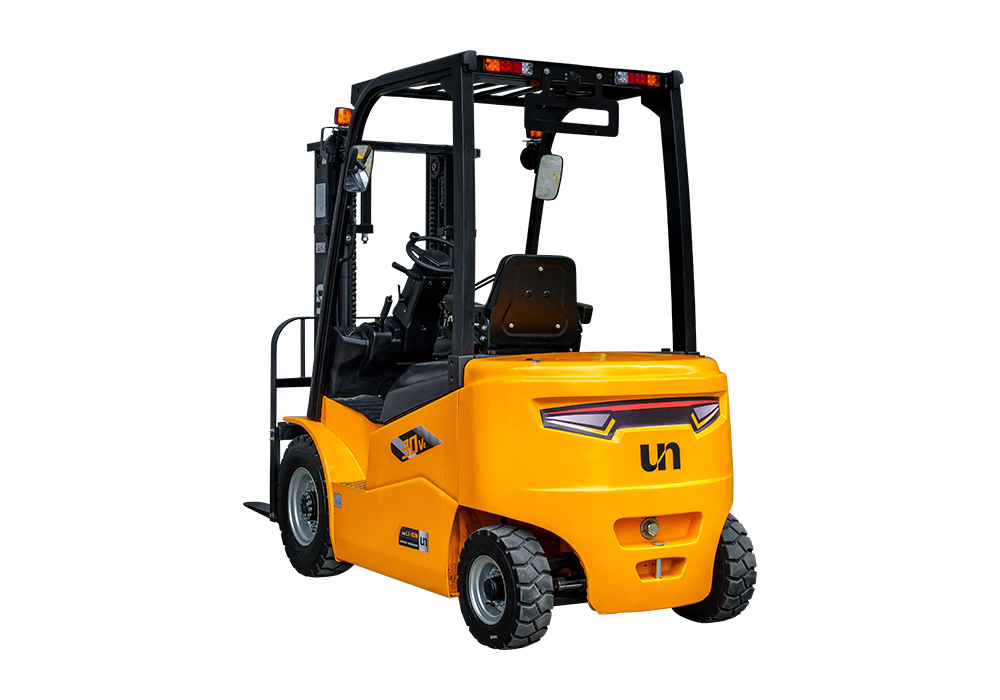

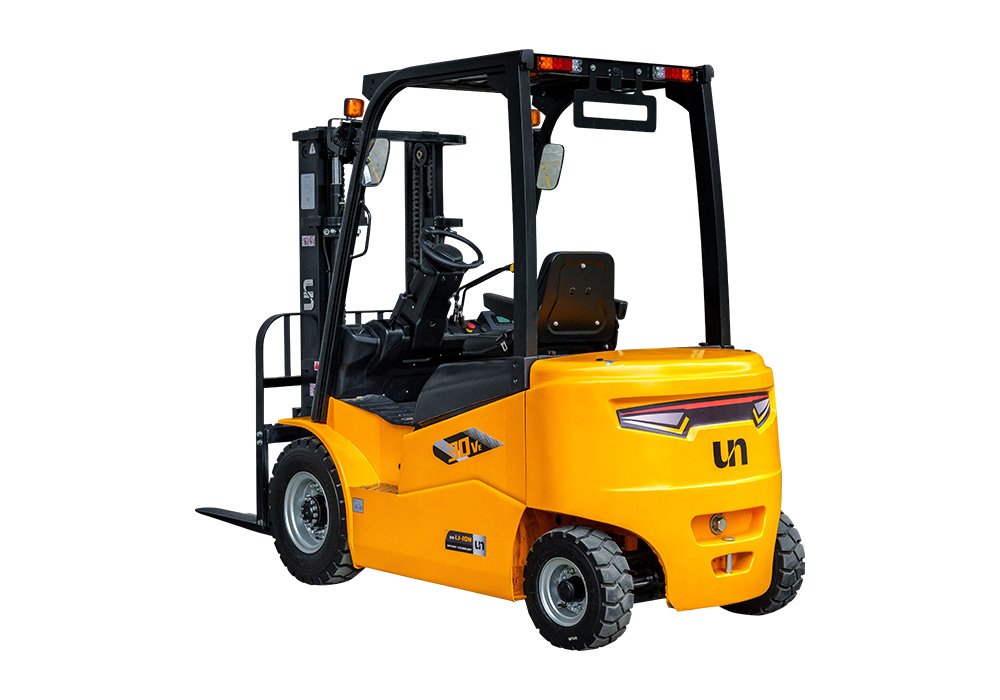

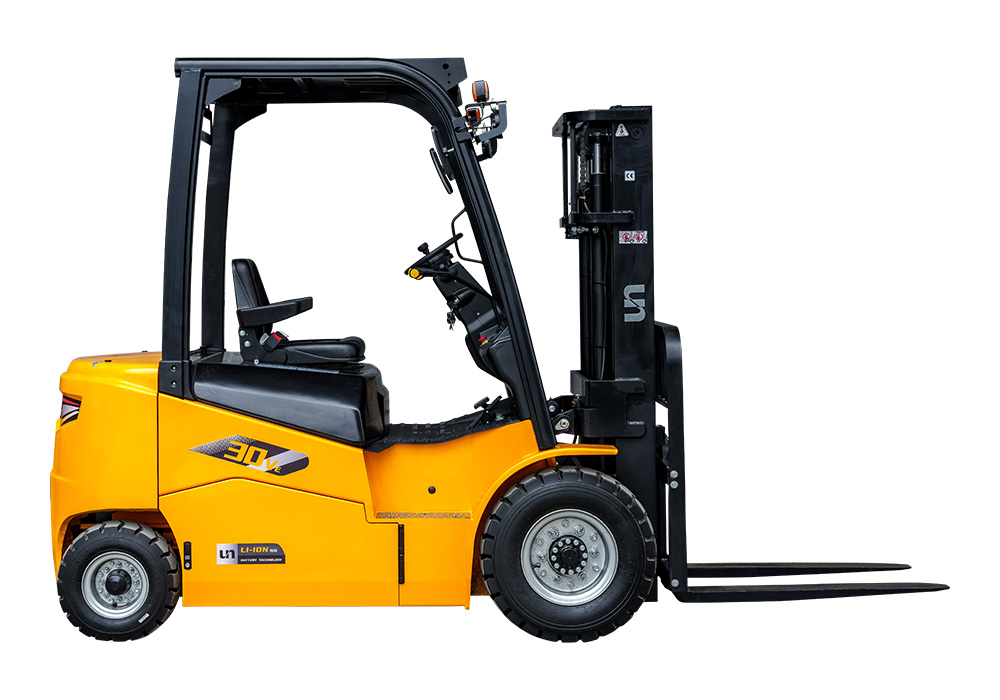

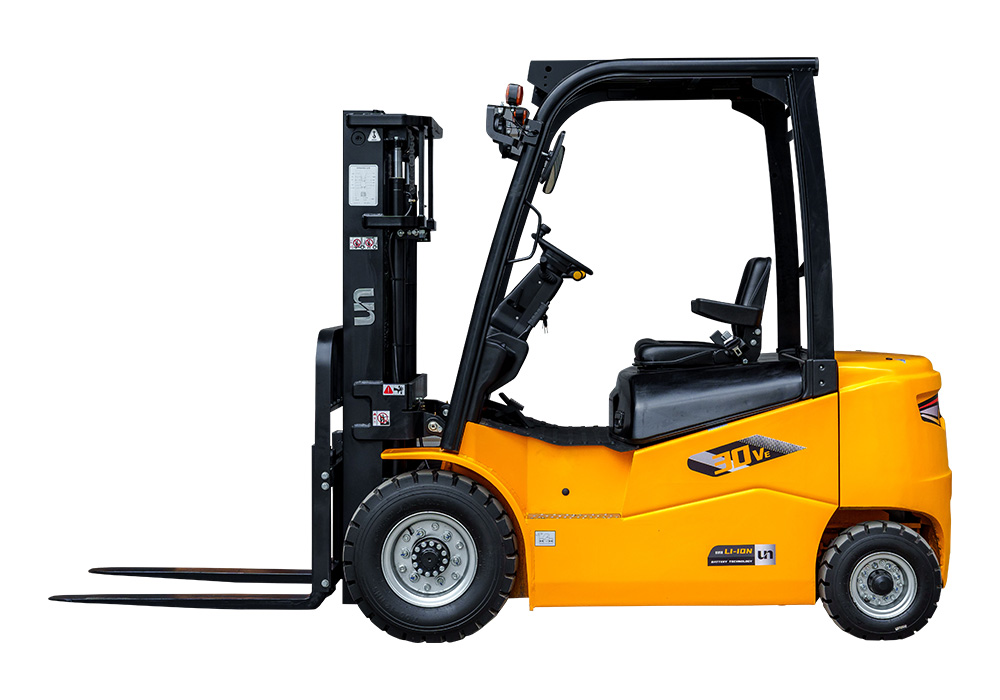

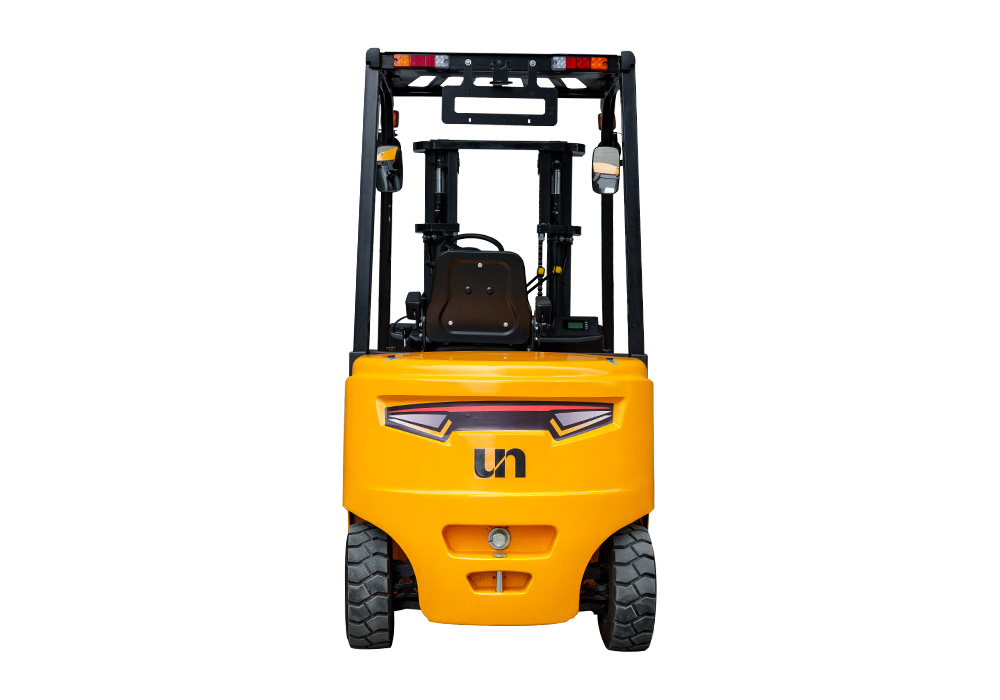

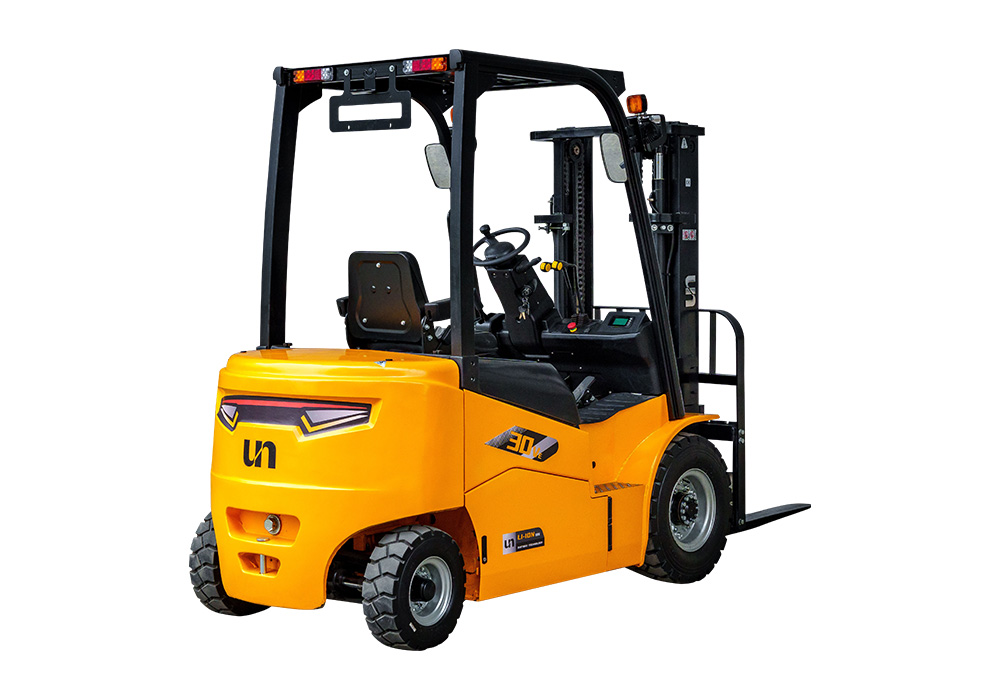

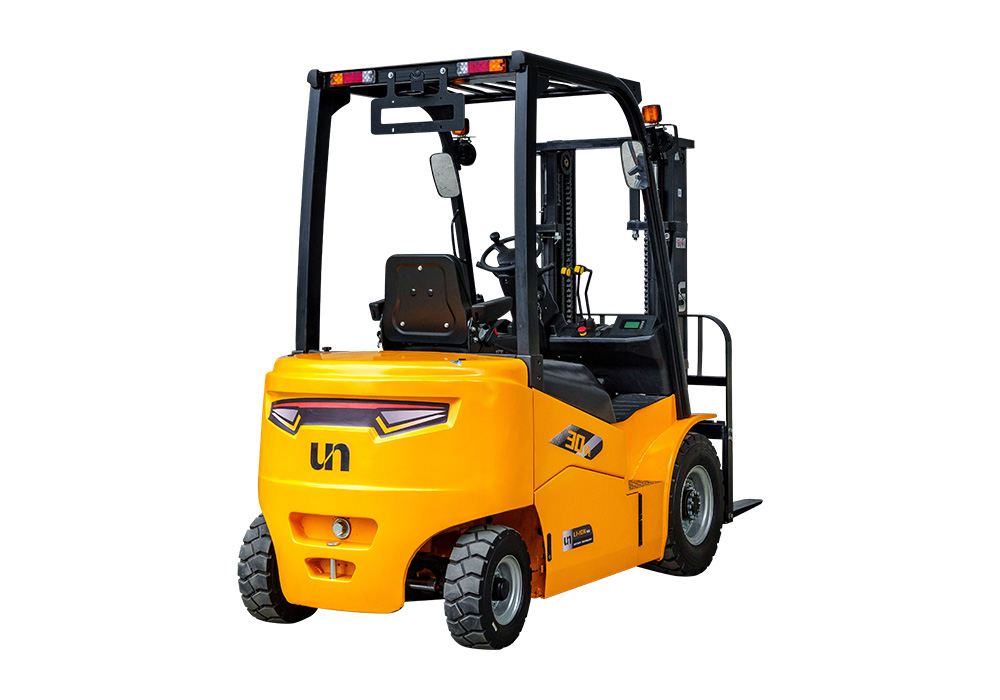

VE Series 3.0T
Li-ion Battery Forklift

Get brochure

Product Description

Based on the success of the V-Series, UN FORKLIFT has developed the VE-Series of Lithium-ion forklift with small-capacity battery and super-competitive cost for specific industries.

E-mail: [email protected]

Product Details

MAIN SPECIFICATIONS

Model		FB30
Rated Load Capacity	Q(kg)	3000
Load Centre	c(mm)	500
Wheelbase	y(mm)	1750
Total Weight	kg	4140
Overhead Guard Height	h6(mm)	2250
Length to Face of Fork (Without Fork)	l2(mm)	2580
Overall Width	b1(mm)	1180
Turning Radius (Outside)	Wa(mm)	2270
Travel Speed (Full Load)	km/h	11
Travel Speed (No Load)	km/h	12
Max.Gradeability (Full Load)	%	12
Max.Gradeability (No Load)	%	15
Battery	V/Ah	80V/135Ah

General	1	Manufacturer		UN
	2	Model		FB30
	3	Drive: Electric(battery or mains), Diesel, Petrol,fuel gas		Electric
	4	Operator type: Hand, Pedestrian, Standing, Seated, order-picker		Seated
	5	Load capacity /rated load	Q(kg)	3000
	6	Load centre distance	c(mm)	500
	7	Load distance, center of drive axle to fork	x(mm)	474
	8	Wheelbase	y(mm)	1750
Weight	9	Total Weight	kg	4140
	10	Axle loading, loaded front/rear	kg	6390/750
	11	Axle loading, unloaded front/rear	kg	1720/2420
Chassis	12	Tires: Solid rubber, Superelastic, Pneumatic, Polyurethane		pneumatic
	13	Tyre size (Front x 2)		7.00-12-12PR
	14	Tyre size (Rear x 2)		18×7-8-14PR
	15	Front tread	b10(mm)	980
	16	Rear tread	b11(mm)	955
Dimensions	17	Tilt of mast/fork carriage forward/backward	α/β（°）	6°/12°
	18	Mast lowered height	h1(mm)	2070
	19	Free lift height	h2(mm)	145
	20	Rated lift height	h3(mm)	3000
	21	Mast extended height (With backrest)	h4(mm)	4070
	22	Overhead guard height	h6(mm)	2250
	23	Length to face of fork (Without fork)	l2(mm)	2580
	24	Overall width	b1(mm)	1180
	25	Fork size (l×e×s)	l/e/s(mm)	1070×125×45
	26	Distance between fork-arms	b5(mm)	250/1075
	27	Ground clearance (Laden, below mast)	m1(mm)	115
	28	Ground clearance (Centre of wheelbase)	m2(mm)	140
	29	Aisle width for pallets 1000×1200 crossways	Ast(mm)	3945
	30	Aisle width for pallets 800×1200 lengthways	Ast(mm)	4145
	31	Turning radius (Outside)	Wa(mm)	2270
Performance	32	Travel speed (Full load)	km/h	11
	33	Travel speed (No load)	km/h	12
	34	Lifting speed (Full load)	mm/s	250
	35	Lifting speed (No load)	mm/s	360
	36	Max.Gradeability (Full load)	%	12
	37	Max.Gradeability (No load)	%	15
	38	Service brake		Hydraulic
	39	Parking brake		Mechanical
Power & Transmission	40	Drive motor rating S2-60min	kw	10
	41	Lift motor rating at S3-15min	kw	12
	42	Battery voltage, nominal capacity	V/Ah	80V/135Ah
	43	Battery weight	kg	106
	44	Type of drive control		MOS/AC
	45	Manufacturer		SUPEREC
	46	Operating pressure (For attachments)	Mpa	17.5

Product Features

Performance & Reliability

● With built-in charger.

● Higher ground clearance.

● Casting steering axle.

● Out Door & In Door Application:

Indoor: Work as traditional electric forklift.

Outdoor: A replacement of IC forklift.
The Best Lithium-ion Technology

● Famous lithium battery in China.

● Integrated BMS.

● 5-Years warranty, about 4000 times lift cycle.

● 3rd-generation battery, with IP67 waterproof & dustproof.
Comfort and Ergonomics

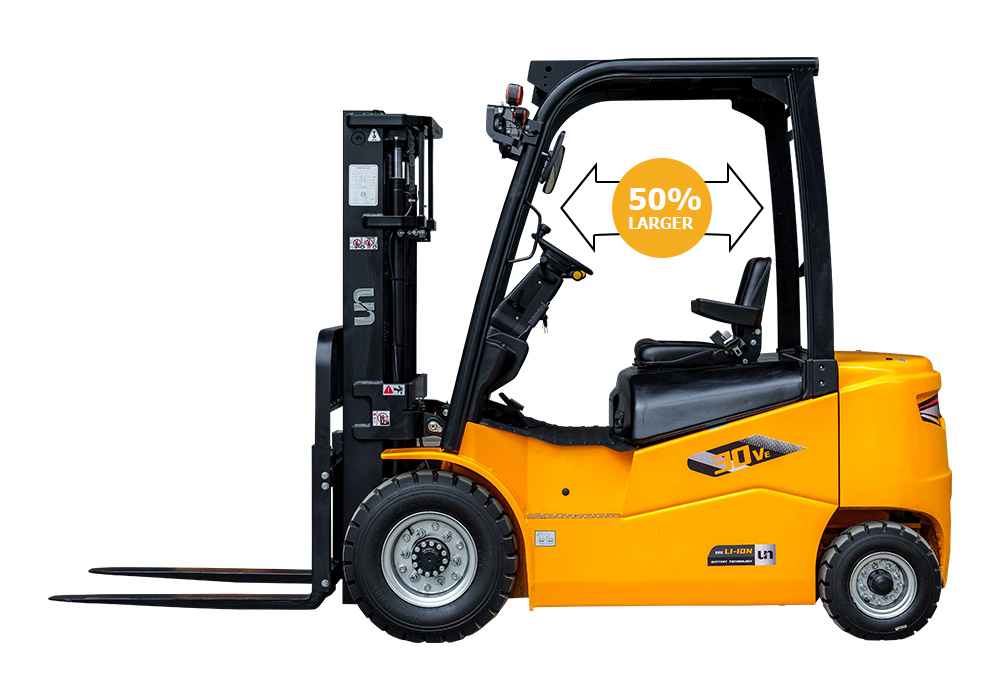

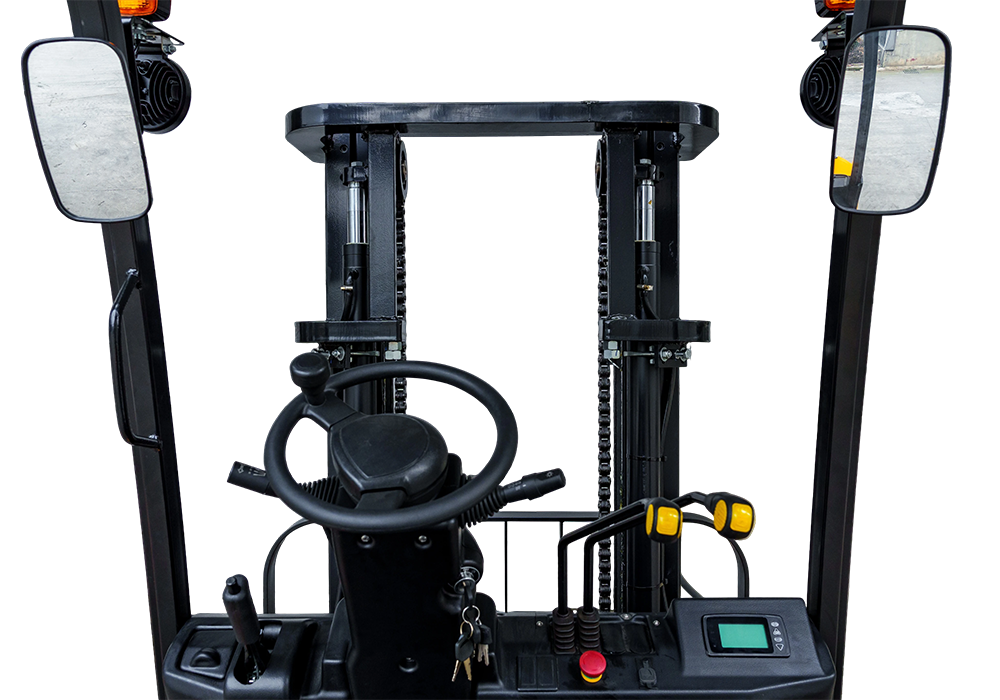

● Wider operation space, 50% bigger than traditional electric forklift and even same as IC forklift.

● Utilizing an optimized stamped overhead guard, providing improved visibility.
Easy Maintenance

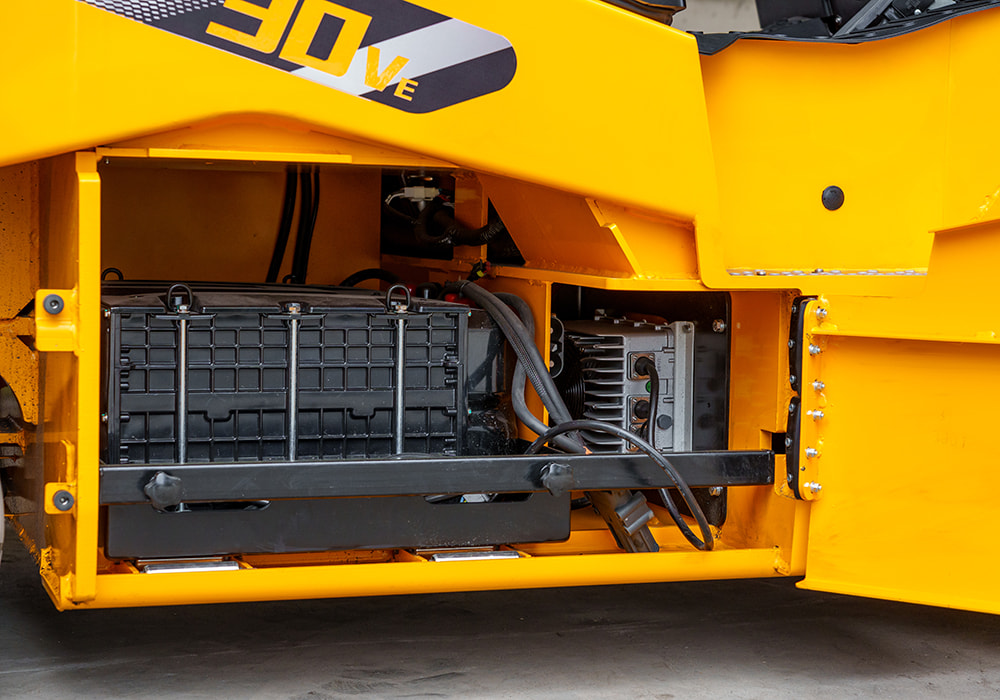

● Side-swapping of battery pack for easy battery replacement.

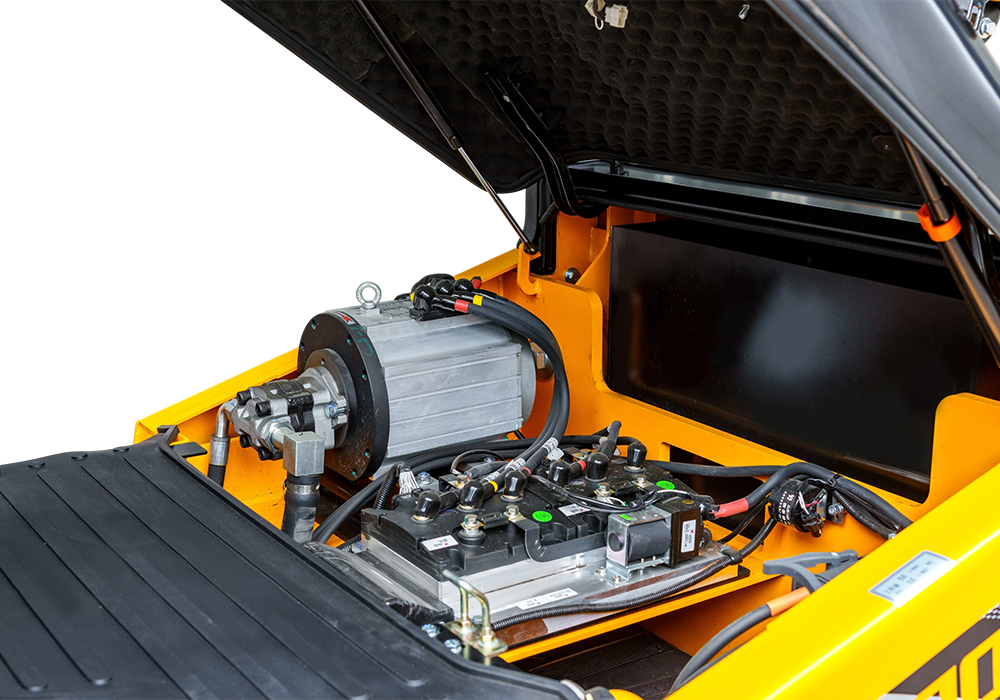

● Big open angel hood & larger inside space for a better access to main parts.

● LED screen provides real-time information of the forklift.

● Can-bus monitor the forklift all the time.
