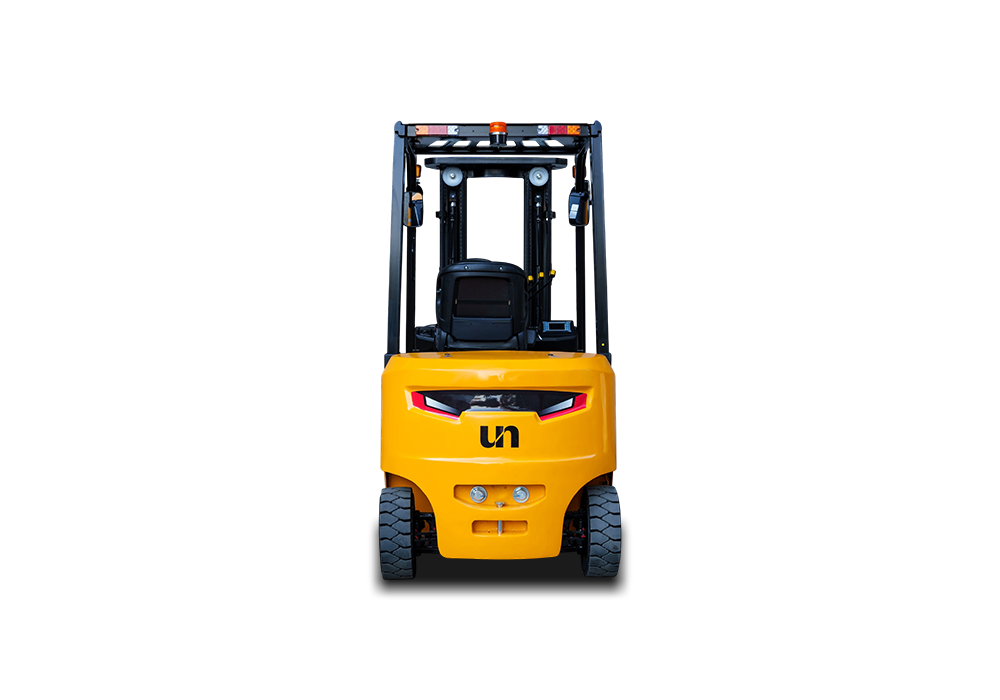

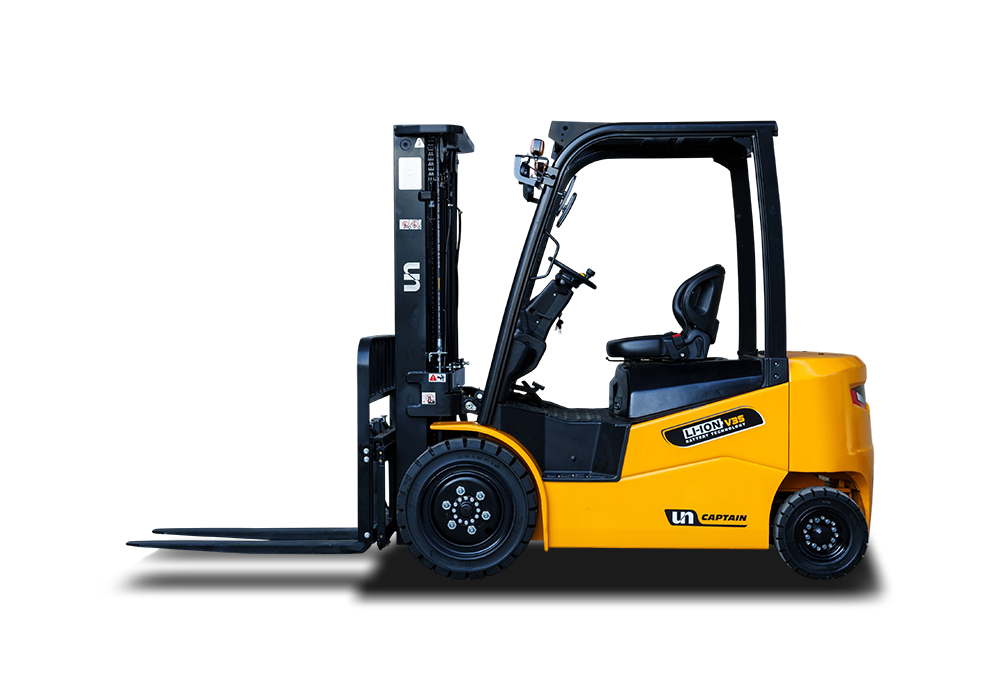

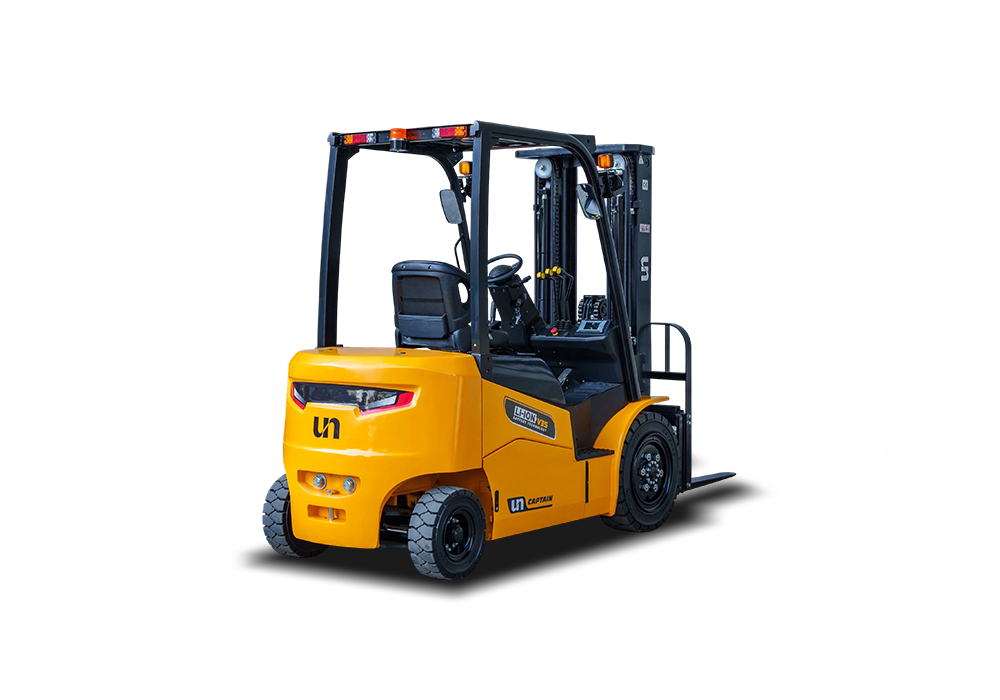

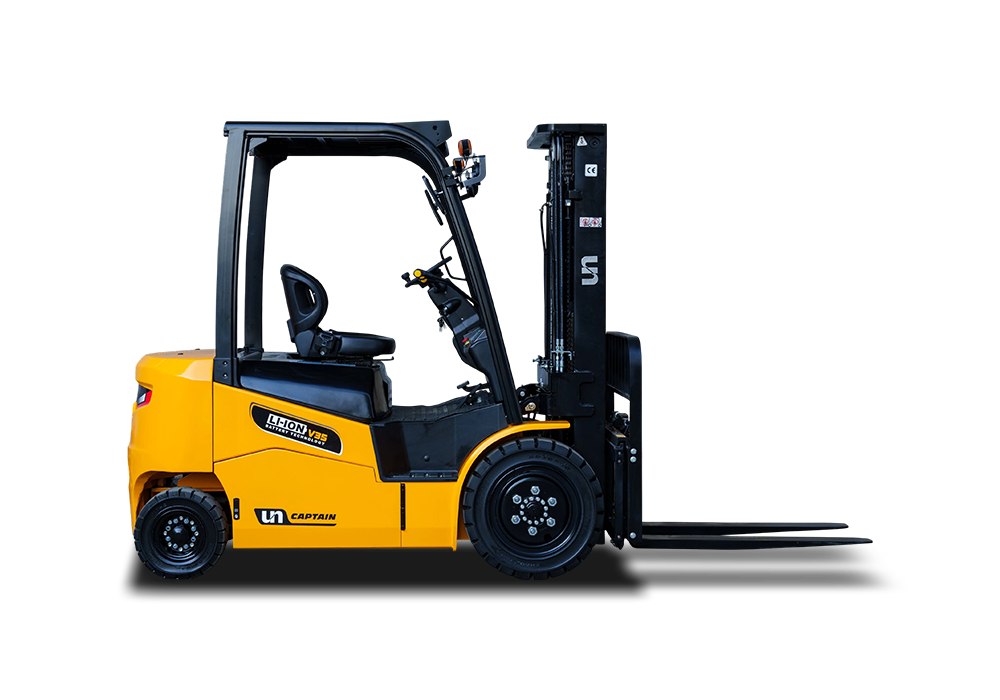

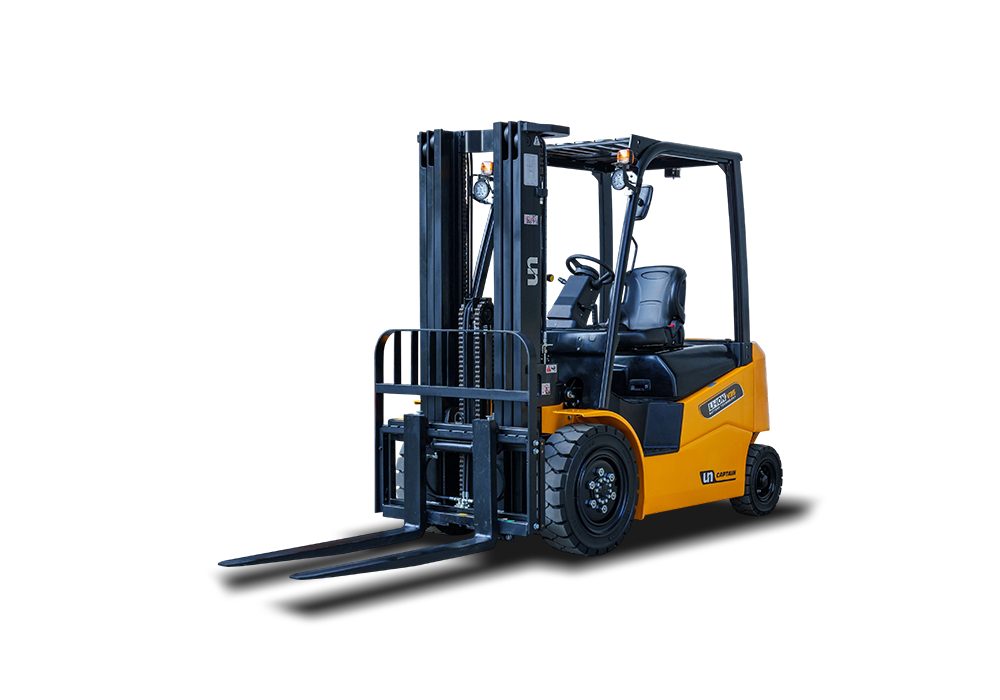

V SERIES 3.0T-3.5T

LI-ION BATTERY FORKLIFT

Get brochure

Product Description

V Series Lithium-ion Forklift — the Second Generation Lithium-ion Forklift with brand new design. This new forklift adopts innovative and reliable lithium battery EVE cell technology, Italy imported ZAPI controller and full AC motors. The combination of super performance and durability makes it a replacement of IC forklift.

This new energy forklift will meet all your imaginations by its superiorities such as long working hours, high performance, zero emission, low maintenance and operation costs. This new model is proudly named “CAPTAIN”. It’s expected to dominate the future electric forklift market and the whole UN Forklift fleet to success like a captain.

E-mail: [email protected]

Product Details

MAIN SPECIFICATIONS

Model		FB30	FB35
Rated Load Capacity	Q(kg)	3000	3500
Load Cener	c(mm)	500	500
Wheelbase	y(mm)	1750	1750
Total Weight	kg	4430/4455	4900/4925
Overhead Guard Height	h6(mm)	2265	2265
Length to Face of Fork (Without Fork)	l2(mm)	2580	2580
Overall Width	b1(mm)	1225	1225
Turning Radius (Outside)	Wa(mm)	2330	2330
Travel Speed (Full Load)	km/h	14/18	14/17
Travel Speed (No Load)	km/h	15/19	15/18
Max.Gradeability (Full Load)	%	15/19	15/19
Max.Gradeability (No Load)	%	15/20	15/20
Battery	V/Ah	76.8V/280Ah 76.8V/304Ah	76.8V/280Ah 76.8V/304Ah

General	1	Manufacturer		UN
	2	Model		FB20-LVZN	FB25-LVZN	FB30-LVZN	FB35-LVZN
	3	Drive		Electric
	4	Operator type		Seated
	5	Load capacity /rated load	Q(kg)	2000	2500	3000	3500
	6	Load center	c(mm)	500	500	500	500
	7	Front Overhang (wheel center to fork face)	x(mm)	460	460	475	480
	8	Wheelbase	y(mm)	1620	1620	1750	1750
Weight	9	Total Weight	kg	3500/3550	3880/3930	4430/4455	4900/4925
	10	Weight Distribution Full Load (front/rear)	kg	4910/590 4930/620	5700/680 5720/710	6635/795 6645/810	7505/895 7515/910
	11	Weight Distribution No Load (front/rear)	kg	1720/1780 1740/1810	1710/2170 1730/2200	1955/2475 1965/2490	2040/2860 2050/2875
Chassis	12	Tires		pneumatic			superelastic
	13	Tyre size (Front x 2)		7.00-12-12PR	7.00-12-12PR	28x9-15-12PR	28x9-15
	14	Tyre size (Rear x 2)		18×7-8-14PR	18×7-8-14PR	18×7-8-14PR	18×7-8
	15	Front tread	b10(mm)	980	980	1000	1000
	16	Rear tread	b11(mm)	970	970	990	990
Dimensions	17	Tilt of mast/fork carriage forward/backward	α/β（°）	6°/12°
	18	Mast lowered height	h1(mm)	2055	2055	2070	2070
	19	Free lift height	h2(mm)	140	140	145	150
	20	Rated lift height	h3(mm)	3000	3000	3000	3000
	21	Mast extended height (With backrest)	h4(mm)	4070	4070	4070	4070
	22	Overhead guard height	h6(mm)	2245	2245	2265	2265
	23	Length to face of fork (Without fork)	l2(mm)	2415	2415	2580	2580
	24	Overall width	b1(mm)	1180	1180	1225	1225
	25	Fork size (l×e×s)	l/e/s(mm)	1070×120×40	1070×120×40	1070×125×45	1070×125×50
	26	Distance between fork-arms	b5(mm)	245/1030	245/1030	250/1075	250/1075
	27	Ground clearance (Laden, below mast)	m1(mm)	120	120	130	130
	28	Ground clearance (Centre of wheelbase)	m2(mm)	135	135	155	155
	29	Aisle width for pallets 1000×1200 crossways	Ast(mm)	3825	3825	4005	4010
	30	Aisle width for pallets 800×1200 lengthways	Ast(mm)	4025	4025	4205	4210
	31	Turning radius (Outside)	Wa(mm)	2165	2165	2330	2330
Performance	32	Travel speed (Full load)	km/h	14/18	14/18	14/18	14/17
	33	Travel speed (No load)	km/h	15/19	15/19	15/19	15/18
	34	Lifting speed (Full load)	mm/s	350/440	350/440	340/390	340/390
	35	Lifting speed (No load)	mm/s	490/560	490/560	450/540	450/540
	36	Max.Gradeability (Full load)	%	15/19	15/19	15/19	15/19
	37	Max.Gradeability (No load)	%	15/20	15/20	15/20	15/20
	38	Max.Drawbar pull (laden/unladen)	N	16500	19000	17500	21500
	39	Service brake		Hydraulic
	40	Parking brake		Mechanical
Power & Transmission	41	Drive motor rating S2-60min	kw	15/16.6	15/16.6	15/16.6	15/16.6
	42	Lift motor rating at S3-15min	kw	21/25.5	21/25.5	21/25.5	21/25.5
	43	Battery voltage, nominal capacity	V/Ah	76.8V230Ah 76.8V/304Ah	76.8V230Ah 76.8V/304Ah	76.8V/280Ah 76.8V/304Ah	76.8V/280Ah 76.8V/304Ah
	44	Battery weight	kg	265/295	265/295	280/295	280/295
	45	Type of drive control		MOS/AC
	46	Manufacturer		ZAPI
	47	Operating pressure (For attachments)	Mpa	17.5

Product Features

Super Performance & High Efficiency

● Strong and enhanced structure with IC forklift type axle and mast makes it safer and more reliable for heavy duty applications.
Strong Gradeability

● Faster speed of travelling, lifting and lowering turns to the great productivity.
Working environment

● Well allocated ventilation & cooling system for the motor and battery BMS system, which are suitable for persistent long working hours conditions.
Indoor Performance

● This Captain forklift can replace the traditional electric forklift inside the warehouse with more comfortable operation.
● The whole vehicle can be operated alternately in -20℃ cold storage.
Outdoor Performance

(All Weather & Rough Area)

● This Captain forklift is considered as a perfect replacement of IC forklift with its super performance, strengthened structure, high ground clearance, IP54 waterproof and dustproof.
Multi-Shifts Design-Side Swapping Battery

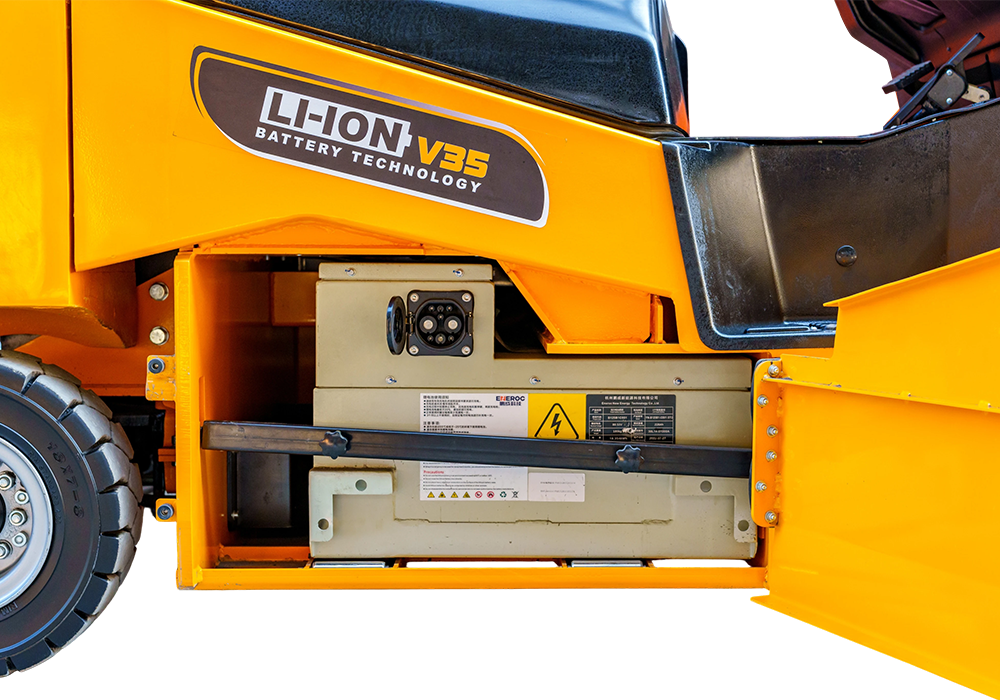

● This Captain forklift adopts the side-swapping of battery pack function, which can easily replace the battery pack in a few minutes and save time.
Comfort and Ergonomics

● Wider operation space, 50% larger operation space than traditional electric forklift, which is same large space as the IC forklift.
● Wide view mast provides operators with super visibility.
LED screen

● Advanced and scientifically layout dashboard: The LED screen faces towards the operator at a comfortable angle.
● ZAPI controller equipped with large true-color LED screen brings excellent visibility and more clear reading; The Can-bus helps operators monitor the forklift all the time.
USB power supply design

● USB power supply design, more convenient for mobile devices charging.
Easy Maintenance

● Maintenance-free for lithium-ion battery, and side-swapping of battery pack for easy battery replacement.
Hood

● Big open angle of the hood supports a better access to main parts.
