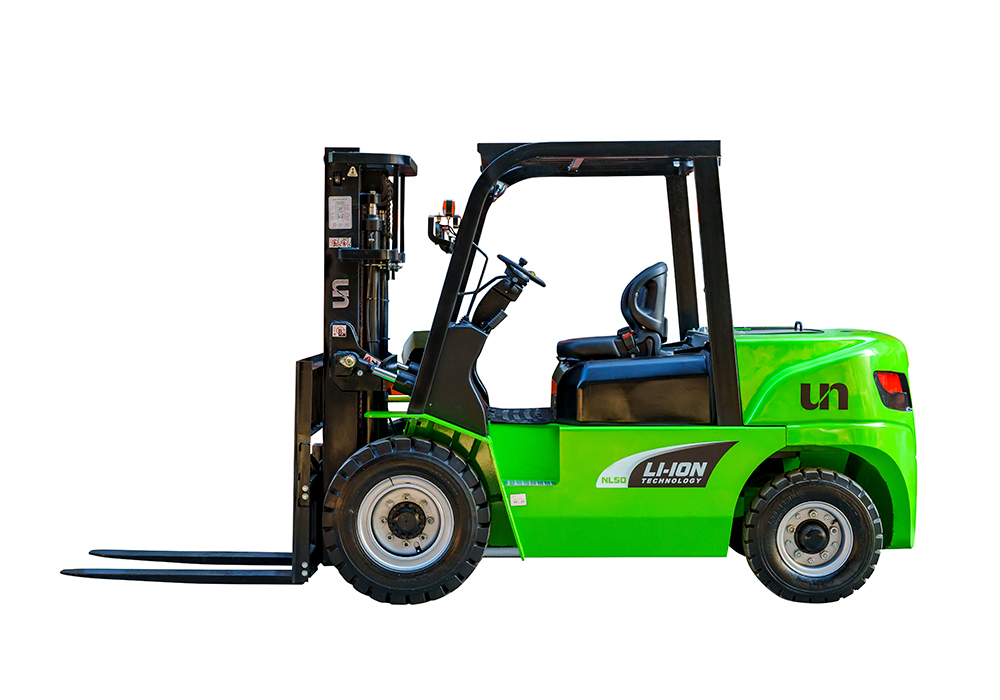

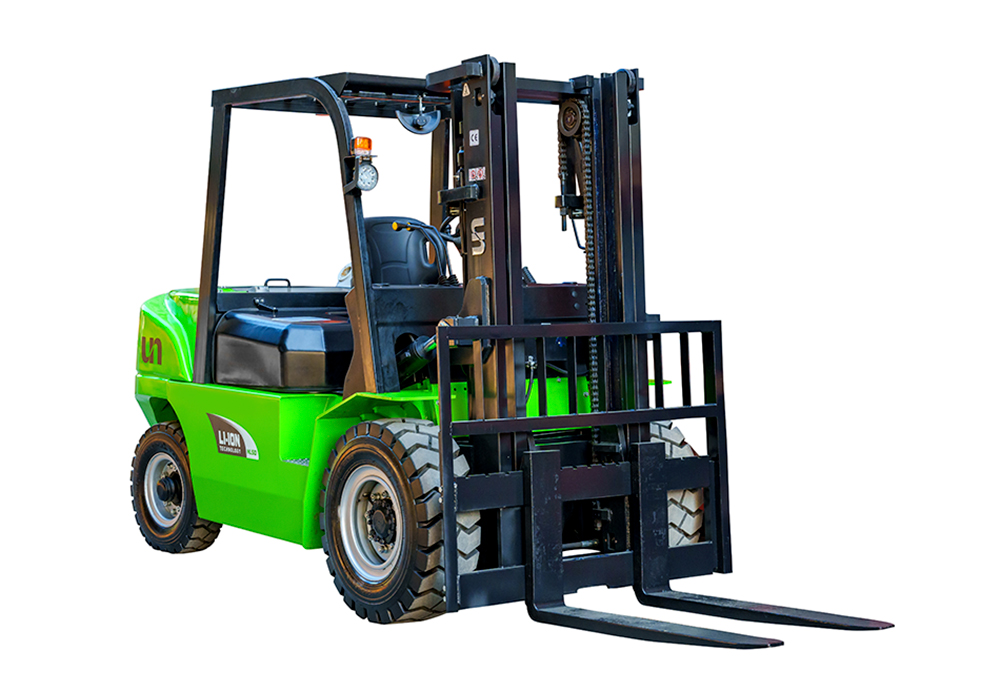

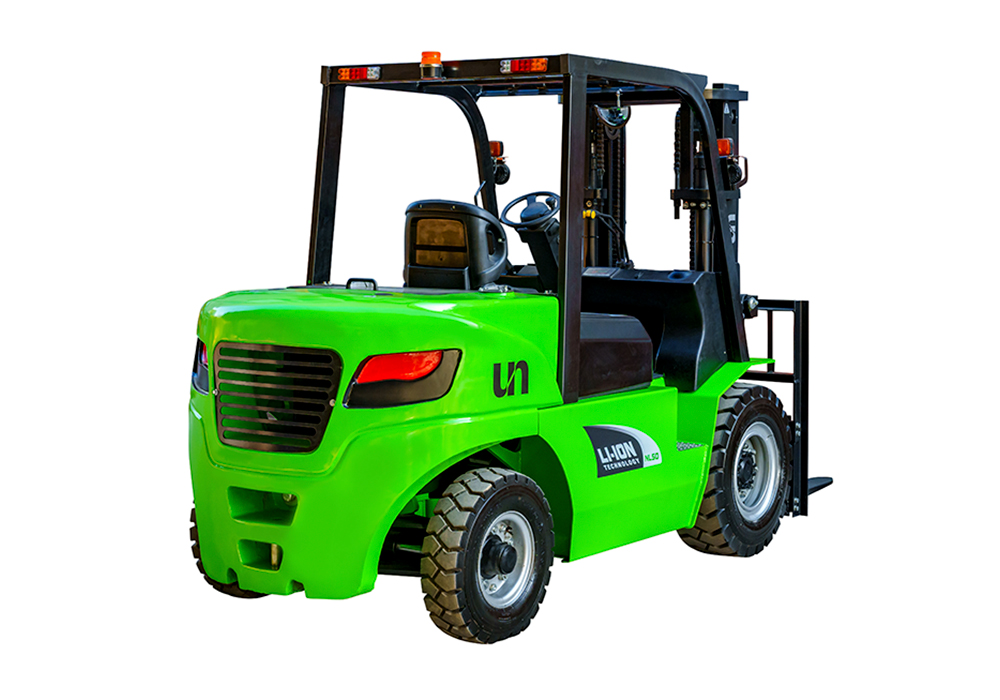

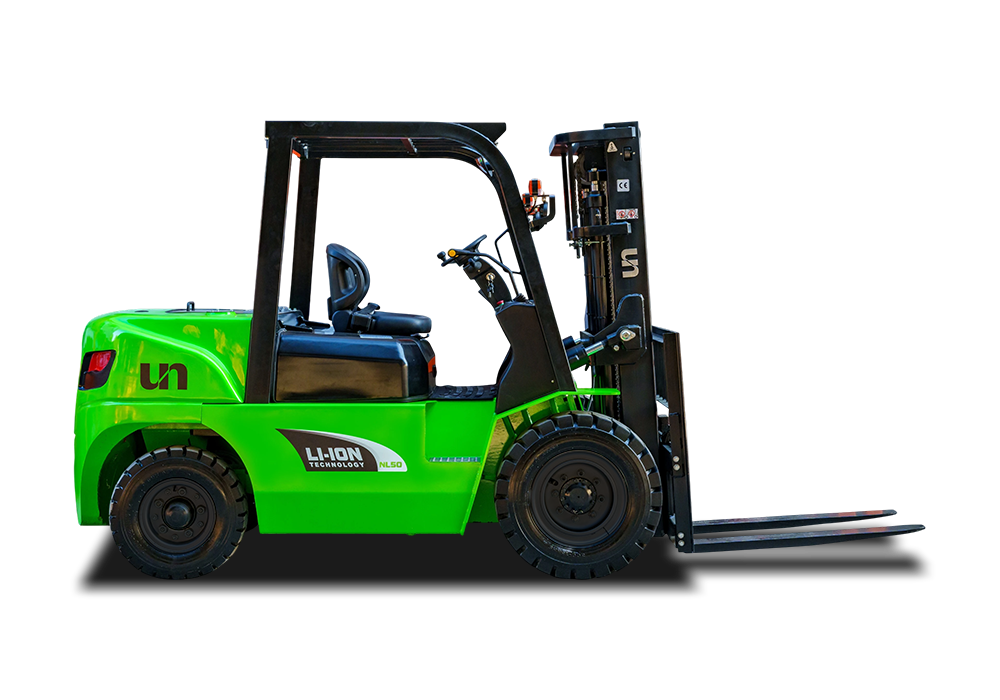

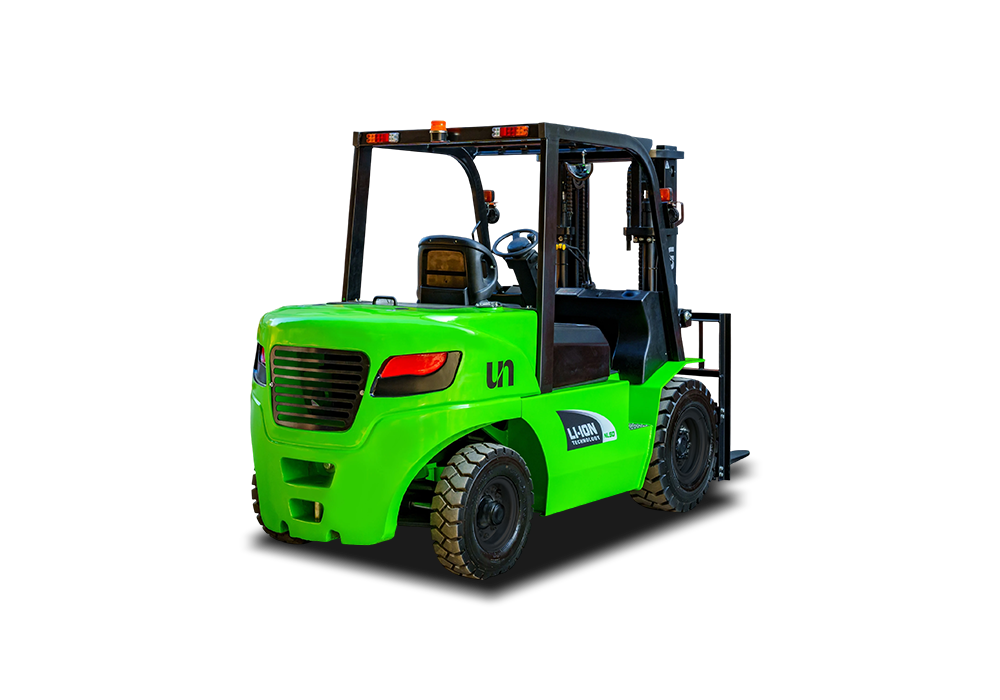

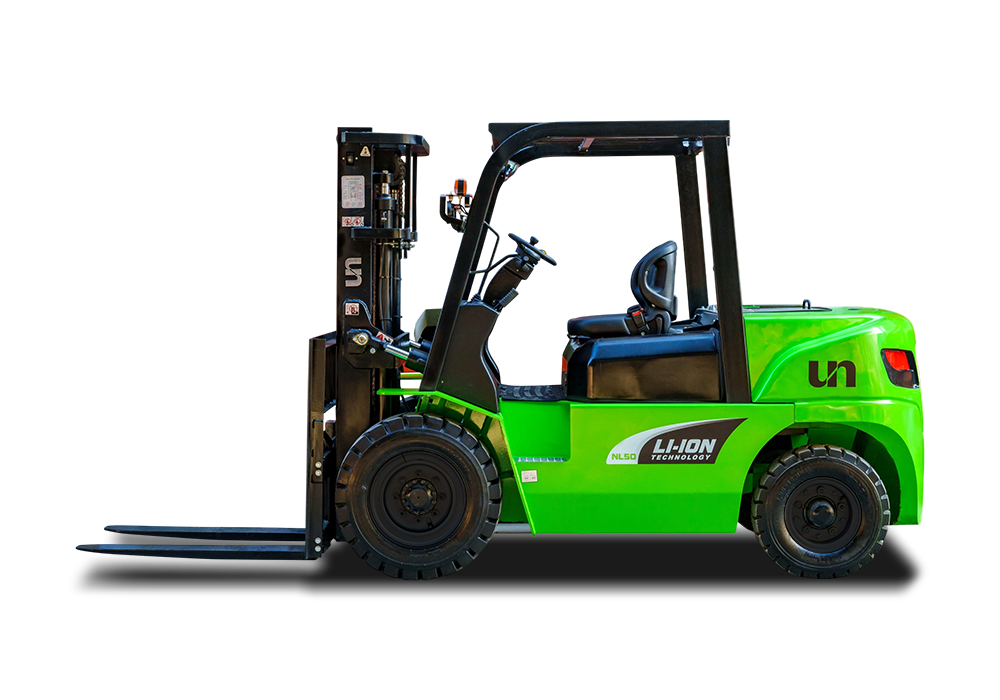

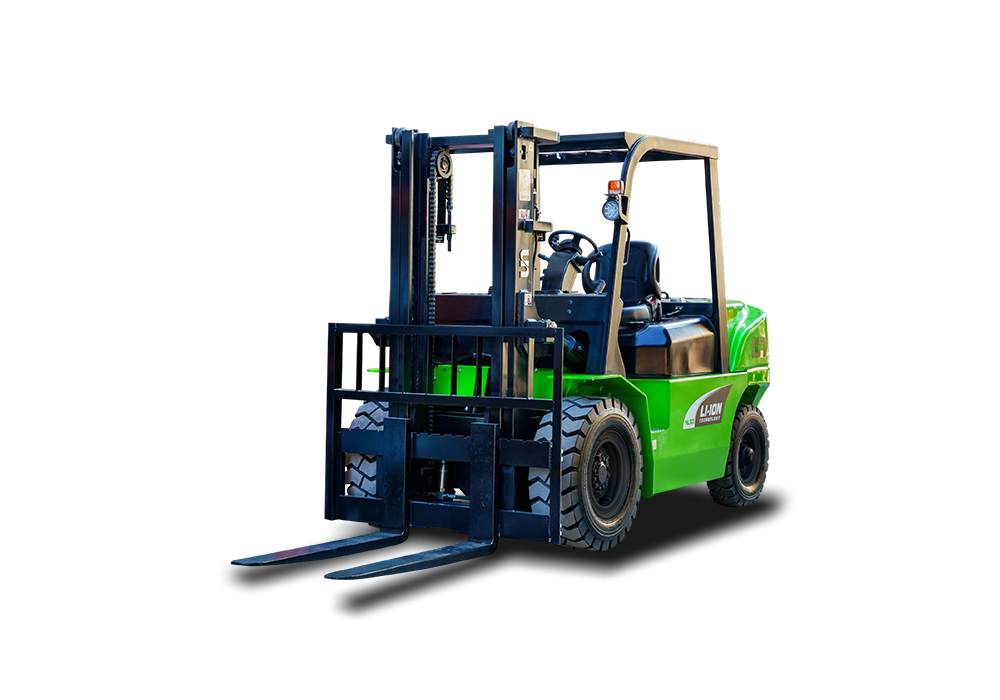

NL Series

4.0T-mini 5.0T

Li-ion Battery Forklift

Get brochure

Product Description

NL Series 4.0–Mini 5.0T Lithium Battery Forklift combines a compact design with high load capacity, specifically developed for medium to heavy-duty material handling tasks.

Compared to traditional diesel forklifts, this model offers advantages such as lower noise, reduced vibration, zero emissions, and minimal maintenance, while maintaining strong lifting power and operational stability—delivering both environmental and efficiency benefits.

E-mail: [email protected]

Product Details

MAIN SPECIFICATIONS

Model		FB40	FB45	FB50
Rated Load Capacity	Q(kg)	4000	4500	5000
Load Centre	c(mm)	500	500	500
Length to Face of Fork (Without Fork)	l2(mm)	3215	3215	3215
Overall Width	b1(mm)	1485	1485	1485
Overhead Guard Height	h5(mm)	2260	2260	2260
Turning Radius (Outside)	Wa(mm)	2880	2880	2880
Travel Speed (Full Load / No Load)	km/h	14/15	14/15	14/15
Max.Gradeability (Full Load)	%	15	15	15
Wheelbase	y(mm)	2000	200	-1600
Total Weight	kg	6305	6505	6805
Battery	V/Ah	76.8V/450AH	76.8V/450AH	76.8V/450AH

General	1	Manufacturer		UN
	2	Model		FB40	FB45	FB50
	3	Drive: Electric(battery or mains), Diesel, Petrol,fuel gas		Electric
	4	Load capacity /rated load	Q(kg)	4000	4500	5000

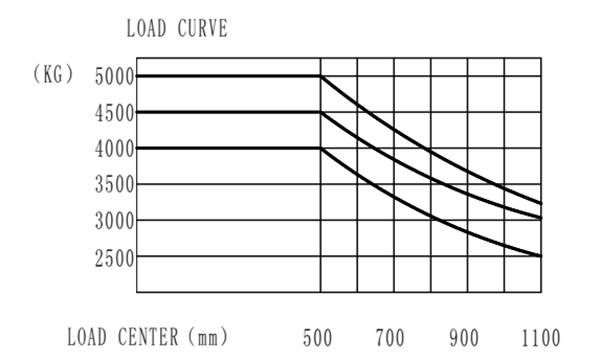

	5	Load centre distance	c(mm)	500

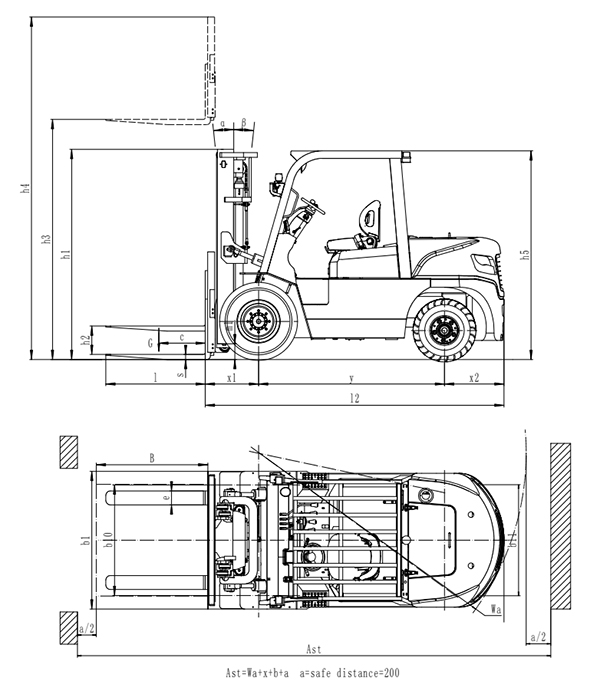

Dimensions	6	Rated lift height	h3(mm)	3000
	7	Free lift height	h2(mm)	140
	8	Fork Size (l×e×s)	mm	1070×150×55
	9	Tilt of mast/fork carriage forward/backward	α/β(°)	6°/12°
	10	Load distance, center of drive axle to fork	x1(mm)	574
	11	Rear Overhang	x2(mm)	640
	12	Ground clearance (Laden, below mast)	m1(mm)	170
	13	Length to face of fork (Without fork)	l2(mm)	3215
	14	Overall width	b1(mm)	1485
	15	Mast lowered height	h1(mm)	2260
	16	Mast extended height (With backrest)	h4(mm)	4260
	17	Overhead guard height	h5(mm)	2260
	18	Turning radius (Outside)	Wa(mm)	2880
	19	Aisle width for pallets 1000×1200 crossways	Ast(mm)	4655
	20	Aisle width for pallets 800×1200 lengthways	Ast(mm)	4855
Performance	21	Travel speed (Full load / No load)	km/h	14/15
	22	Lifting speed (Full load / No load)	mm/sec	290/400
	23	Lowering Speed (No Load/Full Load)	mm/sec	No Load≥300 Full Load≤600
	24	Max.Gradeability (Full load)	%	15
Chassis	25	Tyre size (Front x 2)	mm	300-15-18PR
	26	Tyre size (Front x 2)	mm	7.00-12-12PR
	27	Front tread	b10(mm)	1190
	28	Rear tread	b11(mm)	1195
	29	Wheelbase	y(mm)	2000
Weight	30	Total Weight	kg	6305	6505	6805
	31	Front Axle Weight Distribution (Full Load)	kg	8810	9550	9750
	32	Rear Axle Weight Distribution (Full Load)	kg	1495	1455	1555
	33	Front Axle Weight Distribution (No Load)	kg	2650	2610	2710
	34	Rear Axle Weight Distribution (No Load)	kg	3655	3895	4095
Power & Transmission	35	Battery	V/Ah	76.8V/450AH
	36	Drive Motor	KW	21.5
	37	Lift Motor	KW	25.4
	38	Operating Pressure (For Attachments)	Mpa	19

Product Features

Chassis & Performance

● Built on a proven internal combustion forklift framework with over 20 years of market validation, ensuring durability and robustness.

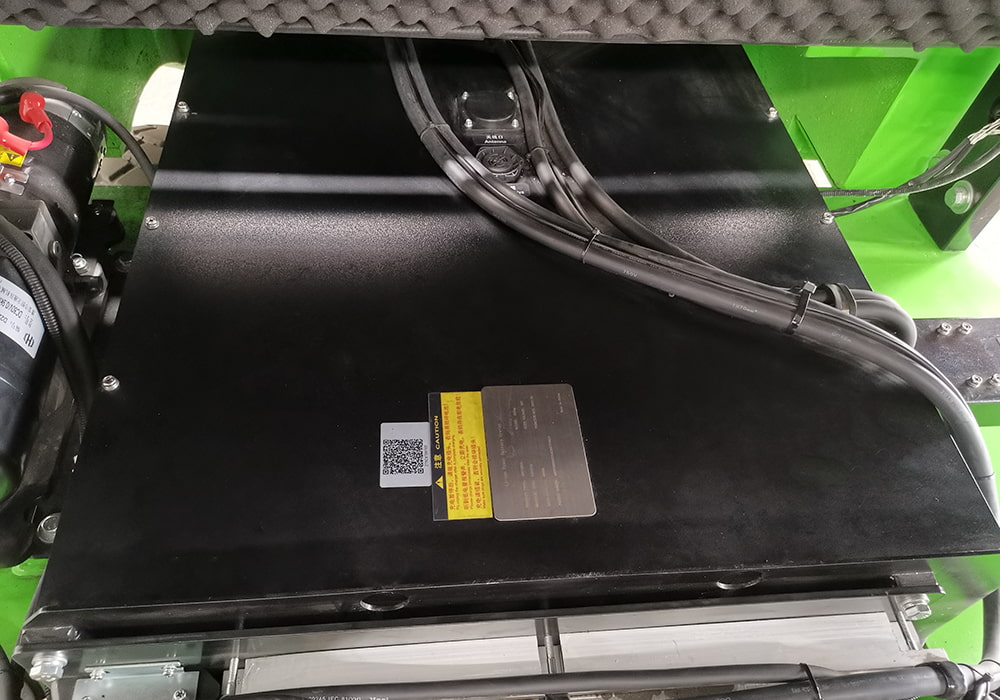

● Integrates advanced lithium battery technology internally to deliver exceptional operational performance.
Durability & Efficiency

● The lithium battery supports up to 4,000 charge-discharge cycles and comes with a 5-year warranty, significantly extending battery life while enhancing customer confidence and satisfaction.

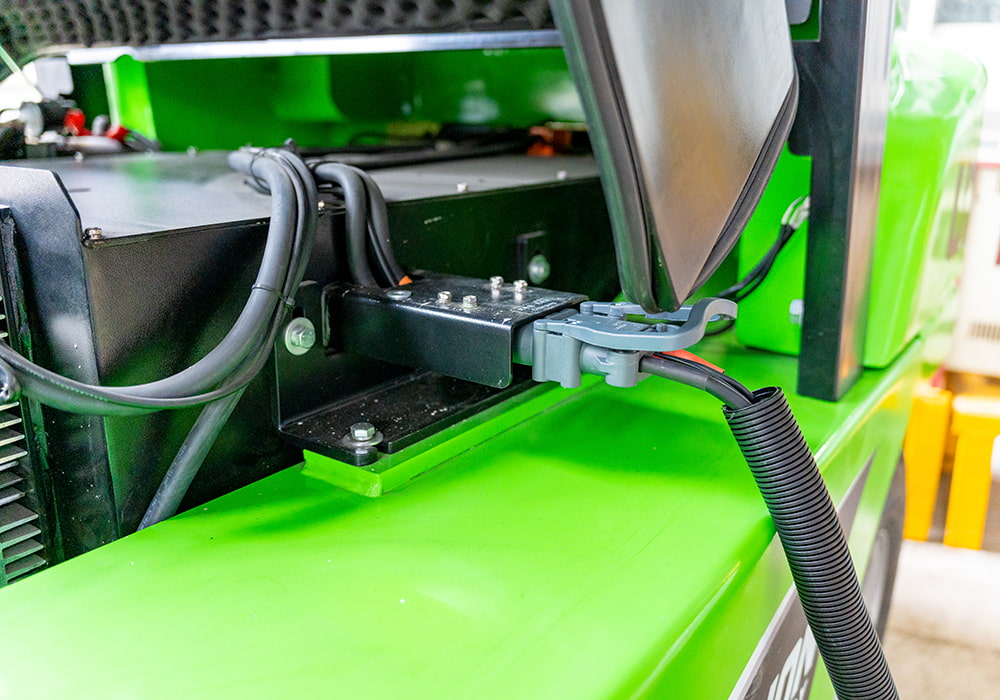

● Fully charges in just 2 hours, with the flexibility to recharge at any time, easily supporting multi-shift continuous operations.
Safety & Convenience

● Custom hydraulic station guarantees that the steering system remains responsive and safe while braking.

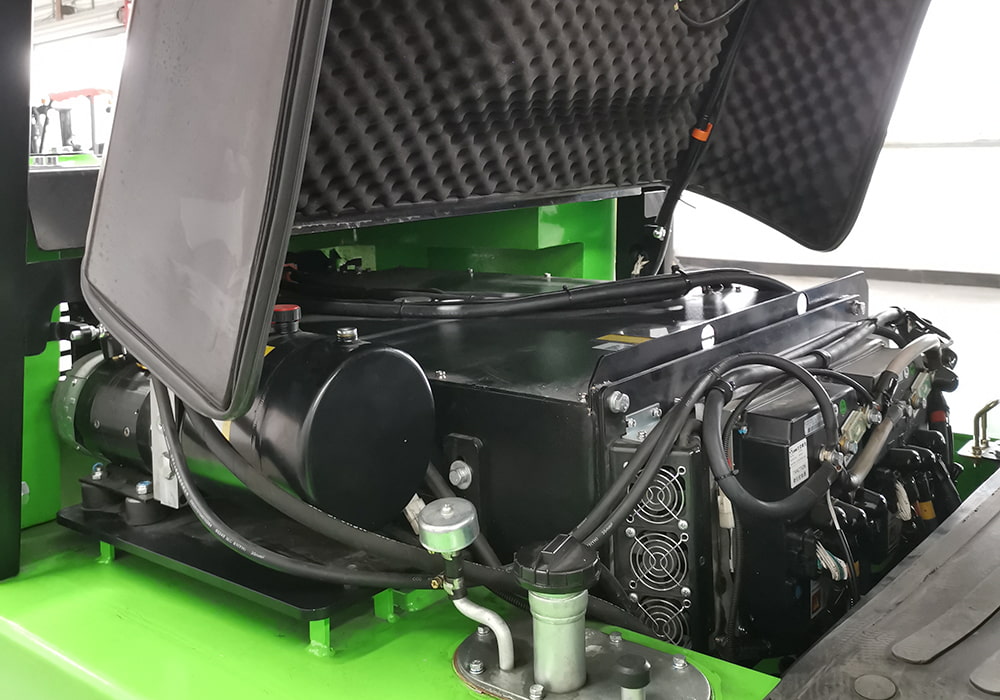

● Real-time monitoring through CAN bus and BMS safeguards the forklift, and the enlarged hood opening allows effortless access to internal parts for convenient servicing.
Eco-Friendly & Sustainable

● Utilizes eco-conscious lithium battery technology, ensuring quiet operation, zero emissions, and reduced vibration for a sustainable work environment.
Lower Total Ownership Cost(TOC)

● While the upfront cost of lithium-powered forklifts is similar to that of standard IC forklifts, they incur no fuel expenses and require minimal maintenance, including the elimination of oil and filter changes, thereby substantially reducing overall operational costs.
Multi-Scenario Capability

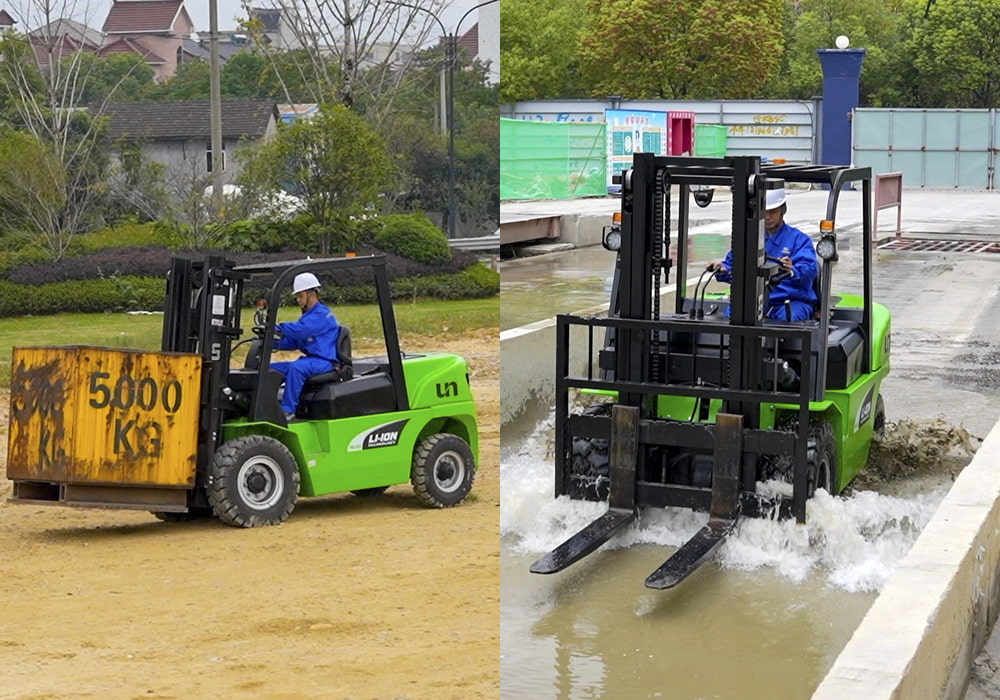

● Adopting the structural design principles of IC forklifts, it is fully capable of handling indoor tasks and outdoor environments, with superior protection against water and dust ingress.
Comfort & Ergonomics

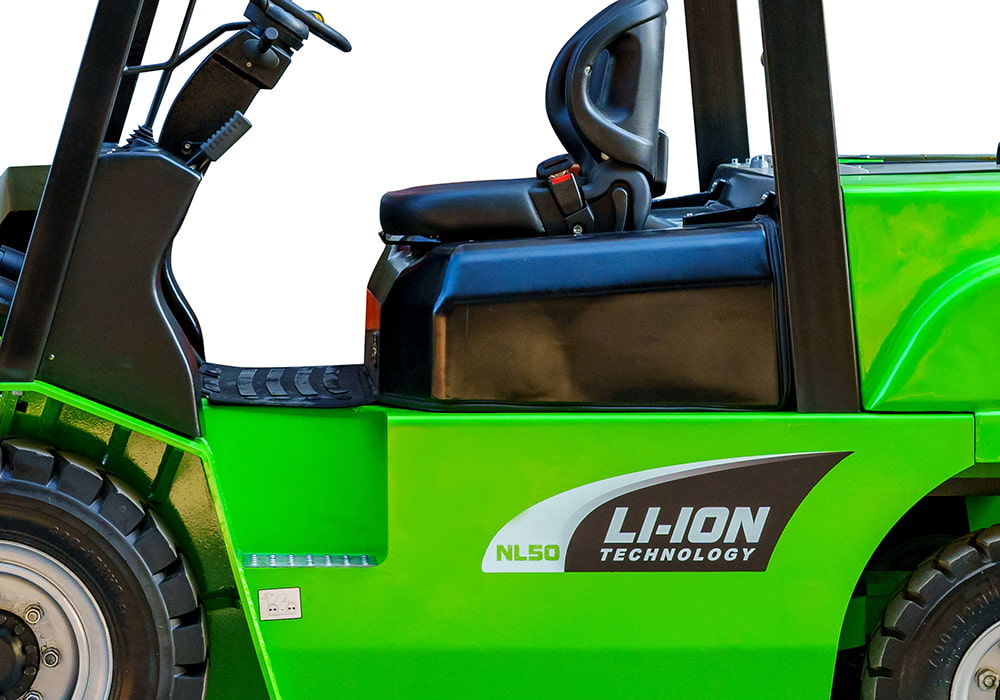

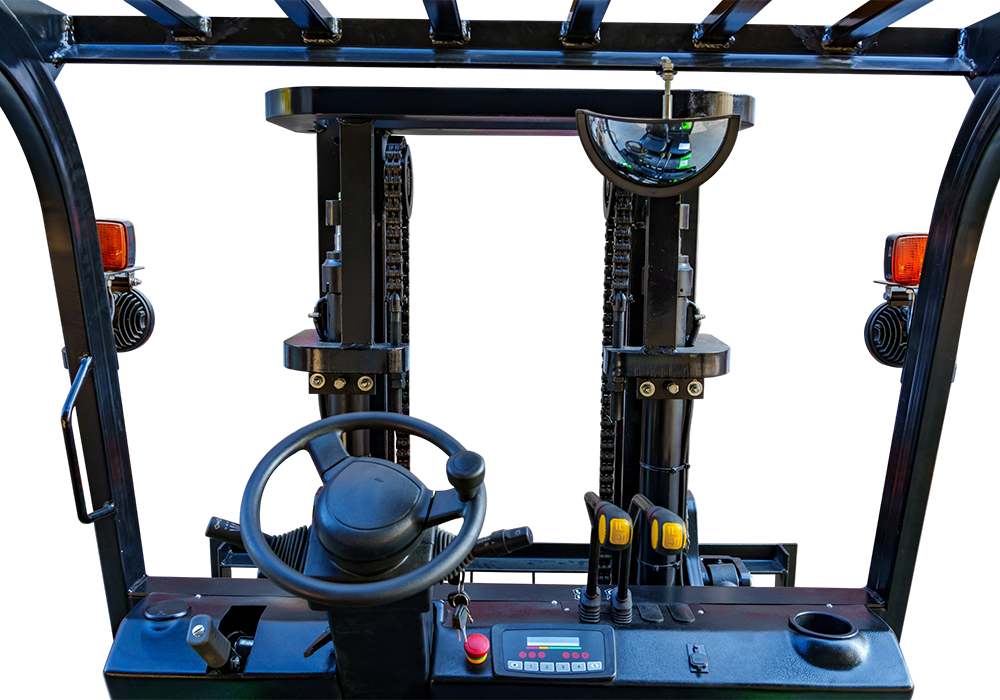

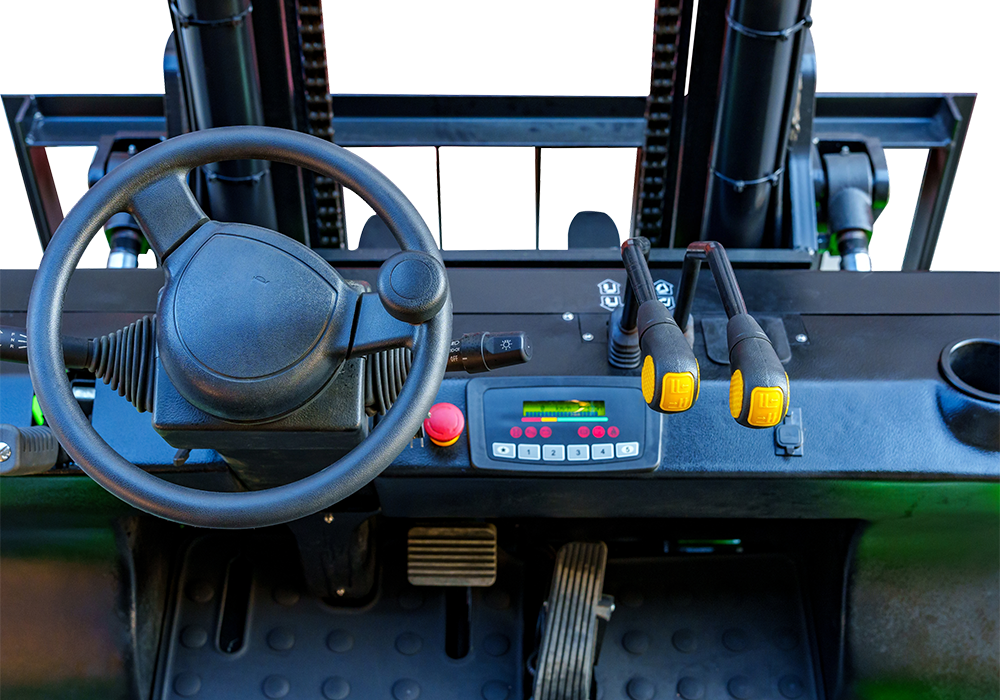

● The forklift's low-center-of-gravity design ensures stable and comfortable maneuvering, while enhanced legroom provides operators with greater comfort than conventional lithium forklifts.
Easy Maintenance

● The forklift's lithium batteries require no routine upkeep, reducing operational downtime and expenses.

● Major parts, including the axle and mast, share compatibility with IC forklifts, ensuring efficient and affordable maintenance.
