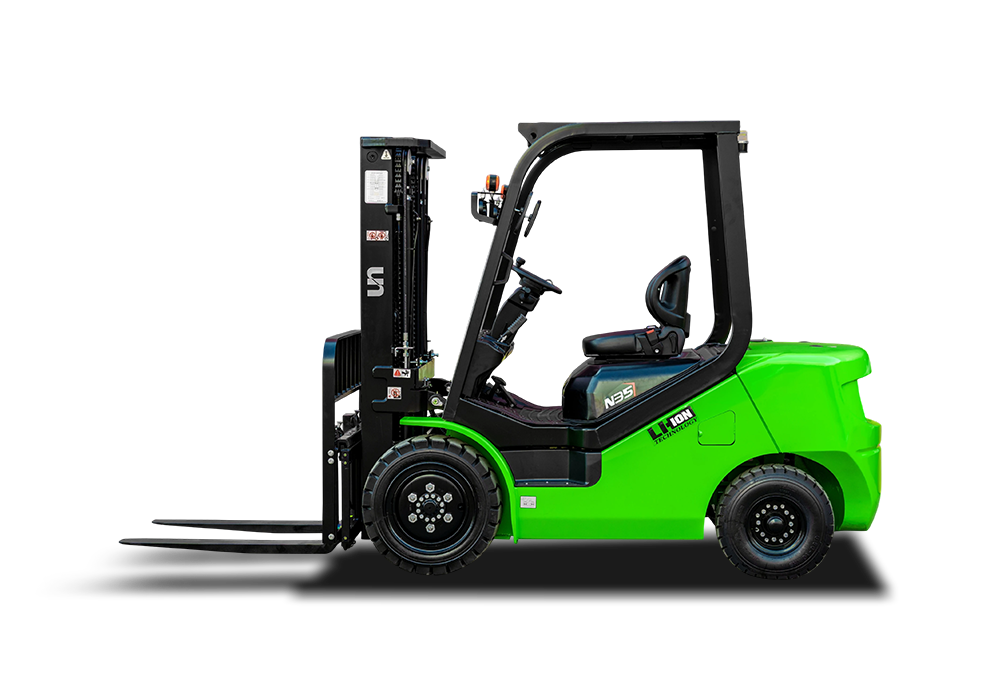

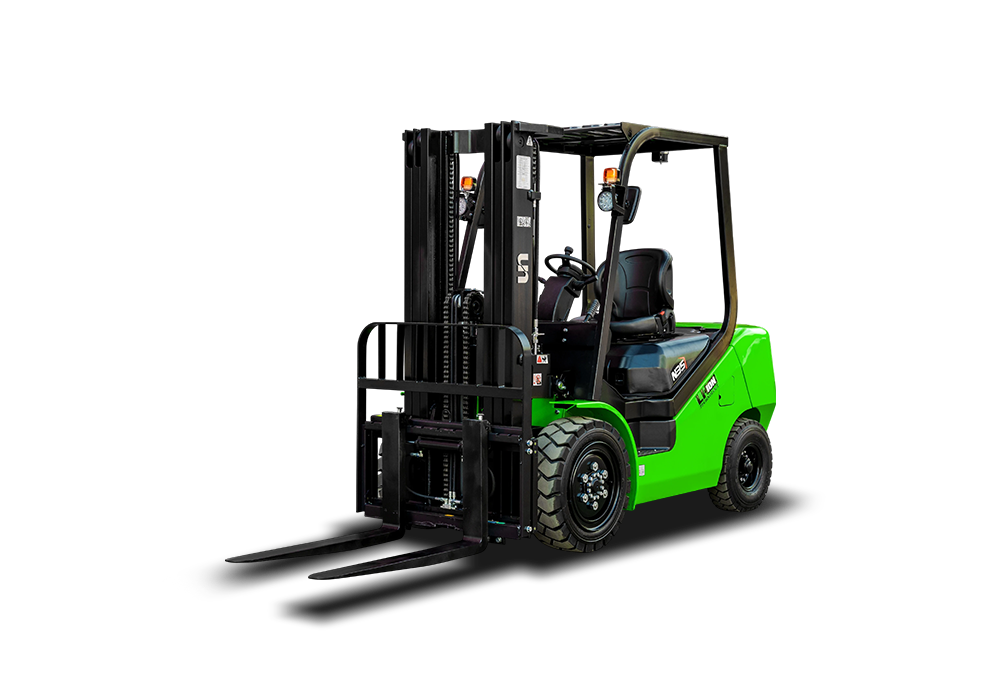

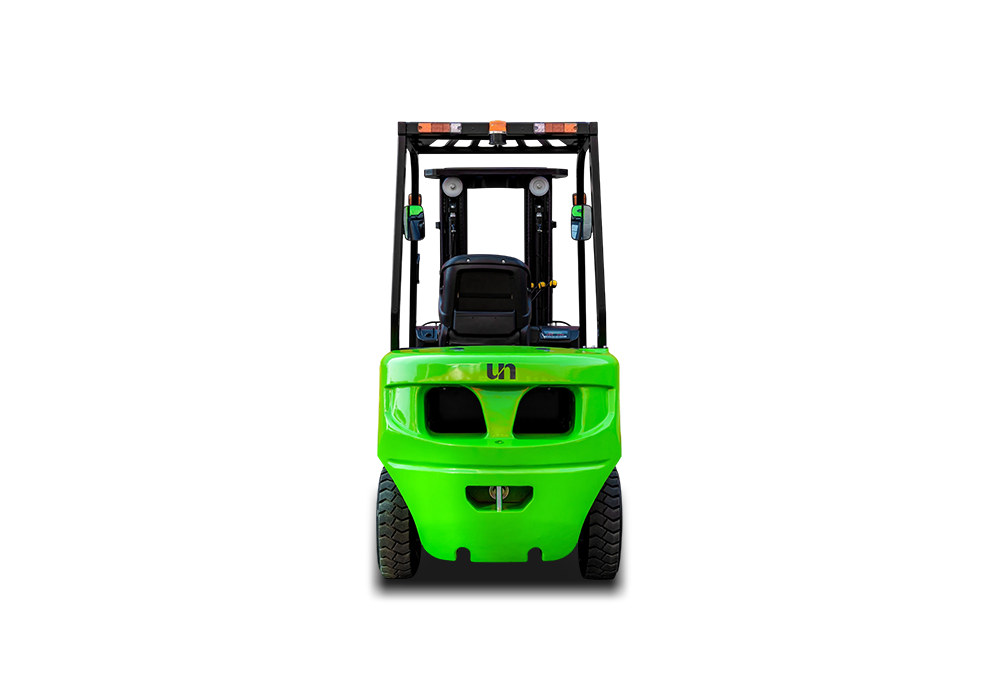

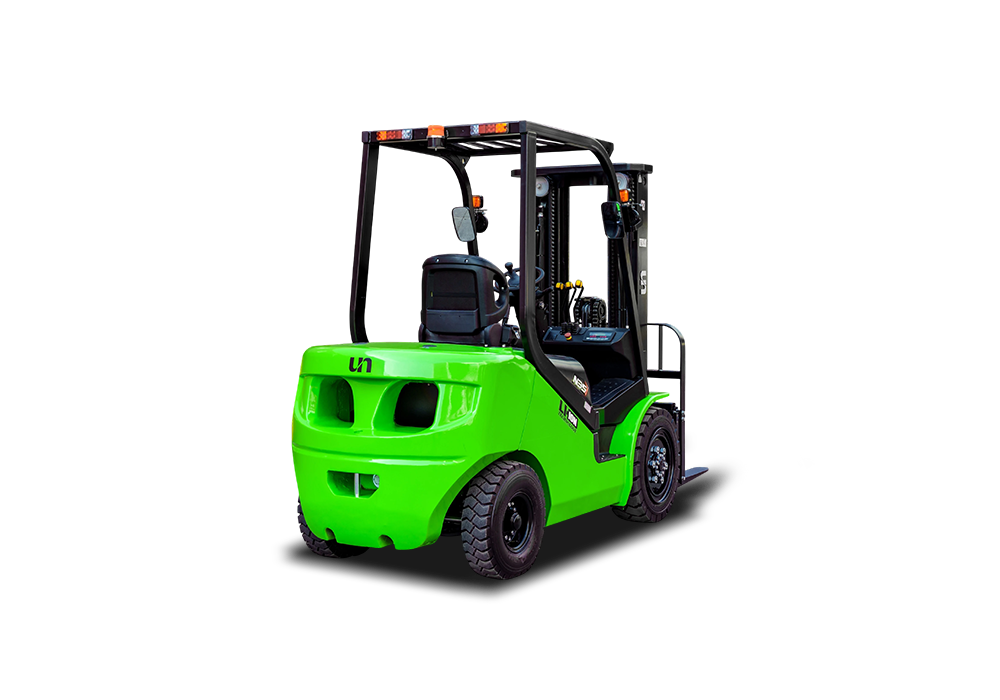

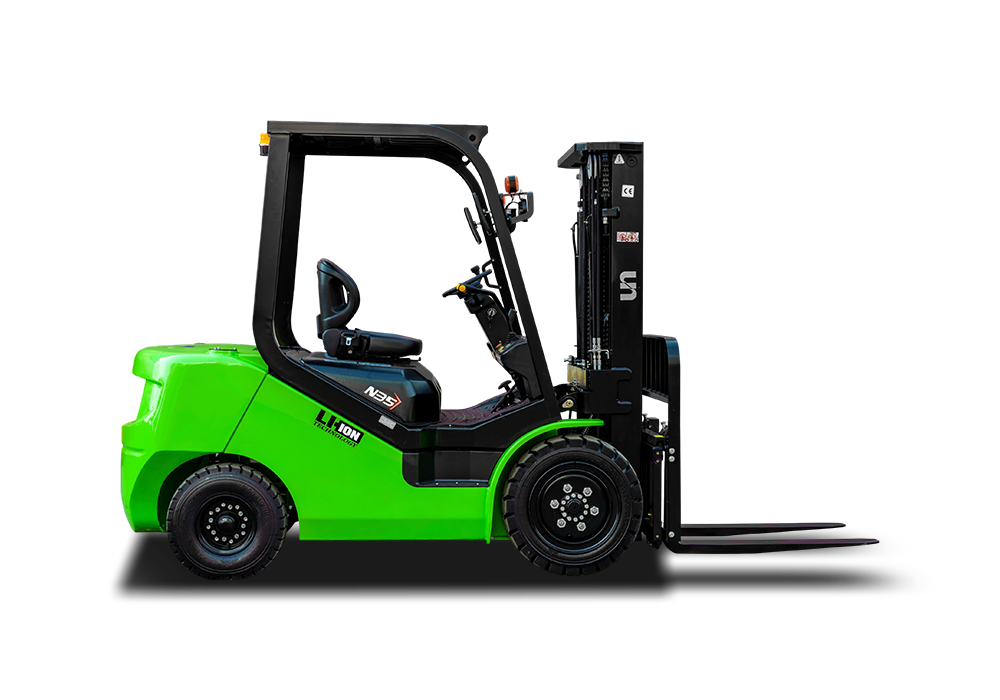

NL Series 3.0T-3.5T

Li-ion Battery Forklift

Get brochure

Product Description

NL Series 3.0–3.5T Lithium Battery Forklift is specifically designed for light-duty applications.

Equipped with a high-efficiency lithium battery system supporting fast charging and zero emissions, it operates quietly and requires minimal maintenance, enhancing overall operational efficiency.

Its compact structure and small turning radius make it ideal for confined spaces.

Combining environmental friendliness, cost-effectiveness, and operational flexibility, it serves as an alternative to traditional internal combustion forklifts.

E-mail: [email protected]

Product Details

MAIN SPECIFICATIONS

Model		FB30	FB35
Rated Load Capacity	Q(kg)	3000	3500
Load Centre	C(mm)	500	500
Length to Face of Fork (Without Fork)	L1(mm)	2700	2775
Overall Width	B1(mm)	1225	1225
Overhead Guard Height	H5(mm)	2235	2235
Turning Radius (Outside)	Wa(mm)	2425	2500
Travel Speed (No Load)	km/h	11/12	11/12
Max.Gradeability (Full Load)	%	12	12
Wheelbase	Y(mm)	1700	1700
Total Weight	kg	4460	4775
Battery	V/Ah	80V/220AH	80V/270AH

General	1	Manufacturer		UN
	2	Model		FB20	FB25	FB30	FB35
	3	Power Type		Lithium Battery
	4	Rated Load Capacity	Q(kg)	2000	2500	3000	3500
	5	Load Centre	C(mm)	500
Dimensions	6	Rated Lift Height	H3(mm)	3000
	7	Free Lift Height	H2(mm)	100
	8	Fork Size (L×W×T)	mm	1070×120×40		1070×125×45	1070×125×50
	9	Mast Tilt Angle (F/R, α°/β°)	deg	6°/12°
	10	Fork Overhang (Wheel Center to Fork Face)	X1(mm)	479		484
	11	Rear Overhang	X2(mm)	520		595	635
	12	Ground Clearance (Bottom of Mast)	H7(mm)	130		145
	13	Length to Face of Fork (Without Fork)	L1(mm)	2660		2700	2775
	14	Overall Width	B1(mm)	1150		1225
	15	Mast Lowered Height	H1(mm)	2055		2070
	16	Mast Extended Height (With Backrest)	H4(mm)	4070		4070
	17	Overhead Guard Height	H5(mm)	2215		2235
	18	Turning Radius (Outside)	Wa(mm)	2365		2425	2500
	19	Min.Aisle width for pallets	Ast(mm)	4120		4180	4255
Performance	20	Travel Speed (No Load)	km/h	11/12
	21	Lifting Speed (Full Load)	mm/sec	260/380		250/360	220/340
	22	Lowering Speed (Full Load/No Load)	mm/sec	No Load≥300 Full Load≤600
	24	Max.Gradeability (Full Load)	%	15		12
Chassis	25	Tyre (Front x 2)	mm	7.00-12-12PR		28×9-15-12PR
	26	Tyre (Rear x 2)	mm	6.00-9-10PR		6.50-10-10PR
	27	Front Tread	B2(mm)	970		1000
	28	Rear Tread	B3(mm)	980		980
	29	Wheelbase	Y(mm)	1650		1700
Weight	30	Total Weight	kg	3385	3605	4460	4775
	31	Front Axle Weight Distribution (Full Load)	kg	4846	5494	6714	6997
	32	Rear Axle Weight Distribution (Full Load)	kg	538	610	746	777
	33	Front Axle Weight Distribution (No Load)	kg	1354	1442	1784	1910
	34	Rear Axle Weight Distribution (No Load)	kg	2031	2163	2676	2865
Power & Transmission	35	Battery	V/Ah	80V/135AH	80V/175AH	80V/220AH	80V/270AH
	36	Drive Motor	KW	10
	37	Lift Motor	KW	12
	38	Operating Pressure (For Attachments)	Mpa	17.5

Product Features

Chassis & Performance

● Utilizes a time-tested internal combustion forklift structure, validated over two decades, for reliable strength and longevity.

● Equipped with cutting-edge lithium power systems to guarantee superior work efficiency.
Durability & Efficiency

● With up to 4,000 charge cycles and a 5-year warranty, the lithium battery ensures extended service life and boosts user trust and satisfaction.

● Rapid 2-hour full charge and anytime top-up capability enable seamless operation across multiple shifts.
Safety & Convenience

● A specially designed hydraulic station ensures smooth and reliable steering even during braking.

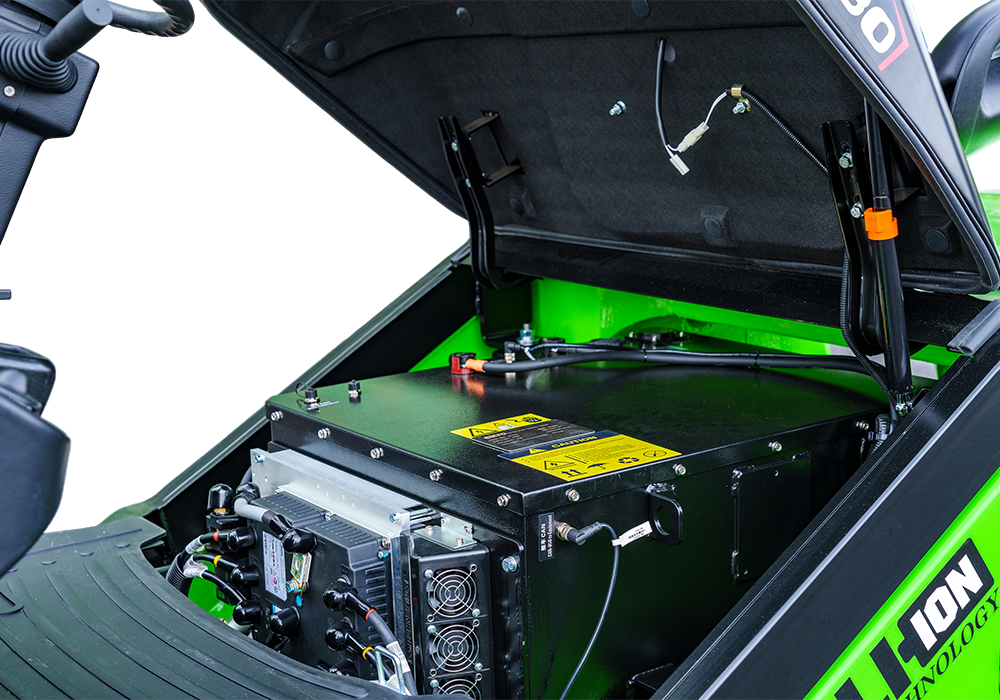

● The CAN bus and BMS systems continuously monitor and protect the forklift, while the engine hood opens at a wider angle for easy access to internal components, simplifying maintenance.
Eco-Friendly & Sustainable

● Equipped with low-carbon, clean, and environmentally friendly lithium batteries, delivering low noise, zero emissions, and minimal vibration.
Lower Total Ownership Cost (TOC)

● Lithium-ion forklifts offer a purchase price comparable to conventional internal combustion forklifts, while eliminating fuel expenses and routine maintenance costs such as oil and filter replacements, resulting in significant long-term savings for operators.
Multi-Scenario Capability

● Inspired by internal combustion forklift designs, this forklift excels in both indoor operations and outdoor conditions, while offering excellent water and dust resistance.
Comfort & Ergonomics

● With a low center of gravity and excellent stability, operators experience smooth and comfortable handling during turns. Additionally, this model offers more spacious legroom compared to standard lithium forklifts.
Easy Maintenance

● Maintenance-free lithium batteries save both time and costs.

● Key components, such as axles and masts, are compatible with internal combustion forklifts, enabling fast and cost-effective repairs.
