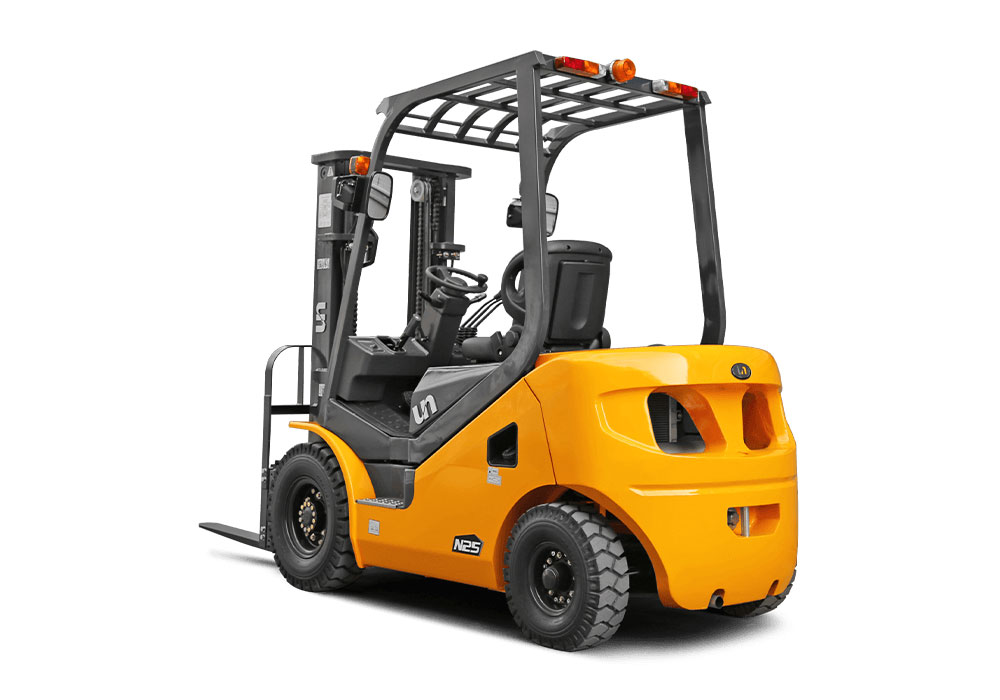

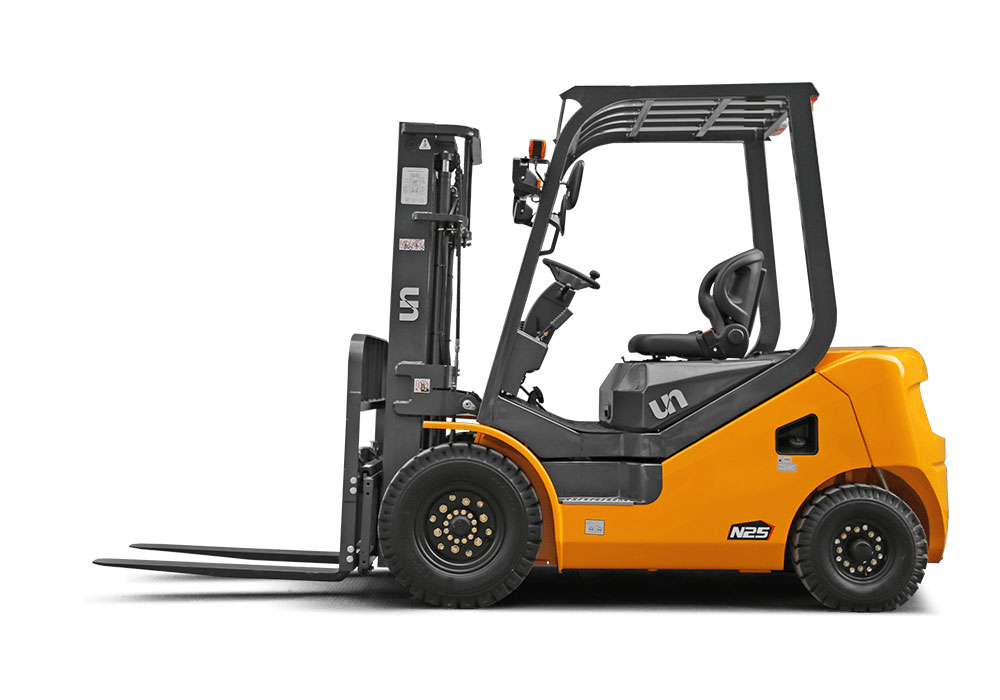

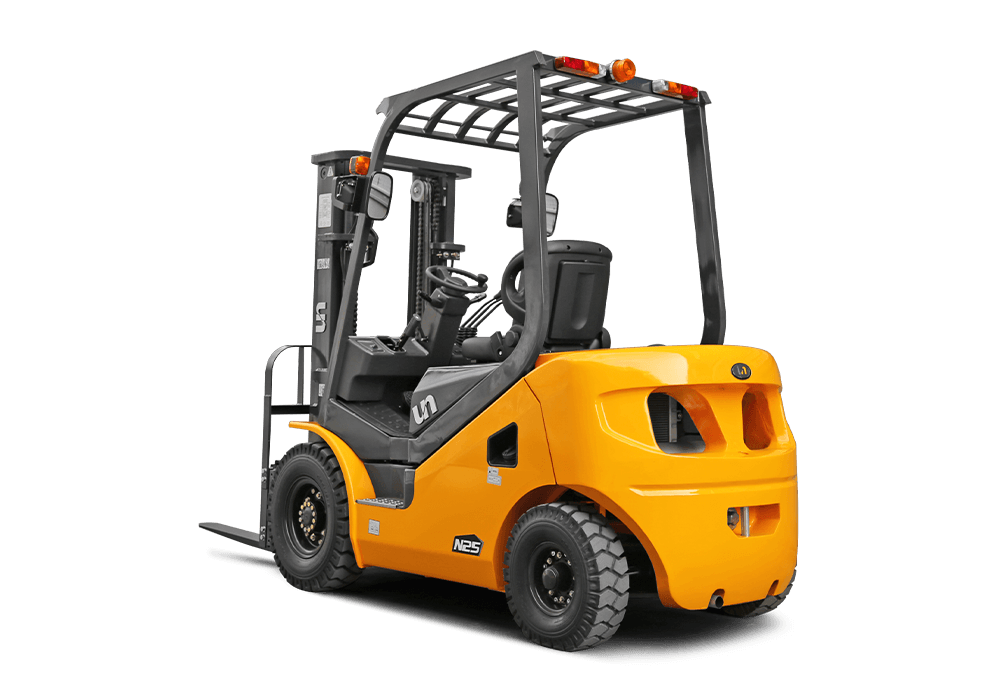

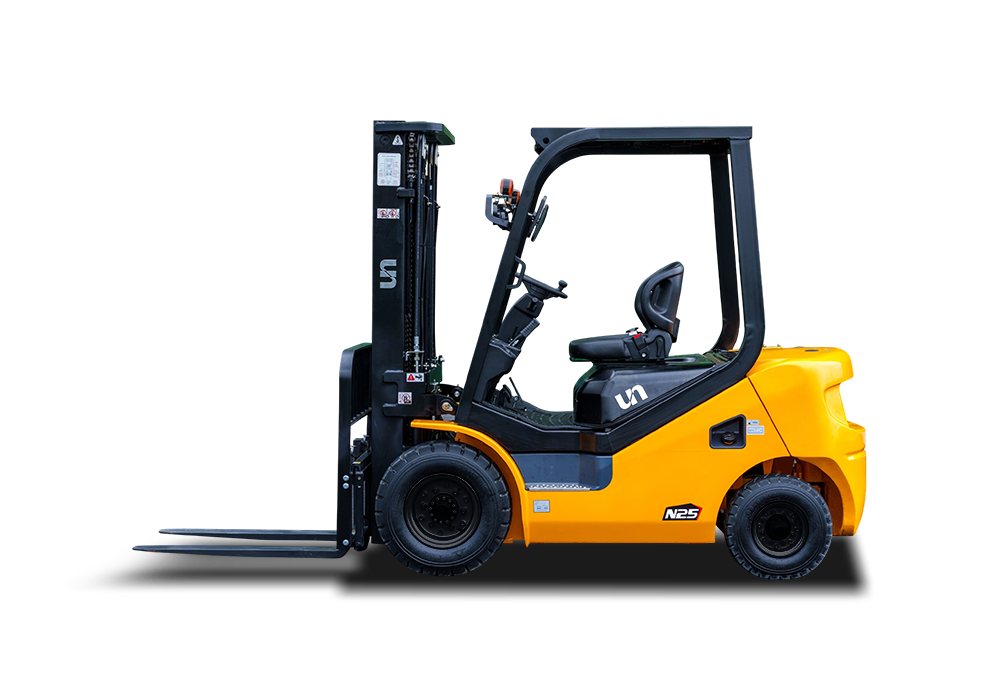

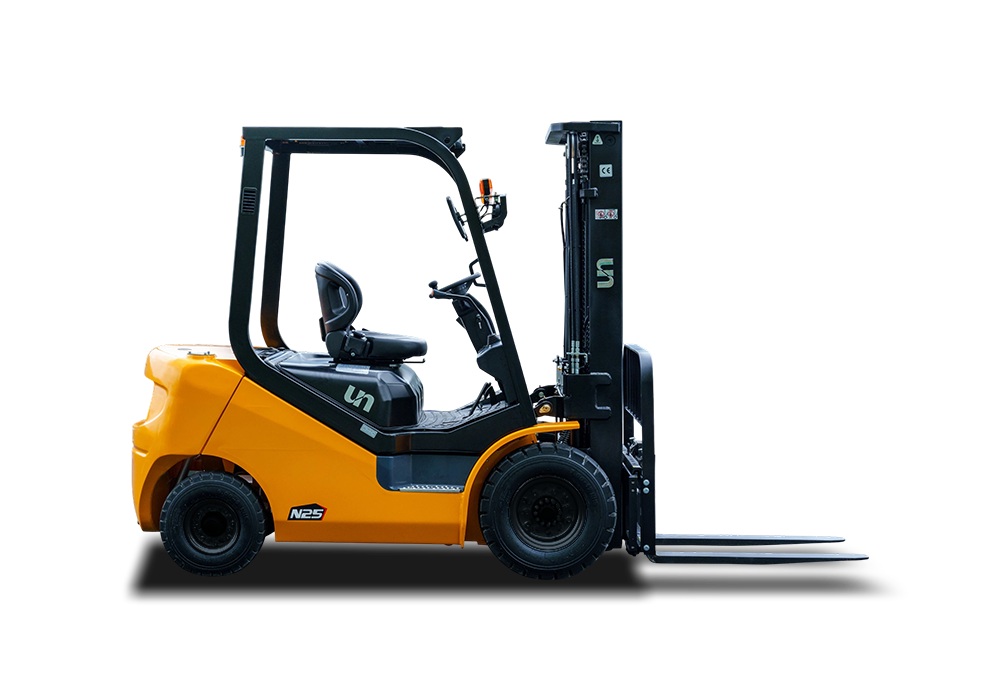

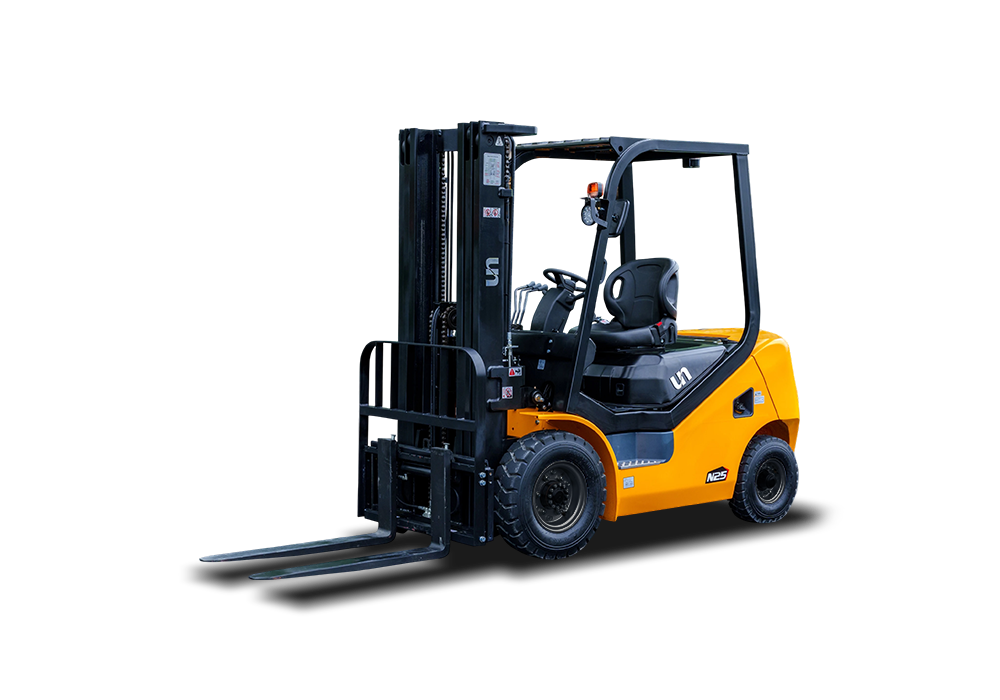

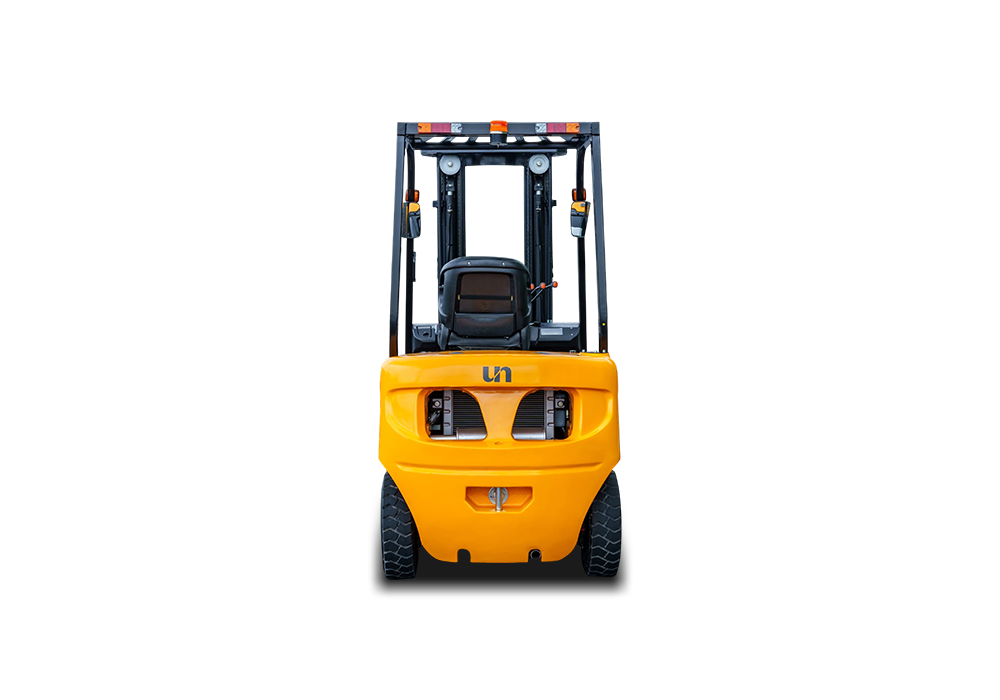

N Series 2.0T-2.5T Diesel Forklift

Get brochure

Product Description

N Series 2.0T–2.5T Diesel Forklift offers balance and stable performance, making them ideal for manufacturing and mid-sized warehouses.

Featuring a robust chassis and high-quality hydraulic system for efficient, reliable operation.

Superior vibration and noise reduction make them well-suited for extended use.

N Series 2.0T-2.5T Diesel Forklift

E-mail: [email protected]

Product Details

MAIN SPECIFICATIONS

Model		FD20T-NJS1	FD25T-NJS1	FD20T-NJV1	FD25T-NJV1	FD20T-NGA9	FD25T-NGA9
Rated Load Capacity	Q(kg)	2000	2500	2000	2500	2000	2500
Load Centre	C(mm)	500	500	500	500	500	500
Length to Face of Fork (Without Fork)	L1(mm)	2630	2630	2630	2630	2630	2630
Overall Width	B1(mm)	1170	1170	1170	1170	1170	1170
Overhead Guard Height	H5(mm)	2215	2215	2215	2215	2215	2215
Turning Radius (Outside)	Wa(mm)	2365	2365	2365	2365	2365	2365
Travel Speed (No Load)	km/h	19	19	19	19	19	19
Max.Gradeability (Full Load)	%	20	20	20	20	20	20
Wheelbase	Y(mm)	1650	1650	1650	1650	1650	1650
Total Weight	kg	3620	3860	3620	3860	3620	3860
Engine Model		D24	D24	V2403	V2403	3E22YG51	3E22YG51

General	1	Manufacturer		UN
	2	Model		FD20T-NJS1	FD25T-NJS1	FD20T-NJV1	FD25TNJV1	FD20T-NGA9	FD25T-NGA9
	3	Power Type		Diesel
	4	Rated Load Capacity	Q(kg)	2000	2500	2000	2500	2000	2500
	5	Load Centre	C(mm)	500	500	500	500	500	500
Characteristic & Dimension	6	Rated Lift Height	H3(mm)	3000	3000	3000	3000	3000	3000
	7	Free Lift Height	H2(mm)	140	140	140	140	140	140
	8	Fork Size (L×W×T)	mm	1070×120×40
	9	Mast Tilt Angle (F/R, α°/β°)	deg	6°/12°	6°/12°	6°/12°	6°/12°	6°/12°	6°/12°
	10	Fork Overhang (Wheel Center to Fork Face)	X1(mm)	460	460	460	460	460	460
	11	Rear Overhang	X2(mm)	520	520	520	520	520	520
	12	Ground Clearance (Bottom of Mast)	H7(mm)	110	110	110	110	110	110
	13	Length to Face of Fork (Without Fork)	L1(mm)	2630	2630	2630	2630	2630	2630
	14	Overall Width	B1(mm)	1170	1170	1170	1170	1170	1170
	15	Mast Lowered Height	H1(mm)	2055	2055	2055	2055	2055	2055
	16	Mast Extended Height (With Backrest)	H4(mm)	4070	4070	4070	4070	4070	4070
	17	Overhead Guard Height	H5(mm)	2215	2215	2215	2215	2215	2215
	18	Turning Radius (Outside)	Wa(mm)	2365	2365	2365	2365	2365	2365
	19	Min.Aisle width for pallets	Ast(mm)	4120	4120	4120	4120	4120	4120
Performance	20	Travel Speed (No Load)	km/h	19	19	19	19	19	19
	21	Lifting Speed (Full Load)	mm/sec	510	510	510	510	510	510
	22	Lowering Speed (Full Load/No Load)	mm/sec	No Load≥300 Full Load≤600
	23	Max.Drawbar Pull (Full Load/No Load)	KN	21/17
	24	Max.Gradeability (Full Load)	%	20
Chassis	25	Tyre (Front x 2)	mm	7.00-12-12PR
	26	Tyre (Rear x 2)	mm	6.00-9-10PR
	27	Front Tread	B2(mm)	970	970	970	970	970	970
	28	Rear Tread	B3(mm)	980	980	980	980	980	980
	29	Wheelbase	Y(mm)	1650	1650	1650	1650	1650	1650
Weight	30	Total Weight	kg	3620	3860	3620	3860	3620	3860
	31	Front Axle Weight Distribution (Full Load)	kg	5058	5724	5058	5724	5058	5724
	32	Rear Axle Weight Distribution (Full Load)	kg	562	636	562	636	562	636
	33	Front Axle Weight Distribution (No Load)	kg	1450	1545	1450	1545	1450	1545
	34	Rear Axle Weight Distribution (No Load)	kg	2170	2315	2170	2315	2170	2315
Power & Transmission	35	Battery	V/Ah	12/90
	36	Engine Model		D24		V2403		3E22YG51
	37	Engine Manufacturer		HYUNDAI		KUBOTA		XINCHAI
	38	Rated Output / r.p.m.	kw	48.2/2600		42.6/2400		44.8/2400
	39	Rated Torque / r.p.m.	N·m	214/1600		195.6/1500		210/1600-1800
	40	No.of Cylinder		4				3
	41	Bore x Stroke	mm	90x94		90×105		94x107
	42	Displacement	cc	2392		2670		2230
	43	Fuel Tank Capacity	L	50	50	50	50	50	50
	44	Transmission Type		HYDRAULIC	HYDRAULIC	HYDRAULIC	HYDRAULIC	HYDRAULIC	HYDRAULIC
	45	Transmission Stage (FWD/RVS)		1/1	1/1	1/1	1/1	1/1	1/1
	46	Operating Pressure (For Attachments)	Mpa	18.5	18.5	18.5	18.5	18.5	18.5

Product Features

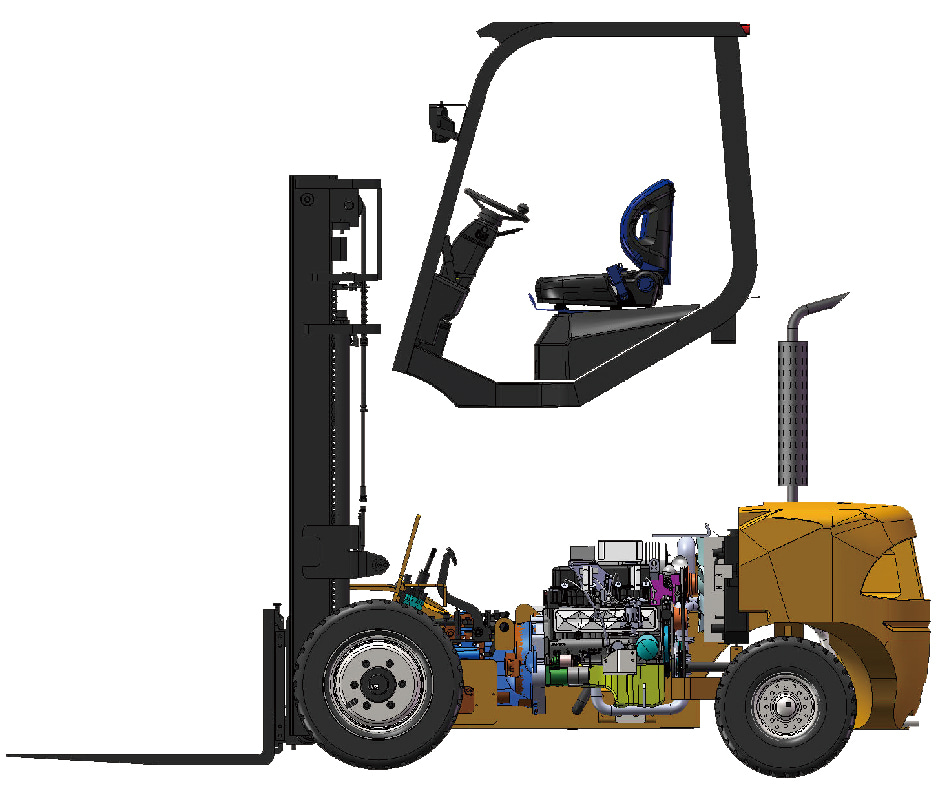

Reliability & Performance

● Built with a scientifically designed frame and a robust power system, this forklift excels in both performance and handling. Equipped with premium engines from Isuzu, Mitsubishi, Yanmar, Kubota, and Xinchai, along with top-tier Japanese-equivalent transmissions.

● The hydraulic system is equipped with branded pumps and valves, ensuring efficient and stable lifting and steering operations.

● Efficient cooling technology and oversized radiators ensure dependable operation under extreme heat.
Safety & Ergonomics

● OPS and seat switch work together to safeguard the driver.

● Wide-visibility mast keeps the operator’s view unobstructed.

● Robust OHG ensures protection from falling debris.

● Suspended frame provides extra foot space, with adjustable steering and comfortable seating.

● Optional suspended powertrain system for enhanced adaptability.
Easy Maintenance

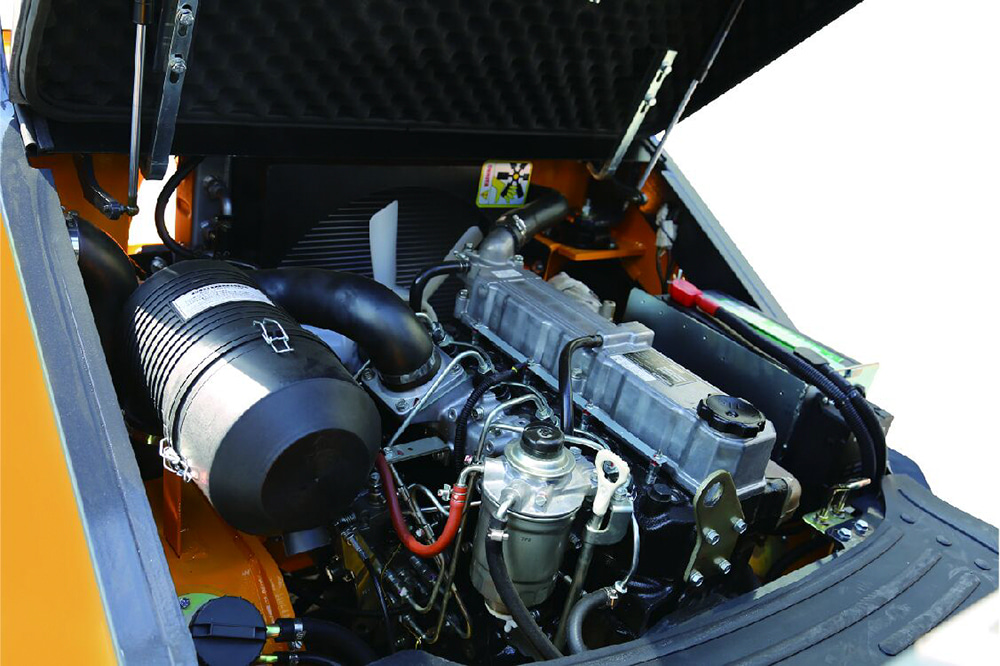

● A nearly 90° tilting engine hood provides effortless access for routine maintenance and parts replacement.

● Transmission oil filter replacement is quick and hassle-free.
