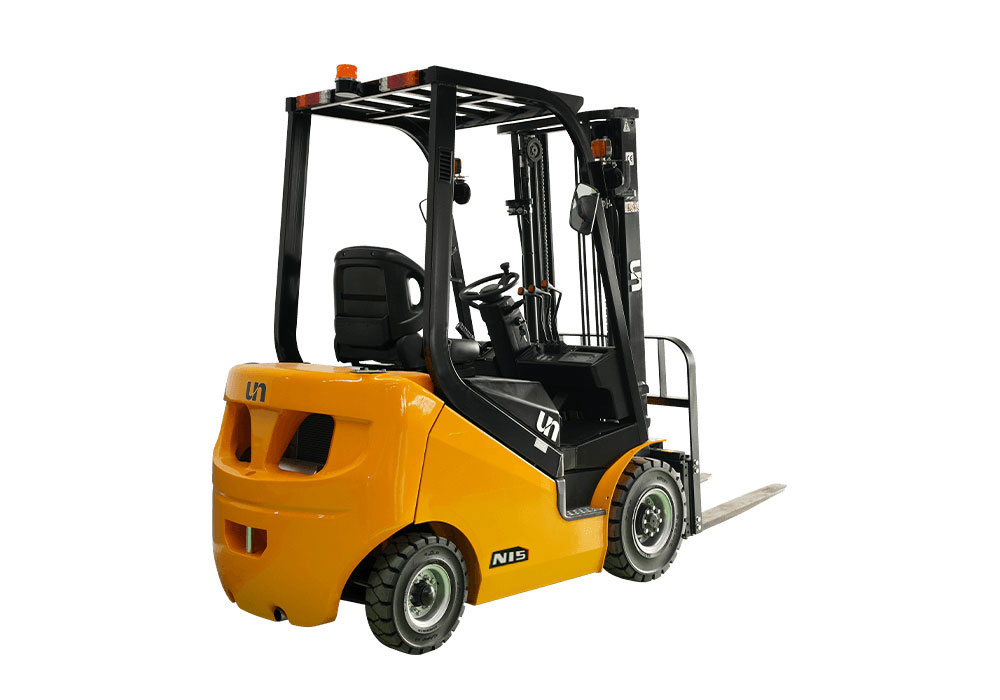

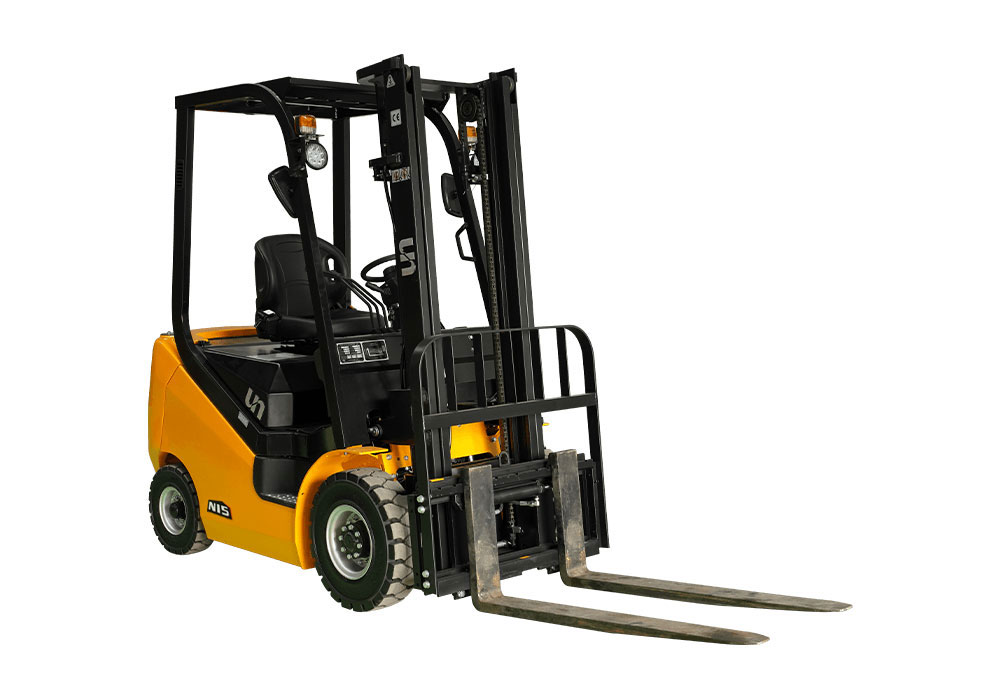

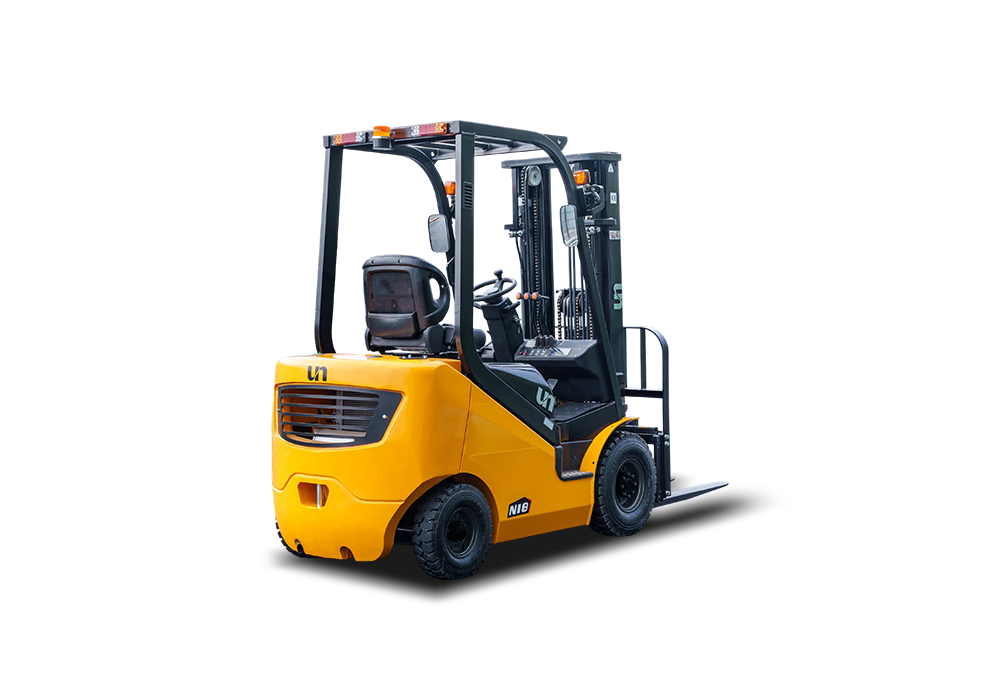

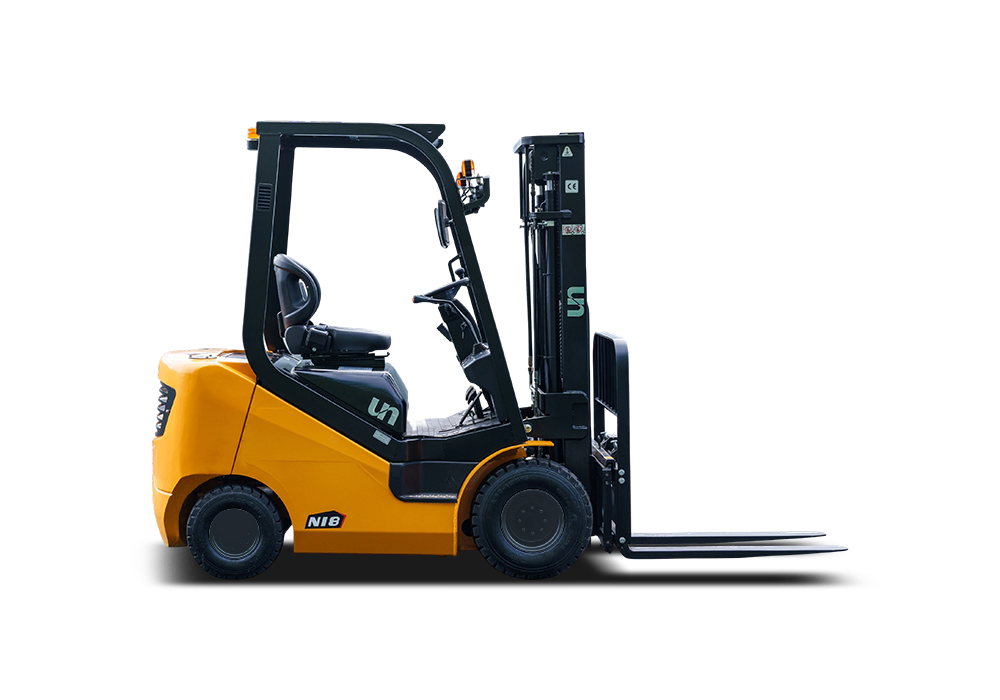

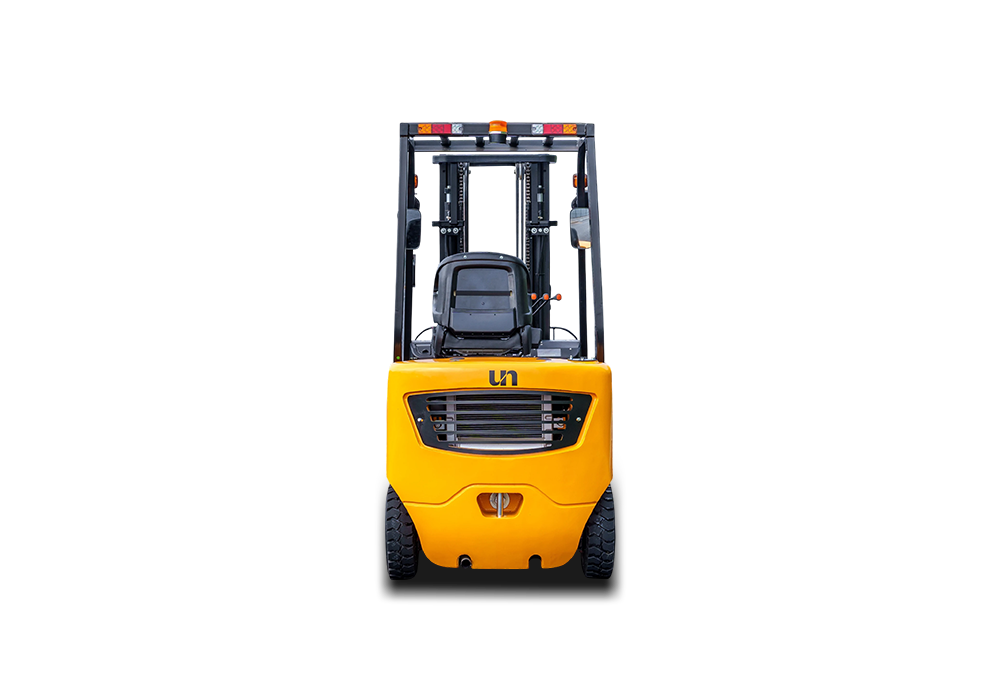

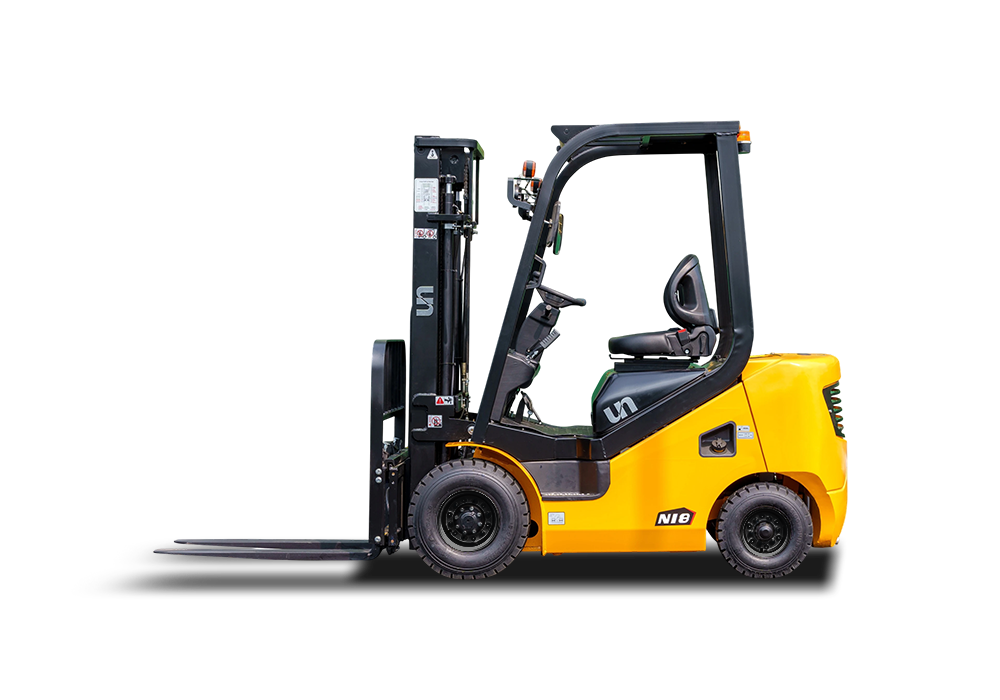

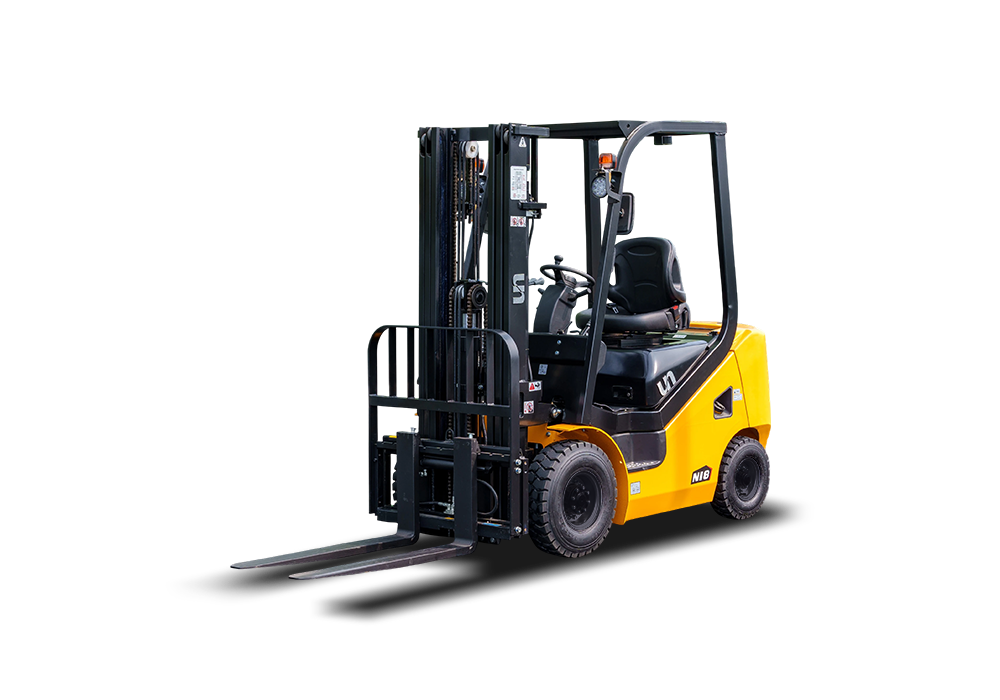

N Series 1.5T-1.8T Diesel Forklift

Get brochure

Product Description

N Series 1.5T–1.8T Diesel Forklift is compact and agile, ideal for confined-space operations.

A tight turning radius and streamlined interface ensure easy operation and efficient control.

E-mail: [email protected]

Product Details

MAIN SPECIFICATIONS

Model		FD15T-NGA5	FD18T-NGA5	FD15T-NJB1	FD18T-NJB1	FD15T-NJE3	FD18T-NJE3
Rated Load Capacity	Q(kg)	1500	1800	1500	1800	1500	1800
Load Centre	C(mm)	500	500	500	500	500	500
Length to Face of Fork (Without Fork)	L1(mm)	2289	2294	2289	2294	2289	2294
Overall Width	B1(mm)	1082	1082	1082	1082	1082	1082
Overhead Guard Height	H5(mm)	2160	2160	2160	2160	2160	2160
Turning Radius (Outside)	Wa(mm)	2100	2100	2100	2100	2100	2100
Travel Speed (No Load)	km/h	14.5	14.5	14.5	14.5	14.5	14.5
Max.Gradeability (Full Load)	%	20	20	20	20	20	20
Wheelbase	Y(mm)	1410	1410	1410	1410	1410	1410
Total Weight	kg	2860	2990	2860	2990	2860	2990
Engine Model		NC485BPG	NC485BPG	C240NKFC-01	C240NKFC-01	4TNE92	4TNE92

General	1	Manufacturer		UN
	2	Model		FD15T-NGA5	FD18T-NGA5	FD15T-NJB1	FD18T-NJB1	FD15T-NJE3	FD18T-NJE3
	3	Power Type		Diesel
	4	Rated Load Capacity	Q(kg)	1500	1800	1500	1800	1500	1800
	5	Load Centre	C(mm)	500
Characteristic & Dimension	6	Rated Lift Height	H3(mm)	3000
	7	Free Lift Height	H2(mm)	135	140	135	140	135	140
	8	Fork Size (L×W×T)	mm	920×120×35	1070×120×40	920×120×35	1070×120×40	920×120×35	1070×120×40
	9	Mast Tilt Angle (F/R, α°/β°)	deg	6°/12°
	10	Fork Overhang (Wheel Center to Fork Face)	X1(mm)	409	414	409	414	409	414
	11	Rear Overhang	X2(mm)	470
	12	Ground Clearance (Bottom of Mast)	H7(mm)	110
	13	Length to Face of Fork (Without Fork)	L1(mm)	2289	2294	2289	2294	2289	2294
	14	Overall Width	B1(mm)	1082
	15	Mast Lowered Height	H1(mm)	2025
	16	Mast Extended Height (With Backrest)	H4(mm)	4055
	17	Overhead Guard Height	H5(mm)	2160
	18	Turning Radius (Outside)	Wa(mm)	2100
	19	Min.Aisle width for pallets	mm	3700
Performance	20	Travel Speed (No Load)	km/h	14.5
	21	Lifting Speed (Full Load)	mm/sec	560
	22	Lowering Speed (Full Load)	mm/sec	No Load≥300 Full Load≤600
	23	Max.Drawbar Pull (Full Load/No Load)	KN	17/14.5		20.5/17.5		21/18
	24	Max.Gradeability (Full Load)	%	20
Chassis	25	Tyre (Front x 2)	mm	6.50-10-10PR
	26	Tyre (Rear x 2)	mm	5.00-8-10PR
	27	Front Tread	B2(mm)	890
	28	Rear Tread	B3(mm)	920
	29	Wheelbase	Y(mm)	1410
Weight	30	Total Weight	kg	2860	2990	2860	2990	2860	2990
	31	Front Axle Weight Distribution (Full Load)	kg	3815	4120	3815	4120	3815	4120
	32	Rear Axle Weight Distribution (Full Load)	kg	545	720	545	720	545	720
	33	Front Axle Weight Distribution (No Load)	kg	1200	1170	1200	1170	1200	1170
	34	Rear Axle Weight Distribution (No Load)	kg	1660	1820	1660	1820	1660	1820
Power & Transmission	35	Battery	V/Ah	12/90
	36	Engine Model		NC485BPG		C240NKFC-01		4TNE92
	37	Engine Manufacturer		XINCHAI		ISUZU		YANMAR
	38	Rated Output / r.p.m.	kw	30/2600		35.4/2500		31.2/2450
	39	Rated Torque / r.p.m.	N·m	131/1800		139/1800		150/1600
	40	No.of Cylinder		4
	41	Bore x Stroke	mm	85×100		86×102		92×110
	42	Displacement	cc	2270		2369		2659
	43	Fuel Tank Capacity	L	50
	44	Transmission Type		HYDRAULIC
	45	Transmission Stage (FWD/RVS)		1/1
	46	Operating Pressure (For Attachments)	Mpa	14.5

Product Features

Reliability & Performance

● Combines a scientifically engineered chassiswith a highly reliable power system, deliveringexceptional performance and precise handling. Power units include internationally renowned engines such as Isuzu, Mitsubishi, Yanmar, Kubota, and Xinchai, paired with transmissions comparable to Japanese engineering standards.

● The hydraulic system is equipped with branded pumps and valves, ensuring efficient and stable lifting and steering operations.

● An advanced cooling system with a large-capacity radiator maintains stable operationeven in high-temperature environments.
Safety & Ergonomics

● The combination of the OPS system and seat switch provides enhanced operational safety.

● The wide-visibility mast ensures a clear line of sight at all times.

● The high-strength OHG protects operators from falling objects.

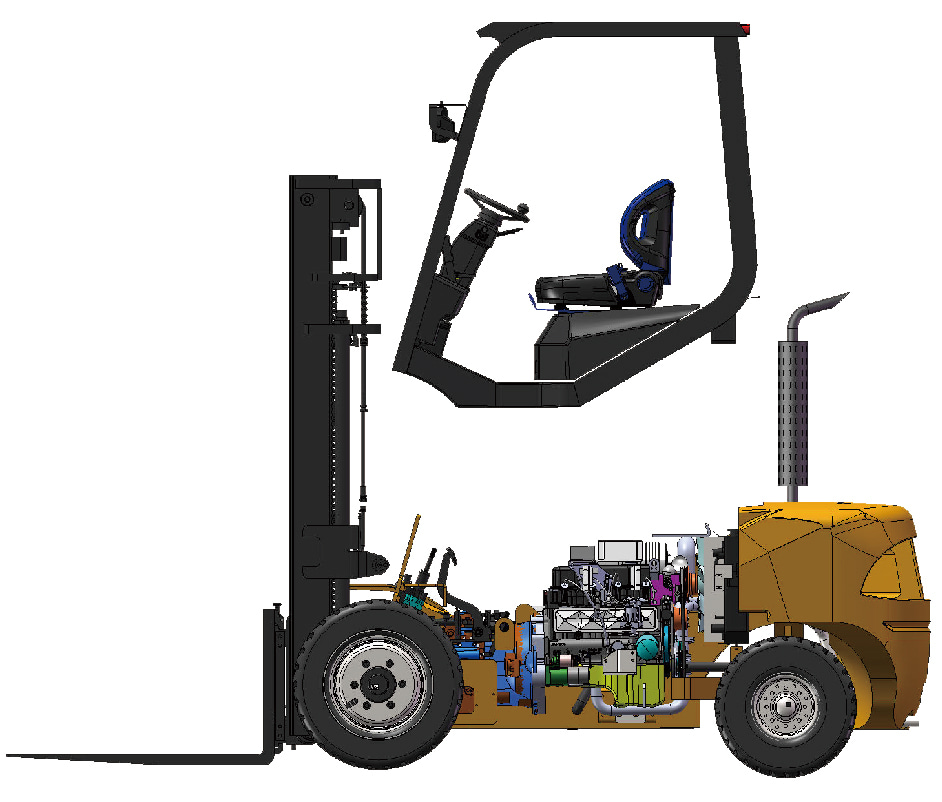

● A suspended chassis design offers increased legroom, complemented by an adjustable steering wheel and ergonomic seat.

● The suspended powertrain system is optionally available to suit operational needs.
Easy Maintenance

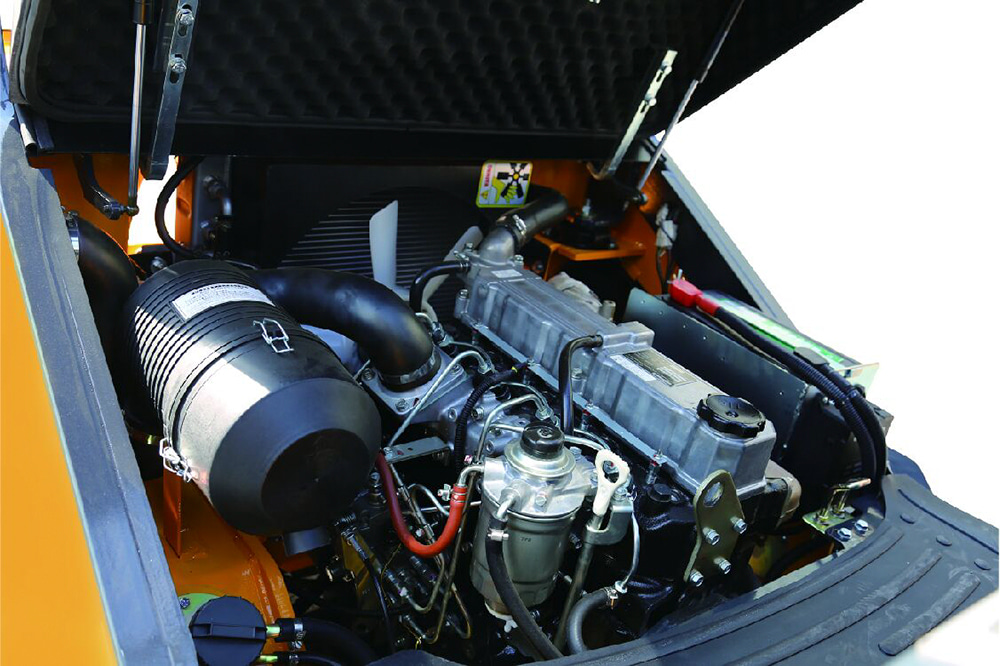

● The engine hood tilts nearly 90° for easy daily maintenance and component replacement.

● The transmission oil filter can be replaced with greater convenience.
