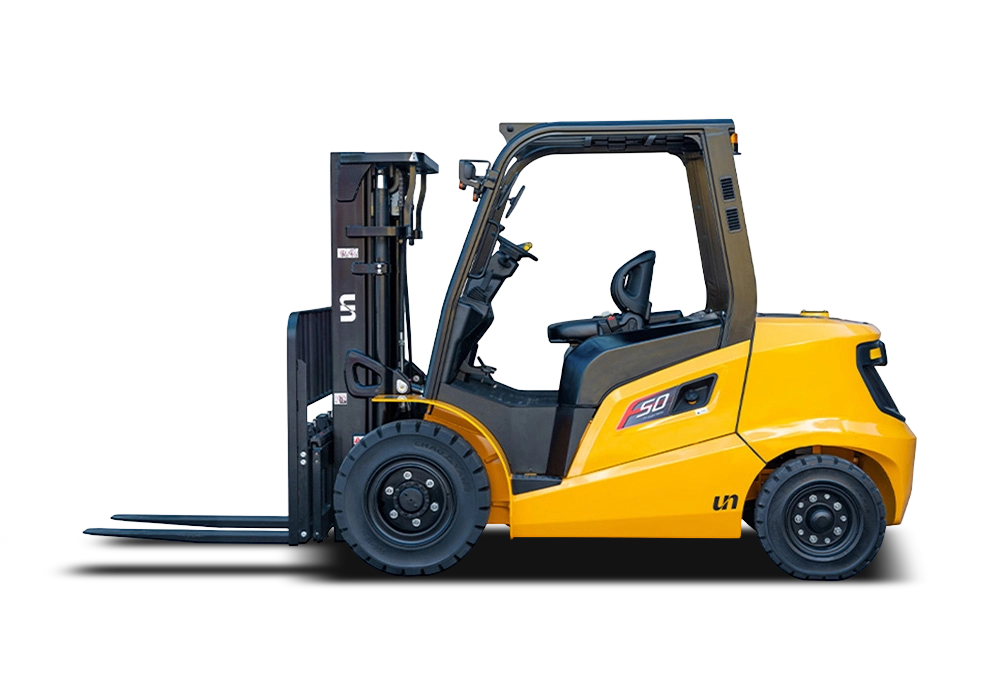

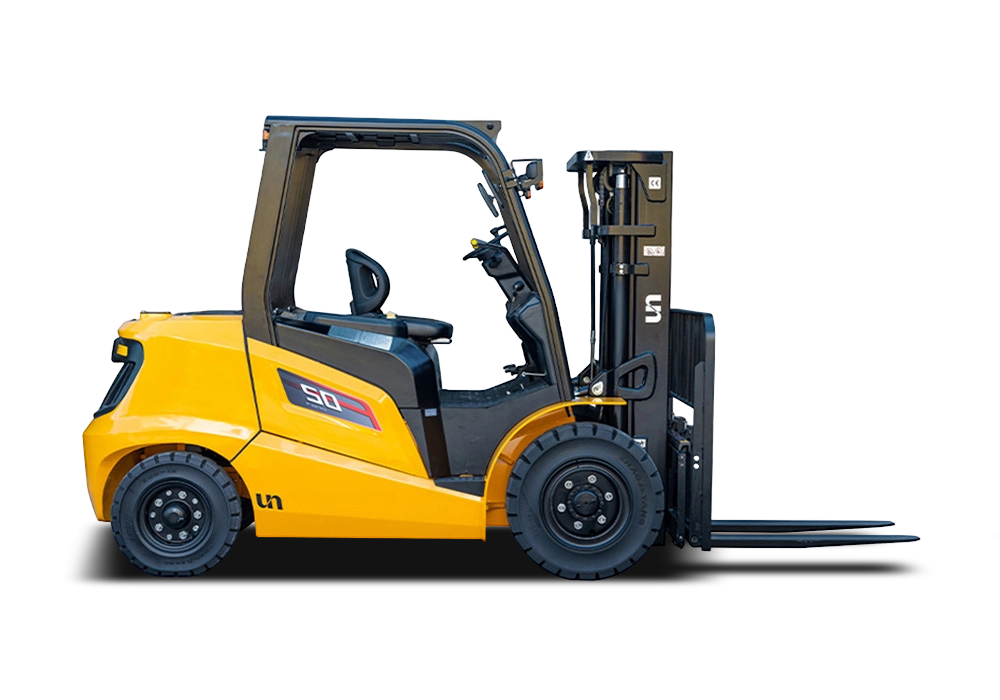

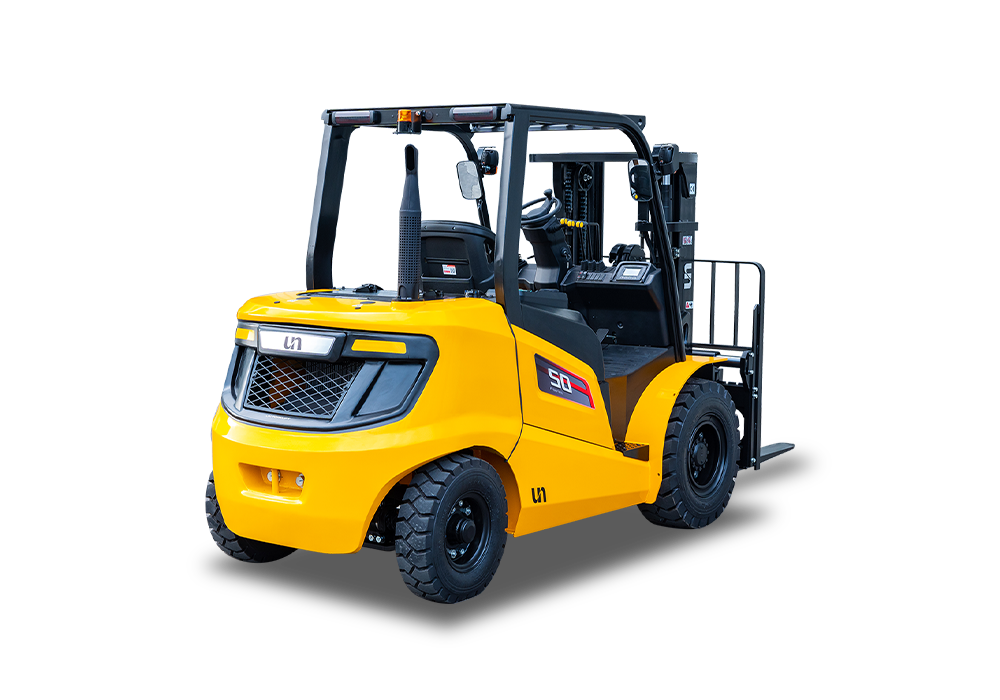

F Series 4.5T-5.5T Diesel Forklift

Get brochure

Product Description

F Series 4.5–5.5 ton internal combustion forklift is UN Forklift’s latest innovation, designed to deliver performance, durability, and operator comfort. Built for heavy-duty applications, this new model combines advanced engineering with a robust structure to handle demanding material handling tasks with ease.

E-mail: [email protected]

Product Details

MAIN SPECIFICATIONS

Model		FD45T	FD50T	FD55T
Rated Load Capacity	Q(kg)	4500	5000	5500
Load Centre	C(mm)	500	500	500
Length to Face of Fork (Without Fork)	L1(mm)	3265	3265	3315
Overall Width	B1(mm)	1520	1520	1520
Overhead Guard Height	H5(mm)	2370（2260）	2370（2260）	2370（2260）
Turning Radius (Outside)	Wa(mm)	2930	2930	2980
Travel Speed (Full Load/No Load)	km/h	25/26	25/26	25/26
Lifting Speed (Full Load/No Load)	mm/sec	580/620	580/620	530/580
Max.Gradeability (Full Load/No Load)	%	33/28	33/28	33/28
Wheelbase	Y(mm)	2100	2100	2100
Total Weight	kg	6510	6920	7280
Engine Model		S6S	S6S	S6S

General	1	Manufacturer		UN
	2	Model		FD45T	FD50T	FD55T
	3	Power Type		Diesel
	4	Rated Load Capacity	Q(kg)	4500	5000	5500
	5	Load Centre	C(mm)	500
Characteristic & Dimension	6	Rated Lift Height	H3(mm)	3000
	7	Free Lift Height	H2(mm)	150
	8	Fork Size (L×W×T)	mm	1070x150x50		1070x150x55
	9	Mast Tilt Angle (F/R, α°/β°)	deg	6°/12°
	10	Fork Overhang (Wheel Center to Fork Face)	X1(mm)	571		576
	11	Rear Overhang	X2(mm)	605		655
	12	Ground Clearance (Bottom of Mast)	H7(mm)	140
	13	Length to Face of Fork (Without Fork)	L1(mm)	3265		3315
	14	Overall Width	B1(mm)	1520
	15	Mast Lowered Height	H1(mm)	2250
	16	Mast Extended Height (With Backrest)	H4(mm)	4250		4405
	17	Overhead Guard Height	H5(mm)	2370（2260）
	18	Turning Radius (Outside)	Wa(mm)	2930		2980
	19	Min.Aisle width for pallets	Ast(mm)	4690		4750
Performance	20	Travel Speed (Full Load/No Load)	km/h	25/26
	21	Lifting Speed (Full Load/No Load)	mm/sec	580/620		530/580
	22	Lowering Speed (Full Load/No Load)	mm/sec	300-600
	23	Max.Drawbar Pull (Full Load/No Load)	KN	41/25
	24	Max.Gradeability (Full Load/No Load)	%	33/28
Chassis	25	Tyre (Front x 2)	mm	300-15-18PR
	26	Tyre (Rear x 2)	mm	7.00-12-12PR
	27	Front Tread	B2(mm)	1232
	28	Rear Tread	B3(mm)	1190
	29	Wheelbase	Y(mm)	2100
Weight	30	Total Weight	kg	6510	6920	7280
	31	Front Axle Weight Distribution (Full Load)	kg	9840	10540	11270
	32	Rear Axle Weight Distribution (Full Load)	kg	1170	1370	1510
	33	Front Axle Weight Distribution (No Load)	kg	3080	3030	3010
	34	Rear Axle Weight Distribution (No Load)	kg	3430	3890	4270
Power & Transmission	35	Battery	V/Ah	24/90
	36	Engine Model		S6S
	37	Engine Manufacturer		MITSUBISHI
	38	Rated Output / r.p.m.	kw	52/2300
	39	Rated Torque / r.p.m.	N·m	248/1700
	40	No.of Cylinder		6
	41	Bore x Stroke	mm	94x120
	42	Displacement	L	4.996
	43	Fuel Tank Capacity	L	110
	44	Transmission Type		Hydraulic
	45	Transmission Stage (FWD/RVS)		2/1
	46	Operating Pressure (For Attachments)	Mpa	23.5

Product Features

High Performance

● Equipped Mitsubishi & Kubota engines, featuring low emissions, high performance and durability.

● Equipped with a high-speed ratio floating transmission to enhance driving speed and improve work efficiency.

● The dual-pump flow merging system enhances work efficiency and reduces energy loss.

● Load sensing system enhances operational efficiency.

● The integrated large turning cast steering axle increases axle strength by 30%, ensuring greater durability and reducing the turning radius.
Safety And Reliability

● The stamped OHG offers increased durability and reliability.

● All key connectors and joints are waterproof.

● The OPS (optional) system effectively prevents unintended forklift startup.
Superior Ergonomics

● Wide-view mast provides a broader vision.

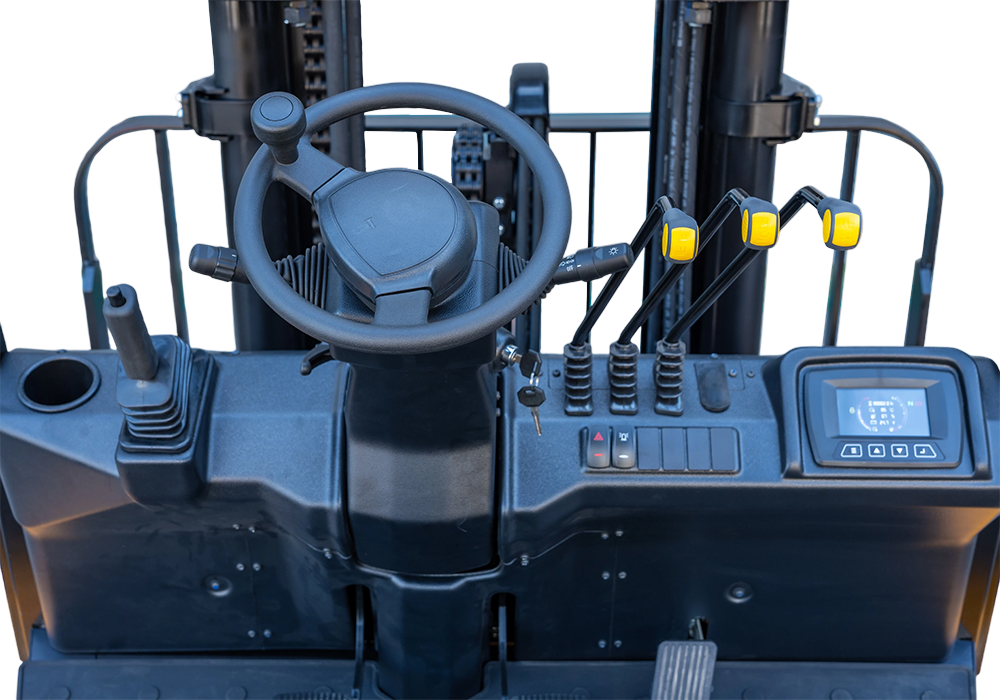

● The adjustable steering column equip with a small steering wheelfor more effortless operation.

● The steering axle features rubber damping to absorb impacts and improve ride smoothness.

● Four shock-absorbing mounts are used to reduce overall vehicle vibration and enhance driving comfort.

● Enlarged operation space.

● The ratchet type handbrake, effectively reducing operating force.

● Suspended pedal-type braking system achieves smooth braking and reduce vibrations.
Easy Maintenance

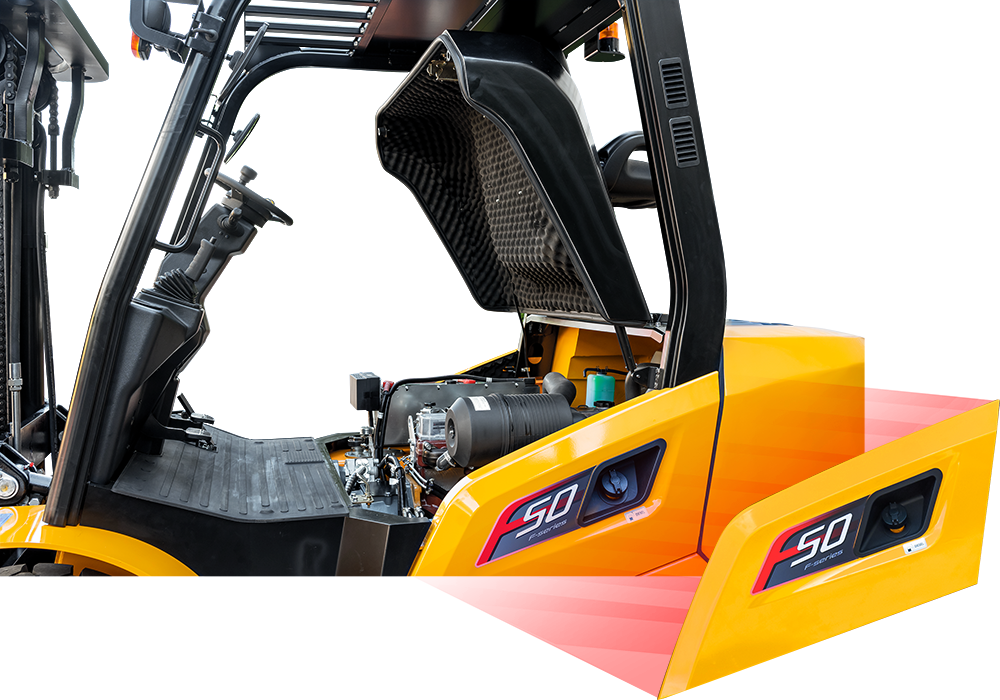

● 80° engine hood opening angle.

● Detachable left and right side panels.

● Pin-mounted front and rear floor plates.

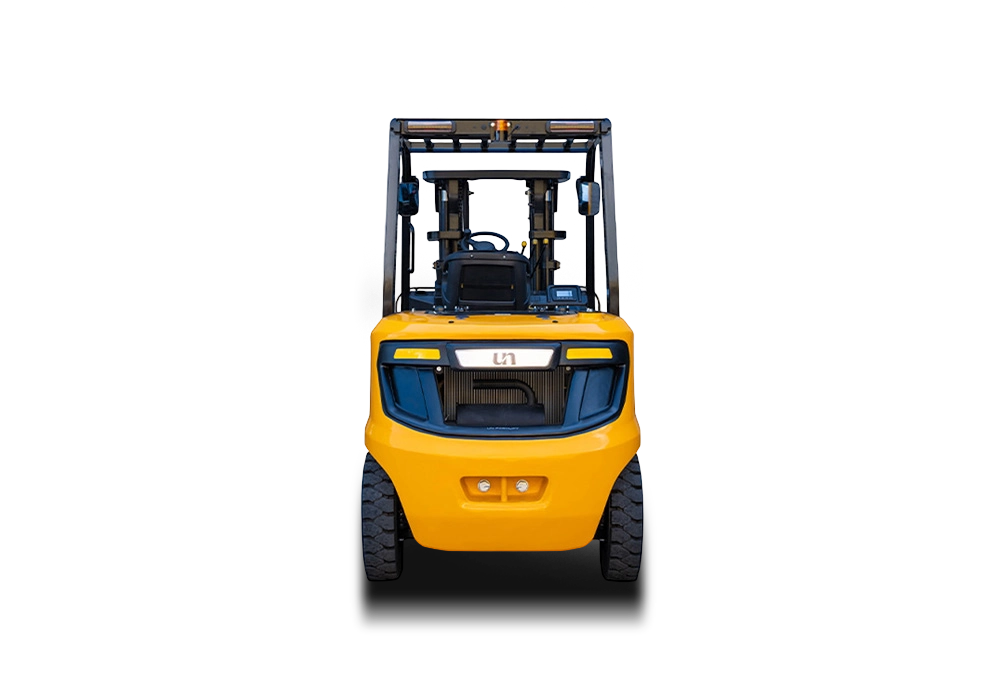

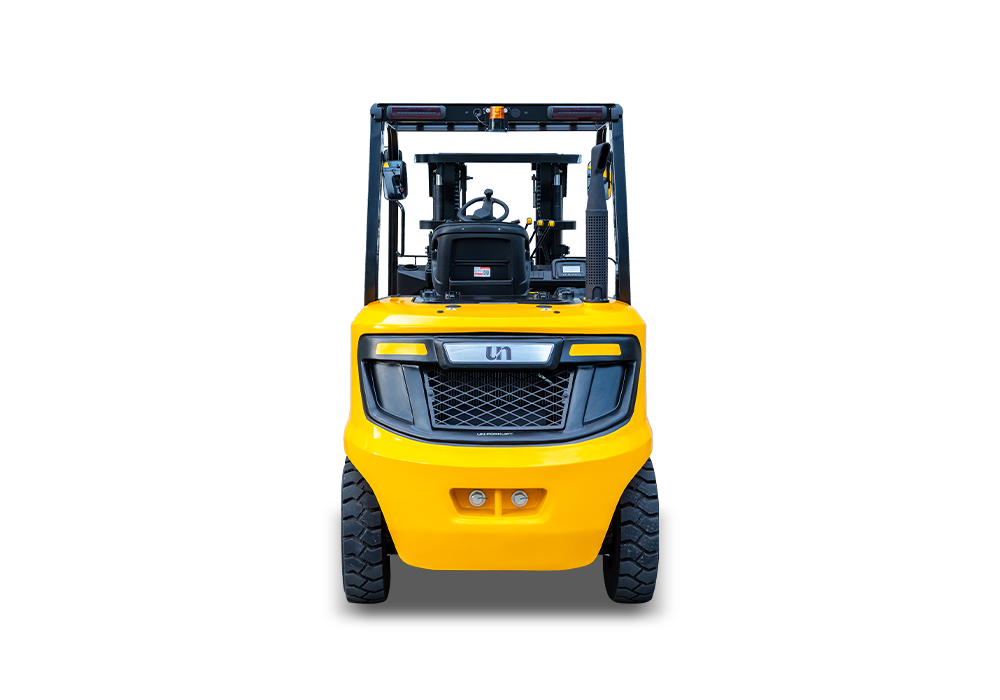

● The rear counterweight cover provides easy access for radiator maintenance.
