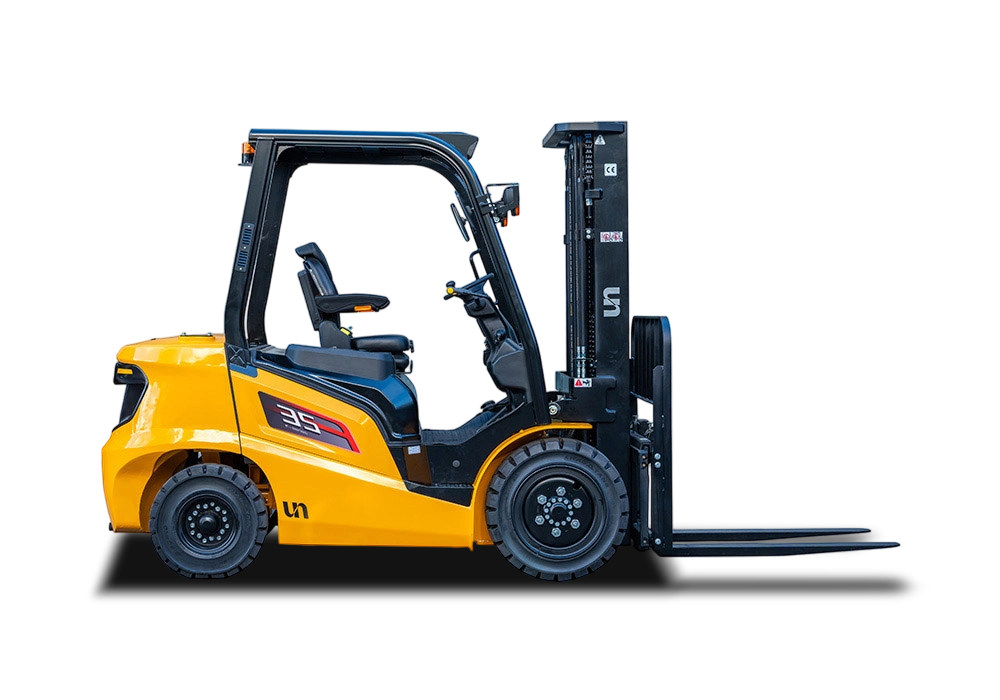

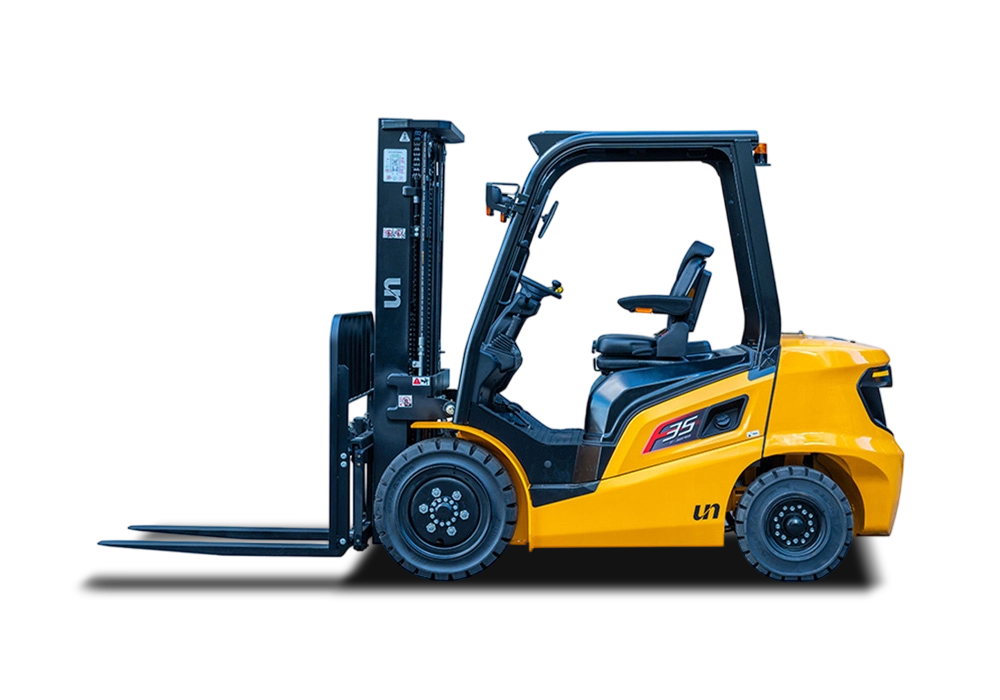

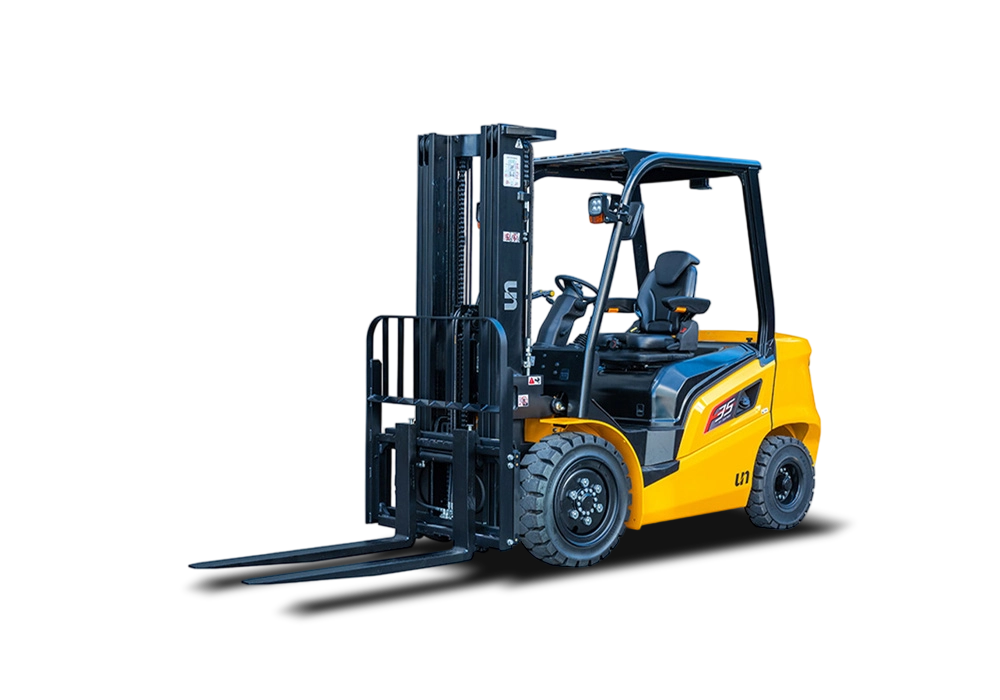

F Series 3.0T-3.5T Diesel Forklift

Get brochure

Product Description

F series, the latest internal combustion forklift has undergone a comprehensive redesign led by professional design company. This brand new design brings significant enhancements to both its appearance and performance.

E-mail: [email protected]

Product Details

MAIN SPECIFICATIONS

Model		FD30T	FD35T
Rated Load Capacity	Q(kg)	3000	3500
Load Centre	C(mm)	500	500
Length to Face of Fork (Without Fork)	L1(mm)	2697	2772
Overall Width	B1(mm)	1220	1220
Overhead Guard Height	H5(mm)	2235	2235
Turning Radius (Outside)	Wa(mm)	2450/2425	2500
Travel Speed (No Load)	km/h	19	19
Max.Gradeability (Full Load)	%	19-30	17-26
Wheelbase	Y(mm)	1700	1700
Total Weight	kg	4479	4839
Engine Model		D04EG（EPA4）/ V2403（EPA IV /Eu V）/ S4S(Eu Ⅲ) / C240PKJ30 (Eu Ⅲ) / D24(Eu V ) / 3E22YG51(Eu V ) / A498BPG-521(Eu Ⅲ ) / C490BPG-237 (CN Ⅱ)

Appearance

● This series has smooth and streamlined body, giving a more powerful look. The sharp edges and contrast color design of the counterweight make it more attractive.

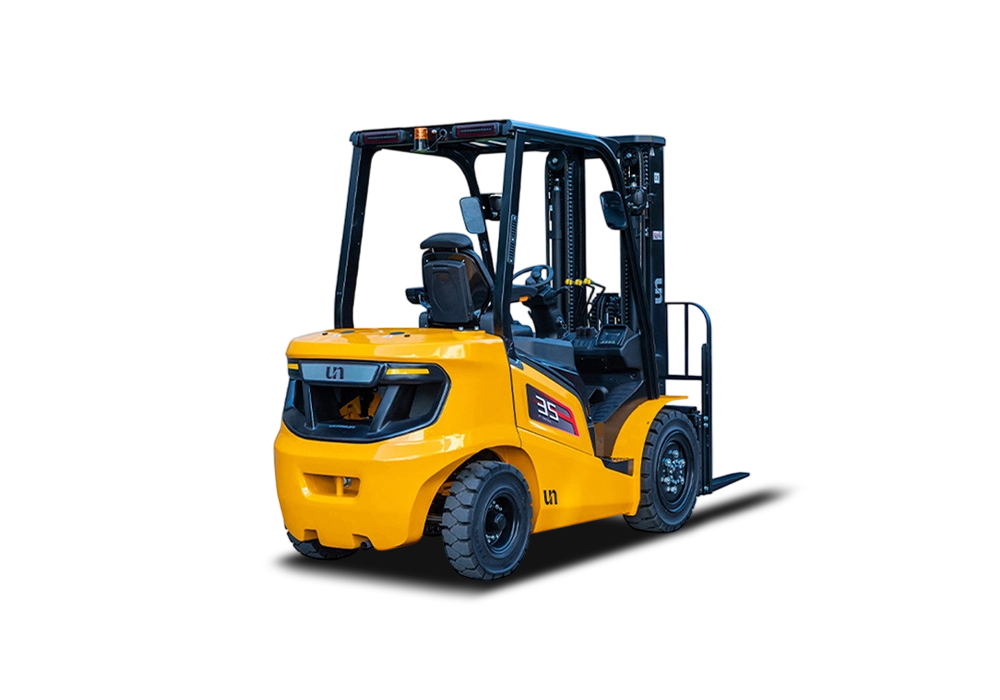

● The electrical system utilizes dynamic LED taillights, imparting a futuristic and highly technological appeal to the vehicle, creating a strong visual impact.

General	1	Manufacturer		UN
	2	Model		FD20T	FD25T	FD30T	FD35T
	3	Power Type		Diesel
	4	Rated Load Capacity	Q(kg)	2000	2500	3000	3500
	5	Load Centre	C(mm)	500	500	500	500
Characteristic & Dimension	6	Rated Lift Height	H3(mm)	3000	3000	3000	3000
	7	Free Lift Height	H2(mm)	120	120	125	130
	8	Fork Size (L×W×T)	mm	1070×100×40	1070×122×40	1070×122×45	1070×122×50
	9	Mast Tilt Angle (F/R, α°/β°)	deg	6°/12°	6°/12°	6°/12°	6°/12°
	10	Fork Overhang (Wheel Centre to Fork Face)	X1(mm)	462	462	467	472
	11	Rear Overhang	X2(mm)	550	550	530	600
	12	Ground Clearance (Bottom of Mast)	H7(mm)	110	110	125	125
	13	Length to Face of Fork (Without Fork)	L1(mm)	2662	2662	2697	2772
	14	Overall Width	B1(mm)	1180	1180	1220	1220
	15	Mast Lowered Height	H1(mm)	2100	2100	2115	2115
	16	Mast Extended Height (With Backrest)	H4(mm)	4198	4198	4213	4213
	17	Overhead Guard Height	H5(mm)	2215	2215	2235	2235
	18	Turning Radius (Outside)	Wa(mm)	2365	2365	2450/2425	2500
	19	Min.Aisle width for pallets	Ast(mm)	4120	4120	4120/4180	4255
Performance	20	Travel Speed (No Load)	km/h	19	19	19	19
	21	Lifting Speed (Full Load)	mm/sec	587	552	485	468
	22	Lowering Speed (Full Load/No Load)	mm/sec	≤600/≥300	≤600/≥300	≤600/≥300	≤600/≥300
	23	Max.Drawbar Pull (Full Load/No Load)	KN	14.85-22.73 14.6-22.11	14.85-22.73 14.6-22.11	14.86-22.83 14.55-22.07	14.85-22.89 14.45-21.96
	24	Max.Gradeability (Full Load)	%	22-34	22-34	19-30	17-26
Chassis	25	Tyre (Front x 2)	mm	7.00-12-12PR	7.00-12-12PR	28×9-15-14PR	28×9-15-14PR
	26	Tyre (Rear x 2)	mm	6.00-9-10PR	6.00-9-10PR	6.50-10-10PR	6.50-10-10PR
	27	Front Tread	B2(mm)	970	970	1000	1000
	28	Rear Tread	B3(mm)	980	980	980	980
	29	Wheelbase	Y(mm)	1650	1650	1700	1700
Weight	30	Total Weight	kg	3889	4129	4479	4839
	31	Front Axle Weight Distribution (Full Load)	kg	5123	5893	6725	7424
	32	Rear Axle Weight Distribution (Full Load)	kg	1765	1235	749	909
	33	Front Axle Weight Distribution (No Load)	kg	1941	1917	2016	1911
	34	Rear Axle Weight Distribution (No Load)	kg	1941	2209	2463	2928
Power & Transmission	35	Battery	V/Ah	12/90	12/90	12/90	12/90
	36	Engine Model		D04EG（EPA4）/ V2403（EPA IV /Eu V）/ S4S(Eu Ⅲ) / C240PKJ30 (Eu Ⅲ) / D24(Eu V ) / 3E22YG51(Eu V ) / A498BPG-521(Eu Ⅲ ) / C490BPG-237 (CN Ⅱ)
	37	Engine Manufacturer		MITSUBISHI / KUBOTA / MITSUBISHI / ISUZU / HYUNDAI / XINCHAI /XINCHAI / XINCHAI
	38	Fuel Tank Capacity	L	60	60	60	60
	39	Transmission Type		HYDRAULIC	HYDRAULIC	HYDRAULIC	HYDRAULIC
	40	Transmission Stage (FWD/RVS)		1/1	1/1	1/1	1/1
	41	Operating Pressure (For Attachments)	Mpa	18.5	18.5	18.5	20.5

Product Features

Appearance

● This series has smooth and streamlined body, giving a more powerful look. The sharp edges and contrast color design of the counterweight make it more attractive.

● The electrical system utilizes dynamic LED taillights, imparting a futuristic and highly technological appeal to the vehicle, creating a strong visual impact.
High Performance

● Using internationally renowned Stage V/Tier4F, Mitsubishi 4EG, Kubota and GCT engines.

● Utilizing the new narrow-groove steel mast to reduce the overall vehicle weight & enhance visibility.

● Equipped with an interactive dashboard as standard for real-time monitoring.

● New generation LED lighting system.

● Load sensing steering system.
Safety & Reliability

● The stamped overhead guard offers increased durability and reliability.

● All key connectors and joints are waterproof.

● The OPS system effectively prevents unintended forklift startup.
Superior Ergonomics

● Wide-view mast provides a broader vision.

● Implementing a suspended seat has reduced vibrations.

● The spacious foot space provides easy access for getting on and off.

● The adjustable steering column equip with a small steering wheel for more effortless operation.

● Adopting a new type of ratchet handbrake, effectively reducing operating force.
Easy Maintenance

● The detachable side panels make maintenance and cleaning more convenient.

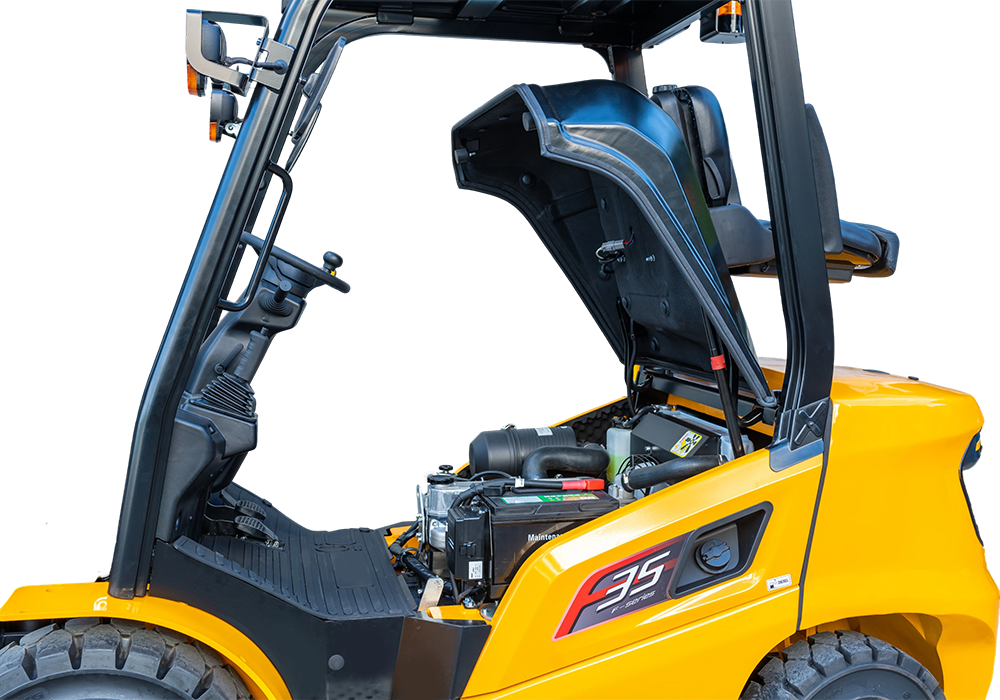

● The large opening angle of the engine hood makes maintenance easier.
