Rough Terrain Forklift

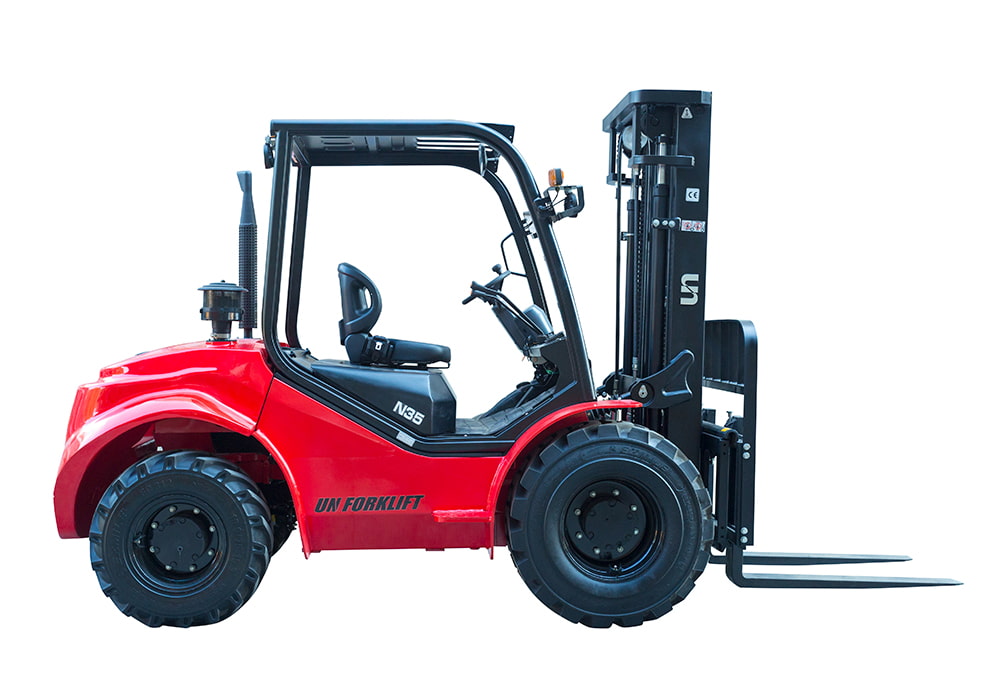

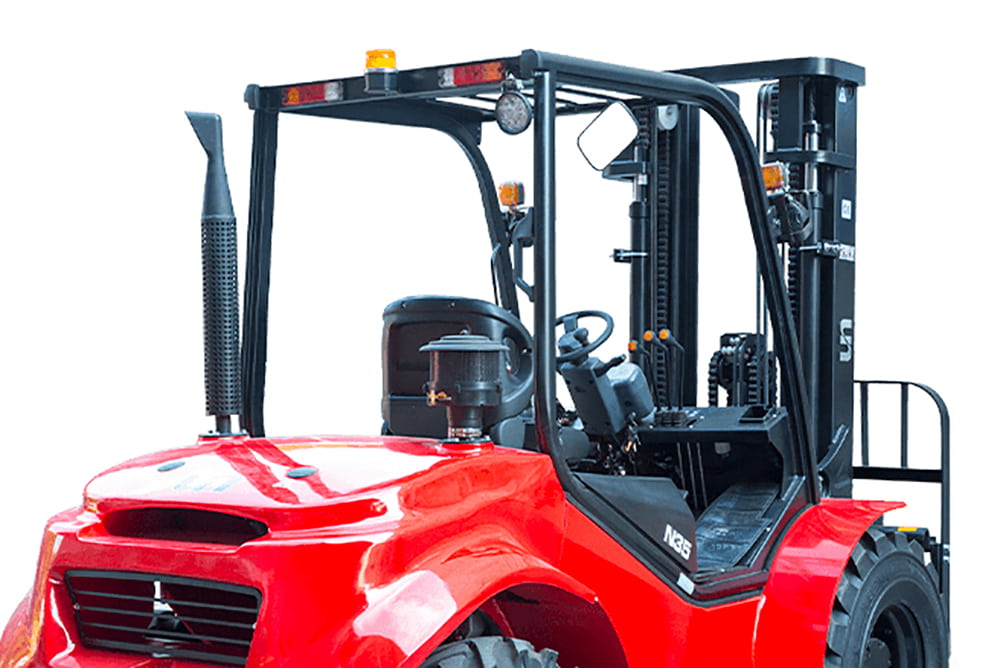

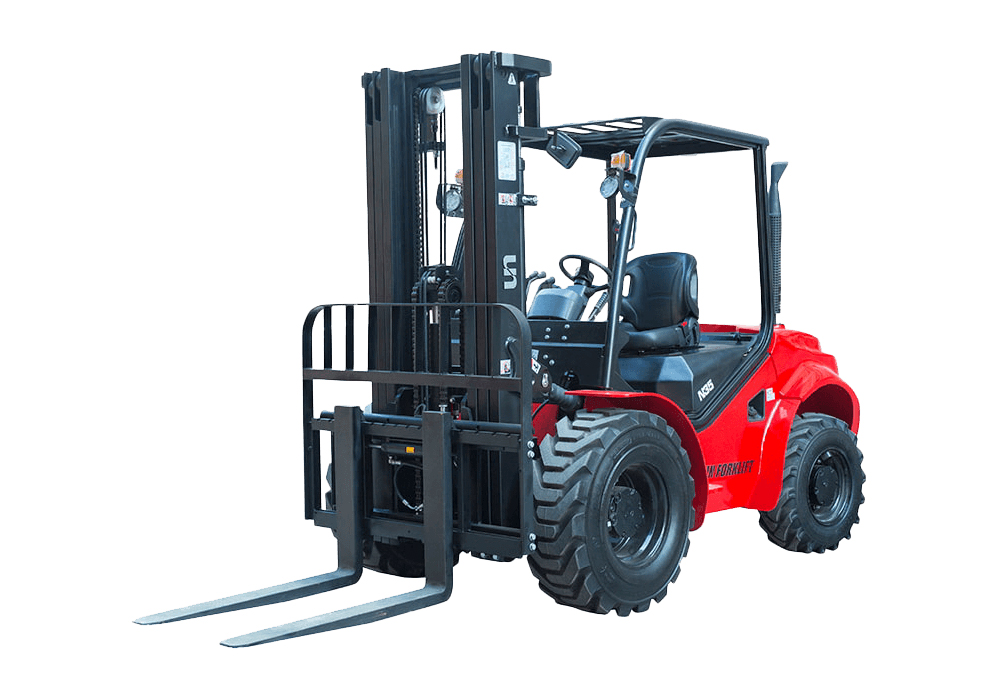

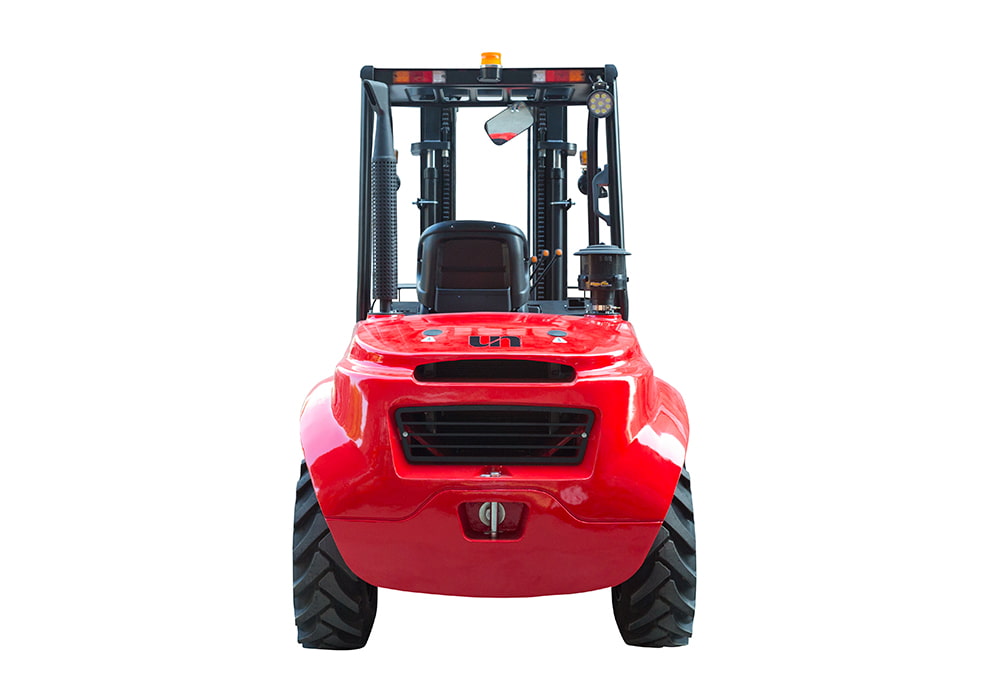

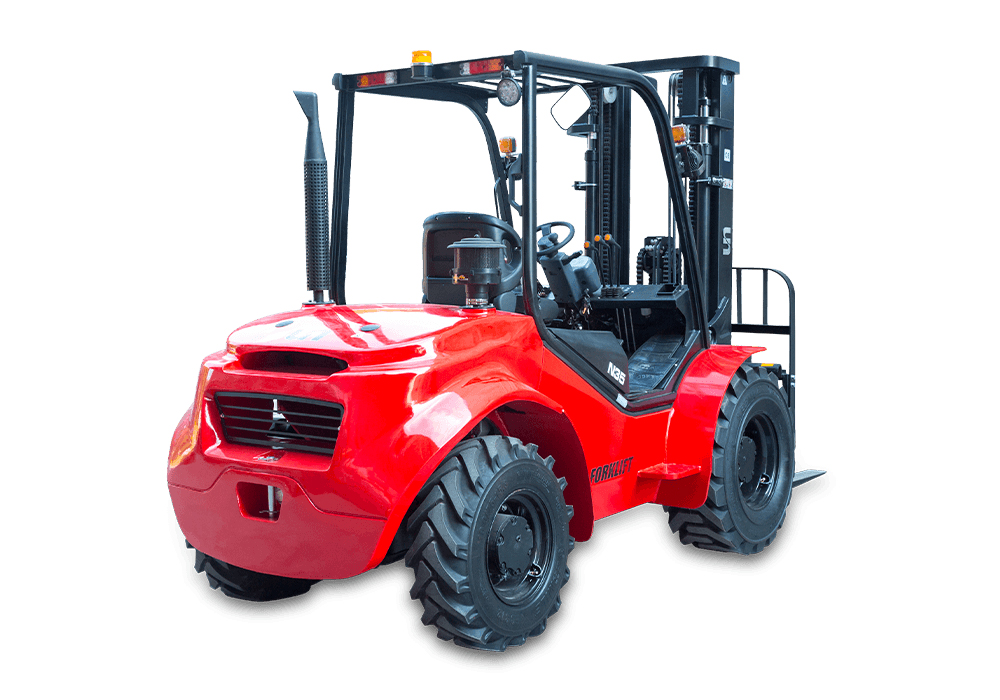

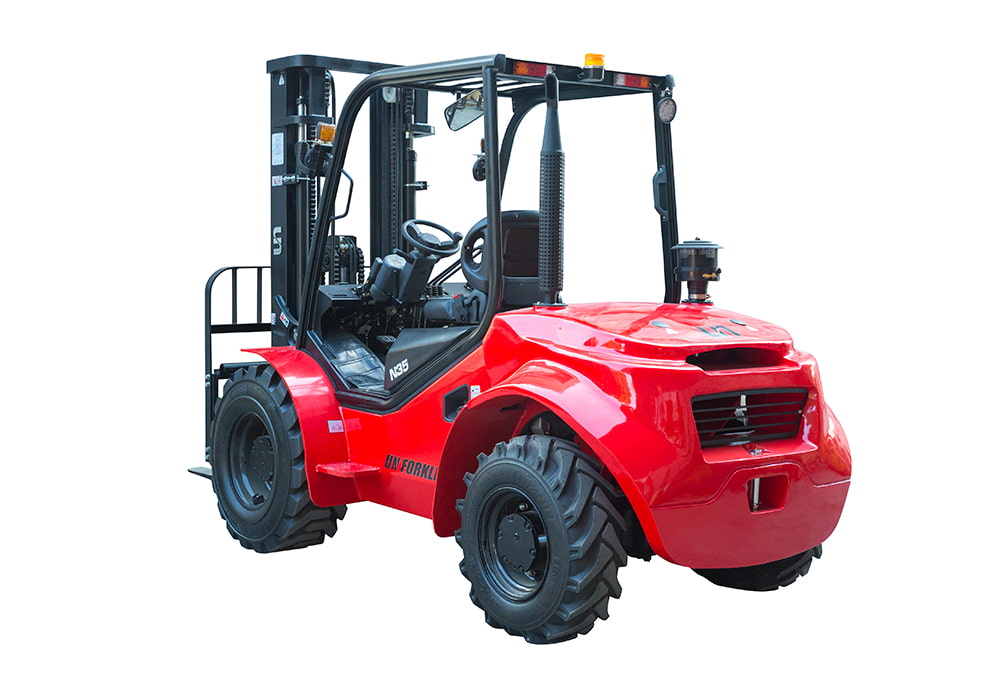

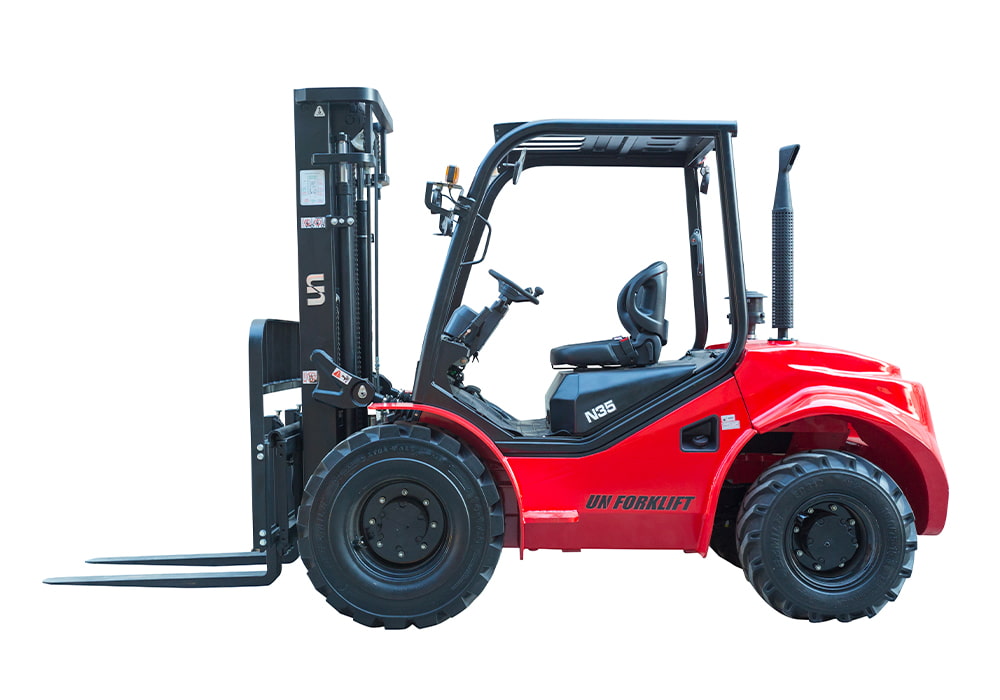

N Series 2.5T-3.5T 4WD Rough Terrain Forklift

Get brochure

Product Description

UN’s 4WD rough terrain forklift was developed based on the successful of 2WD rough terrain forklift. It’s compact design and strong off-road capability makes UN 4WD rough terrain forklift ideal for of the tough applications. Such as construction, forestry, mining, agriculture industries with different ground conditions and weather conditions.

UN 4WD rough terrain forklifts definitely improve your productivity, and become your reliable partner for tough job.

E-mail: [email protected]

Product Details

MAIN SPECIFICATIONS

Model		FD25T	FD30T	FD35T
Rated Load Capacity	Q(kg)	2500	3000	3500
Load Centre	C(mm)	500	500	500
Length to Face of Fork (Without Fork)	L1(mm)	3080	3100	3100
Overall Width	B1(mm)	1600	1600	1600
Overhead Guard Height	H5(mm)	2256	2276	2776
Turning Radius (Outside)	Wa(mm)	3150	3150	3150
Travel Speed (Laden/Unladen)	km/h	17/18	17/18	17/18
Max.Gradeability (Laden)	%	50	45	45
Wheelbase	Y(mm)	1880	1880	1880
Total Weight	kg	4820	5300	5450
Engine Model		S4S/4TNE98/D24	S4S/4TNE98/D24	S4S/4TNE98/D24

Product Features

Build For All-Terrain

● 4WD mode is especially for tough area, and it could switch to 2WD mode if 4WD is unnecessary, this could save energy and prolong the transmission life.

● With 45% differential lock in both front and rear axle, so it could work well in slippery or muddy area.
Manoeuvrability

● Higher ground clearance up to 300mm.

● Great gradeability up to 60%.

● Each wheel equip with reductor could increase the torque.

● Large size deep pattern off-road vacuum tire with excellent off-road capability and shock absorption performance.
Reliability & Comfort

● Heavy duty axle and transmission ensure the stable performance of the truck.

● Dual air filters are protecting the engine with clean air.

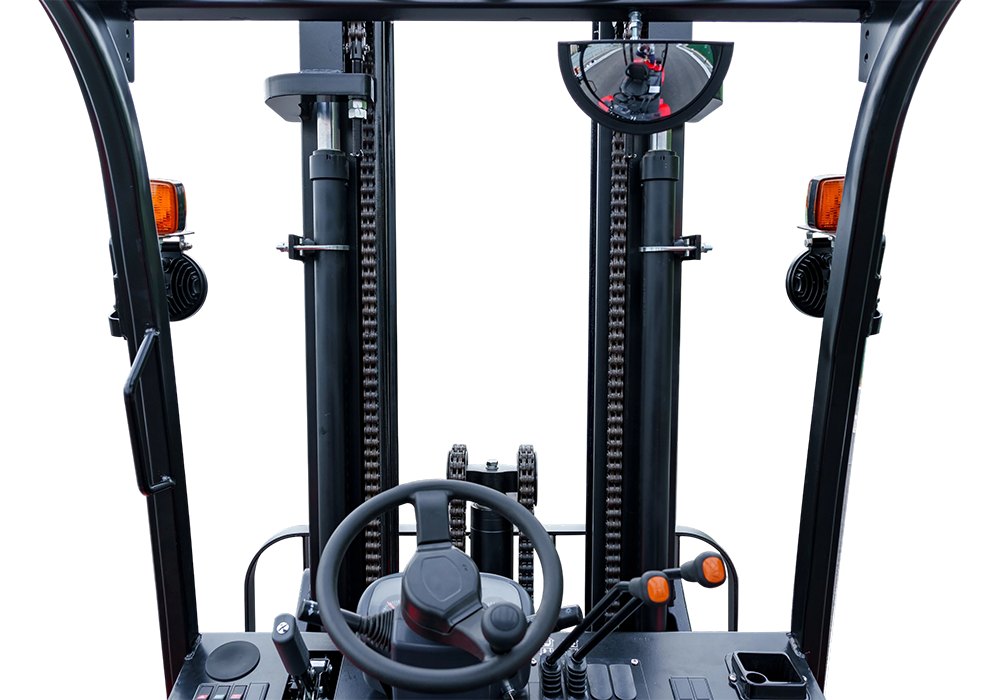

● Adjustable seat and steering column.

● Floating hydraulic transmission.

● Strong and suspension OHG protects the operator and reduce the vibration.

● Rear hand rail with horn, LED light for both front and rear.
Easy Maintenance

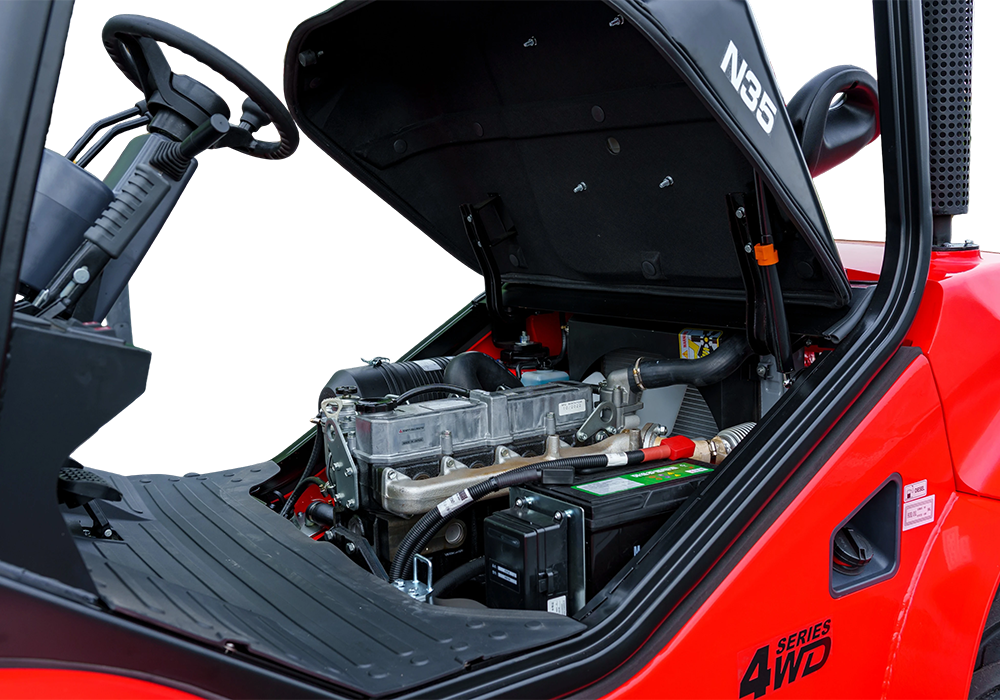

● Nearly 90 degrees engine hood makes daily maintenance much easier, all part can be reached quickly.
