Rough Terrain Forklift

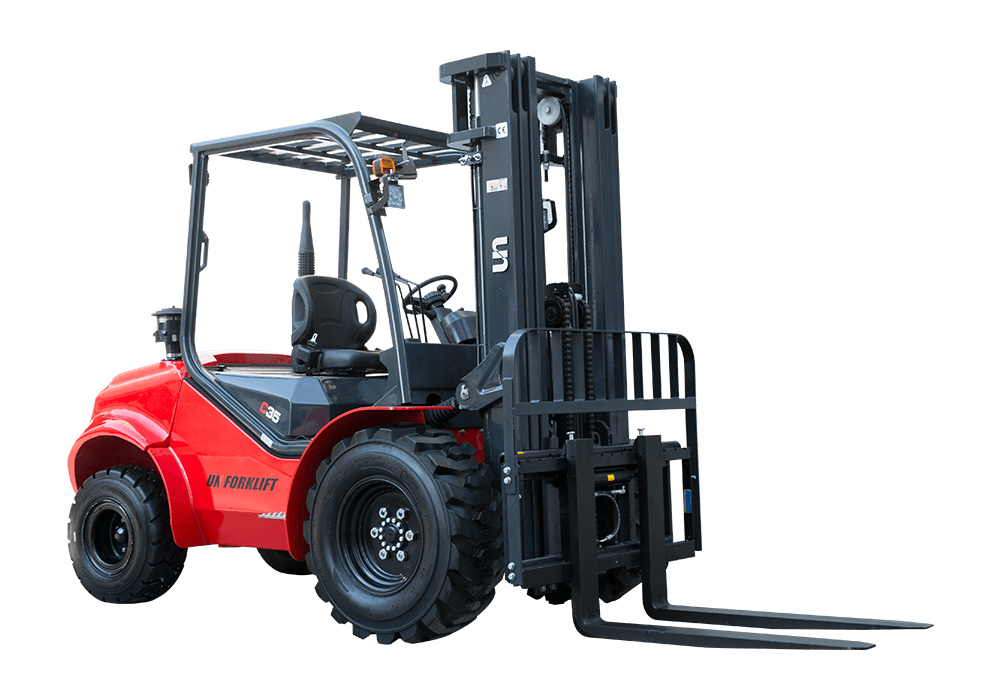

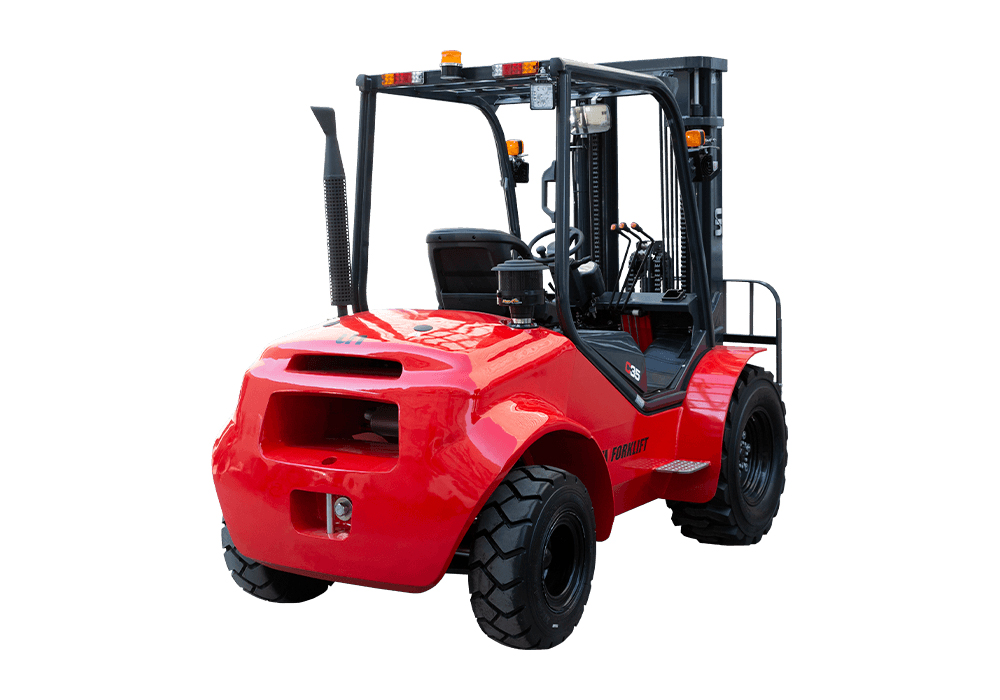

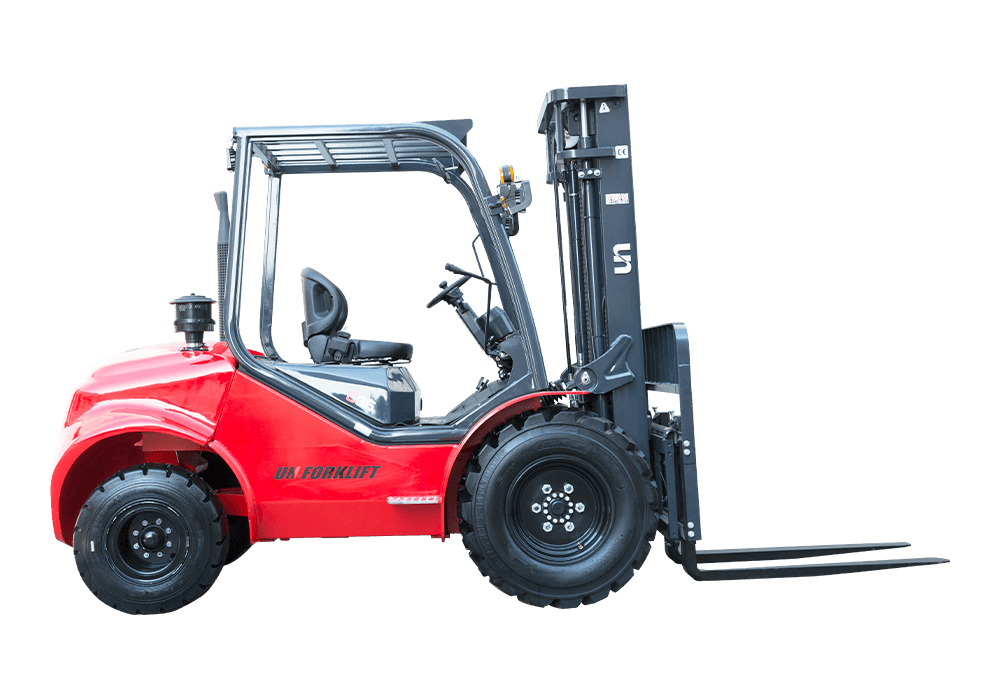

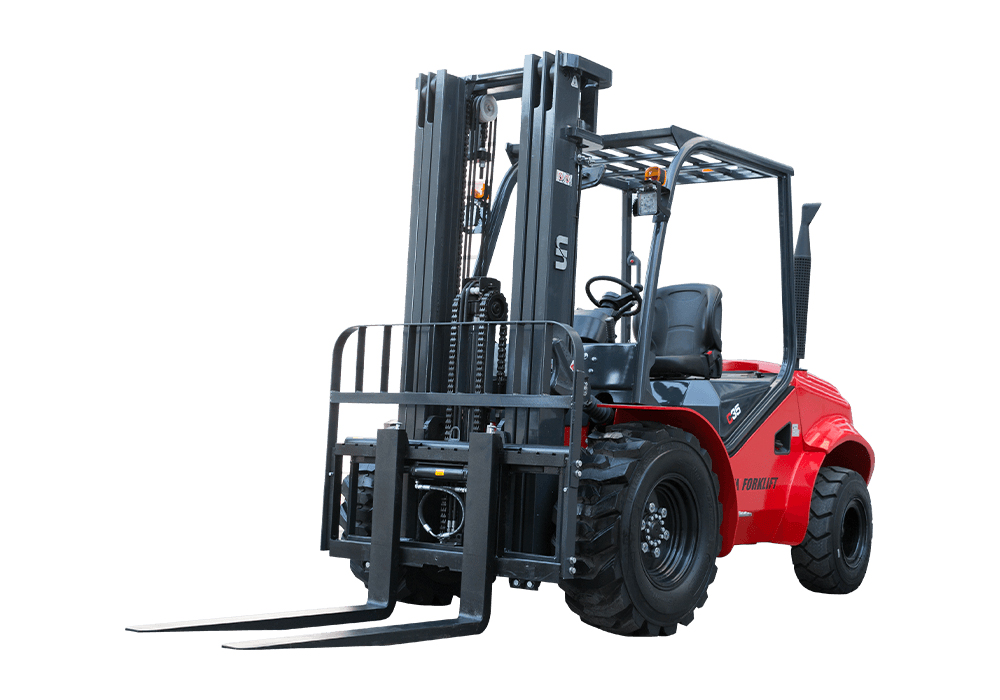

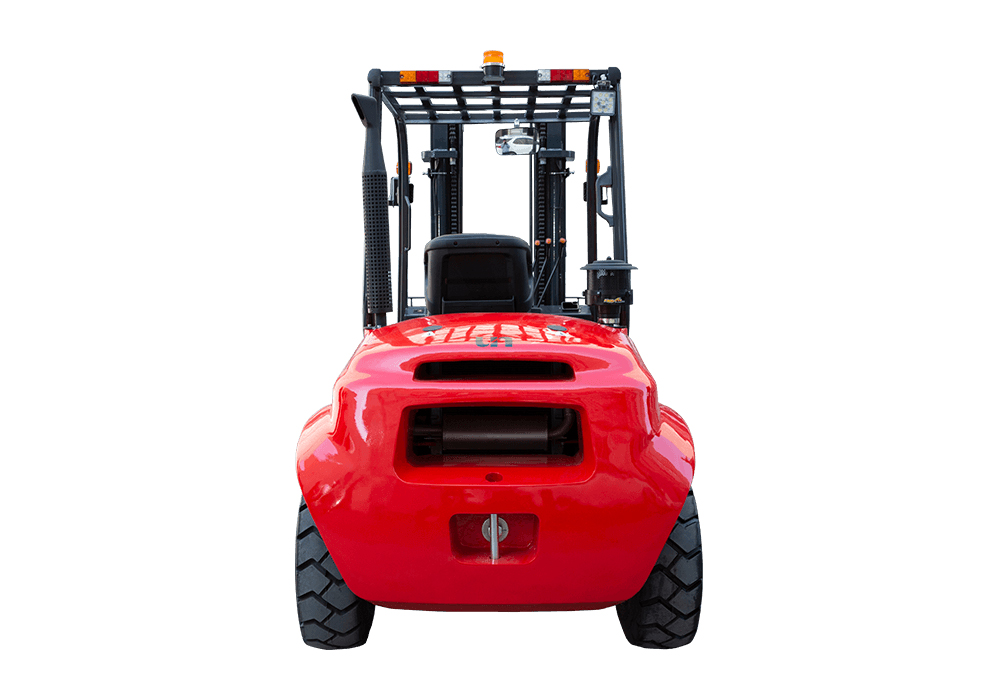

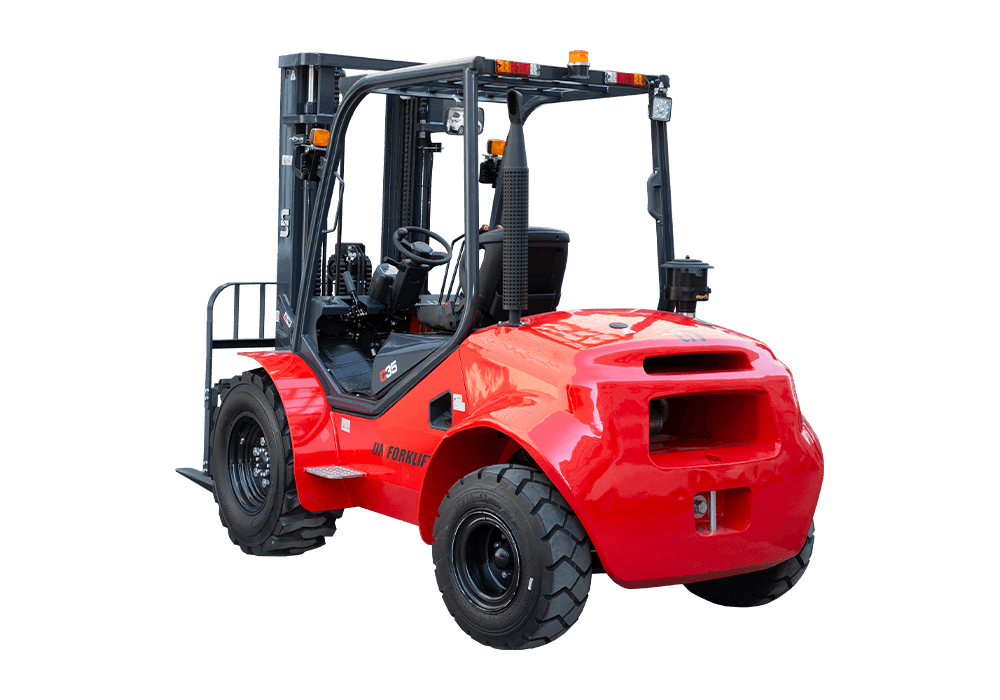

N Series 2.5T-3.5T 2WD Rough Terrain Forklift

Get brochure

Product Description

UN’s newly designed 2WD rough terrain forklift offers solution for industrial, construction and agricultural applications.

It is a very good alternative to replace conventional industrial forklift at some places, especially in agricultural industry.

With mature and reliable transmission and axle technology, UN rough terrain allows customers to handle the loads with precision, safety and more comfortable.

E-mail: [email protected]

Product Details

MAIN SPECIFICATIONS

Model		FD25	FD30T	FD35T
Rated Load Capacity	Q(kg)	2500	3000	3500
Load Centre	C(mm)	500	500	500
Length to Face of Fork (Without Fork)	L1(mm)	2985	3005	3005
Overall Width	B1(mm)	1600	1600	1600
Overhead Guard Height	H5(mm)	2256	2276	2276
Turning Radius (Outside)	Wa(mm)	2900	2900	2900
Travel Speed (Laden/Unladen)	km/h	17/18	17/18	17/18
Max.Gradeability (Laden)	%	20	20	20
Wheelbase	Y(mm)	1880	1880	1880
Total Weight	kg	4215	4845	5135
Engine Model		S4S/A498BPG/4TNE98/D24	S4S/A498BPG/4TNE98/D24	S4S/A498BPG/4TNE98/D24

Product Features

Build For All-Terrain

● With 100% differential lock.

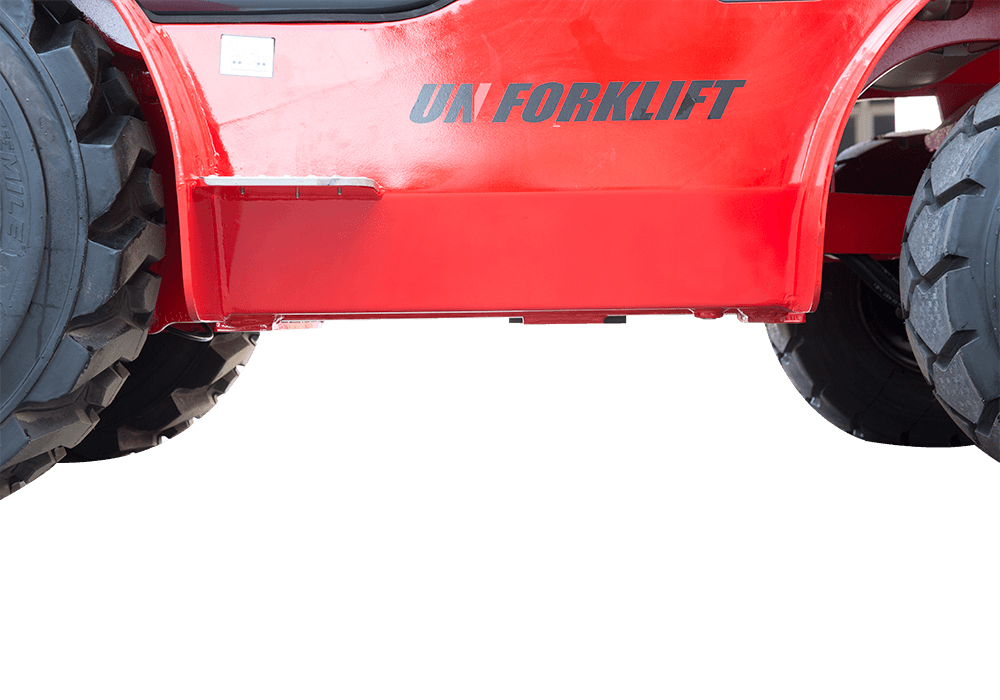

● Higher ground clearance up to 270mm.

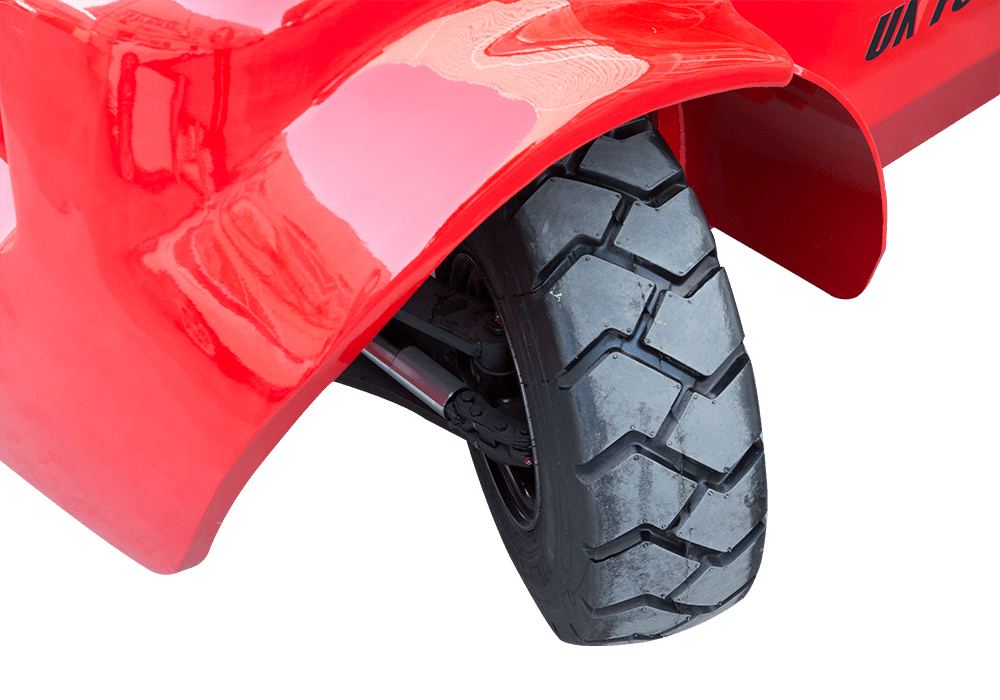

● Large size deep pattern off-road vacuum tire with excellent off-road capability and shock absorption performance.
Compactness

● Small turning radius and compact structure design makes it could work well even if in space restricted area.
Safety & Ergonomics

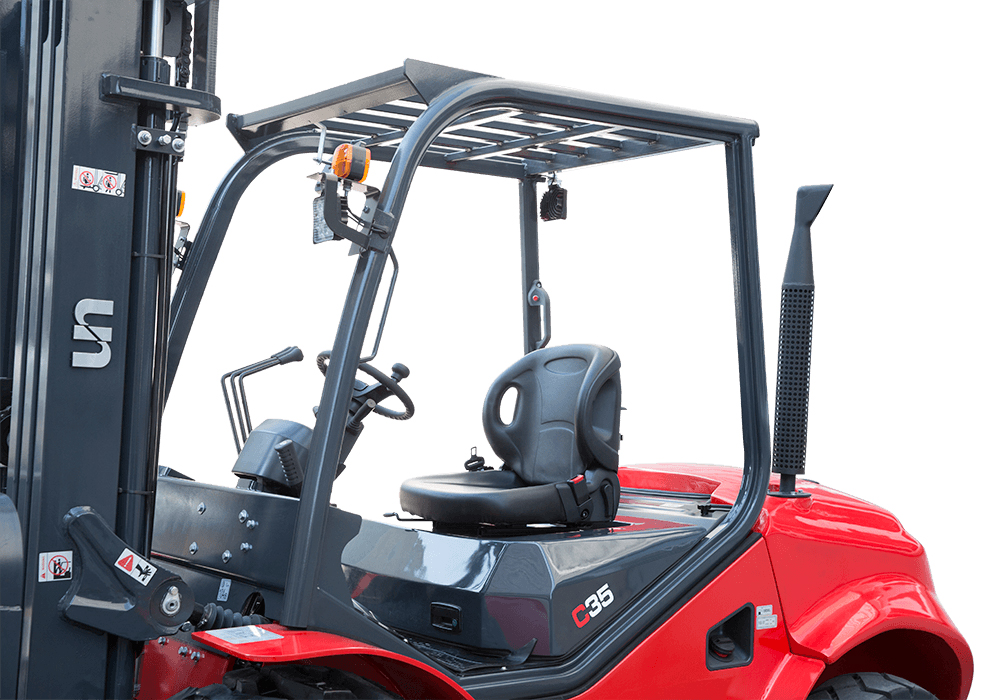

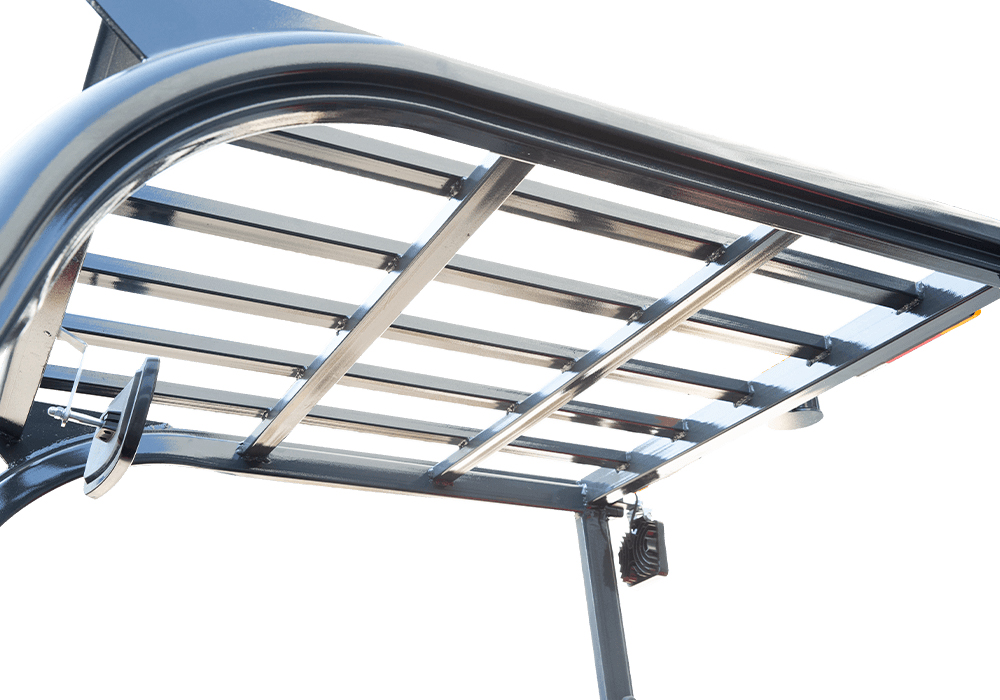

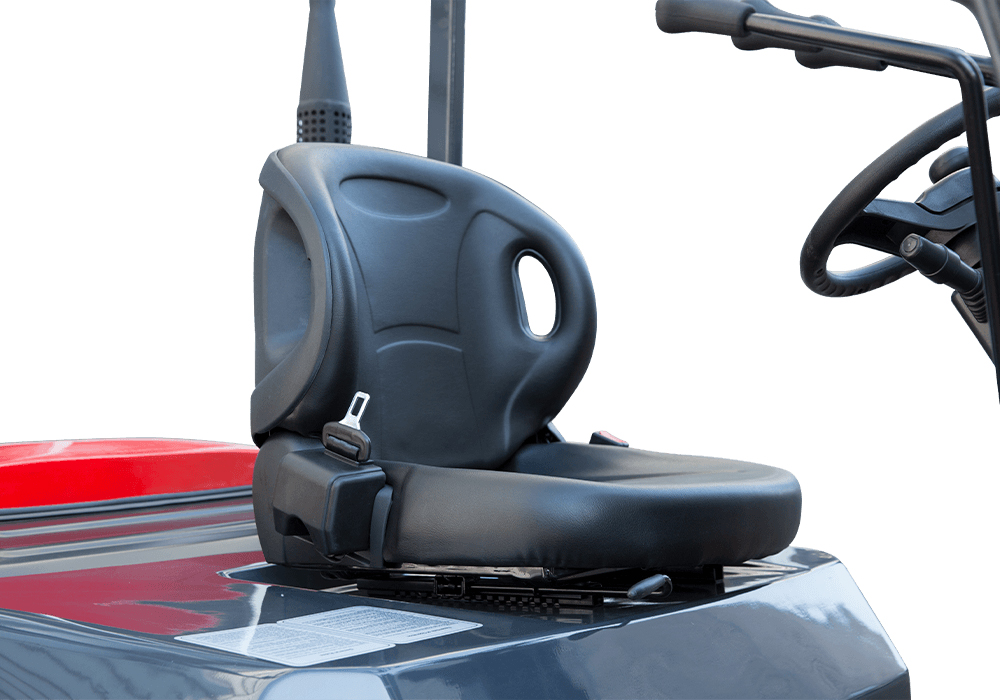

● Strong and suspension OHG protects the operator and reduce the vibration.

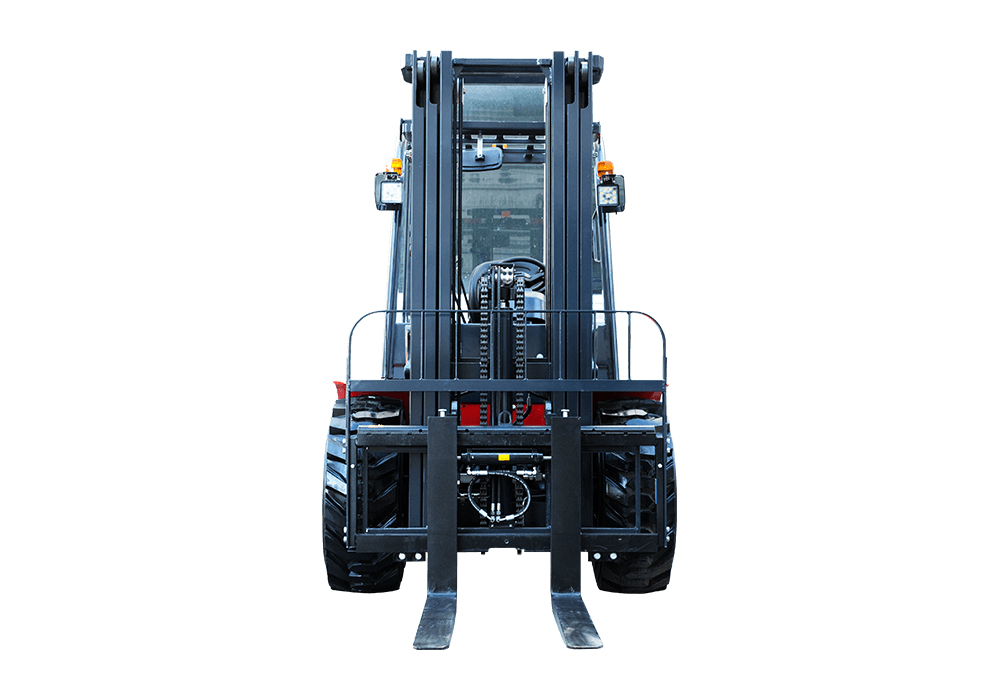

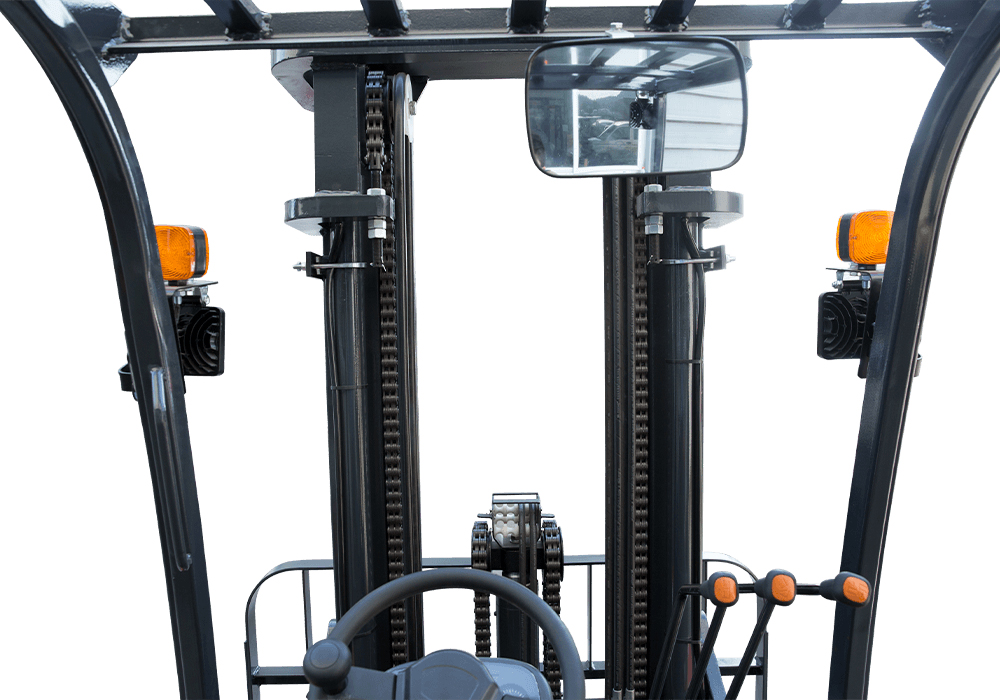

● Super wide view mast ensures a good visibility.

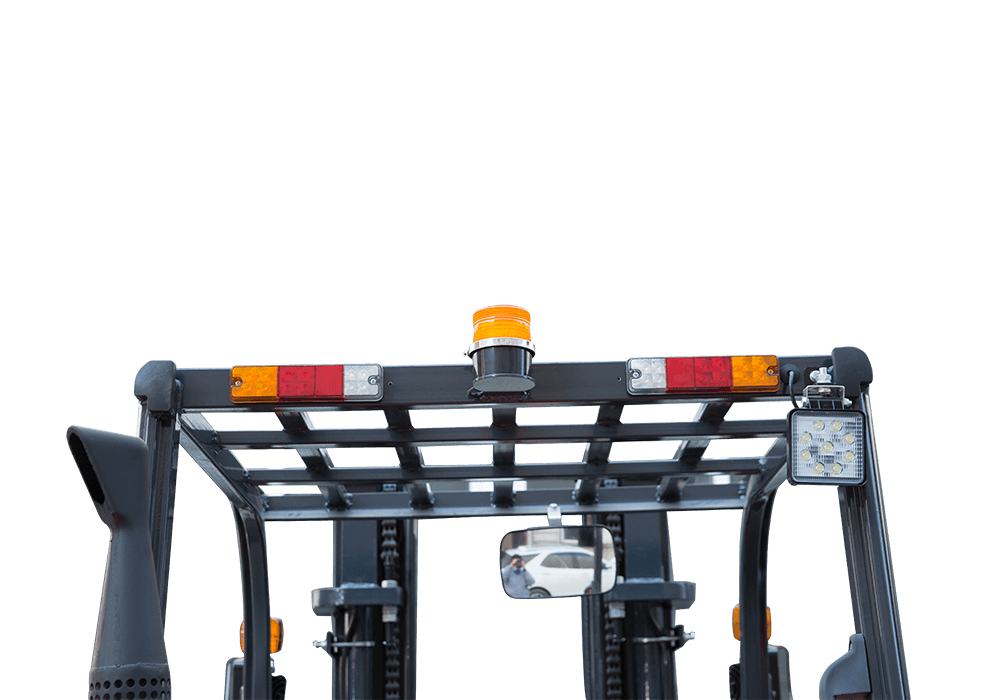

● Rear hand rail with horn, LED light for both front and rear.

● OPS system locks the traveling and hydraulic system while the operator is off seat.
Easy Maintenance

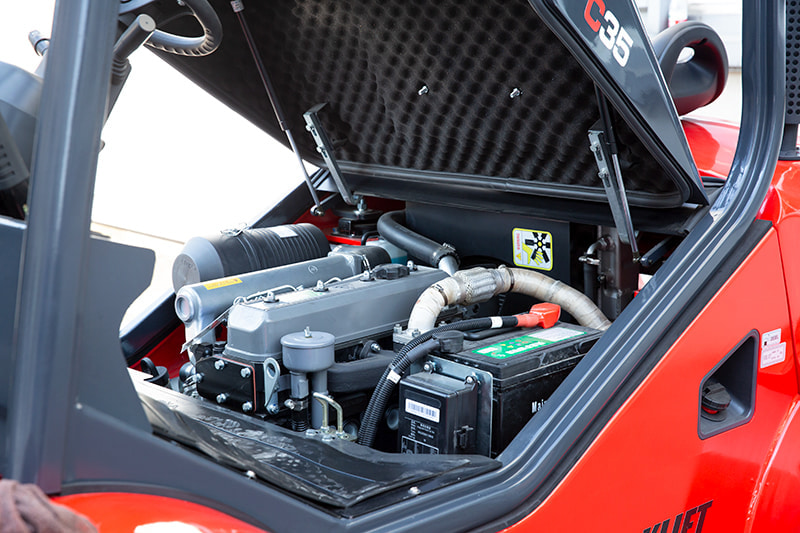

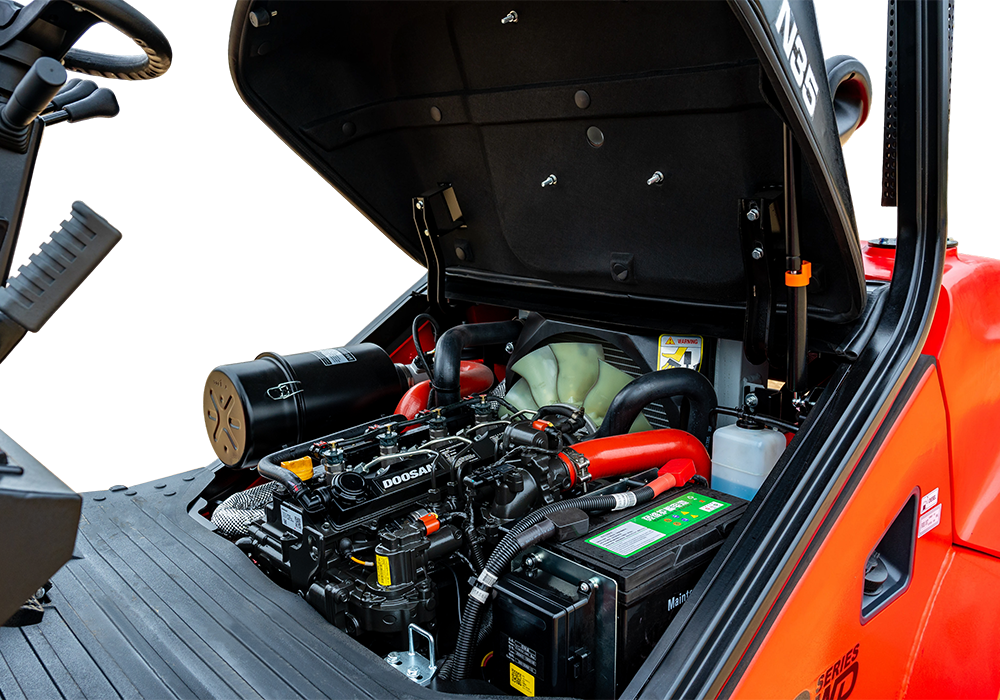

● Nearly 90 degrees engine hood makes daily maintenance much easier, all part can be reached quickly.
