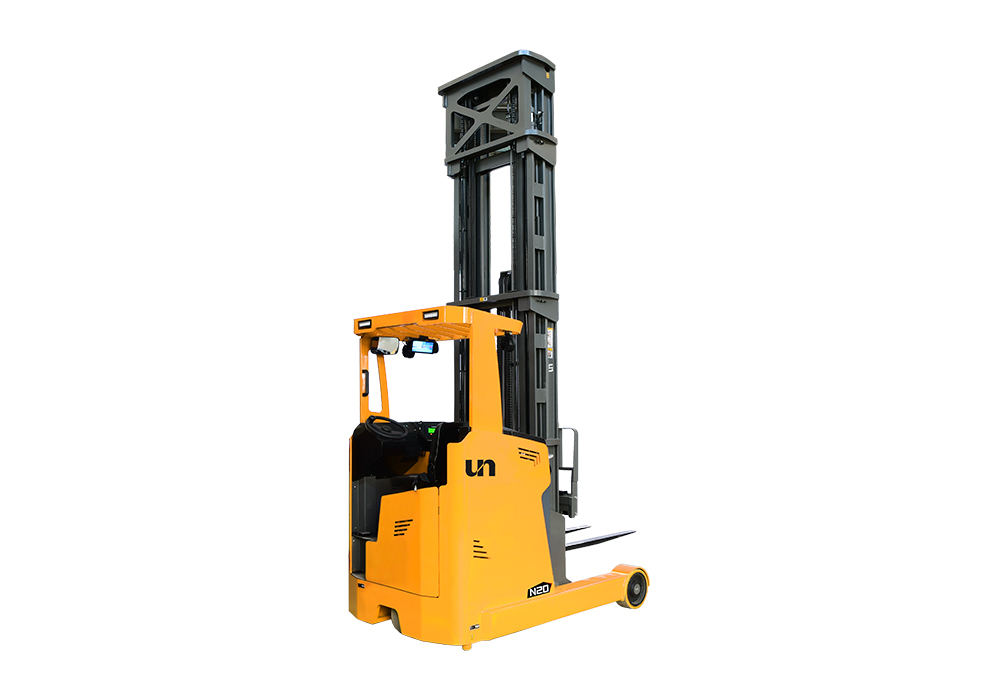

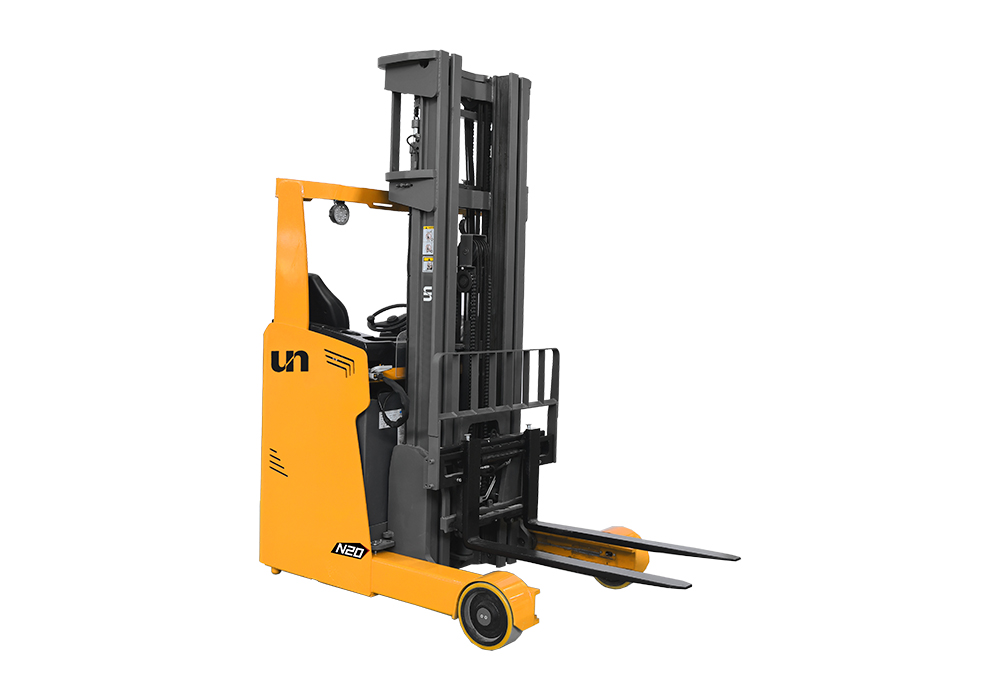

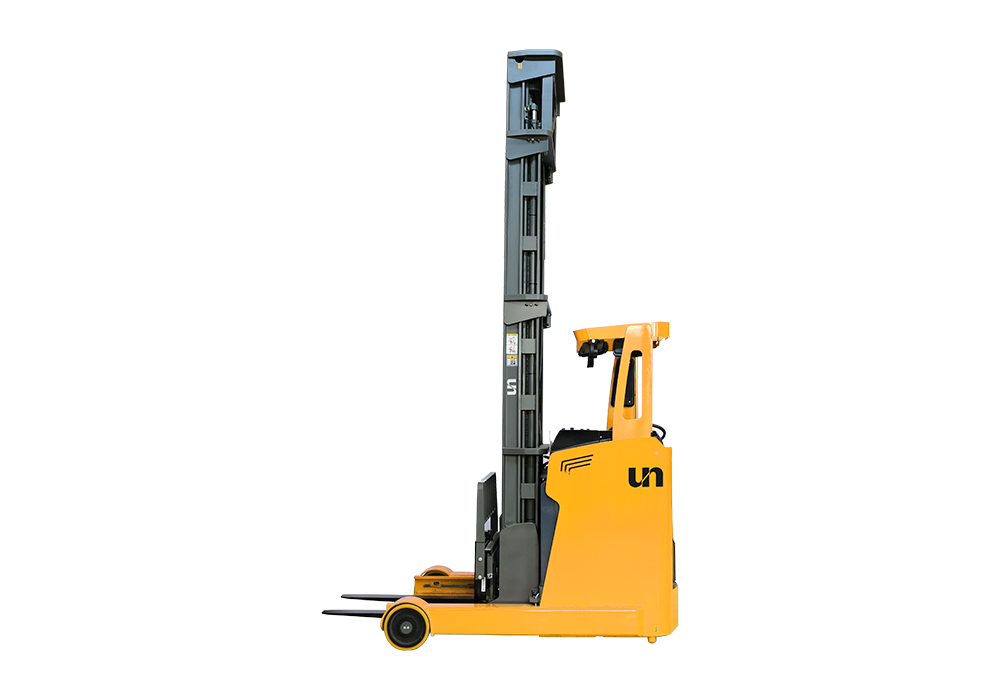

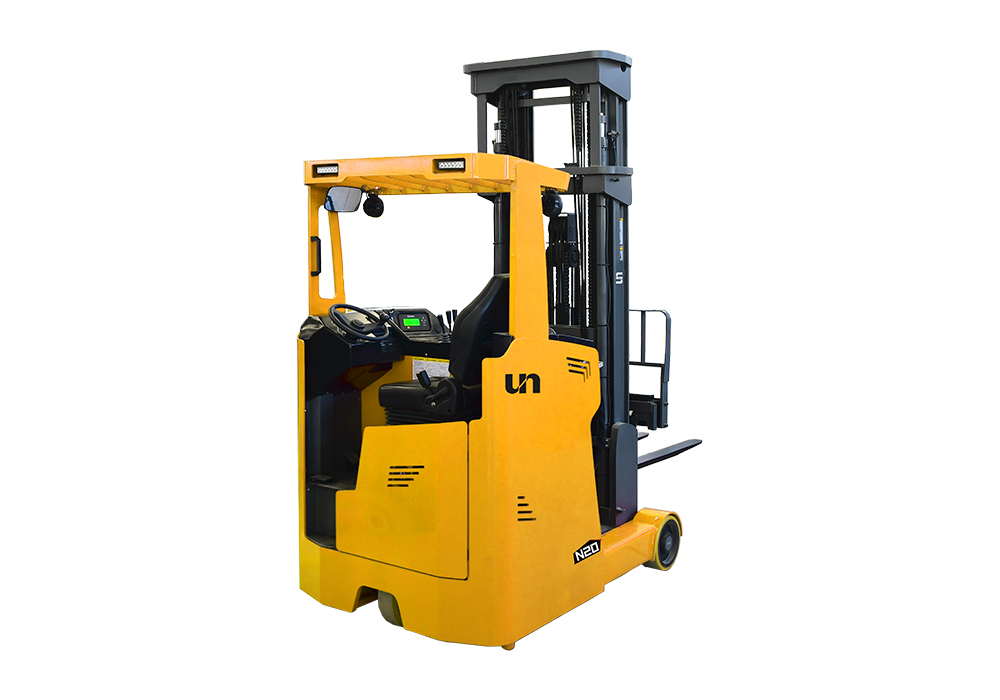

Reach Truck(Sit in)

Get brochure

Product Description

UN Forklift is among the earliest manufacturers in China to develop and produce reach trucks, double deep reach trucks, and VNA trucks. Backed by innovative technology, UN reach trucks feature advanced ergonomic design and high-performance systems, providing efficient, reliable solutions for a wide range of warehouse and intralogistics applications.

E-mail: [email protected]

Product Details

MAIN SPECIFICATIONS

Model		FBRS16NH-AC	FBRS18NH-AC	FBRS20NH-AC
Rated Load Capacity	Q (kg)	1600	1800	2000
Load Centre	C (mm)	600	600	600
Overall Length (Without Fork)	L1 (mm)	1926	2026	2026
Overall Width	B1 (mm)	1270	1270	1270
Height to Safeguard	H5 (mm)	2195	2195	2195
Min. Turning Radius	Wa (mm)	1750	1850	1850
Wheelbase	Y (mm)	1500	1600	1600
Travel Speed (Full Load)	km/h	9	9	9
Travel Speed (No Load)	km/h	9.5	9.5	9.5
Max.Gradeability (Full Load)	%	10	10	10
Total Weight (Include Battery Box)	kg	4115	4150	4185
Battery	V/Ah	48/560	48/700	48/700

Product Features

High Performance

● Regeneration Function: The battery will withdraw electricity automatically when decelerating or parking.

● Reliable AC Technology: American Curtis controller and KDS motor provide the infinite variable drive and lift control. The brush-less AC motors offer improved efficiency and reduce maintenance cost.

● CAN bus communications network: provides superior dependability.

● Shimadzu pump and valve ensures the reliability and stability of hydraulic system.

● EPS(electronic steering system): light steering, shows the driving wheel position in real-time. Automatic centering function when starts.
Safety& Ergonomics

● Turning automatic deceleration function to prevent the forklift from turning over when turning, making the operation safer.

● Automatic parking function.

● German imported steel for mast with high strength and high wear resistance.

● Wide view mast, strong OHG and comfortable seat.
Easy Maintenance

● Maintenance free AC Motor makes forklift release less heat and ensures higher efficiency.

● Simple structure and maintenance free components decrease maintenance cost.

● The removable maintenance cover helps to access to the controller and other key parts easier.
