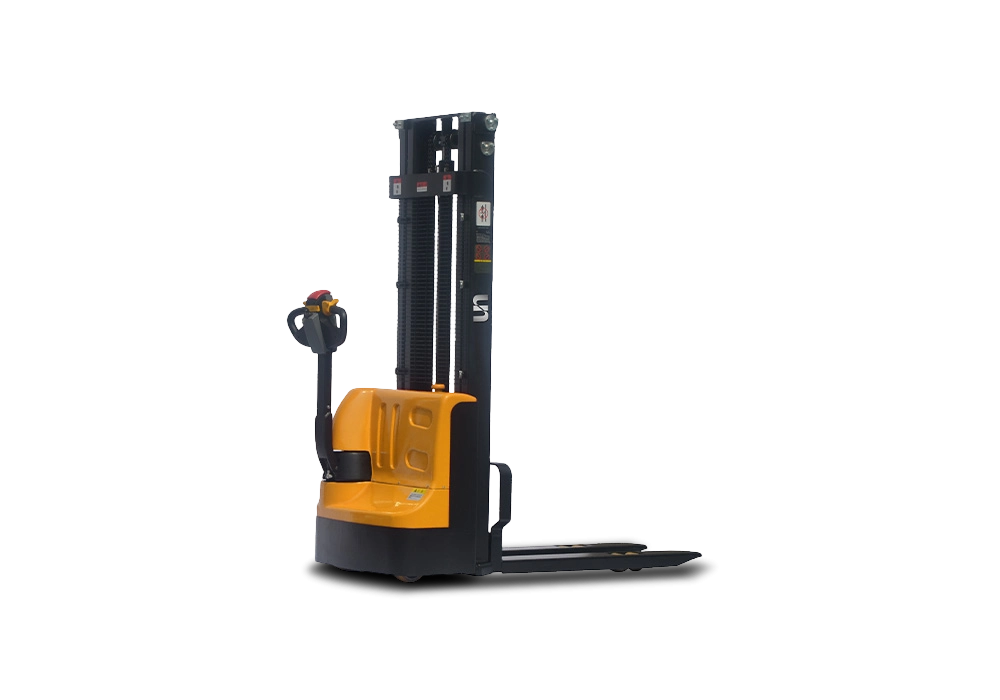

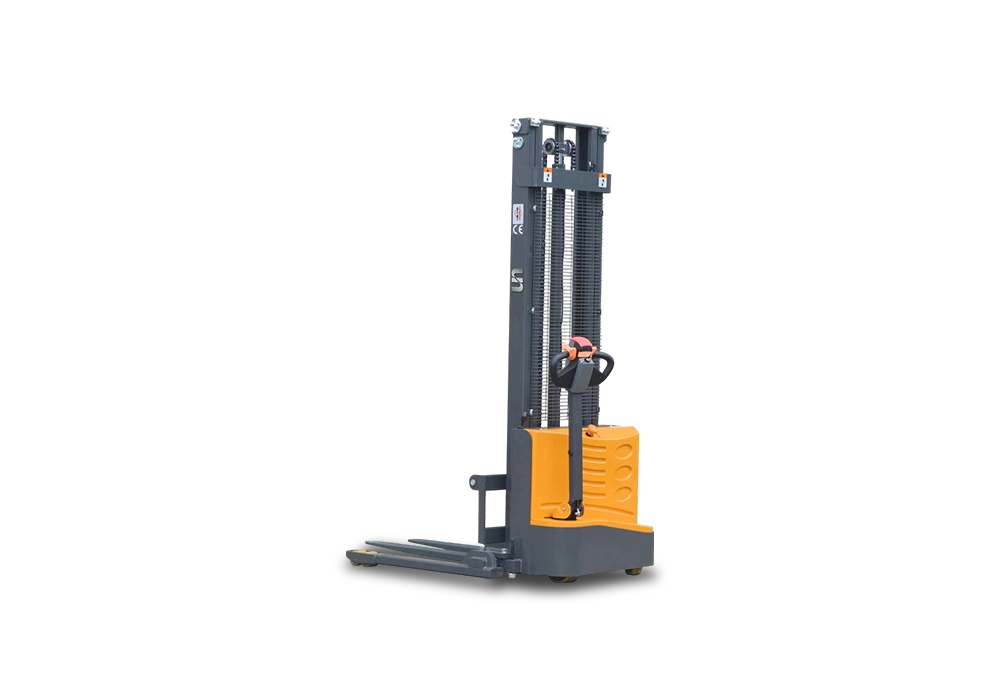

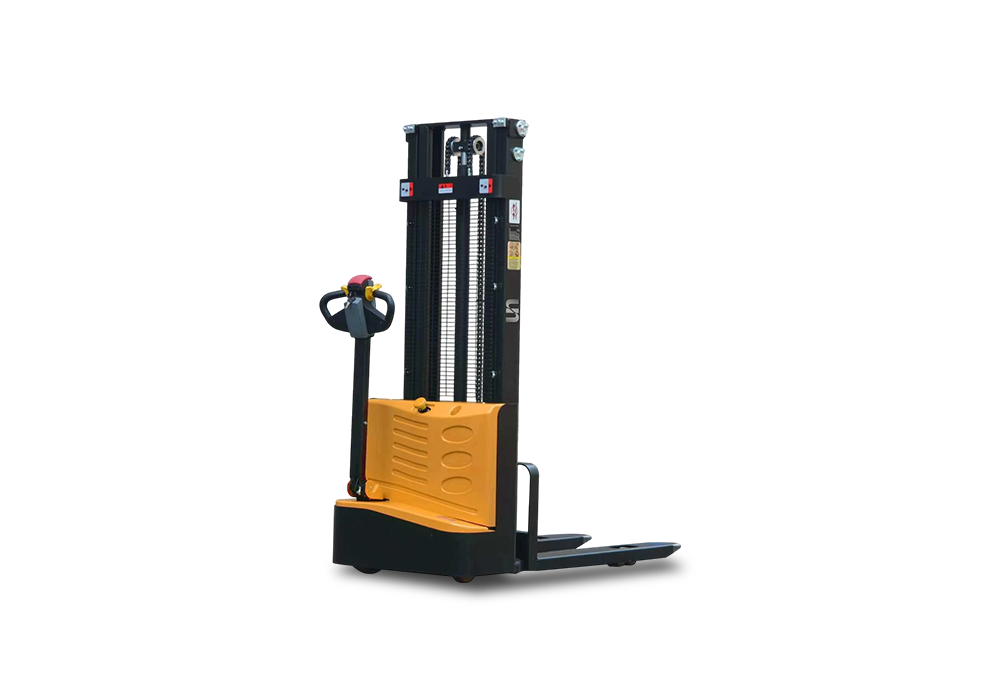

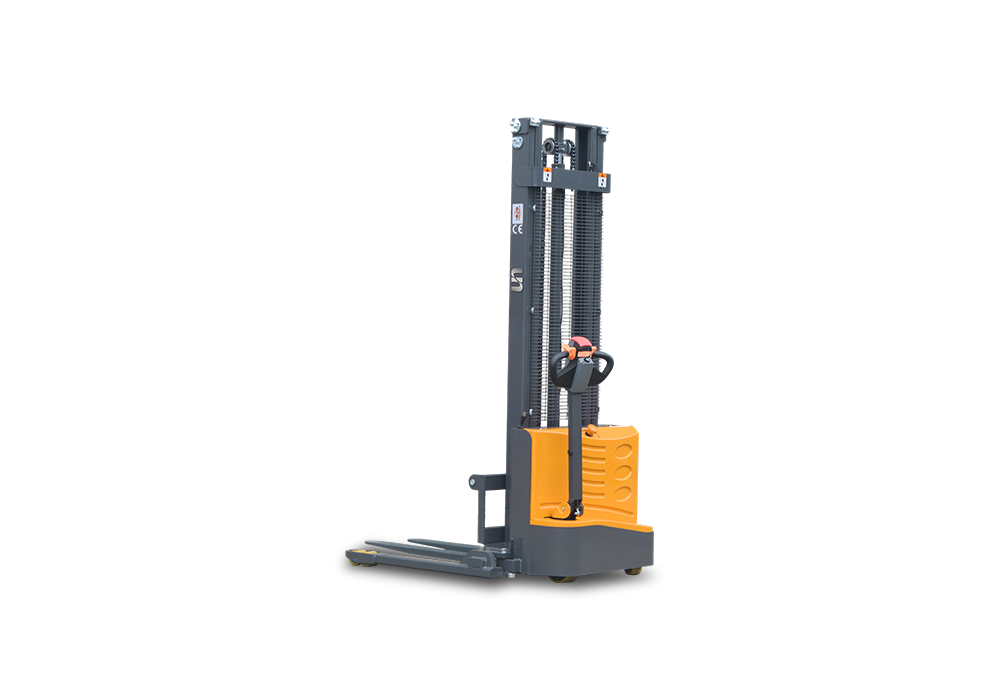

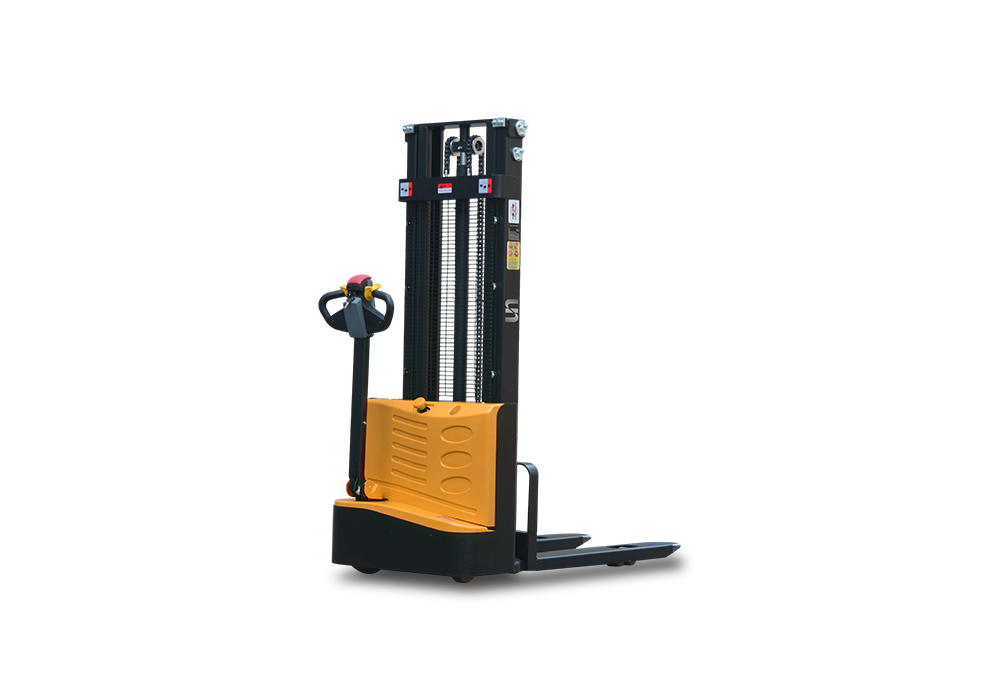

Electric pallet stacker CL10/12/15J

Get brochure

Product Description

1. Final drive configuration
Side drive distribution reduces aisle width and turning radius, improving visibility for easy maneuvering in tight spaces.

2. Ergonomic extended tiller
Designed according to ergonomic principles, the extended milling machine provides a comfortable grip and operating posture, reducing fatigue during long working hours.

3. Integrated multi-function control handle
The key switch, raise/lower buttons, turtle speed mode and electric counter are all conveniently integrated into the handle, allowing for intuitive and efficient one-handed operation.

4. External smart charger
The external charging system improves heat dissipation and prevents vibration-related damage that often occurs with built-in chargers, ensuring longer service life and improved charging stability.

5. German waterproof micro switch
Equipped with an original waterproof microswitch from Germany, the system works reliably even in harsh environments - resistant to cold, moisture, dust and dirt.

6. Permanent magnet drive system
The compact permanent magnet motor ensures high efficiency, smooth operation and longer battery life.

7. Reinforced cable protection net
High-density braided and welded wire mesh provides strength and durability, effectively protecting interior wiring from wear, impact and environmental damage.

E-mail: [email protected]

Product Details

MAIN SPECIFICATIONS

Model		CL1516JB	CL1520JB	CL1525JB	CL1530JB	CL1535JB	CL1540JB
Rated Load Capacity	Q(t)	1.5	1.5	1.5	1.5	1.5	1.5
Load Centre	c (mm)	600	600	600	600	600	600
Wheelbase	y (mm)	1225	1225	1225	1225	1225	1225
Total Weight（with battery）	kg	412	460	474	504	526	550
Height of Mast（lowered）	h1 (mm)	2014	1495	1745	1995	2245	2495
Overall length	l1 (mm)	1740	1740	1740	1740	1740	1740
Overall Width	b1/ b2 (mm)	795	795	795	795	795	795
Min Turning Radius	Wa (mm)	1405	1405	1405	1405	1405	1405
Travel Speed（Full Load / No Load）	(km/h)	4.0/4.2	4.0/4.2	4.0/4.3	4.0/4.3	4.0/4.4	4.0/4.2
Max.Gradeability（Full Load / No Load）	(%)	3/10	3/10	3/10	3/10	3/10	3/10
Battery	(V/Ah)	2×12	2×12	2×12	2×12	2×12	2×12

MAIN SPECIFICATIONS

Model		CL1516JB	CL1520JB	CL1525JB	CL1530JB	CL1535JB	CL1540JB
Rated Load Capacity	Q(t)	1.5	1.5	1.5	1.5	1.5	1.5
Load Centre	c (mm)	600	600	600	600	600	600
Wheelbase	y (mm)	1225	1225	1225	1225	1225	1225
Total Weight（with battery）	kg	412	460	474	504	526	550
Height of Mast（lowered）	h1 (mm)	2014	1495	1745	1995	2245	2495
Overall length	l1 (mm)	1740	1740	1740	1740	1740	1740
Overall Width	b1/ b2 (mm)	795	795	795	795	795	795
Min Turning Radius	Wa (mm)	1405	1405	1405	1405	1405	1405
Travel Speed（Full Load / No Load）	(km/h)	4.0/4.2	4.0/4.2	4.0/4.3	4.0/4.3	4.0/4.4	4.0/4.2
Max.Gradeability（Full Load / No Load）	(%)	3/10	3/10	3/10	3/10	3/10	3/10
Battery	(V/Ah)	2×12	2×12	2×12	2×12	2×12	2×12

Product Features

Long tiller design for ergonomics and safety

● With the long tiller design, the operator can always keep a safe distance to the truck during proceeding the work very ergonomically.

● The tiller operating height is naturally positioned to ergonomic, operator-friendly controlling positions.

● The 4 wheel design with the sideways long mounted tiller gives an exact and perfect view to the forks.
Electric proportional lifting and lowering

● The electronically controlled proportional lift system ensures accurate positioning and stacking at every lifting height.

CANBUS technology

● The CANBUS technology means less wiring with more reliability. It can be analyzed and adjusted easily so that the downtime is less than trucks without CANBUS.
Robust and Reliable Design

● The robust chassis with strong 8mm thick apron protects the truck and the components against mechanical impacts from the environment.

● The truck is well equipped to reduce maintenance work and damages to a minimum.

● IP 54 protected controller, safe against dust and water splashes.
German AC drive technology

● The powerful maintenance free German Schabmueller AC Drive motor with German Kordel gearbox, Intorqe brake and Wicke drive wheel all together gives the best performance, efficiency and reliability, this top brand combination reduces the overall operating cost.
Maintenance friendly

● All components are easy to reach after removing the main cover with only two screws. The drive wheel and the castor wheel are easy to exchange without craning the truck.

For every application the right battery capacity

Every truck comes with the right battery:

● PS 12L with 180 Ah 2VBS battery for light duty models, good maneuverability for restricted areas.

● PS 16L with 270 Ah 3VBS battery.

● PS 20L with 350 AH DIN 3PS battery for long operations and multi- shifts.
● Optional sideway battery exchange compartment for PT20L with 210 Ah battery.
