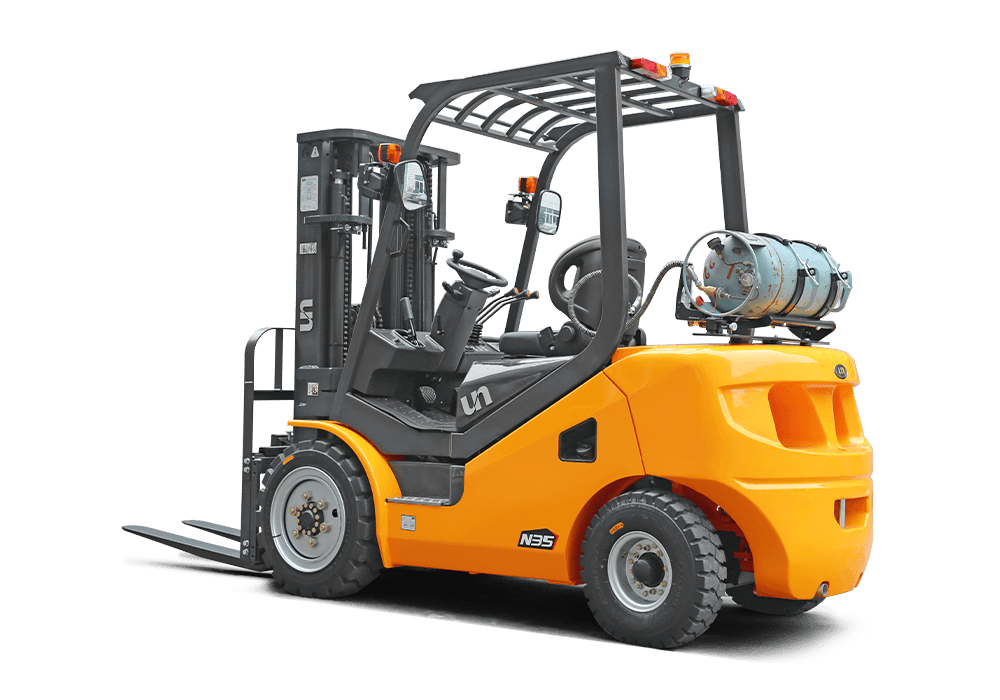

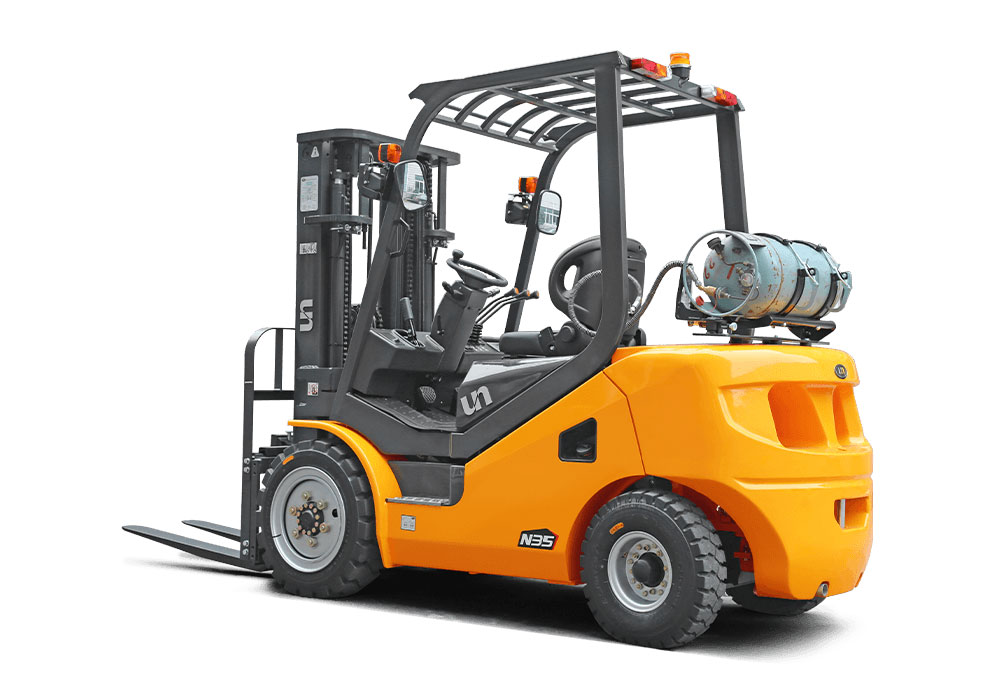

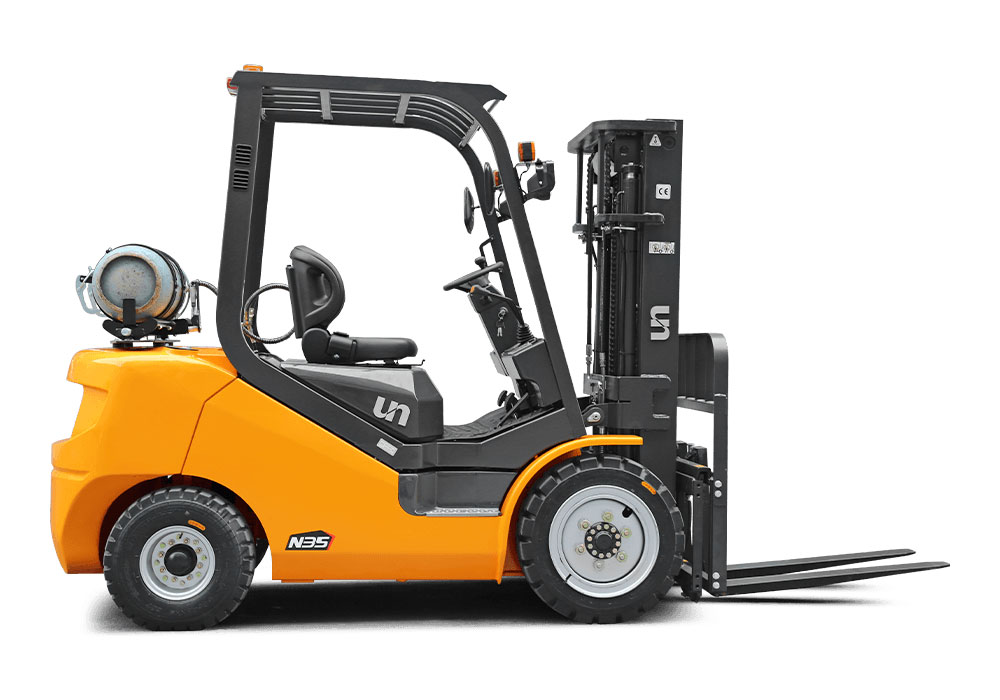

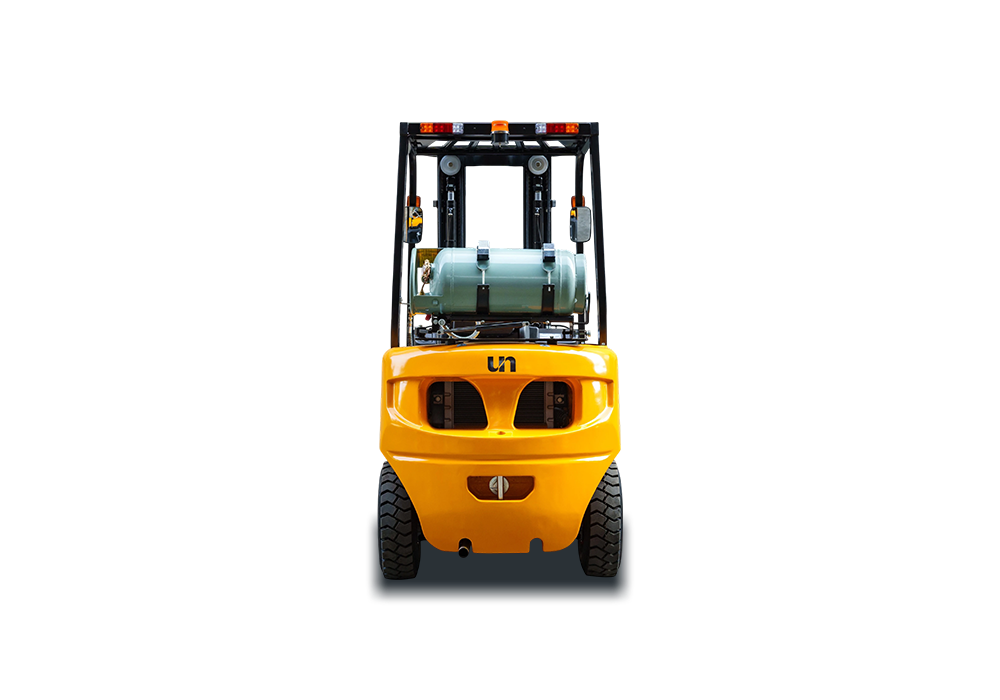

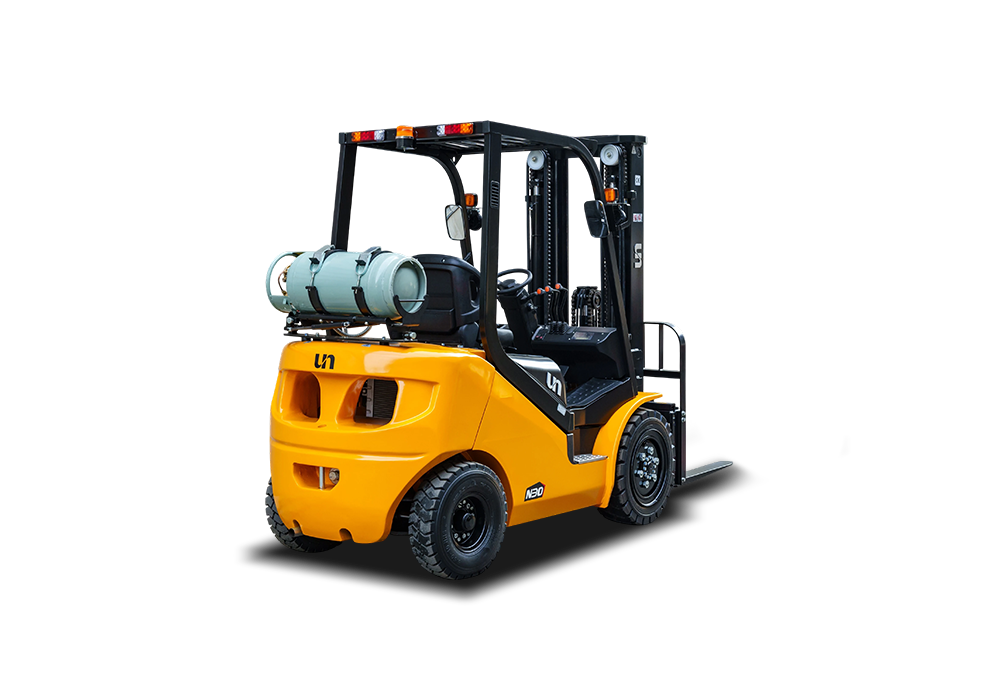

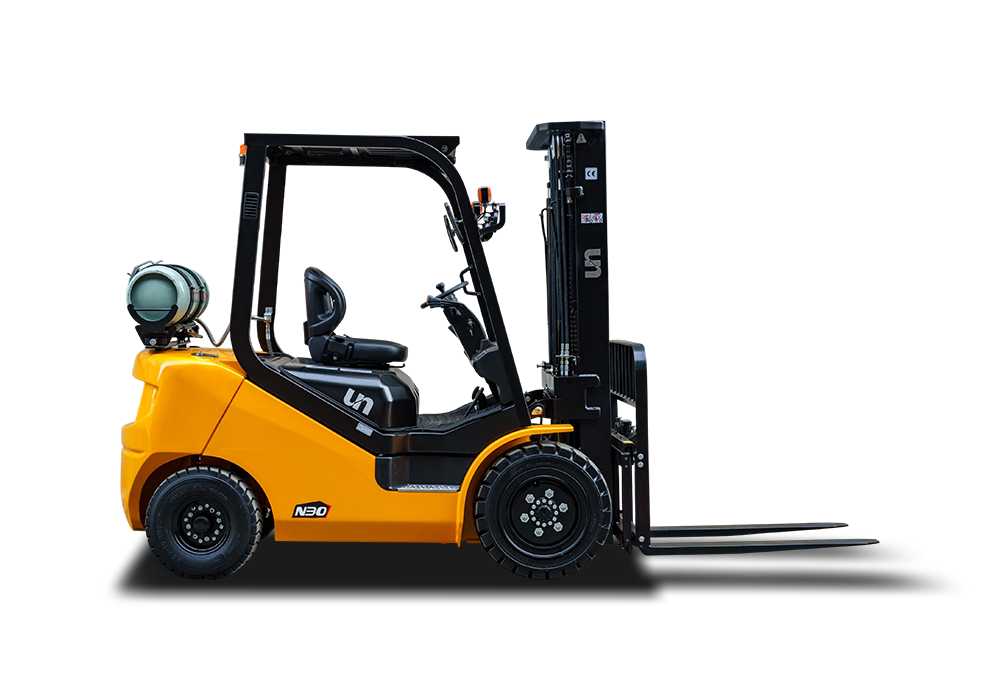

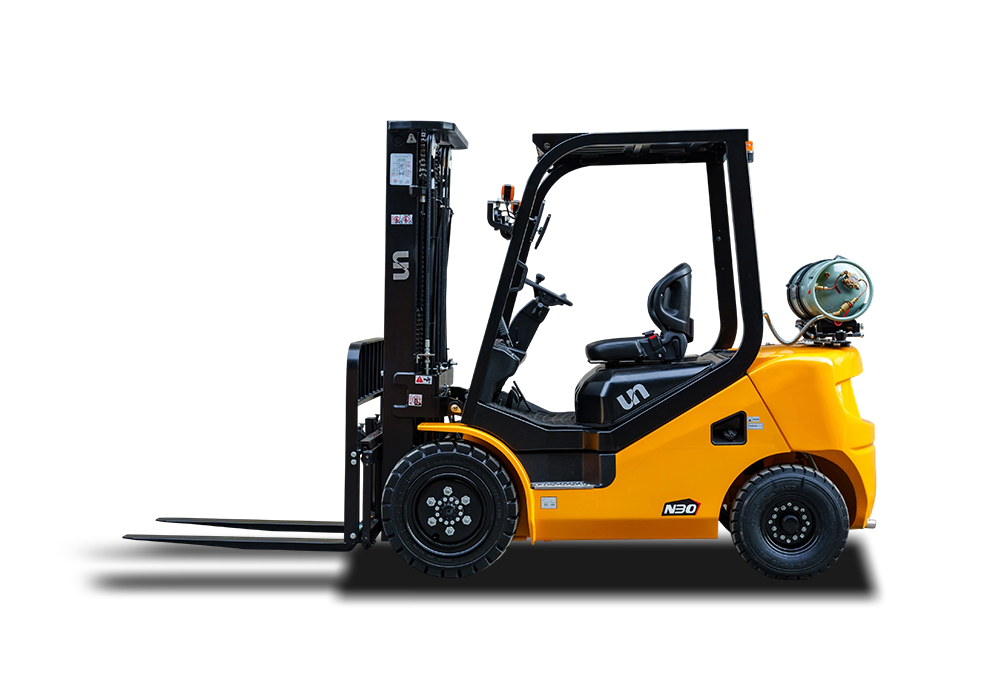

N Series 3.0T-3.5T LPG&Gasoline Forklift

Get brochure

Product Description

N Series 3.0–3.5T LPG & Gasoline Forklift is equipped with a high-powered engine, making it ideal for frequent handling operations and medium-duty loading scenarios.

Featuring a stable power and cleaner emissions, it is suitable for both indoor and outdoor use. The compact design and precise steering system ensure maneuverability, making it an ideal choice of both environmental protection and efficiency.

It is particularly popular in the Americas and Eastern European markets.

E-mail: [email protected]

Product Details

MAIN SPECIFICATIONS

Model		FG30T	FG35T	FL30T	FL35T	FGL30T	FGL35T
Rated Load Capacity	Q(kg)	3000	3500	3000	3500	3000	3500
Load Centre	C(mm)	500	500	500	500	500	500
Length to Face of Fork (Without Fork)	L1(mm)	2695	2780	2695	2780	2695	2780
Overall Width	B1(mm)	1225	1225	1225	1225	1225	1225
Overhead Guard Height	H5(mm)	2235	2235	2235	2235	2235	2235
Turning Radius (Outside)	Wa(mm)	2425	2500	2425	2500	2425	2500
Travel Speed (No Load)	km/h	19	19	19	19	19	19
Max.Gradeability (Full Load)	%	20	18	20	18	20	18
Wheelbase	Y(mm)	1700	1700	1700	1700	1700	1700
Total Weight	kg	4460	4775	4460	4775	4460	4775
Engine Model		GK25	GK25	GK25	GK25	GK25	GK25

General	1	Manufacturer		UN
	2	Model		FG30T	FG35T	FL30T	FL35T	FGL30T	FGL35T
	3	Power Type		Gasoline/LPG
	4	Rated Load Capacity	Q(kg)	3000	3500	3000	3500	3000	3500
	5	Load Centre	C(mm)	500	500	500	500	500	500
Characteristic & Dimension	6	Rated Lift Height	H3(mm)	3000	3000	3000	3000	3000	3000
	7	Free Lift Height	H2(mm)	145	150	145	150	145	150
	8	Fork Size (L×W×T)	mm	1070×125×45	1070×125×50	1070×125×45	1070×125×50	1070×125×45	1070×125×50
	9	Mast Tilt Angle (F/R, α°/β°)	deg	6°/12°	6°/12°	6°/12°	6°/12°	6°/12°	6°/12°
	10	Fork Overhang (Wheel Center to Fork Face)	X1(mm)	475	480	475	480	475	480
	11	Rear Overhang	X2(mm)	520	600	520	600	520	600
	12	Ground Clearance (Bottom of Mast)	H7(mm)	125	125	125	125	125	125
	13	Length to Face of Fork (Without Fork)	L1(mm)	2695	2780	2695	2780	2695	2780
	14	Overall Width	B1(mm)	1225	1225	1225	1225	1225	1225
	15	Mast Lowered Height	H1(mm)	2070	2070	2070	2070	2070	2070
	16	Mast Extended Height (With Backrest)	H4(mm)	4070	4070	4070	4070	4070	4070
	17	Overhead Guard Height	H5(mm)	2235	2235	2235	2235	2235	2235
	18	Turning Radius (Outside)	Wa(mm)	2425	2500	2425	2500	2425	2500
	19	Min. Right Angle Stacking Aisle Width	Ast(mm)	4180	4255	4180	4255	4180	4255
Performance	20	Travel Speed (No Load)	km/h	19	19	19	19	19	19
	21	Lifting Speed (Full Load)	mm/sec	390	390	390	390	390	390
	22	Lowering Speed (Full Load/No Load)	mm/sec	No Load≥300 Full Load≤600
	23	Max.Drawbar Pull (Full Load/No Load)	KN	22/18	22/18	22/18	22/18	22/18	22/18
	24	Max.Gradeability (Full Load)	%	20	18	20	18	20	18
Chassis	25	Tyre (Front x 2)	mm	28×9-15-12PR
	26	Tyre (Rear x 2)	mm	6.50-10-10PR
	27	Front Tread	B2(mm)	1000	1000	1000	1000	1000	1000
	28	Rear Tread	B3(mm)	980	980	980	980	980	980
	29	Wheelbase	Y(mm)	1700	1700	1700	1700	1700	1700
Weight	30	Total Weight	kg	4460	4775	4460	4775	4460	4775
	31	Front Axle Weight Distribution (Full Load)	kg	6714	6997	6714	6997	6714	6997
	32	Rear Axle Weight Distribution (Full Load)	kg	746	777	746	777	746	777
	33	Front Axle Weight Distribution (No Load)	kg	1784	1910	1784	1910	1784	1910
	34	Rear Axle Weight Distribution (No Load)	kg	2676	2865	2676	2865	2676	2865
Power & Transmission	35	Battery	V/Ah	12/60	12/60	12/60	12/60	12/60	12/60
	36	Engine Model		GK25
	37	Engine Manufacturer		GCT
	38	Rated Output / r.p.m.	kw	37.4/2500	37.4/2500	37.4/2500	37.4/2500	37.4/2500	37.4/2500
	39	Rated Torque / r.p.m.	N·m	176.5/1600	176.5/1600	176.5/1600	176.5/1600	176.5/1600	176.5/1600
	40	No.of Cylinder		4	4	4	4	4	4
	41	Bore x Stroke	mm	92×93	92×93	92×93	92×93	92×93	92×93
	42	Displacement	cc	2472	2472	2472	2472	2472	2472
	43	Fuel Tank Capacity	L	50	50	50	50	50	50
	44	Transmission Type		HYDRAULIC
	45	Transmission Stage (FWD/RVS)		1/1	1/1	1/1	1/1	1/1	1/1
	46	Operating Pressure (For Attachments)	Mpa	18.5	20.5	18.5	20.5	18.5	20.5

Product Features

Reliability & Performance

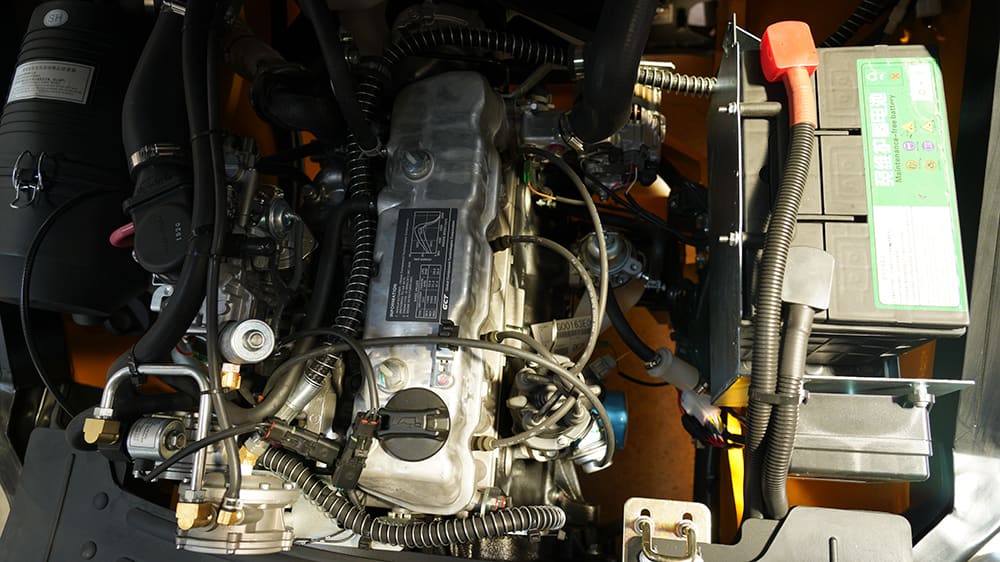

● Combining a scientifically designed chassis with a dependable powertrain, this forklift excels in both performance and operation. It is equipped with the GK25 engine and a Japanese-level transmission, integrated with the IMPOCO shifting system.

● The hydraulic system features high-quality pumps and valves, ensuring efficient, stable, and smooth operation.

● Large-capacity radiators combined with advanced cooling solutions keep operations stable, even in extreme heat.
Safety & Ergonomics

● Integrated OPS and seat switch ensure operational safety.

● Wide-visibility mast maintains clear operator sightlines.

● High-strength overhead guard provides reliable protection.

● Suspended chassis design maximizes legroom, paired with adjustable steering and ergonomic seating.

● Optional suspended powertrain system enhances versatility.
Easy Maintenanc

● The engine hood swings close to 90°, giving operators easy access for routine maintenance and part replacement.

● The transmission oil filter is easily replaceable, saving time and effort.
