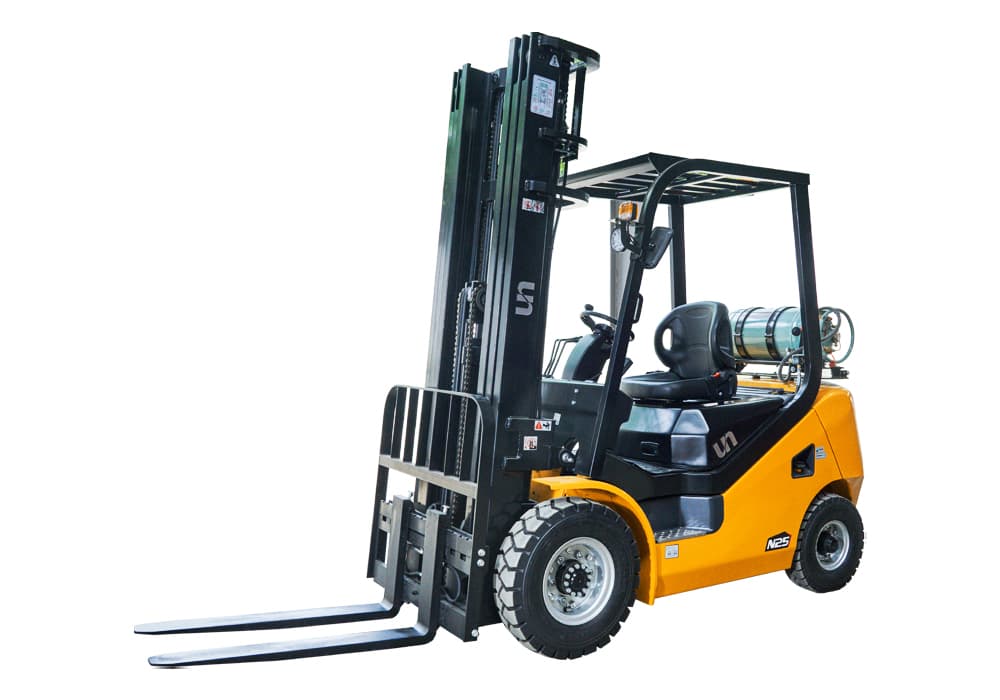

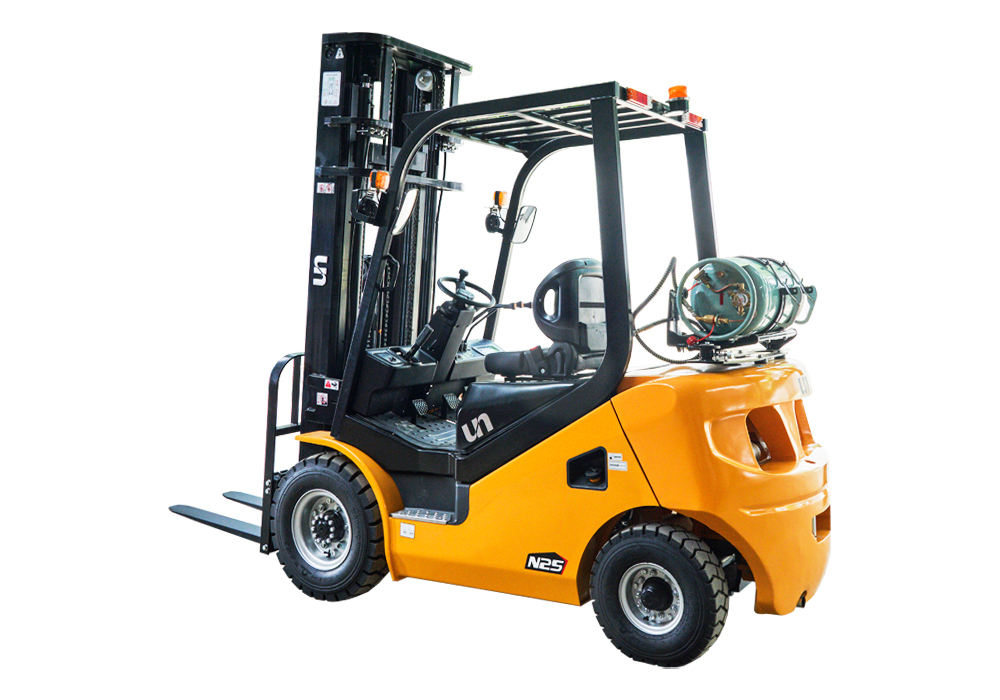

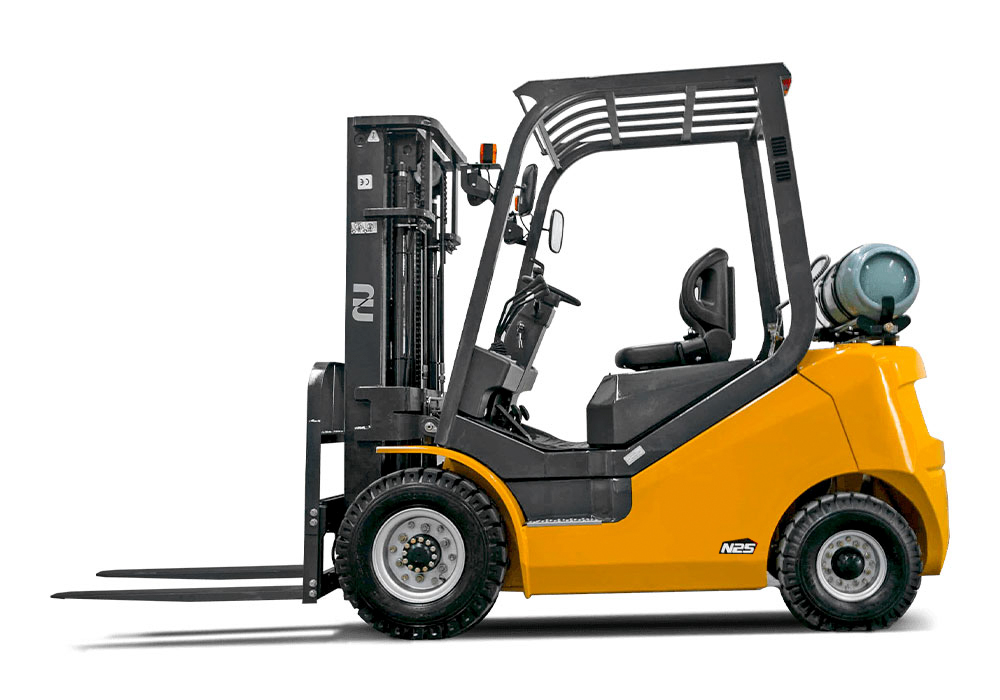

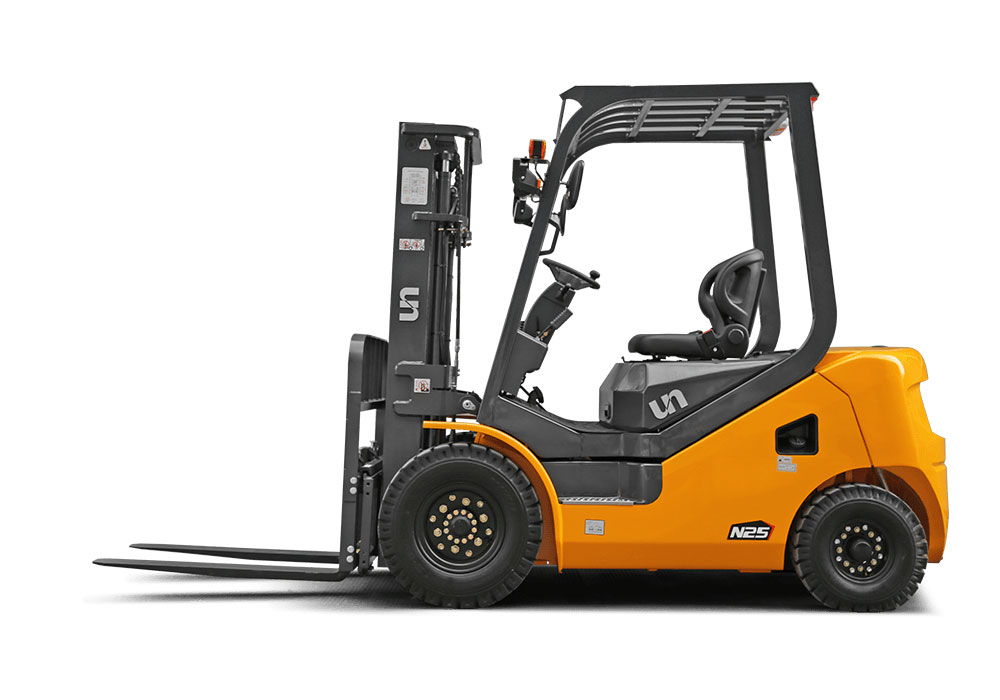

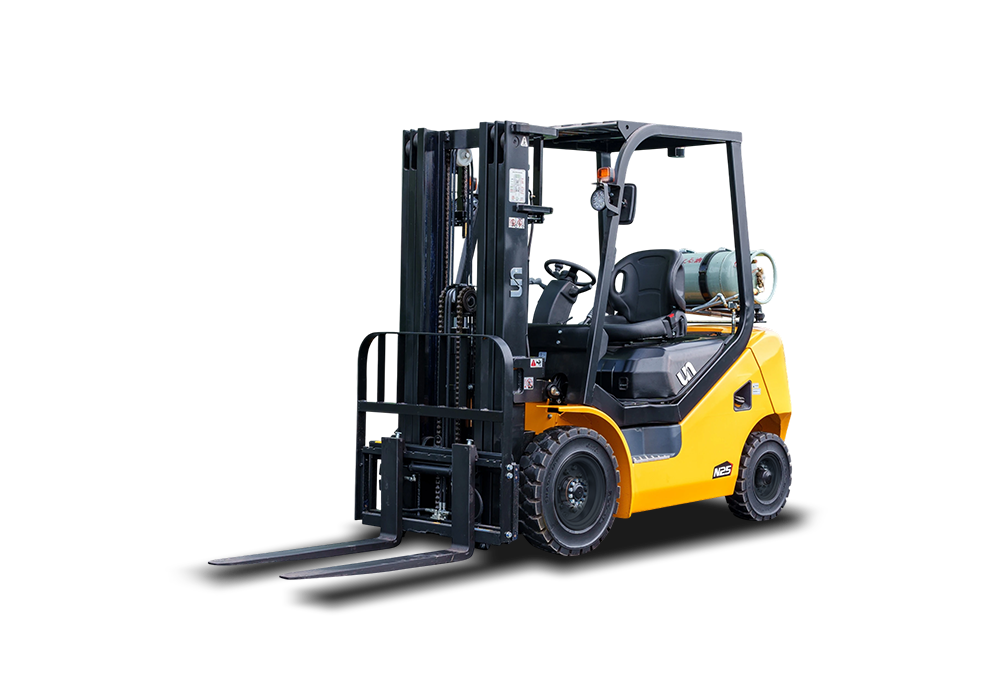

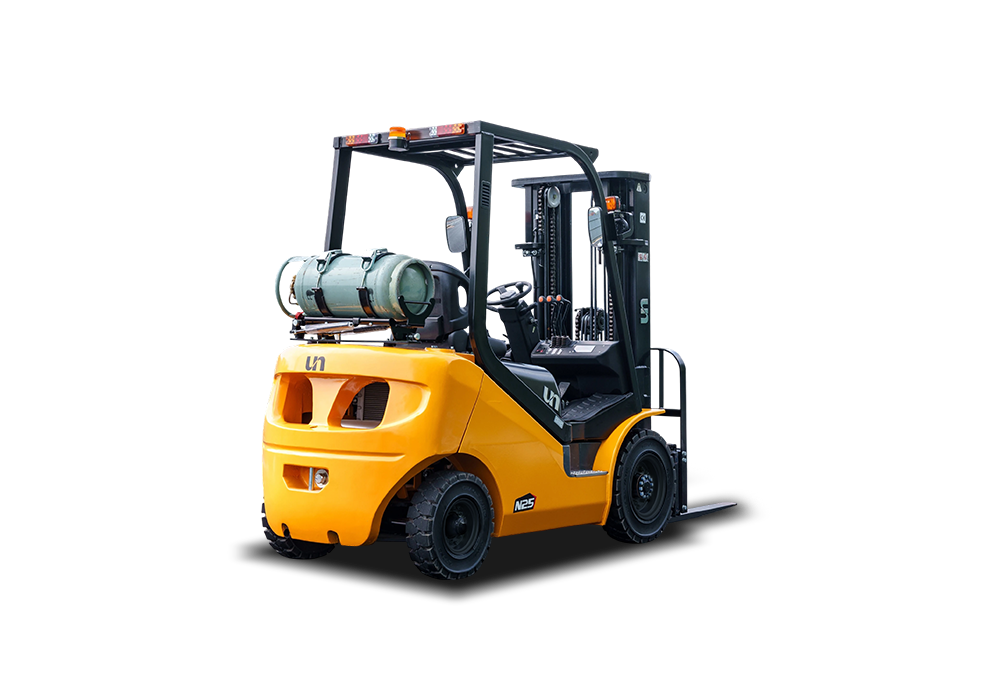

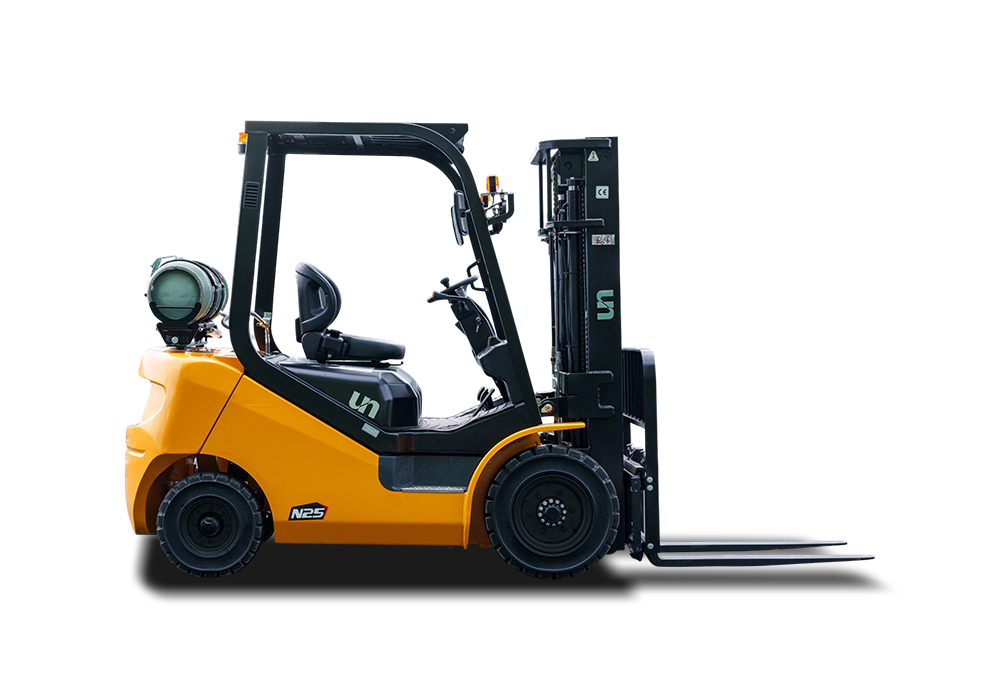

N Series 2.0T-2.5T LPG&Gasoline Forklift

Get brochure

Product Description

N Series 2.0T–2.5T LPG & Gasoline forklift is ideal for small to medium enterprises with versatile handling needs. They deliver smooth power with advanced fuel control and electronic throttle for improved responsiveness and fuel efficiency.

Featuring a user-friendly interface and long maintenance intervals, they balance performance with environmental considerations.

E-mail: [email protected]

Product Details

MAIN SPECIFICATIONS

Model		FG20T	FG25T	FL20T	FL25T	FGL20T	FGL25T
Rated Load Capacity	Q(kg)	2000	2500	2000	2500	2000	2500
Load Centre	C(mm)	500	500	500	500	500	500
Length to Face of Fork (Without Fork)	L1(mm)	2630	2630	2630	2630	2630	2630
Overall Width	B1(mm)	1170	1170	1170	1170	1170	1170
Overhead Guard Height	H5(mm)	2215	2215	2215	2215	2215	2215
Turning Radius (Outside)	Wa(mm)	2365	2365	2365	2365	2365	2365
Travel Speed (No Load)	km/h	21	21	21	21	21	21
Max.Gradeability (Full Load)	%	20	20	20	20	20	20
Wheelbase	Y(mm)	1650	1650	1650	1650	1650	1650
Total Weight	kg	3620	3860	3620	3860	3620	3860
Engine Model		GK25	GK25	GK25	GK25	GK25	GK25

General	1	Manufacturer		UN
	2	Model		FG20T	FG25T	FL20T	FL25T	FGL20T	FGL25T
	3	Power Type		Gasoline/LPG
	4	Rated Load Capacity	Q(kg)	2000	2500	2000	2500	2000	2500
	5	Load Centre	C(mm)	500	500	500	500	500	500

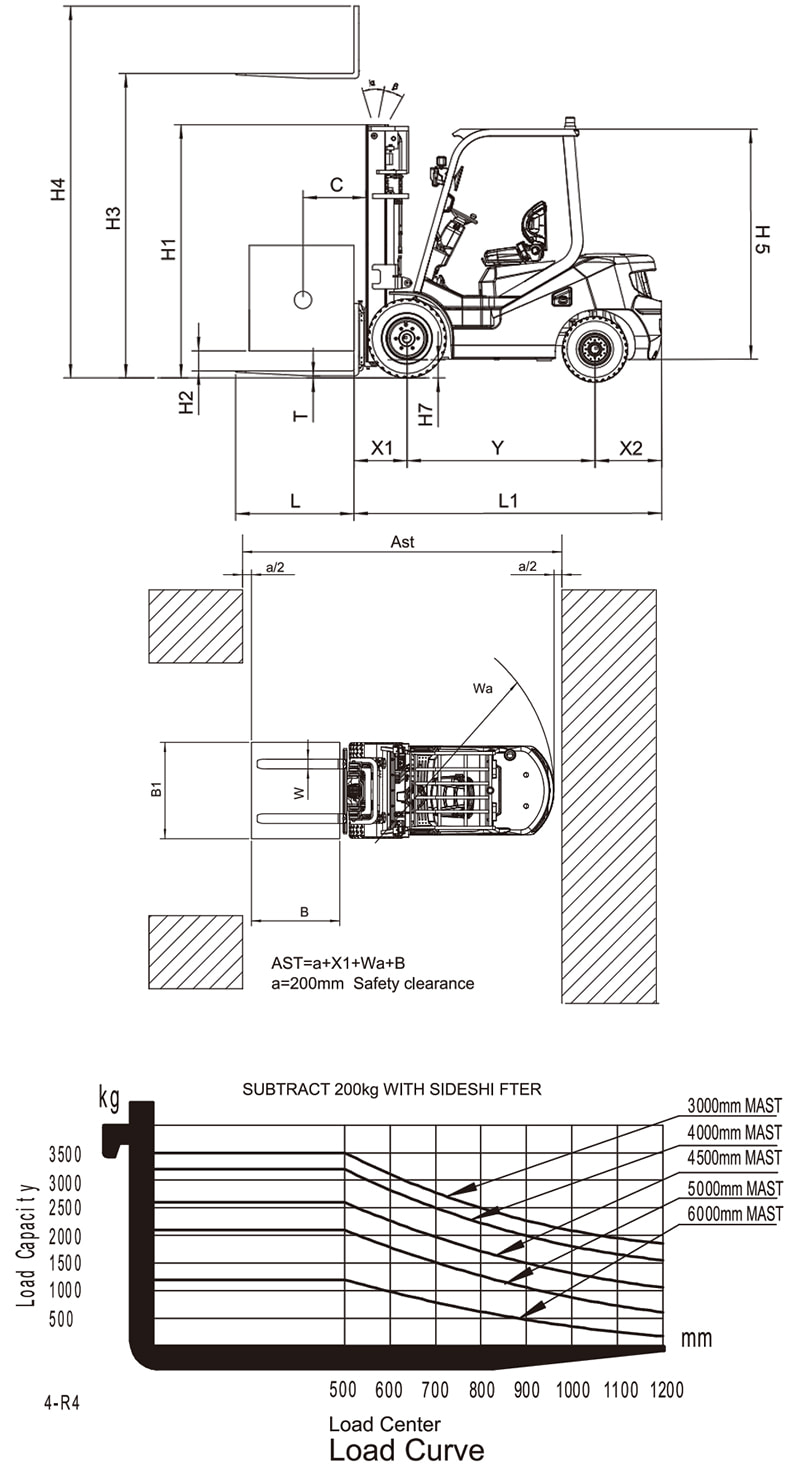

Characteristic & Dimension	6	Rated Lift Height	H3(mm)	3000	3000	3000	3000	3000	3000
	7	Free Lift Height	H2(mm)	140	140	140	140	140	140
	8	Fork Size (L×W×T)	mm	1070×125×40	1070×125×40	1070×125×40	1070×125×40	1070×125×40	1070×125×40
	9	Mast Tilt Angle (F/R, α°/β°)	deg	6°/12°	6°/12°	6°/12°	6°/12°	6°/12°	6°/12°
	10	Fork Overhang (Wheel Center to Fork Face)	X1(mm)	460	460	460	460	460	460
	11	Rear Overhang	X2(mm)	520	520	520	520	520	520
	12	Ground Clearance (Bottom of Mast)	H7(mm)	110	110	110	110	110	110
	13	Length to Face of Fork (Without Fork)	L1(mm)	2630	2630	2630	2630	2630	2630
	14	Overall Width	B1(mm)	1170	1170	1170	1170	1170	1170
	15	Mast Lowered Height	H1(mm)	2055	2055	2055	2055	2055	2055
	16	Mast Extended Height (With Backrest)	H4(mm)	4070	4070	4070	4070	4070	4070
	17	Overhead Guard Height	H5(mm)	2215	2215	2215	2215	2215	2215
	18	Turning Radius (Outside)	Wa(mm)	2365	2365	2365	2365	2365	2365
	19	Min.Aisle width for pallets	Ast(mm)	4120	4120	4120	4120	4120	4120
Performance	20	Travel Speed (No Load)	km/h	21	21	21	21	21	21
	21	Lifting Speed (Full Load)	mm/sec	490	490	490	490	490	490
	22	Lowering Speed (Full Load/No Load)	mm/sec	No Load≥300 Full Load≤600
	23	Max.Drawbar Pull (Full Load/No Load)	KN	17/14.5	17/14.5	17/14.5	17/14.5	17/14.5	17/14.5
	24	Max.Gradeability (Full Load)	%	20	20	20	20	20	20
Chassis	25	Tyre (Front x 2)	mm	7.00-12-12PR
	26	Tyre (Rear x 2)	mm	6.00-9-10PR
	27	Front Tread	B2(mm)	970	970	970	970	970	970
	28	Rear Tread	B3(mm)	980	980	980	980	980	980
	29	Wheelbase	Y(mm)	1650	1650	1650	1650	1650	1650
Weight	30	Total Weight	kg	3620	3860	3620	3860	3620	3860
	31	Front Axle Weight Distribution (Full Load)	kg	5058	5724	5058	5724	5058	5724
	32	Rear Axle Weight Distribution (Full Load)	kg	562	636	562	636	562	636
	33	Front Axle Weight Distribution (No Load)	kg	1450	1545	1450	1545	1450	1545
	34	Rear Axle Weight Distribution (No Load)	kg	2170	2315	2170	2315	2170	2315
Power & Transmission	35	Battery	V/Ah	12/60	12/60	12/60	12/60	12/60	12/60
	36	Engine Model		GK25
	37	Engine Manufacturer		GCT
	38	Rated Output / r.p.m.	kw	37.4/2500	37.4/2500	37.4/2500	37.4/2500	37.4/2500	37.4/2500
	39	Rated Torque / r.p.m.	N·m	176.5/1600	176.5/1600	176.5/1600	176.5/1600	176.5/1600	176.5/1600
	40	No.of Cylinder		4	4	4	4	4	4
	41	Bore x Stroke	mm	89×100	89×100	89×100	89×100	89×100	89×100
	42	Displacement	cc	2488	2488	2488	2488	2488	2488
	43	Fuel Tank Capacity	L	50	50	50	50	50	50
	44	Transmission Type		HYDRAULIC
	45	Transmission Stage (FWD/RVS)		1/1	1/1	1/1	1/1	1/1	1/1
	46	Operating Pressure (For Attachments)	Mpa	18.5	18.5	18.5	18.5	18.5	18.5

Product Features

Reliability & Performance

● Combining a scientifically designed chassis with a dependable powertrain, this forklift excels in both performance and operation. It is equipped with the GK25 engine and a Japanese-level transmission, integrated with the IMPOCO shifting system.

● The hydraulic system features high-quality pumps and valves, ensuring efficient, stable, and smooth operation.

● Large-capacity radiators combined with advanced cooling solutions keep operations stable, even in extreme heat.
Safety & Ergonomics

● Integrated OPS and seat switch ensure operational safety.

● Wide-visibility mast maintains clear operator sightlines.

● High-strength overhead guard provides reliable protection.

● Suspended chassis design maximizes legroom, paired with adjustable steering and ergonomic seating.

● Optional suspended powertrain system enhances versatility.
Easy Maintenanc

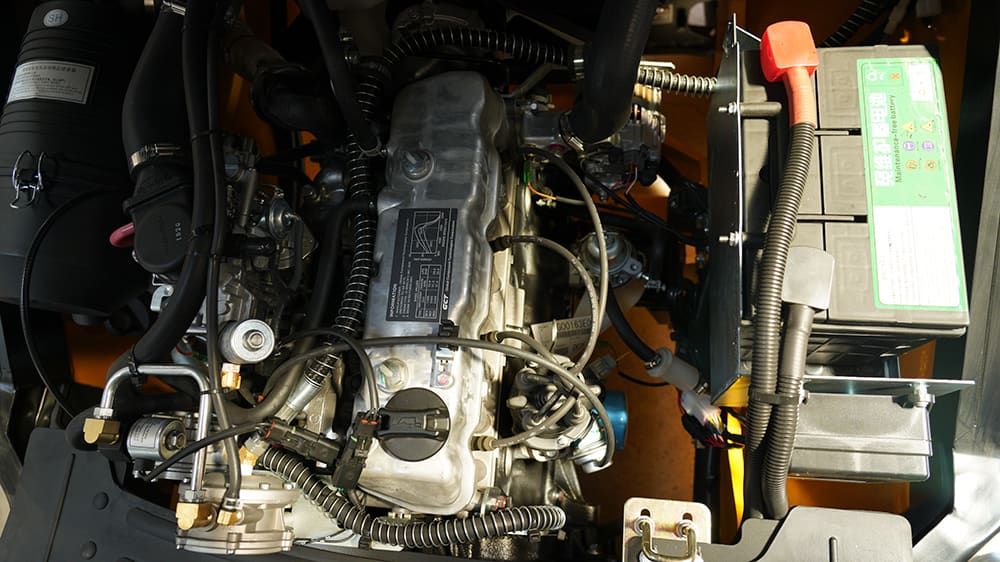

● The engine hood swings close to 90°, giving operators easy access for routine maintenance and part replacement.

● The transmission oil filter is easily replaceable, saving time and effort.
