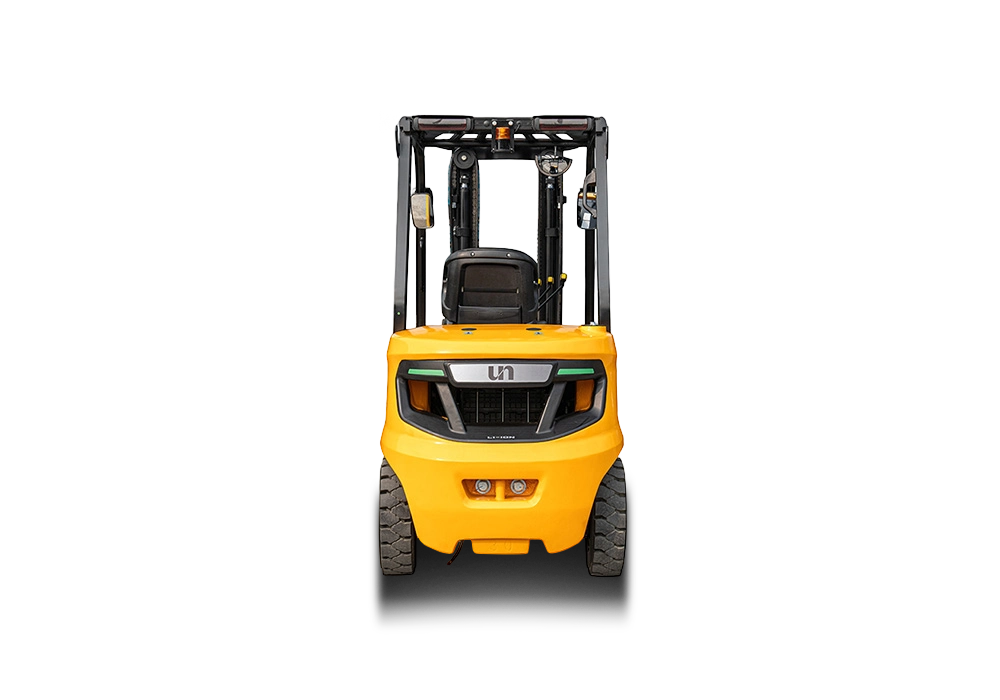

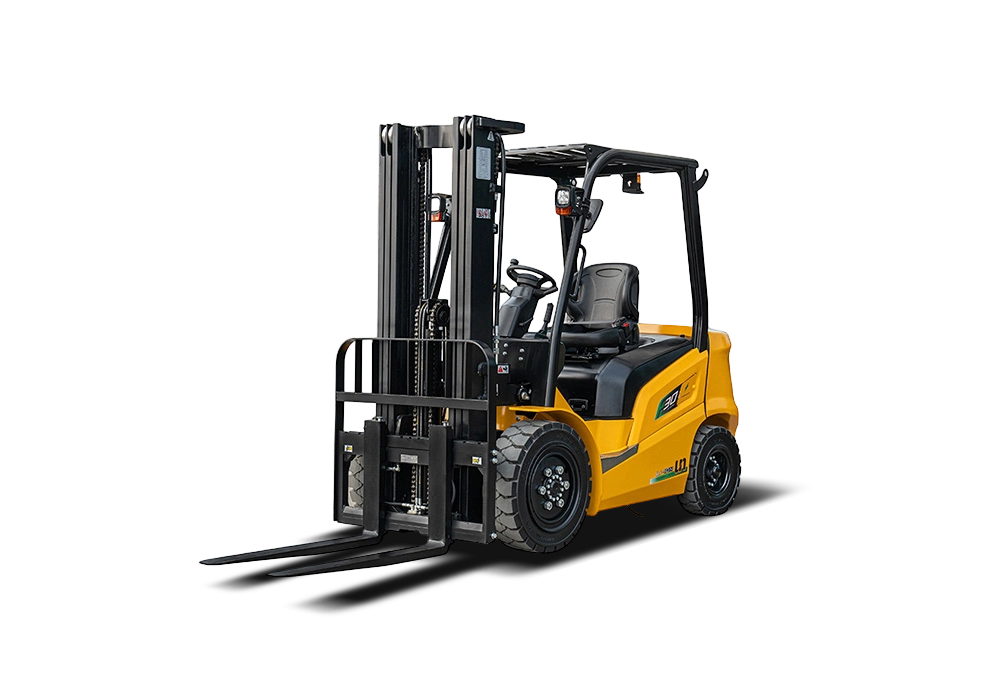

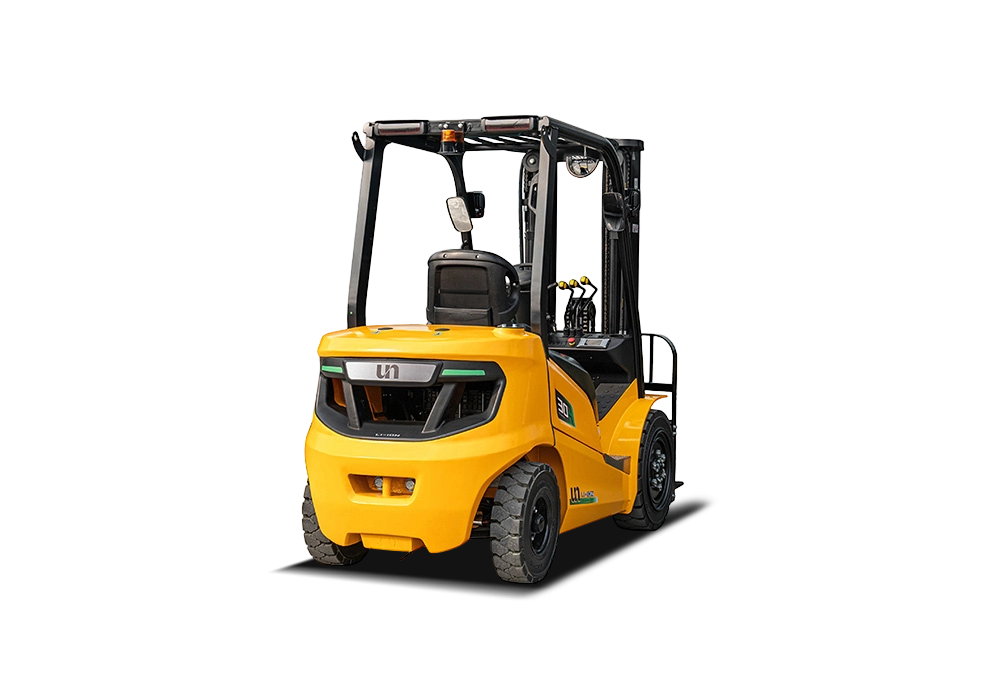

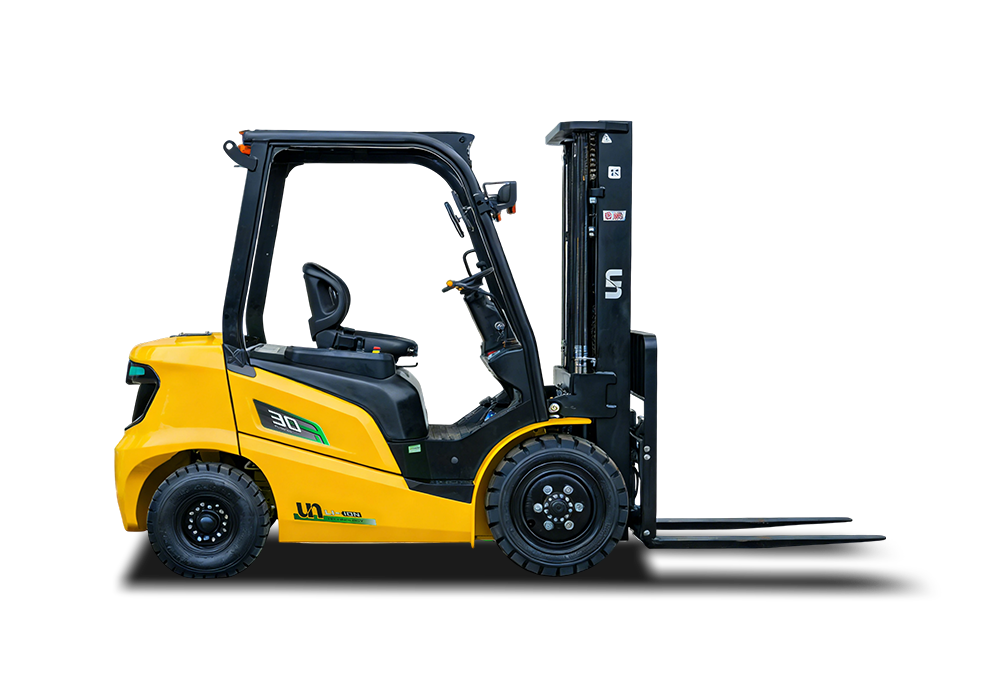

FL SERIES 3.0T-3.5T
LI-ION BATTERY FORKLIFT
FL Series Lithium Battery Counterbalance Forklift has undergone a comprehensive redesign led by professional design company. This brand new design brings significant enhancements to both its appearance and performance.
Product Details
MAIN SPECIFICATIONS
|
Model |
FB30 |
FB35 |
|
|
Rated Load Capacity |
Q(kg) |
3000 |
3500 |
|
Load Centre |
C(mm) |
500 |
500 |
|
Length to Face of Fork (Without Fork) |
L1(mm) |
2700 |
2770 |
|
Overall Width |
B1(mm) |
1220 |
1220 |
|
Overhead Guard Height |
H5(mm) |
2190 |
2208 |
|
Turning Radius (Outside) |
Wa(mm) |
2450 |
2500 |
|
Travel Speed (No Load) |
km/h |
11/12 14/15 |
11/12 14/15 |
|
Max.Gradeability (Full Load) |
% |
15 |
15 |
|
Wheelbase |
Y(mm) |
1700 |
1700 |
|
Total Weight |
kg |
4207 |
4570 |
|
Battery |
V/Ah |
76.8V/230AH |
76.8V/280AH |
Product Features
-
Appearance
● This series has smooth and streamlined body, giving a more powerful look. The sharp edges and contrast color design of the counterweight make it more attractive.
● The electrical system utilizes dynamic LED taillights, imparting a futuristic and highly technological appeal to the vehicle, creating a strong visual impact.
-
High Performance
● High ground clearance meets the demands of outdoor working conditions.
● Turning deceleration as standard(with rear wheel angle indication in display).
● IPX4 waterproof performance.
● Optional with a maximum 460Ah large-capacity lithium battery, equipped with a 200A high-speed charger.
● Optional low-temperature heating system(-20 ℃).
● Standard equipped with proportional lifting.
● Adopting a load sensing steering system.
-
Safety & Reliability
● The casting steering axle with tapered roller bearing, equipped with turning reduction for durability and safety.
● Standard-equipped with a bottom-buffering function.
● Anti-sloping function.
● Equipped with an anti-static strip as standard.
● The lithium battery meets the latest CE standards.
-
Superior Ergonomics
●The entire forklift adopts an ergonomic design, with larger operating space and more comfort.
● Utilizing an optimized stamped overhead guard, providing improved visibility.
● Multifunctional color display instrument.
● Adopting a new type of ratchet handbrake.
● The wide-view mast provides better vision.
● Standard-equipped with USB for mobile devices.
-
Easy Maintenance
● Increased hood opening angle provides a more spacious space for inspection and maintenance.
● The detachable side panels make maintenance and cleaning more convenient.
