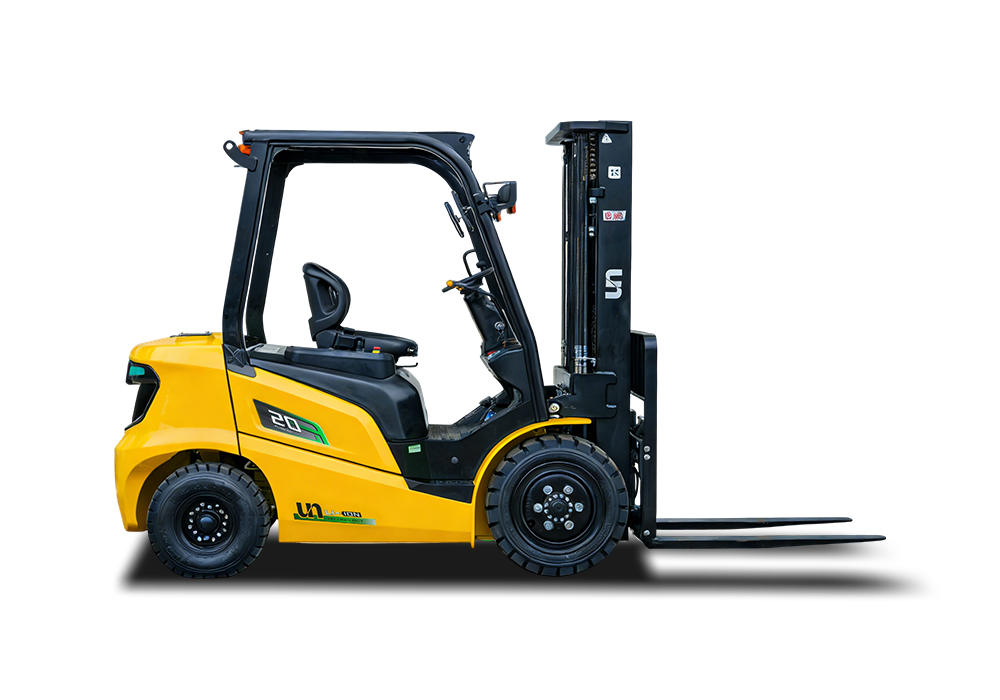

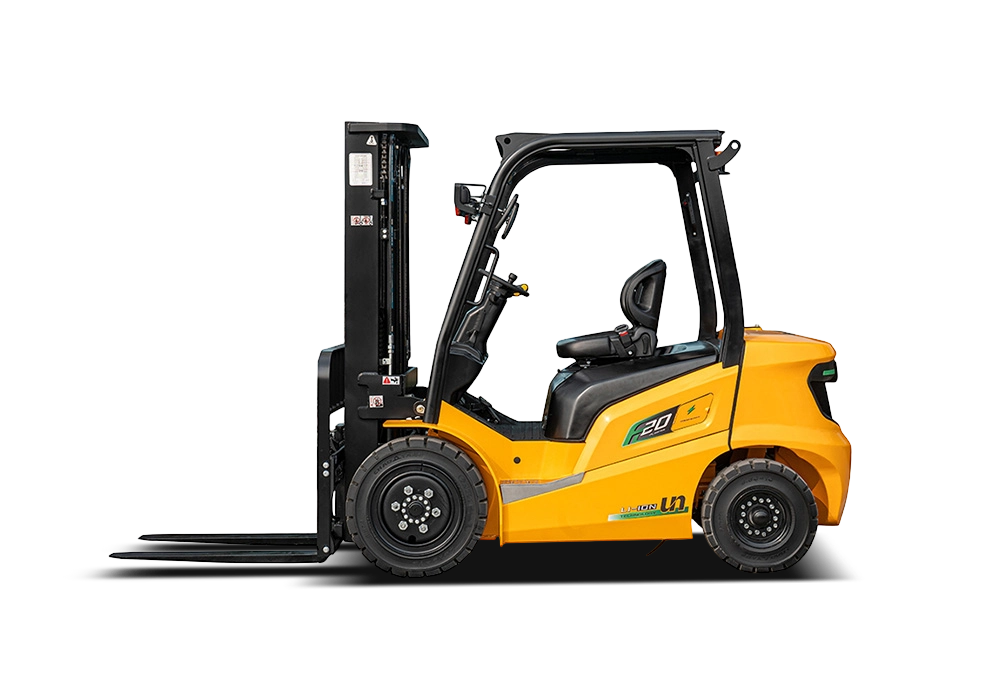

FL SERIES 2.0T-2.5T

LI-ION BATTERY FORKLIFT

Get brochure

Product Description

FL Series Lithium Battery Counterbalance Forklift has undergone a comprehensive redesign led by professional design company. This brand new design brings significant enhancements to both its appearance and performance.

E-mail: [email protected]

Product Details

MAIN SPECIFICATIONS

Model		FB20	FB25
Rated Load Capacity	Q(kg)	2000	2500
Load Centre	C(mm)	500	500
Length to Face of Fork (Without Fork)	L1(mm)	2662	2662
Overall Width	B1(mm)	1180	1180
Overhead Guard Height	H5(mm)	2215	2215
Turning Radius (Outside)	Wa(mm)	2365	2365
Travel Speed (No Load)	km/h	11/12 14/15	11/12 14/15
Max.Gradeability (Full Load)	%	15	15
Wheelbase	Y(mm)	1650	1650
Total Weight	kg	3472	3703
Battery	V/Ah	76.8V/175AH	76.8V/175AH

General	1	Manufacturer		un
	2	Model		FB20	FB25	FB30	FB35
	3	Power Type		Lithium Battery
	4	Rated Load Capacity	Q(kg)	2000	2500	3000	3500
	5	Load Centre	C(mm)	500	500	500	500
Dimensions	6	Rated Lift Height	H3(mm)	3000	3000	3000	3000
	7	Free Lift Height	H2(mm)	120	120	125	125
	8	Fork Size (L×W×T)	mm	1070×100×40	1070×122×40	1070×125×45	1070x122x50
	9	Mast Tilt Angle (F/R, α°/β°)	deg	6°/12°	6°/12°	6°/12°	6°/12°
	10	Fork Overhang (Wheel Center to Fork Face)	X1(mm)	462	462	467	472
	11	Rear Overhang	X2(mm)	550	550	530	600
	12	Ground Clearance (Bottom of Mast)	H7(mm)	110	110	125	125
	13	Length to Face of Fork (Without Fork)	L1(mm)	2662	2662	2700	2770
	14	Overall Width	B1(mm)	1180	1180	1220	1220
	15	Mast Lowered Height	H1(mm)	2100	2100	2115	2115
	16	Mast Extended Height (With Backrest)	H4(mm)	4198	4198	4150	4150
	17	Overhead Guard Height	H5(mm)	2215	2215	2190	2208
	18	Turning Radius (Outside)	Wa(mm)	2365	2365	2450	2500
	19	Min.Aisle width for pallets	Ast(mm)	4120	4120	4120	4170
Performance	20	Travel Speed (No Load)	km/h	11/12 14/15	11/12 14/15	11/12 14/15	11/12 14/15
	21	Lifting Speed (Full Load)	mm/sec	250/360 290/400	250/360 290/400	250/360 290/400	250/360 290/400
	22	Lowering Speed (Full Load/No Load)	mm/sec	≤600/≥300	≤600/≥300	≤600/≥300	≤600/≥300
	23	Max.Gradeability (Full Load)	%	15	15	15	15
Chassis	24	Tyre (Front x 2)	mm	7.00-12-12PR	7.00-12-12PR	28×9-15-14PR	28×9-15-14PR
	25	Tyre (Rear x 2)	mm	6.00-9-10PR	6.00-9-10PR	6.50-10-10PR	6.50-10-10PR
	26	Front Tread	B2(mm)	970	970	1000	1000
	27	Rear Tread	B3(mm)	980	980	980	980
	28	Wheelbase	Y(mm)	1650	1650	1700	1700
Weight	29	Total Weight	kg	3472	3703	4207	4570
	30	Front Axle Weight Distribution (Full Load)	kg	4650	5413	6396	7145
	31	Rear Axle Weight Distribution (Full Load)	kg	822	790	811	925
	32	Front Axle Weight Distribution (No Load)	kg	1483	1456	1689	1652
	33	Rear Axle Weight Distribution (No Load)	kg	1989	2247	2518	2918
Power & Transmission	34	Battery	V/Ah	76.8V/175AH	76.8V/175AH	76.8V/230AH	76.8V/280AH
	35	Drive Motor	KW	10/14
	36	Lift Motor	KW	12/18
	37	Operating Pressure (For Attachments)	Mpa	20.5

Product Features

Appearance

● This series has smooth and streamlined body, giving a more powerful look. The sharp edges and contrast color design of the counterweight make it more attractive.

● The electrical system utilizes dynamic LED taillights, imparting a futuristic and highly technological appeal to the vehicle, creating a strong visual impact.
High Performance

● High ground clearance meets the demands of outdoor working conditions.

● Turning deceleration as standard(with rear wheel angle indication in display).

● IPX4 waterproof performance.

● Optional with a maximum 460Ah large-capacity lithium battery, equipped with a 200A high-speed charger.

● Optional low-temperature heating system(-20 ℃).

● Standard equipped with proportional lifting.

● Adopting a load sensing steering system.
Safety & Reliability

● The casting steering axle with tapered roller bearing, equipped with turning reduction for durability and safety.

● Standard-equipped with a bottom-buffering function.

● Anti-sloping function.

● Equipped with an anti-static strip as standard.

● The lithium battery meets the latest CE standards.
Superior Ergonomics

●The entire forklift adopts an ergonomic design, with larger operating space and more comfort.

● Utilizing an optimized stamped overhead guard, providing improved visibility.

● Multifunctional color display instrument.

● Adopting a new type of ratchet handbrake.

● The wide-view mast provides better vision.

● Standard-equipped with USB for mobile devices.
Easy Maintenance

● Increased hood opening angle provides a more spacious space for inspection and maintenance.

● The detachable side panels make maintenance and cleaning more convenient.
