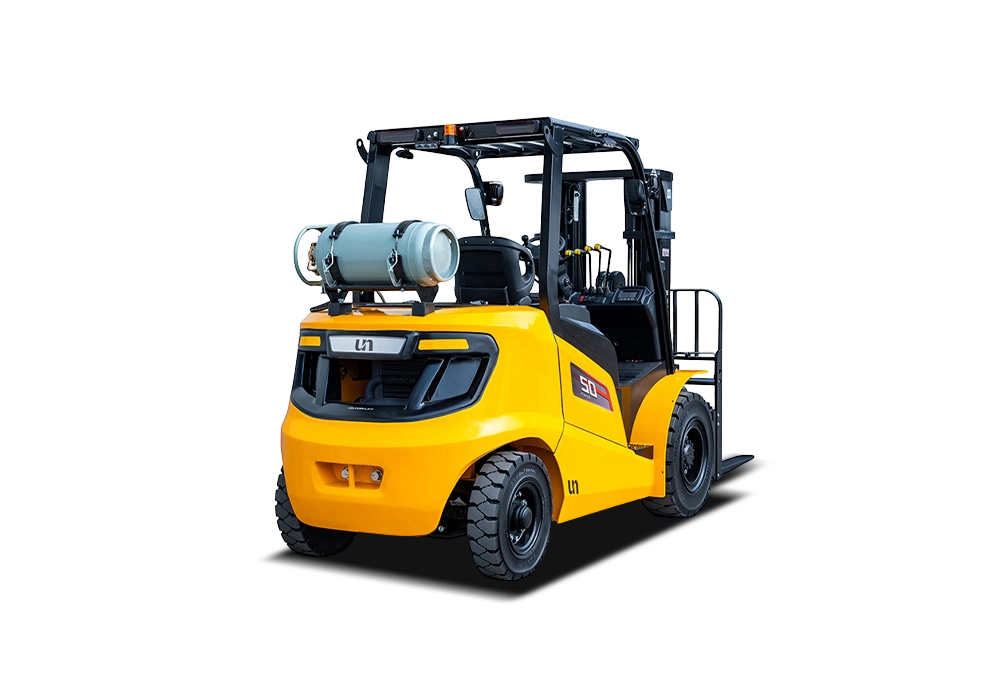

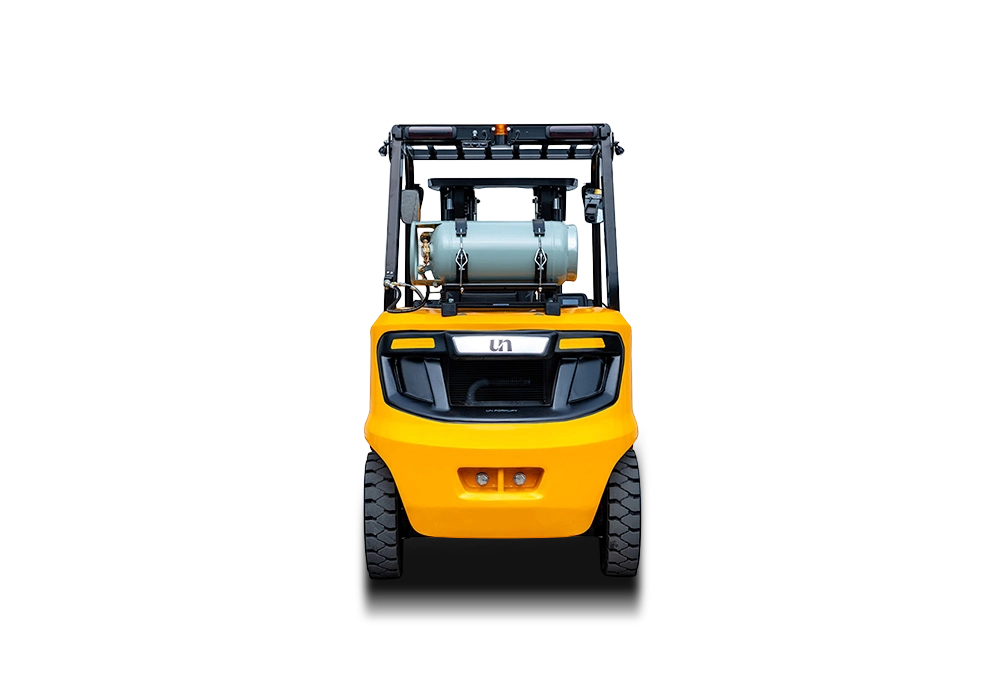

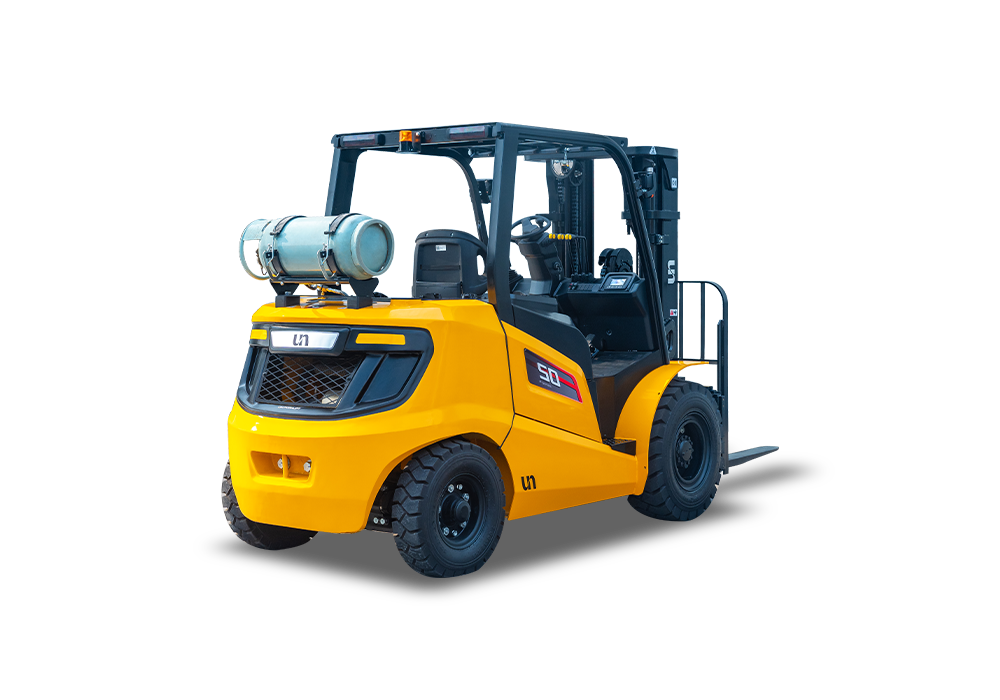

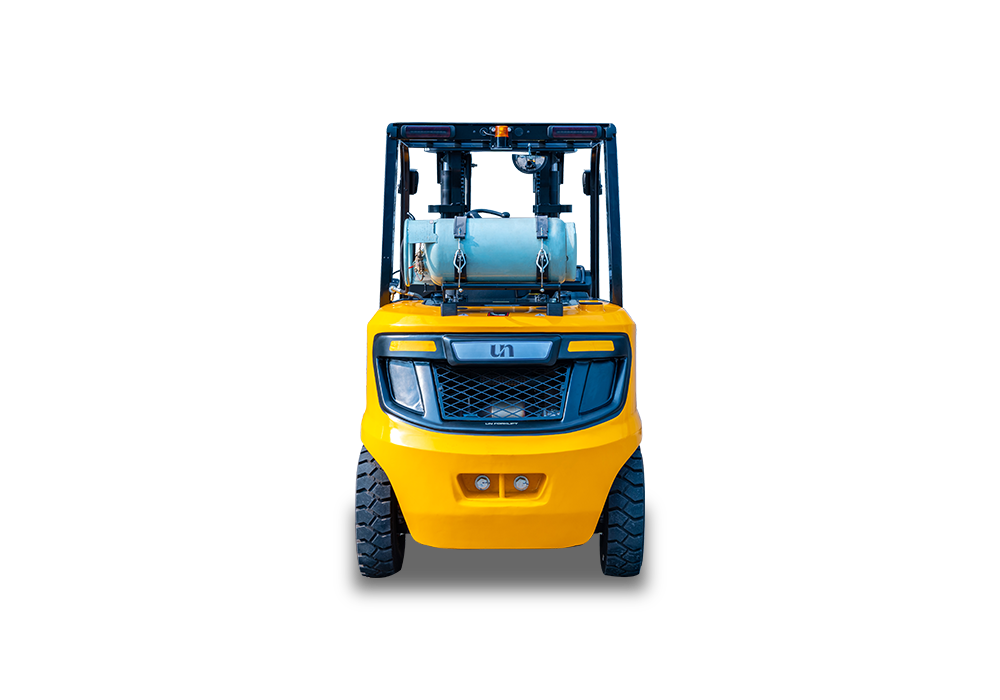

F Series 4.5T-5.5T LPG&Gasoline Forklift

Get brochure

Product Description

The F Series 4.5–5.5 ton internal combustion forklift represents UN Forklift's advancement, engineered to provide exceptional strength, reliability, and comfort for the operator. Tailored for intensive operations, this model integrates cutting-edge design with a solid construction, ensuring effortless performance in the material handling environments.

E-mail: [email protected]

Product Details

MAIN SPECIFICATIONS

Model		FGL45T	FGL50T	FGL55T	FL45T	FL50T	FL55
Rated Load Capacity	Q(kg)	4500	5000	5500	4500	5000	5500
Load Centre	C(mm)	500	500	500	500	500	500
Length to Face of Fork (Without Fork)	L1(mm)	3265	3265	3315	3265	3265	3315
Overall Width	B1(mm)	1520	1520	1520	1520	1520	1520
Overhead Guard Height	H5(mm)	2370（2260）	2370（2260）	2370（2260）	2370（2260）	2370（2260）	2370（2260）
Turning Radius (Outside)	Wa(mm)	2930	2930	2980	2930	2930	2980
Travel Speed (Full Load/No Load)	km/h	25/26	25/26	25/26	25/26	25/26	25/26
Max.Gradeability (Full Load/No Load)	%	33/28	33/28	33/28	33/28	33/28	33/28
Wheelbase	Y(mm)	2100	2100	2100	2100	2100	2100
Total Weight	kg	6510	6920	7280	6510	6920	7280
Engine Model		WG3800-GL-C	WG3800-GL-C	WG3800-GL-C	WG3800-L-E5C（EPA4/EU Ⅴ）/WG3800-L-C

General	1	Manufacturer		UN
	2	Model		FGL45T	FGL50T	FGL55T	FL45T	FL50T	FL55
	3	Power Type		Gasoline & LPG			LPG
	4	Rated Load Capacity	Q(kg)	4500	5000	5500	4500	5000	5500
	5	Load Centre	C(mm)	500
Characteristic & Dimension	6	Rated Lift Height	H3(mm)	3000
	7	Free Lift Height	H2(mm)	150
	8	Fork Size (L×W×T)	mm	1070x150x50		1070x150x55	1070x150x50		1070x150x55
	9	Mast Tilt Angle (F/R, α°/β°)	deg	6°/12°
	10	Fork Overhang (Wheel Center to Fork Face)	X1(mm)	571		576	571		576
	11	Rear Overhang	X2(mm)	605		655	605		655
	12	Ground Clearance (Bottom of Mast)	H7(mm)	140
	13	Length to Face of Fork (Without Fork)	L1(mm)	3265		3315	3265		3315
	14	Overall Width	B1(mm)	1520
	15	Mast Lowered Height	H1(mm)	2250
	16	Mast Extended Height (With Backrest)	H4(mm)	4250		4405	4250		4405
	17	Overhead Guard Height	H5(mm)	2370（2260）
	18	Turning Radius (Outside)	Wa(mm)	2930		2980	2930		2980
	19	Min. Aisle width for pallets	Ast(mm)	4690		4750	4690		4750
Performance	20	Travel Speed (Full Load/No Load)	km/h	25/26			25/26
	21	Lifting Speed (Full Load/No Load)	mm/sec	580/620		530/580	580/620		530/580
	22	Lowering Speed (Full Load/No Load)	mm/sec	300-600
	23	Max.Drawbar Pull (Full Load/No Load)	KN	41/25
	24	Max.Gradeability (Full Load/No Load)	%	33/28
Chassis	25	Tyre (Front x 2)	mm	300-15-18PR
	26	Tyre (Rear x 2)	mm	7.00-12-12PR
	27	Front Tread	B2(mm)	1232
	28	Rear Tread	B3(mm)	1190
	29	Wheelbase	Y(mm)	2100
Weight	30	Total Weight	kg	6510	6920	7280	6510	6920	7280
	31	Front Axle Weight Distribution (Full Load)	kg	9840	10540	11270	9840	10540	11270
	32	Rear Axle Weight Distribution (Full Load)	kg	1170	1370	1510	1170	1370	1510
	33	Front Axle Weight Distribution (No Load)	kg	3080	3030	3010	3080	3030	3010
	34	Rear Axle Weight Distribution (No Load)	kg	3430	3890	4270	3430	3890	4270
Power & Transmission	35	Battery	V/Ah	12/90
	36	Engine Model		WG3800-GL-C			WG3800-L-E5C（EPA/EU Ⅴ）/WG3800-L-C
	37	Engine Manufacturer		Kubota			Kubota
	38	Rated Output / r.p.m.	kw	57.6（Gasoline） 60.7（LPG)/2400			59/2400 63.2/2400
	39	Rated Torque / r.p.m.	N·m	248（Gasoline） 273（LPG)/1200			282/1200
	40	No.of Cylinder		4			4
	41	Bore x Stroke	mm	100x120			100x120
	42	Displacement	L	3.768			3.768
	43	Fuel Tank Capacity	L	110
	44	Transmission Type		Hydraulic
	45	Transmission Stage (FWD/RVS)		2/1
	46	Operating Pressure (For Attachments)	Mpa	23.5

Product Features

High Performance

● Powered by Mitsubishi & Kubota engines for low emissions, strong performance, and lasting reliability.
● High-speed ratio floating transmission boosts travel speed and efficiency.
● Dual-pump flow merging and load sensing systems optimize efficiency and minimize energy loss.
● Reinforced steering axle design increases strength by 30% and reduces turning radius.
Safety And Reliability

● Stamped OHG delivers enhanced strength and long-term reliability.

● Waterproof connectors and joints ensure dependable performance.

● Optional OPS system helps prevent accidental forklift activation.
Superior Ergonomics

● Wide-view mast ensures better visibility.

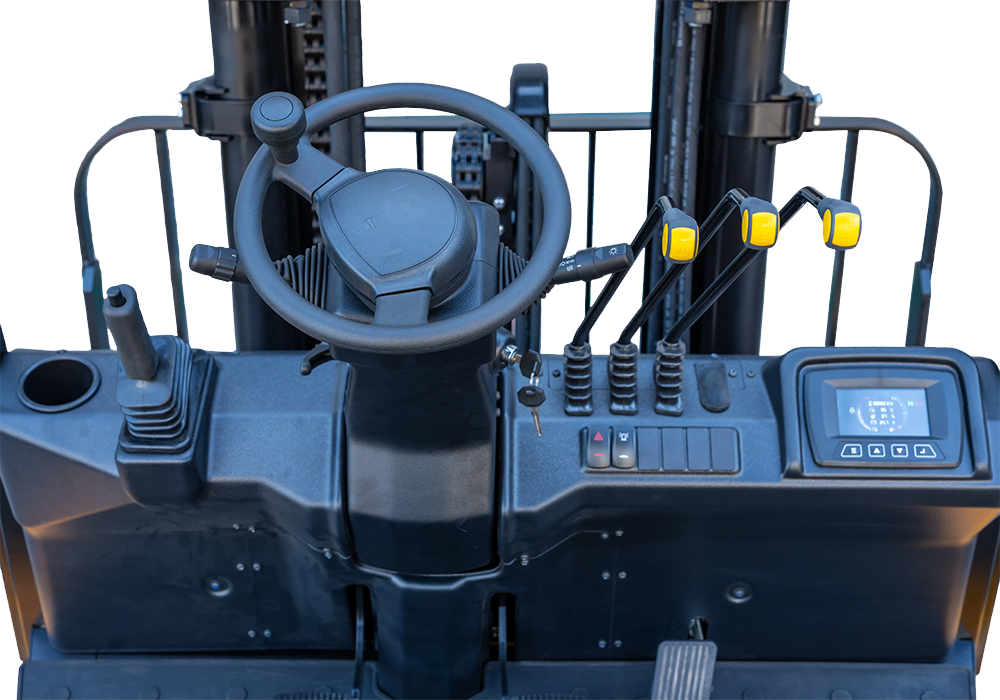

● Adjustable steering column with compact wheel for easy operation.

● Rubber-damped steering axle and four shock mounts reduce vibration and improve comfort.

● Spacious operating area for ease of movement.

● Ratchet handbrake minimizes operating effort.

● Suspended pedal brake ensures smooth, low-vibration braking.
Easy Maintenance

● Engine hood opens up to 80° for easy access.

● Removable left and right side panels.

● Front and rear floor plates with pin-mounted design.

● Rear counterweight cover allows convenient radiator maintenance.
