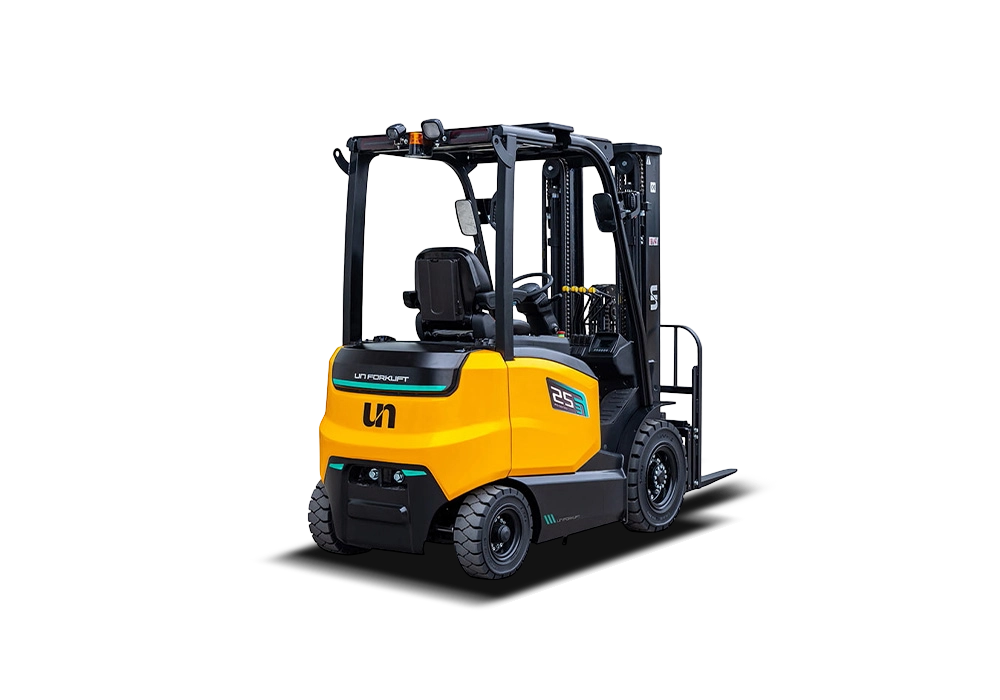

FE Series

2.0T-2.5T

4-Wheel

Electric Forklift

Get brochure

Product Description

FE Series 4-Wheel Electric Forklift is a fully upgraded model developed from the original V Series, with a load capacity ranging from 2.0 to 2.5 tons.

This series features a high-capacity lead-acid & lithium-ion battery system, full AC drive technology, and an adaptive energy management system, offering long battery life, strong gradeability, and operational continuity.

It provides an efficient and reliable solution for medium-intensity indoor handling applications.

E-mail: [email protected]

Product Details

MAIN SPECIFICATIONS

Model		FB20	FB25
Rated Load Capacity	Q(kg)	2000	2500
Load Centre	c(mm)	500	500
Wheelbase	y(mm)	1520	1520
Total Weight	kg	3650/3820	4220
Overhead Guard Height	h6(mm)	2200	2200
Length to Face of Fork (Without Fork)	l2(mm)	2345	2345
Overall Width	b1(mm)	1180	1180
Turning Radius (Outside)	Wa(mm)	2060	2060
Travel speed (Full Load)	km/h	13/14	13/14
Travel Speed (No Load)	km/h	14/15	14/15
Max.Gradeability (Full Load/No Load)	%	15	15
Battery	V/Ah	48/525 77.28/150	48/600 77.28/150

General	1	Manufacturer		UN
	2	Model		FB15	FB18	FB20（Mini）	FB20	FB25	FB30	FB35
	3	Drive		Electric
	4	Operator type		Seated	Seated	Seated	Seated	Seated	Seated	Seated
	5	Load capacity /rated load	Q(kg)	1500	1800	2000	2000	2500	3000	3500
	6	Load centre distance	c(mm)	500
	7	Load distance, center of drive axle to fork	x(mm)	407	407	412	462	462	467	472
	8	Wheelbase	y(mm)	1410	1410	1410	1520	1520	1660	1660
Weight	9	Total Weight	kg	3010	3180	3400	3650/3820	4220	4840	5280
	10	Axle loading, loaded front/rear	kg	3970/540	4450/530	4810/590	4950/700 5050/770	5990/730	7005/835	7805/975
	11	Axle loading, unloaded front/rear	kg	1500/1510	1490/1690	1510/1890	1720/1930 1800/2020	1900/2320	2250/2590	2245/3035
Chassis	12	Tires		Pneumatic
	13	Tyre size (Front x 2)		6.50-10-10PR	6.50-10-10PR	6.50-10-12PR	7.00-12-12PR	7.00-12-12PR	28×9-15-14PR	28x9-15
	14	Tyre size (Rear x 2)		16X6-8-10PR	16X6-8-10PR	16X6-8-10PR	18×7-8-14PR	18×7-8-14PR	18×7-8-14PR	18×7-8
	15	Front tread	b10(mm)	934	934	934	980	980	1000	1000
	16	Rear tread	b11(mm)	920	920	920	960	960	960	960
Dimensions	17	Tilt of mast/fork carriage forward/backward	α/β（°）	6°/10°	6°/10°	6°/10°	6°/12°	6°/12°	6°/12°	6°/12°
	18	Mast lowered height	h1(mm)	2005	2005	2005	2050	2050	2070	2070
	19	Free lift height	h2(mm)	135	135	140	120	120	145	150
	20	Rated lift height	h3(mm)	3000	3000	3000	3000	3000	3000	3000
	21	Mast extended height (With backrest)	h4(mm)	4040	4040	4040	4021	4021	4060	4060
	22	Overhead guard height	h6(mm)	2170	2170	2170	2200	2200	2225	2225
	23	Length to face of fork (Without fork)	l2(mm)	2165	2165	2165	2345	2345	2505	2578
	24	Overall width	b1(mm)	1110	1110	1110	1180	1180	1220	1220
	25	Fork size (l×e×s)	l/e/s(mm)	920×100×35	920×100×35	1070×100×40	1070×100×40	1070×120×40	1070×125×45	1070×125×50
	26	Distance between fork-arms	b5(mm)	240/950	240/950	240/950	245/1030	245/1030	250/1075	250/1075
	27	Ground clearance (Laden, below mast)	m1(mm)	110	110	110	110	110	130	130
	28	Ground clearance (Centre of wheelbase)	m2(mm)	110	110	110	120	120	150	150
	29	Aisle width for pallets 1000×1200 crossways	Ast(mm)	3520	3520	3525	3720	3720	3875	3920
	30	Aisle width for pallets 800×1200 lengthways	Ast(mm)	3720	3720	3725	3920	3920	4075	4120
	31	Turning radius (Outside)	Wa(mm)	1915	1915	1915	2060	2060	2210	2250
Performance	32	Travel speed (Full load)	km/h	14	14	14	13/14	13/14	14	14
	33	Travel speed (No load)	km/h	15	15	15	14/15	14/15	15	15
	34	Lifting speed (Full load)	mm/s	290	280	270	350	350	350	350
	35	Lifting speed (No load)	mm/s	400	400	400	450	450	500	500
	36	Max.Gradeability (Full load)	%	15
	37	Max.Gradeability (No load)	%	15
	38	Max.Drawbar pull (laden/unladen)	N	11000	11000	11000	13500	13500	18500	18500
	39	Service brake		Hydraulic	Hydraulic	Hydraulic	Hydraulic	Hydraulic	Hydraulic	Hydraulic
	40	Parking brake		Mechanical	Mechanical	Mechanical	Mechanical	Mechanical	Mechanical	Mechanical
Power & Transmission	41	Drive motor rating S2-60min	kw	8	8	8	11/16	11/16	16	16
	42	Lift motor rating at S3-15min	kw	10.6	10.6	10.6	21	21	21	21
	43	Battery voltage, nominal capacity	V/Ah	48/425		48/450	48/525 77.28/150	48/600 77.28/150	80/400 76.8/280
	44	Battery weight	kg	680		700	758/930	930	1235/1240
	45	Type of drive control		MOS/AC
	46	Manufacturer		ZAPI
	47	Operating pressure (For attachments)	Mpa	19.5			20.5

Product Features

Appearance

● With a brand-new design, the forklift features a compact structure,smooth lines, and vibrant colors create a striking and modern look.
High Performance

● Drive motor adopts an H-type parallel arrangement, ensuring excellent stability.

● Steering Axle:

- Cast axle body with a 30% increase in strength.

- Tapered roller bearings to enhance load capacity and durability.

- High-mounted design with flexible connections for improved performance and stability.

· Outstanding tight-turn performance.

· Featuring a load-sensing steering gear.

· Multiple speed modes.

· Equipped with a high-power hydraulic pump motor & a low-noise, high-displacement pump.

· High-capacity battery.
Safety & Reliability

● Robust stamped OHG.

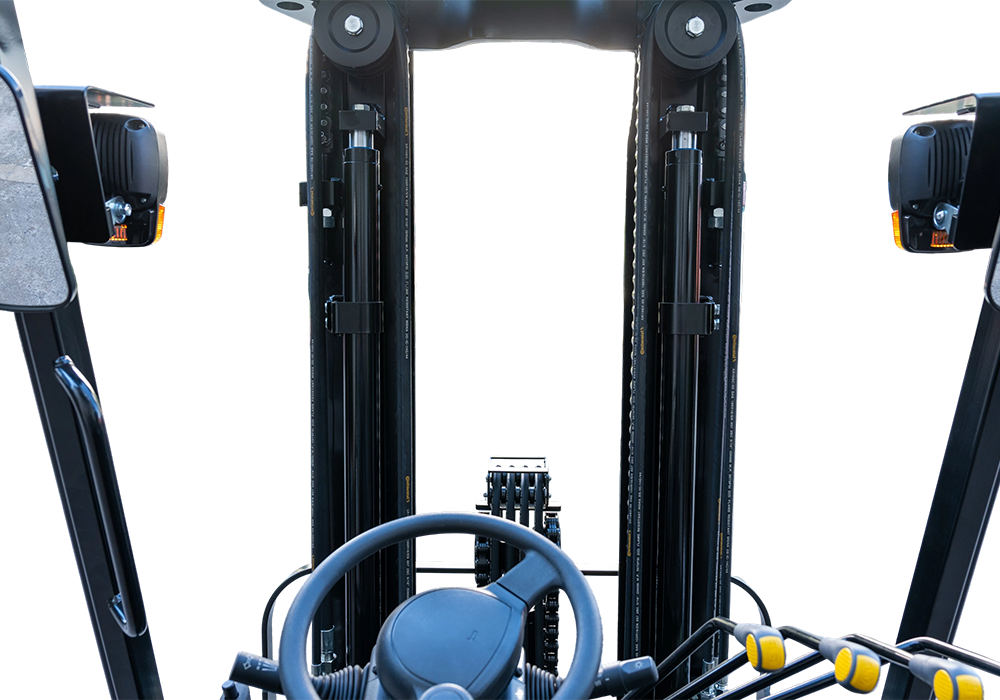

● Wide view mast.

● LED lights.

● Proportional lifting function.

● Speed deceleration function.

● Charging heating function, can be charged at -20°C.(LI-ION Battery).
Easy Maintenance

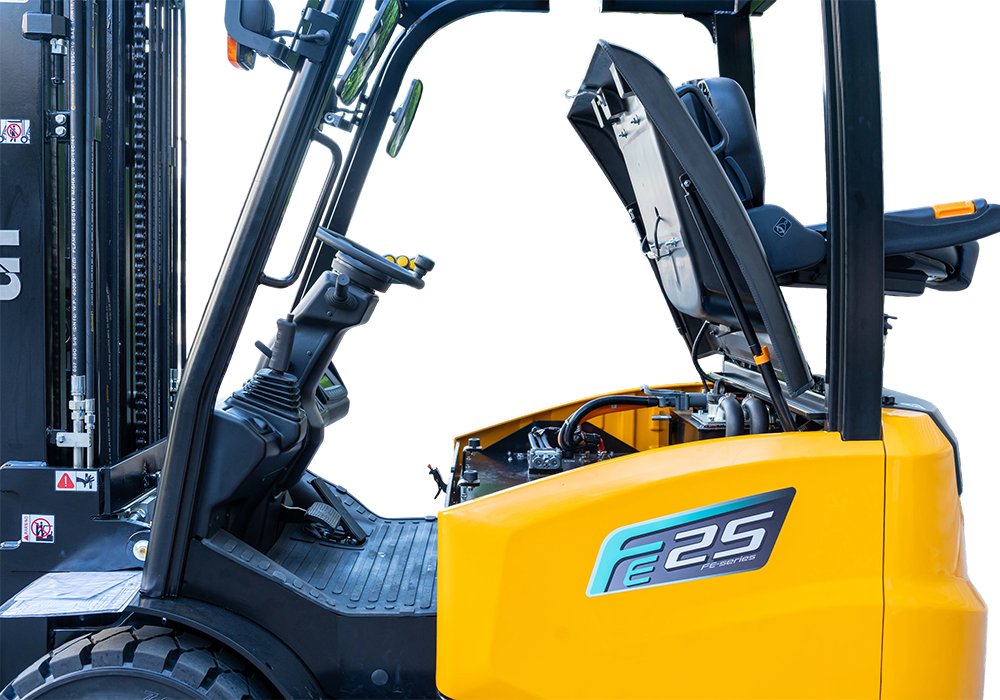

● Fully opening engine cover.

● Fully opening electrical control cover.

● Tool-free removable floor plate.
