1200/1600/2000KG 1200-5300mm

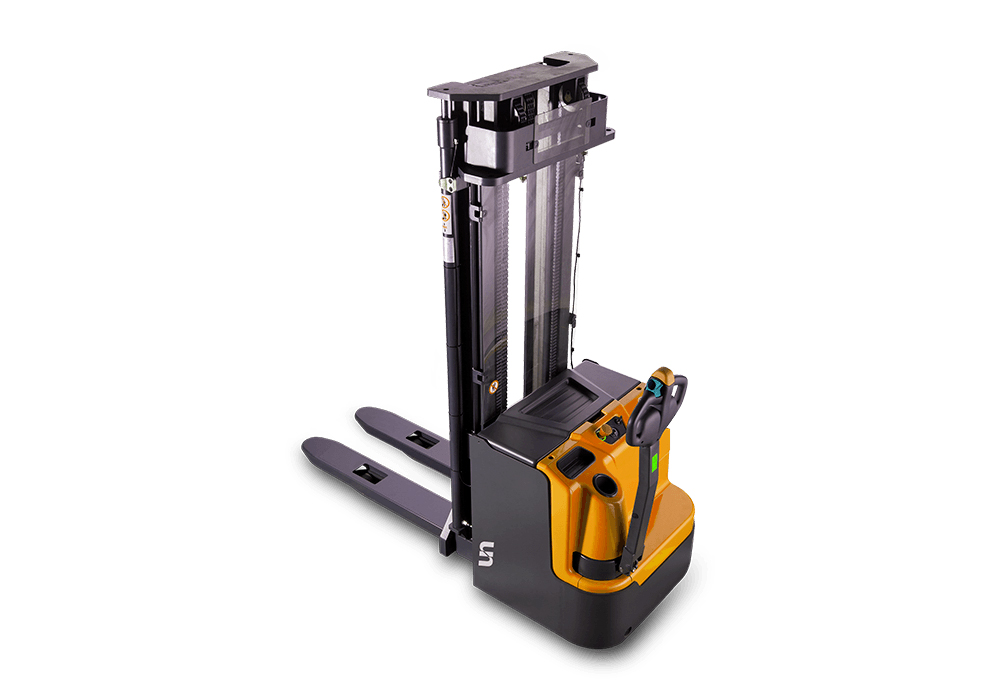

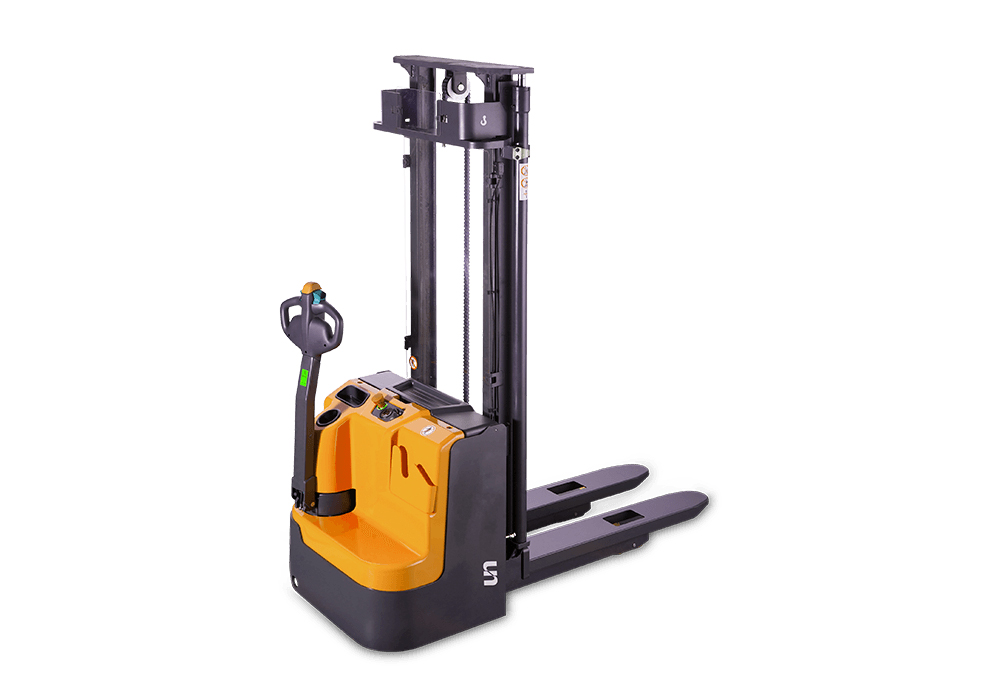

The PS 12-20L series is tailored towards pedestrian controlled stacking operations with capacities from 1200kg up to 2000kg.
With the mounted long tiller the operator can keep a safe and ergonomic distance while performing his work.
Due to the gentle full proportional lift system, stacking operations becomes safer and faster.
 |
Long tiller design for ergonomics and safety ● With the long tiller design, the operator can always keep a safe distance to the truck during proceeding the work very ergonomically. ● The tiller operating height is naturally positioned to ergonomic, operator-friendly controlling positions. ● The 4 wheel design with the sideways long mounted tiller gives an exact and perfect view to the forks. |
|
Electric proportional lifting and lowering ● The electronically controlled proportional lift system ensures accurate positioning and stacking at every lifting height.
● The CANBUS technology means less wiring with more reliability. It can be analyzed and adjusted easily so that the downtime is less than trucks without CANBUS. |
 |
 |
Robust and Reliable Design ● The robust chassis with strong 8mm thick apron protects the truck and the components against mechanical impacts from the environment. ● The truck is well equipped to reduce maintenance work and damages to a minimum. ● IP 54 protected controller, safe against dust and water splashes. |
|
German AC drive technology ● The powerful maintenance free German Schabmueller AC Drive motor with German Kordel gearbox, Intorqe brake and Wicke drive wheel all together gives the best performance, efficiency and reliability, this top brand combination reduces the overall operating cost. |
 |
|
Maintenance friendly ● All components are easy to reach after removing the main cover with only two screws. The drive wheel and the castor wheel are easy to exchange without craning the truck.
Every truck comes with the right battery: ● PS 12L with 180 Ah 2VBS battery for light duty models, good maneuverability for restricted areas. ● PS 16L with 270 Ah 3VBS battery. ● PS 20L with 350 AH DIN 3PS battery for long operations and multi- shifts. |
MAIN SPECIFICATIONS
|
Distinguishing mark |
1.2 |
Manufacturer's type designation |
|
PS12L(3600) |
PS12L(4600) |
PS16L(4600) |
PS20L(4600) |
|
1.3 |
Power (battery,diesel, petrol, gas, manual) |
|
Battery |
||||
|
1.4 |
Operator type |
|
Pedestrian |
||||
|
1.5 |
Load Capacity / rated load |
Q(t) |
1.2 |
1.6 |
2.0 |
||
|
1.6 |
Load centre distance |
c (mm) |
600 |
||||
|
1.8 |
Load distance ,centre of drive axle to fork |
x (mm) |
647 |
637 |
647 |
||
|
1.9 |
Wheelbase |
y (mm) |
1248 |
1293 |
1429 |
||
|
Weight |
2.1 |
Service weight |
kg |
1007 |
1150 |
1340 |
1579 |
|
2.2 |
Axle loading, laden front/rear |
kg |
684/1523 |
735/1610 |
930/2010 |
1000/2579 |
|
|
2.3 |
Axle loading, unladen front/rear |
kg |
610/397 |
720/430 |
850/490 |
900/679 |
|
|
Tires, chassis |
3.1 |
Tires |
|
Polyurethane(PU) |
|||
|
3.2 |
Tire size，front |
∅xw (mm) |
∅230x70 |
||||
|
3.3 |
Tire size,rear |
∅xw (mm) |
∅84x70 |
||||
|
3.4 |
Additional wheels(dimensions) |
∅xw (mm) |
∅150x54 |
||||
|
3.5 |
Wheels,number front/rear(x=driven wheels) |
|
1x+1/4 |
||||
|
3.6 |
Tread, front |
b10 (mm) |
522 |
||||
|
3.7 |
Tread, rear |
b11(mm) |
390/505 |
||||
|
Dimensions |
4.2 |
Lowered mast height |
h1 (mm) |
2308 |
2108 |
2108 |
2228 |
|
4.3 |
Free Lift height |
h2 (mm) |
1760 |
1520 |
1520 |
1520 |
|
|
4.4 |
Lift height |
h3 (mm) |
3530 |
4530 |
4530 |
4530 |
|
|
4.5 |
Extended maximal height |
h4 (mm) |
4088 |
5088 |
5088 |
5208 |
|
|
4.9 |
Height of tiller in drive position min./ max. |
h14 (mm) |
850/1385 |
||||
|
4.15 |
Height, lowered |
h13 (mm) |
90 |
||||
|
4.19 |
Overall length |
l1(mm) |
1919 |
1929 |
1964 |
2100 |
|
|
4.20 |
Length to face of forks |
l2 (mm) |
769 |
779 |
814 |
950 |
|
|
4.21 |
Overall width |
b1 (mm) |
820 |
||||
|
4.22 |
Fork dimensions |
s/e/l (mm) |
60/180/1150 |
||||
|
4.25 |
Distance between fork-arms |
b5 (mm) |
570/685 |
||||
|
4.32 |
Ground clearance, centre of wheelbase |
m2 (mm) |
28 |
28 |
23 |
||
|
4.33 |
Aisle width for pallets 1000X1200 crossways |
Ast (mm) |
2336 |
2406 |
2536 |
||
|
4.34 |
Aisle width for pallets 800X1200 lengthways |
Ast (mm) |
2323 |
2393 |
2523 |
||
|
4.35 |
Turning radius |
Wa (mm) |
1400 |
1510 |
1640 |
||
|
Performance data |
5.1 |
Travel speed, laden/ unladen |
km/h |
6.0/6.0 |
5.7/6.0 |
5.4/6.0 |
|
|
5.2 |
Lift speed, laden/ unladen |
m/s |
0.09/0.14 |
0.13/0.20 |
0.13/0.20 |
||
|
5.3 |
Lowering speed, laden/ unladen |
m/s |
0.25/0.20 |
0.28/0.23 |
0.28/0.23 |
||
|
5.8 |
Max. gradeability, laden/ unladen |
% |
6/12 |
6/12 |
6/10 |
||
|
5.10 |
Service brake |
|
Electromagnetic |
||||
|
Electric- engine |
6.1 |
Drive motor rating S2 60min |
kW |
1.3 |
1.3 |
1.7 |
|
|
6.2 |
Lift motor rating at S3 4.5% |
kW |
1.5 |
3.2 |
3.2 |
3.2 |
|
|
6.3 |
Battery acc. to DIN 43531/35/36 A, B，C, no |
|
2VBS |
3VBS |
3PZS |
||
|
6.4 |
Battery voltage, nominal capacity K5 |
V/Ah |
24/180 |
24/270 |
24/350 |
||
|
6.5 |
Battery weight +/-5% |
kg |
175 |
230 |
288 |
||
|
6.6 |
Energy consumption acc: to VDI cycle |
kWh/h |
0.95 |
1.59 |
1.70 |
||
|
Additional data |
8.1 |
Type of drive control |
|
AC-Speed Control |
|||
|
8.4 |
Sound level at driver's ear acc. to EN 12053 |
dB(A) |
<70 |
||||
Specifications and characteristics are subject to change without notice.
