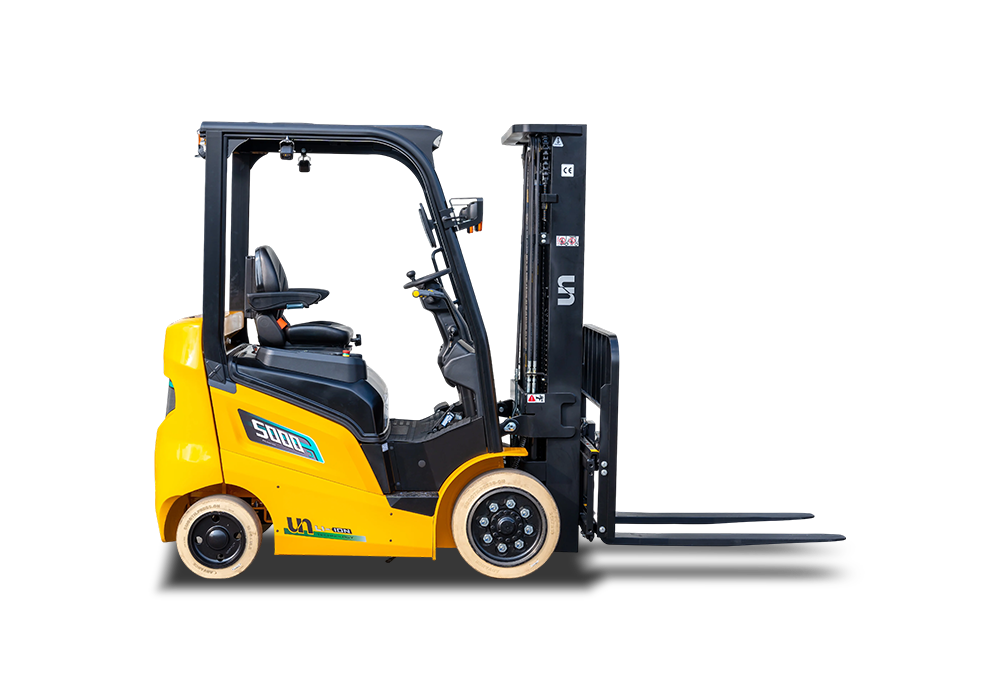

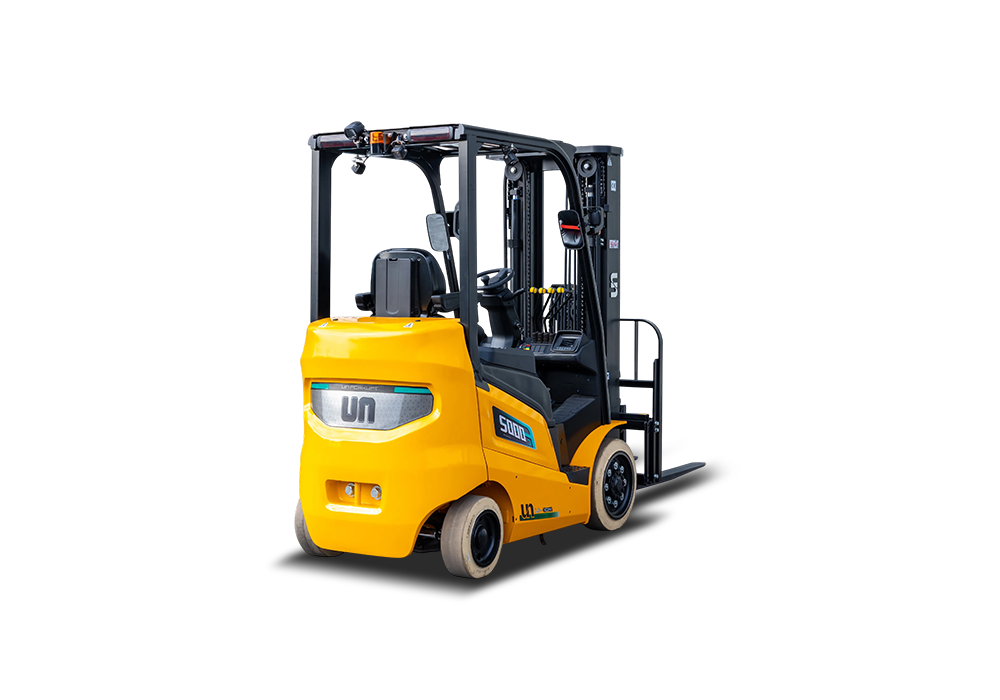

FC Series 2.0-3.2T
Li-lon Battery Forklift
(Cushion Tire)
FC Series 4-Wheel Cushion Tire Li-ion Battery Forklift combines compact size, high maneuverability, and efficient electric performance.
With capacities suitable for warehousing, distribution, and light-to-medium industrial use, the FC Series prioritizes productivity, operator comfort, and reliability for clean, quiet, and efficient indoor material handling.
Product Details
MAIN SPECIFICATIONS
|
Model |
FB25 |
|||||||||
|
Rated Load Capacity |
lb(kg) |
5000(2270) |
||||||||
|
Load Centre |
c |
in (mm) |
24(600） |
|||||||
|
Wheelbase |
y |
y(mm) |
55.1（1400） |
|||||||
|
Total Weight |
lb(kg) |
9240（4200） |
||||||||
|
Overhead Guard Height |
h6 |
in (mm) |
87(2210) |
|||||||
|
Length to Face of Fork (Without Fork) |
l2 |
in (mm) |
87.6(2224) |
|||||||
|
Overall Width |
b1 |
in (mm) |
42.5(1080) |
|||||||
|
Turning Radius (Outside) |
Wa |
in (mm) |
76.8（1950） |
|||||||
|
Travel Speed (No Load) |
mph(km/h) |
8.7（14） |
||||||||
|
Max.Gradeability (Full Load) |
% |
15 |
||||||||
|
Battery |
V/Ah |
80/350 |
||||||||
Product Features
-
Performance
●Drive motor in H-type parallel layout ensures excellent vehicle stability.
●High-mounted steering axle enhances stability.
●Compact structure with a tight turning radius, ideal for confined spaces.
●High-power hydraulic pump motor with large, quiet pump boosts lift speed.
●Multiple travel speed modes adapt to different working environments. -
Ergonomics

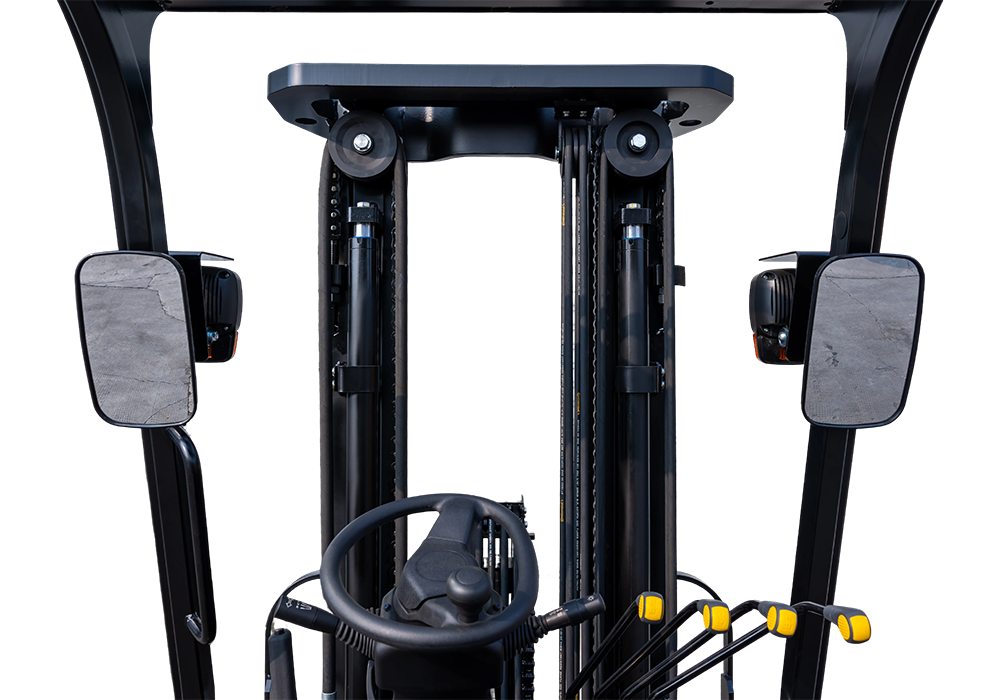

●Ergonomically designed, adjustable small-diameter steering wheel.
●Fully enclosed instrument console with front-mounted control levers maximizes legroom.
●Multifunction color display for clear and intuitive readings. -
Ease of Maintenance
●Fully opening hood and control covers allow easy maintenance.
●Tool-free removable floor panel enables convenient service of the drive motor, DCDC, and other components. -
Perfect Applications
●Wholesale supply chains.
●Warehousing and third-party logistics.
●Retail and store operations.
●E-commerce fulfillment and distribution centers.
●Healthcare and pharmaceutical logistics.
