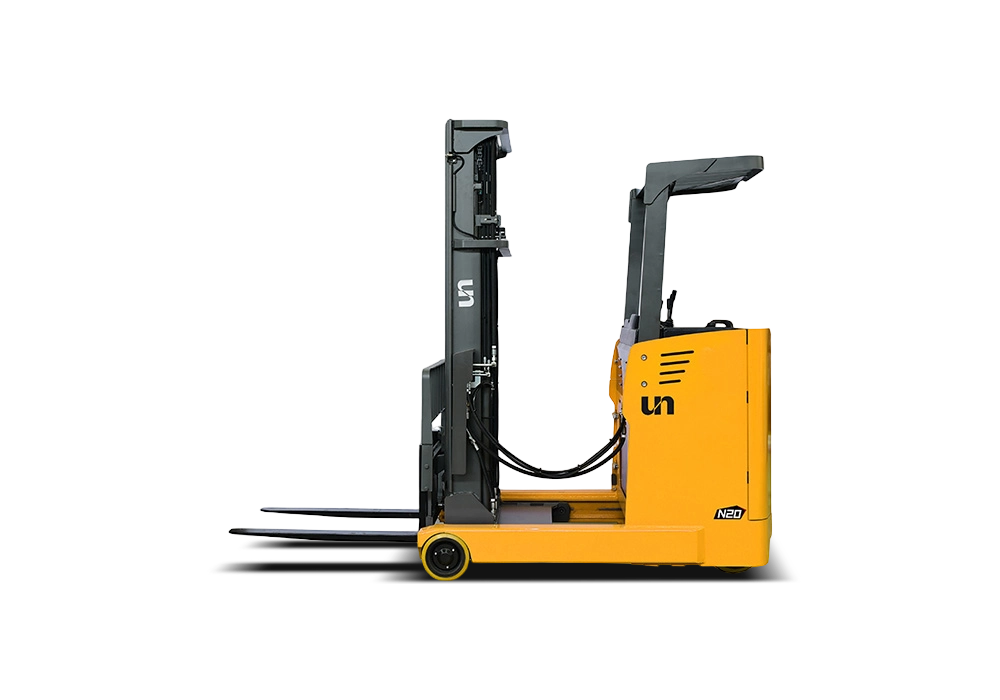

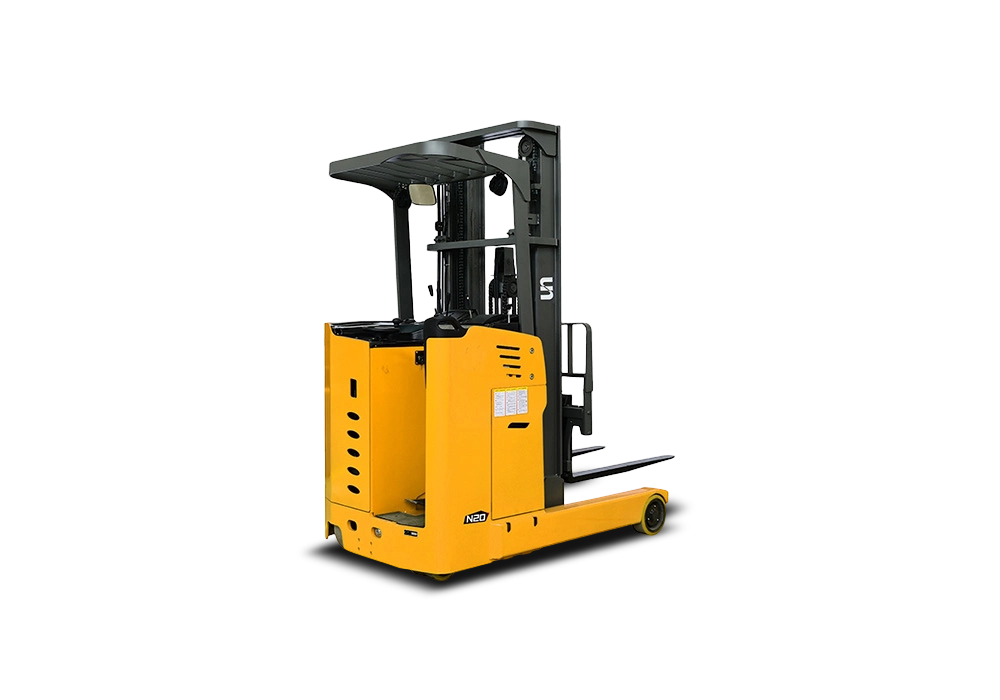

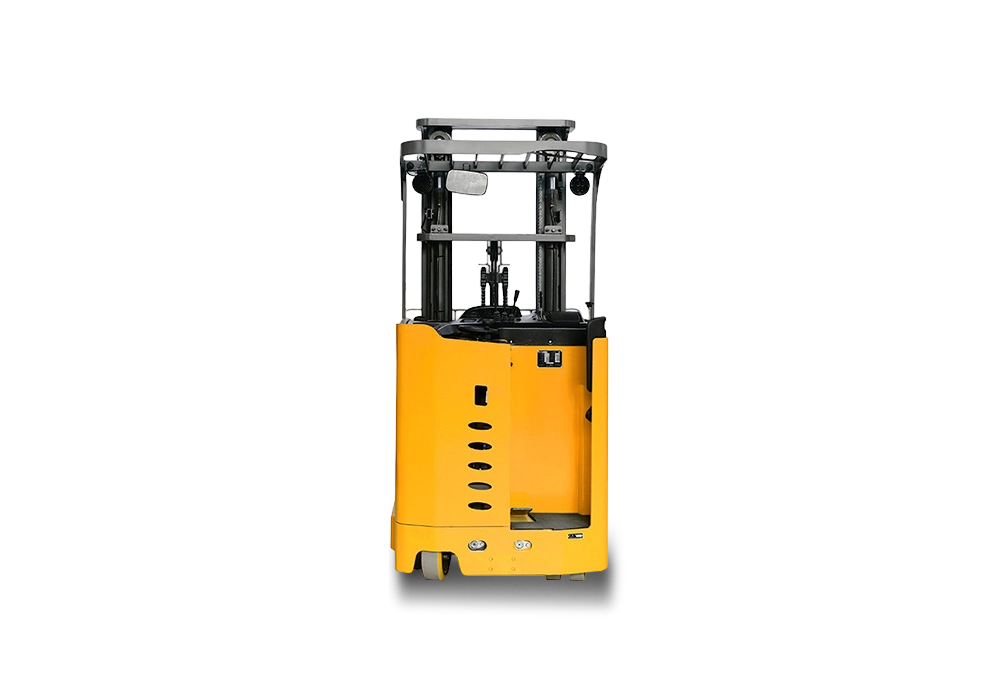

High Performance ● Regeneration Function: The battery will withdraw electricity automatically when decelerating or parking. ● Reliable AC Technology: American Curtis controller and KDS motor provide the infinite variable drive and lift control. The brush-less AC motors offer improved efficiency and reduce maintenance cost. ● CAN bus communications network: provides superior dependability. ● Shimadzu pump and valve ensures the reliability and stability of hydraulic system. ● EPS(electronic steering system): light steering, shows the driving wheel position in real-time. Automatic centering function when starts. |
|
Safety& Ergonomics ● Turning automatic deceleration function to prevent the forklift from turning over when turning, making the operation safer. ● Automatic parking function. ● German imported steel for mast with high strength and high wear resistance. ● Wide view mast and strong OHG. |
 |
 |
Easy Maintenance ● Maintenance free AC Motor makes forklift release less heat and ensures higher efficiency. ● Simple structure and maintenance free components decrease maintenance cost. ● The removable maintenance cover helps to access to the controller and other key parts easier. |
| Specification |
1 |
Manufacturer |
|
UN |
|||
|
2 |
Model |
|
FBR15-NQC3 |
FBR18-NQC3 |
FBR20-NQC3 |
FBR25-NQC3 |
|
|
3 |
Power |
|
Battery |
||||
|
4 |
Operation |
|
Stand-on |
||||
|
5 |
Rated Load Capacity |
Q(kg) |
1500 |
1800 |
2000 |
2500 |
|
|
6 |
Load Centre |
C (mm) |
500 |
500 |
500 |
500 |
|
|
7 |
Lift Height |
H3 (mm) |
4000 |
4000 |
4000 |
4000 |
|
|
8 |
Free Lift |
H2 (mm) |
1010 |
1010 |
1010 |
910 |
|
|
9 |
Fork Size (LxWxT) |
L/W/T(mm) |
920x120x35 |
1070x120x40 |
1070x120x40 |
1070x120x40 |
|
|
10 |
F/B(a°/β°) |
Deg |
2°/4° |
||||
|
Dimensions |
11 |
Overall Length (without fork) |
L1 (mm) |
1800 |
1885 |
1885 |
1885 |
|
12 |
Main Body Length |
L2 (mm) |
1260 |
1270 |
1270 |
1330 |
|
|
13 |
Width |
B1 (mm) |
1090 |
1200 |
1200 |
1200 |
|
|
14 |
Mast Lowered Height |
H1 (mm) |
1975 |
1975 |
1975 |
1875 |
|
|
15 |
Mast Extended Height (With Backrest) |
H4 (mm) |
5705 |
5705 |
5705 |
5405 |
|
|
16 |
Overhead Guard Height |
H5 (mm) |
2310/2255 |
||||
|
17 |
Turning Radius |
Wa (mm) |
1660 |
1660 |
1750 |
1920 |
|
|
18 |
Ground Clearance |
H6 (mm) |
94 |
94 |
82 |
82 |
|
|
19 |
Reach Distance |
X (mm) |
560 |
560 |
640 |
670 |
|
|
20 |
Wheelbase |
Y (mm) |
1370 |
1370 |
1485 |
1655 |
|
|
21 |
Front Tread |
B2 (mm) |
1005 |
1005 |
1080 |
1080 |
|
|
22 |
Rear Tread |
B3 (mm) |
625 |
625 |
705 |
705 |
|
|
23 |
Working Aisle Width With Pallet (1000x1200，1200 Lengthways) |
Ast(mm) |
2715 |
2715 |
2750 |
2850 |
|
|
24 |
Working Aisle Width With Pallet (800*1200，800 Lengthways) |
Ast(mm) |
2760 |
2760 |
2780 |
2855 |
|
|
Performance |
25 |
Travel Speed (Full Load) |
km/h |
9.5 |
|||
|
26 |
Travel Speed (No Load) |
km/h |
10 |
||||
|
27 |
Lifting Speed (Full Load) |
mm/s |
320 |
320 |
300 |
280 |
|
|
28 |
Max gradeability (Full Load) |
% |
12 |
10 |
10 |
10 |
|
|
29 |
Total Weight (Contains the battery) |
Kg |
2440 |
2440 |
2510 |
2625 |
|
|
30 |
Front x 2 |
|
250x85 |
250120 |
|||
|
31 |
Rear x 1 |
|
300x135 |
343x135 |
|||
|
32 |
Balance |
|
178x76 |
||||
|
Drive |
33 |
Diver Motor |
kw |
4.5 |
|||
|
34 |
Pump Motor |
kw |
12.5 |
||||
|
35 |
Battery (Standard) |
V/Ah |
48/375 |
48/375 |
48/425 |
48/425 |
|
|
36 |
Steering System |
|
Eletronic Power Steering |
||||
|
37 |
Service Brake |
|
Electromagnetic Brake |
||||
|
38 |
Controller Type |
|
AC |
||||
|
39 |
Controller Manufacturer |
|
Curtis |
||||
Specifications and characteristics are subject to change without notice.
Please contact us for detailed information.
CE Certificate
What do we do
Zhejiang UN Forklift Co., Ltd. is a professional China Reach Truck(Stand in) suppliers and OEM Reach Truck(Stand in) company integrating R&D, production, sales and service. Founded in 1978, the company occupies an area of 13.2 acres and has an annual production capacity of 10,000 units.
We have strict quality control requirements and the advanced testing equipment in the industry. Every process has professionals to conduct inspections to ensure product quality.
UN Forklift has a wide sales and service network in the world, with UN forklift sales and service partners in Europe, South America, North America, Africa, and Asia.
"Energy saving, environmental protection, high efficiency and safety" are the design concepts of UN products.
How well we did it
After years’ development, UN has a complete range of forklifts. Now it has 17 varieties, 96 series, and more than 200 specifications of production capacity.
China's first reach forklift & VNA Truck were born in UN; UN has a number of national patents on the intellectual property rights of electric forklifts, and participated in the formulation of China's electric forklift industry standards.
UN is also one of the professional internal combustion truck manufacturers in China, providing high-emission standard internal combustion forklifts for international markets.
UN is the designated OEM supplier of many well-known domestic and foreign companies, including Hyundai Heavy Industries and Xuzhou Construction Machinery Group etc.
What will we do
In recent years, with the global emphasis on carbon emissions, UN Forklift has vigorously promoted the research and development of new energy forklifts, and has successively launched popular models such as diesel converted lithium-ion and standard lithium-ion batteries forklift trucks. At the same time, models that meet the high emission requirements of countries such as the European Union and North America are also launched for customers to operate under different working conditions.
UN forklift will continue to produce forklifts features more energy saving, smarter and higher cost effective!
