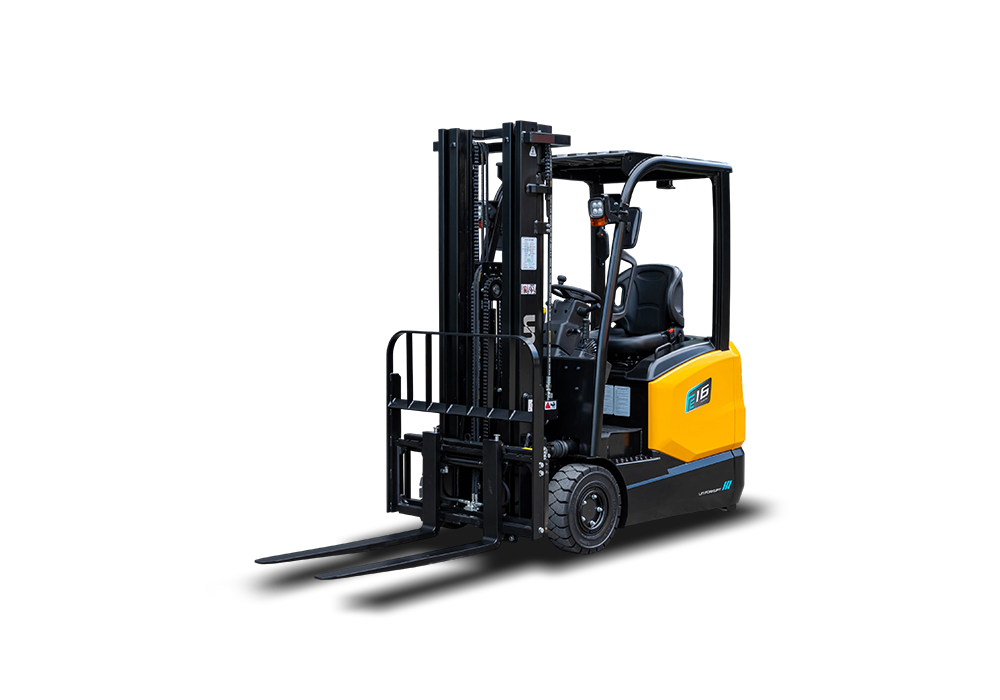

Three Wheel Electric 1.3T-2.0T

FE SERIES 1.6T-1.8T

3-WHEEL

ELECTRIC FORKLIFT

Get brochure
Product Description

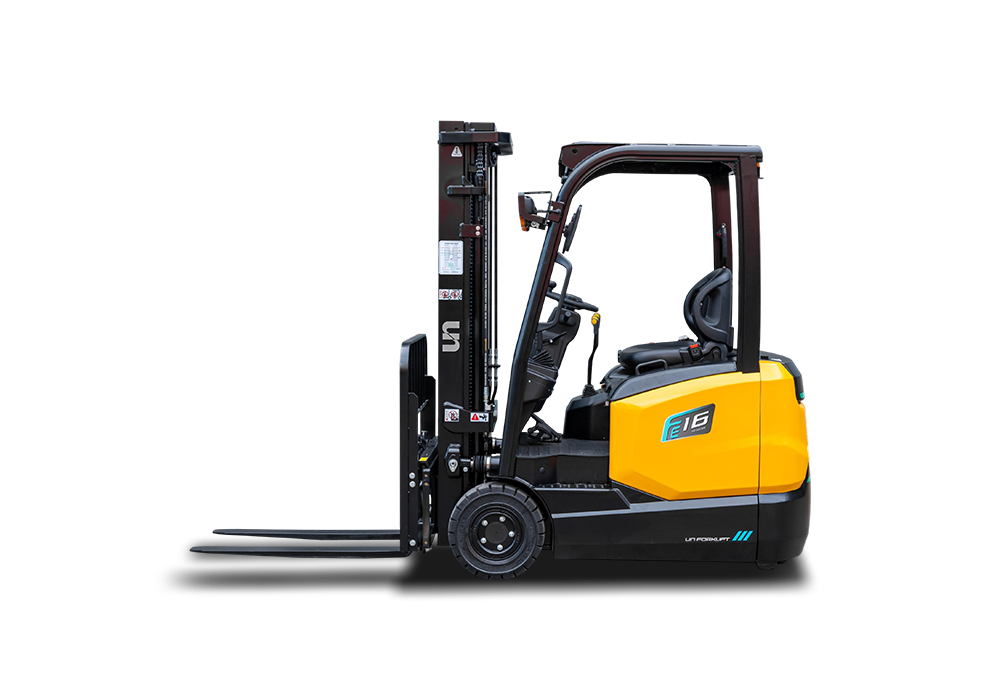

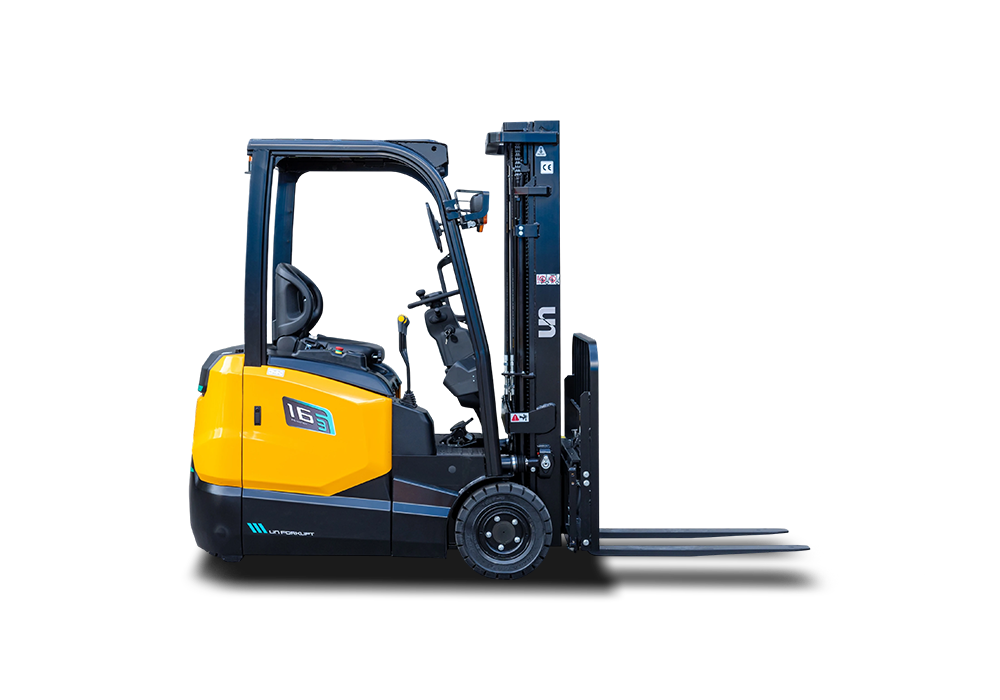

FE Series 3-Wheel Electric Forklift is a fully upgraded model developed based on the original V Series, with a load capacity of 1.6–1.8 tons.

Compact & agile structure with a small turning radius, making it ideal for fast-paced operations. Equipped with a lithium-powered drive system and intelligent regenerative braking technology, it delivers energy efficiency while ensuring responsive handling and operational safety.

This model is particularly well-suited for indoor operations in confined spaces.

E-mail: [email protected]

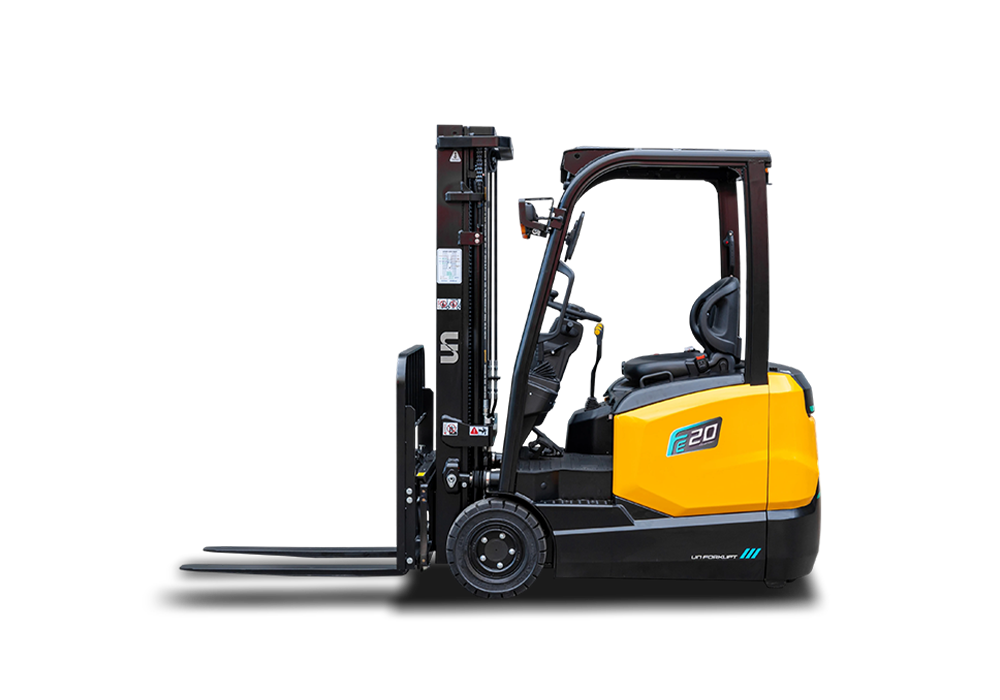

PREV： FE Series 2.0T 3-Wheel Electric ForkliftPREV： No next article
Zhejiang UN Forklift Co., Ltd. Product Details

MAIN SPECIFICATIONS

Model

FBT16

FBT18

Rated Load Capacity

Q(kg)

1600

1800

Load Centre

c(mm)

500

500

Wheelbase

y(mm)

1355

1355

Total Weight

kg

3280

3380

Overhead Guard Height

h6(mm)

2085

2085

Length to Face of Fork
(Without Fork)

l2(mm)

1930

1930

Overall Width

b1(mm)

1090

1090

Turning Radius
(Outside)

Wa(mm)

1560

1560

Travel speed
(Full load)

km/h

13

13

Travel Speed
(No Load)

km/h

14

14

Max.Gradeability
(Full Load/No Load)

%

15

15

Battery

V/Ah

48V/460Ah  77.28V/150Ah

48V/460Ah  77.28V/150Ah

General 1 Manufacturer UN
2 Model FBT16 FBT18 FBT20
3 Drive: Electric(battery or mains), Diesel, Petrol,fuel gas Electric
4 Operator type: Hand, Pedestrian, Standing, Seated, order-picker Seated Seated Seated
5 Load capacity /rated load Q(kg) 1600 1800 2000
6 Load centre distance c(mm) 500 500 500
7 Load distance, center of drive axle to fork x(mm) 375 375 375
8 Wheelbase y(mm) 1355 1355 1450
9 Total Weight kg 3280 3380 3430
Chassis 10 Tires: Solid rubber, Superelastic, Pneumatic, Polyurethane Pneumatic
11

Tyre size

(Front x 2)

 18X7-8 18X7-8 200/50-10
12

Tyre size

(Rear x 2)

 15×4.5-8 15×4.5-8 15×4.5-8
13 Front tread b10(mm) 918 918 924
14 Rear tread b11(mm) 180 180 180
Dimensions 15 Tilt of mast/fork carriage forward/backward α/β（°） 6°/6° 6°/6° 6°/6°
16 Mast lowered height h1(mm) 2025 2025 2025
17 Free lift height h2(mm) 85 85 80
18 Rated lift height h3(mm) 3000 3000 3000
19

Mast extended height

(With backrest)

 h4(mm) 4052 4052 4052
20 Overhead guard height h6(mm) 2085 2085 2085
21

Length to face of fork

(Without fork)

 l2(mm) 1930 1930 2025
22 Overall width b1(mm) 1090 1090 1120
23

Fork size

(l×e×s)

 l/e/s(mm) 920×100×35 920×100×35 1070×100×40
24 Distance between fork-arms b5(mm) 200/1010 200/1010 200/1010
25

Ground clearance

(Laden, below mast)

 m1(mm) 115 115 115
26

Ground clearance

(Centre of wheelbase)

 m2(mm) 103 103 103
27 Aisle width for pallets 1000×1200 crossways Ast(mm) 3261 3261 3351
28 Aisle width for pallets 800×1200 lengthways Ast(mm) 3386 3386 3476
29

Turning radius

(Outside)

 Wa(mm) 1560 1560 1655
Performance 30

Travel speed

(Full load)

 km/h 13 13 13
31

Travel speed

(No load)

 km/h 14 14 14
32

Lifting speed

(Full load)

 mm/s 300 300 300
33

Lifting speed

(No load)

 mm/s 400 400 400
34

Max.Gradeability

(Full load)

 % 15 15 15
35

Max.Gradeability

(No load)

 % 15 15 15
36 Service brake Hydraulic Hydraulic Hydraulic
37 Parking brake Mechanical Mechanical Mechanical
Power & Transmission 38 Drive motor rating S2-60min kw 2×4.8 / 2×5 2×4.8 / 2×5 2×4.8 / 2×5
39 Lift motor rating at S3-15min kw 9.5 / 11 9.5 / 11 9.5 / 11
40 Battery voltage, nominal capacity V/Ah 48V/460Ah  77.28V/150Ah 48V/460Ah  77.28V/150Ah 48V/540Ah  77.28V/150Ah
41 Battery weight kg 748 / 780 748 / 780 866 / 780
42 Type of drive control MOS/AC
43 Manufacturer ZAPI
44

Operating pressure

(For attachments)

 Mpa 17.5

MAIN SPECIFICATIONS

Model

FBT16

FBT18

Rated Load Capacity

Q(kg)

1600

1800

Load Centre

c(mm)

500

500

Wheelbase

y(mm)

1355

1355

Total Weight

kg

3280

3380

Overhead Guard Height

h6(mm)

2085

2085

Length to Face of Fork
(Without Fork)

l2(mm)

1930

1930

Overall Width

b1(mm)

1090

1090

Turning Radius
(Outside)

Wa(mm)

1560

1560

Travel speed
(Full load)

km/h

13

13

Travel Speed
(No Load)

km/h

14

14

Max.Gradeability
(Full Load/No Load)

%

15

15

Battery

V/Ah

48V/460Ah  77.28V/150Ah

48V/460Ah  77.28V/150Ah

https://www.youtube.com/embed/u_nXRjWF5Xs?si=3j1whhIZAG7neCRO

FE SERIES 1.6T-1.8T

3-WHEEL

ELECTRIC FORKLIFT

FE Series 1.6T-1.8T 3-Wheel
Electric Forklift

Zhejiang UN Forklift Co., Ltd. Product Features
  • Zhejiang UN Forklift Co., Ltd. Appearance

    ● Boasting an all-new design, the forklift combines a compact build, sleek contours, and bold colors to deliver a modern and eye-catching appearance.

  • Zhejiang UN Forklift Co., Ltd. High Performance

    ● Dual drive motors deliver powerful performance.

    ● Load-sensing steering gear, increasing the lift speed.

    ● Multiple speed modes.

    ● Equipped with a high-power hydraulic pump motor & a low-noise, high-displacement pump.

    ● ZAPI controller utilizes high-frequency MOSFET integrated control mode.

    ● AC controller enables computer-controlled operations for driving, steering, lifting, and tilting.

    ● High-capacity battery provides longer runtime and stronger power output

  • Zhejiang UN Forklift Co., Ltd. Safety & Reliability

    ● Robust stamped OHG

    ● Electric braking combined with wet braking, providing dual-layer protection.

    ● Equipped with proportional lifting function.

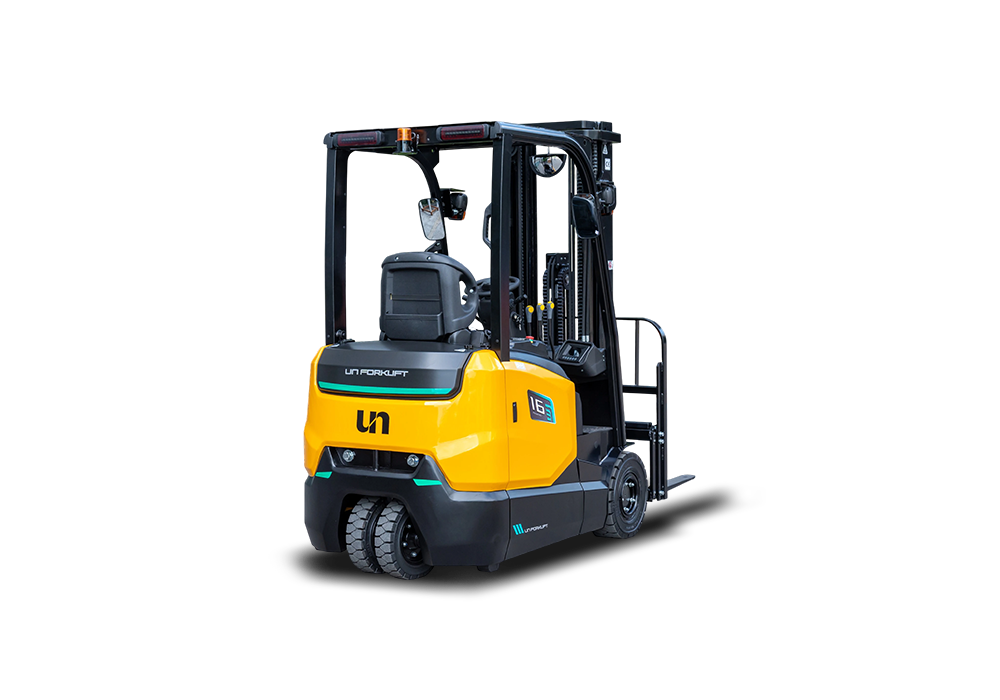

    ● Double rear tires enhance stability.

    ● Dual drive motors deliver powerful performance.

    ● Turning speed deceleration function.

    ● High-capacity battery provides longer runtime and stronger power.

    ● 3rd-generation battery , with IP67 waterproof & dustproof.

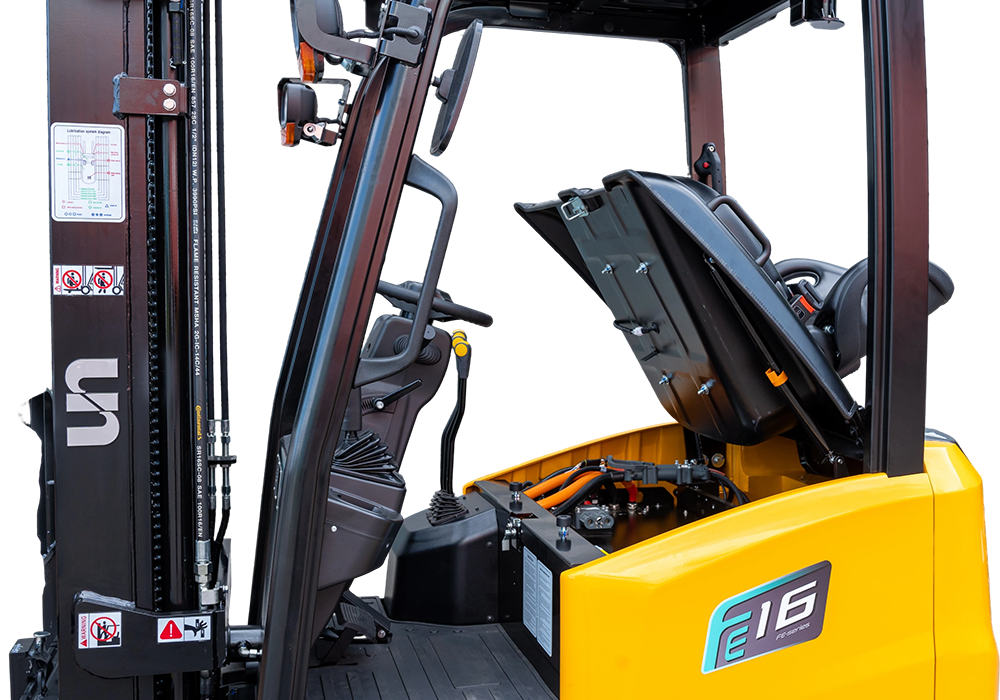

  • Zhejiang UN Forklift Co., Ltd. Easy Maintenance

    ● Engine cover swings open entirely, allowing effortless maintenance.

    ● Electrical control cover opens fully for fast access.

    ● Tool-free floor plate removal makes servicing quick and easy.

    ● Side battery extraction system.
