Rough Terrain Forklift

F Series 2.5T 2WD&4WD Rough Terrain Forklift
(Compact)

Get brochure

Product Description

UN Forklift's all-new F-Series 2WD & 4WD hydrostatic off-road forklifts represent a breakthrough in design and performance. Built for toughness and compactness, the F-Series delivers exceptional capability and efficiency, making it ideal for the challenging terrains with ease, especially for height and space limited areas.

E-mail: [email protected]

Product Details

MAIN SPECIFICATIONS

Model		FD25J-DFJE1
Rated Load Capacity	Q(kg)	2500
Load Centre	C(mm)	500
Overall Length	l1(mm)	4160
Length to Face of Forks (Without Fork)	l2(mm)	3090
Overall Width	b1(mm)	1450
Overhead Guard Height	h6(mm)	1990
Turning Radius	Wa	3380
Travel Speed (Full Load) 2WD/4WD	km/h	19/10
Travel Speed (No Load) 2WD/4WD	km/h	21/12
Max.Gradeability (Full Load / No Load）	%	50
Wheelbase	Y(mm)	1900 mm
Total Weight		4230
Engine Model		YANMAR/4TNE98/Euro 3 HYUNDAI/D24/Euro 5

Product Features

High Performance

● Strong power: Equipped with Yanmar Stage III and Hyundai Stage V engines.

● Adopts hydrostatic transmission with stepless speed regulation.

● Load sensing steering system.

● 2WD and 4WD modes, with one-button seamless switching.
Safety & Reliability

● Semi closed cabin.

● Suspension seat with OPS (option).

● Emergency disconnect switch.

● Lockable disconnect switch can completely shut off the power.

● Electronic parking brake, with one-button precise control.

● LED Front & Tail working lights.

● Rear camera display.
Superior Ergonomics

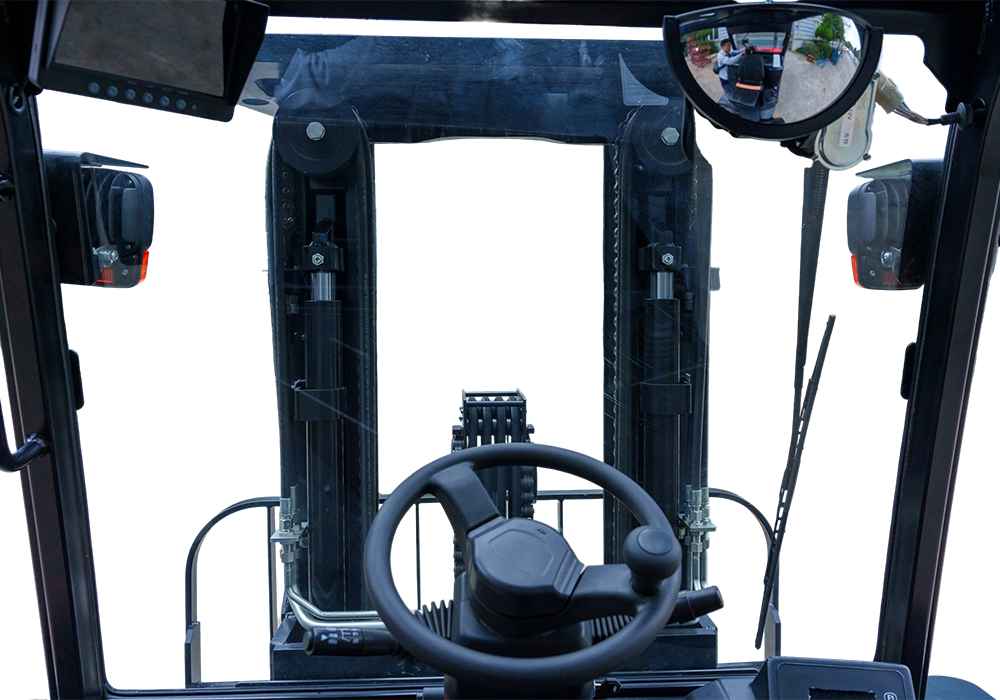

● Wide-view mast & Wide-angle rearview mirror.

● Fully suspended cabin reduces vibrations and shocks.

● Fully suspended cabin reduces vibrations and shocks.

● Spacious legroom enhances operational comfort.
Easy Maintenance

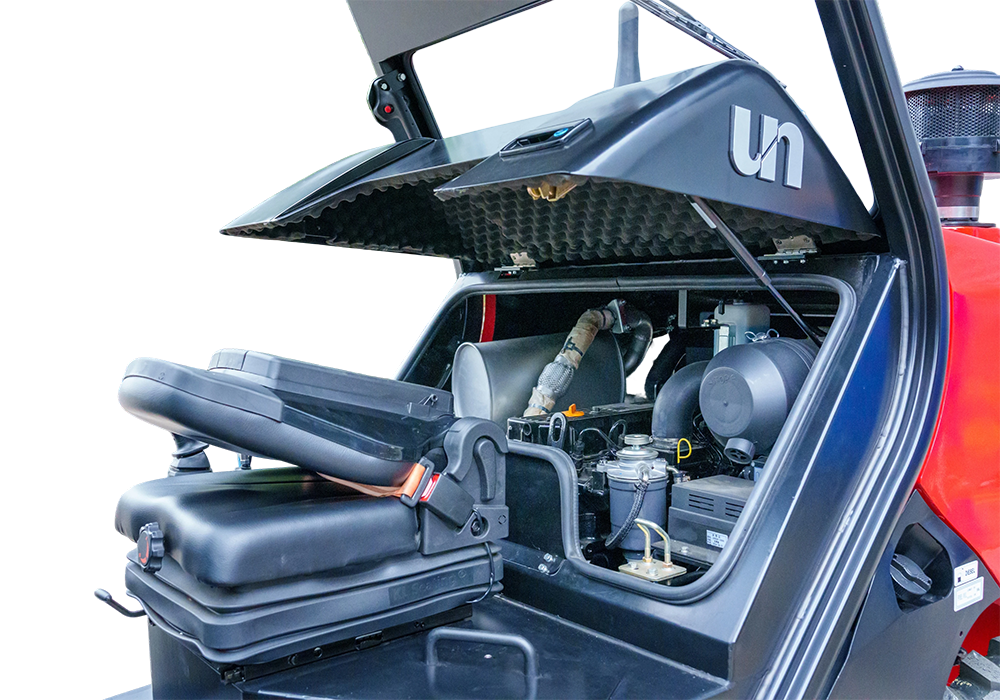

● 90-degree seat folding backrest.

● Forward-tilting overhead guard (Option).
Multiple-site Application

● Powerful off-road performance, can be widely used in construction, agriculture, rescue and other outdoor operations.

● Compact and flexible mechanism, perfectly capable of working in factories, warehouses, basements, stations, wharves, harbors and other complex working conditions.
