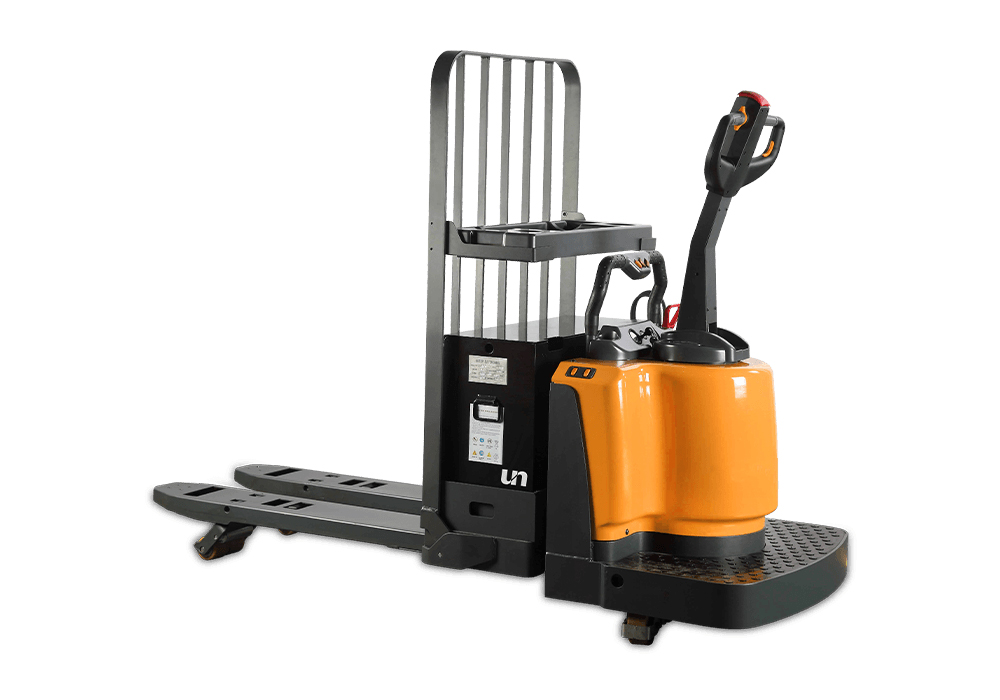

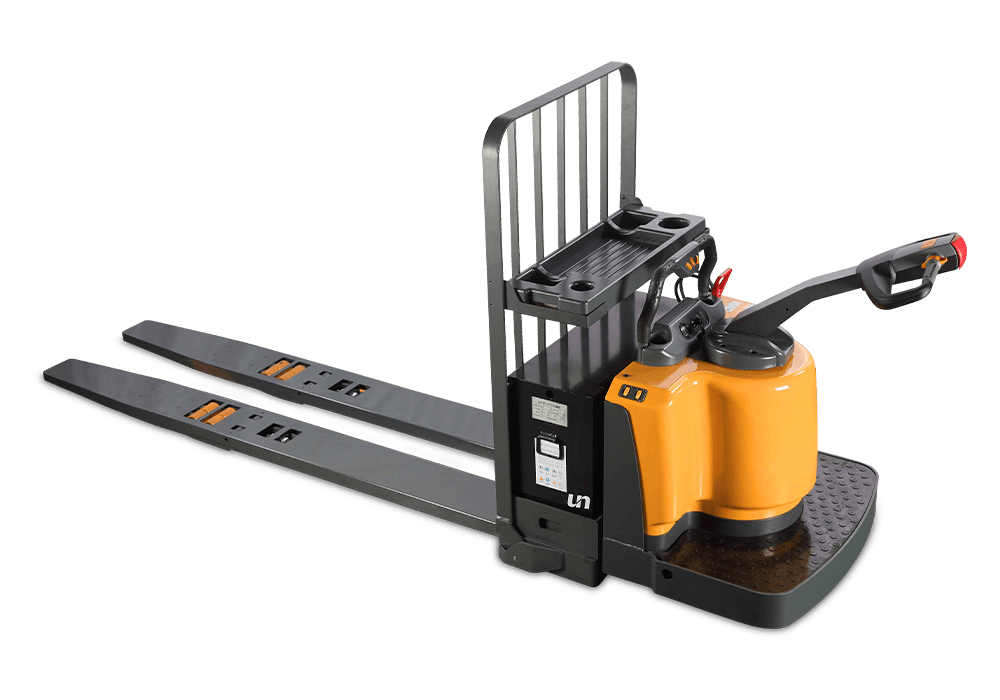

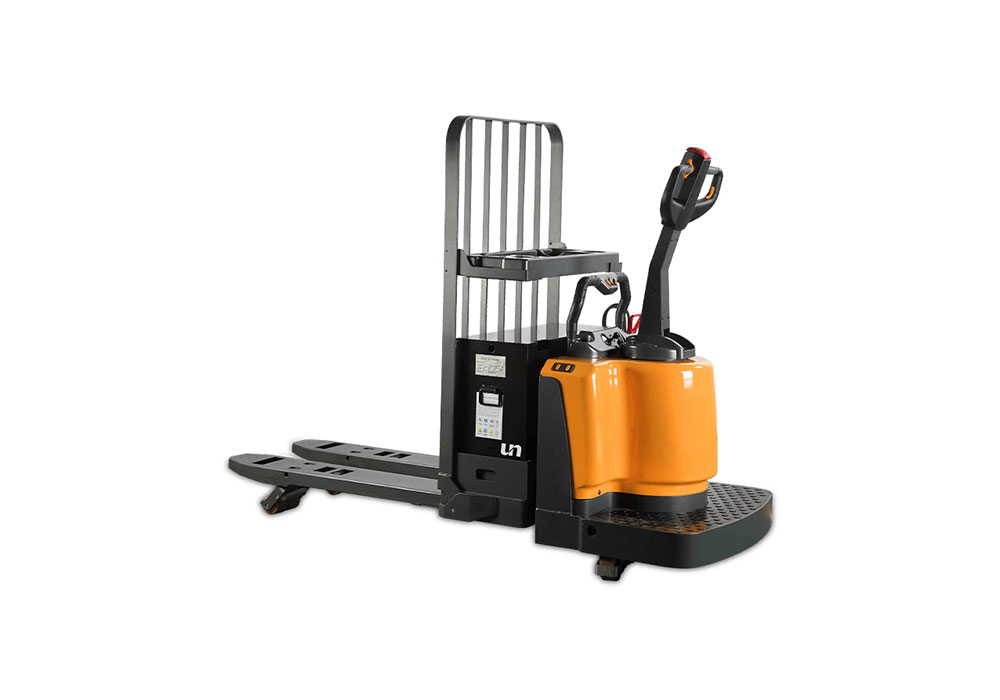

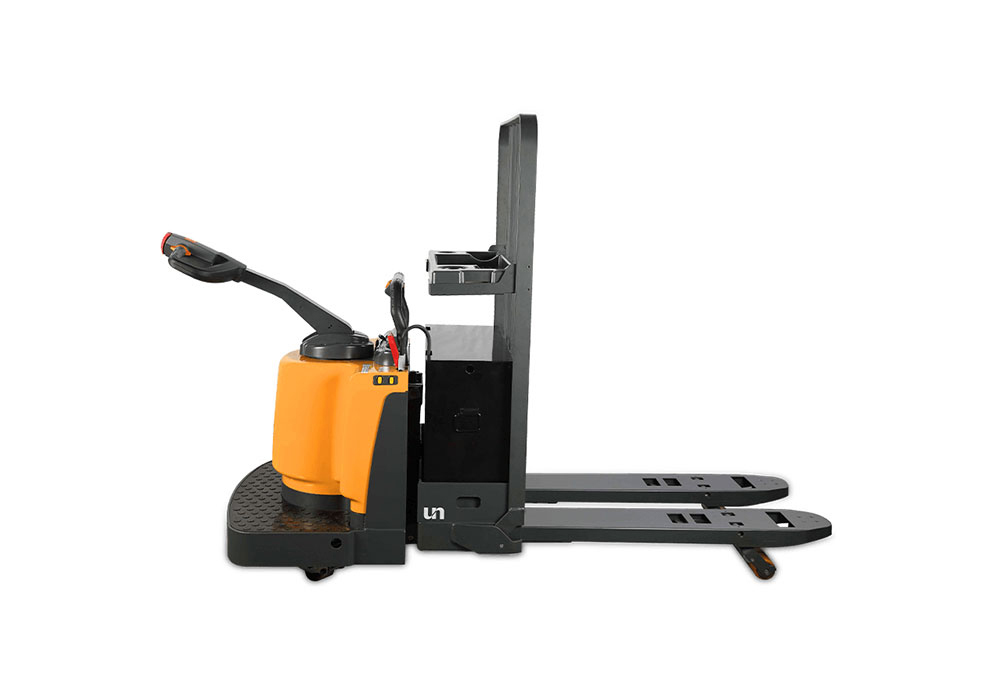

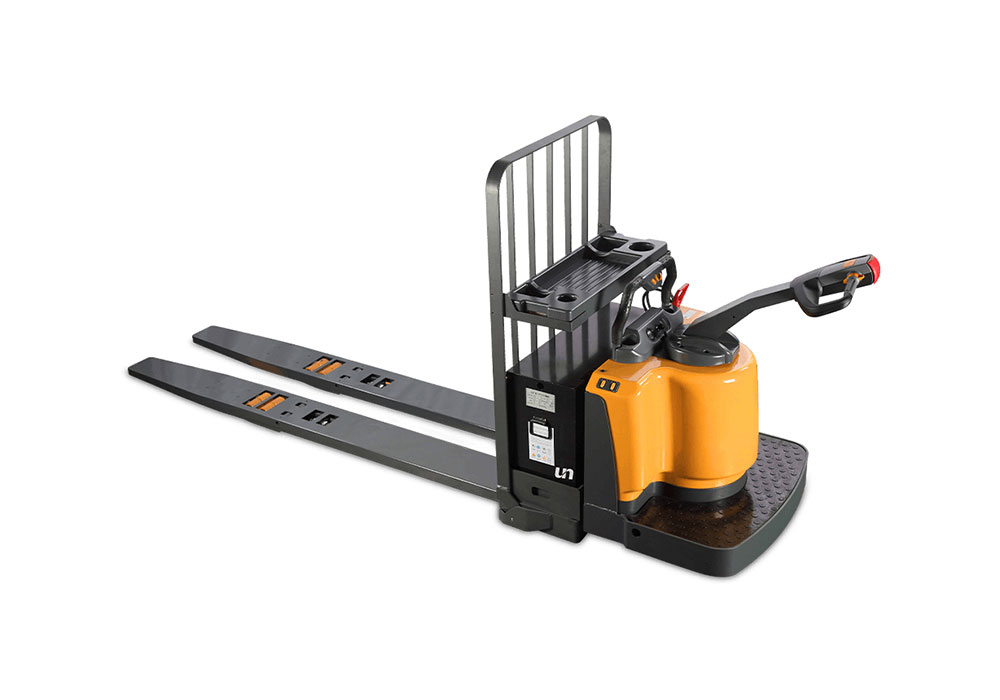

Electric Pallet Truck PT27R PT36R

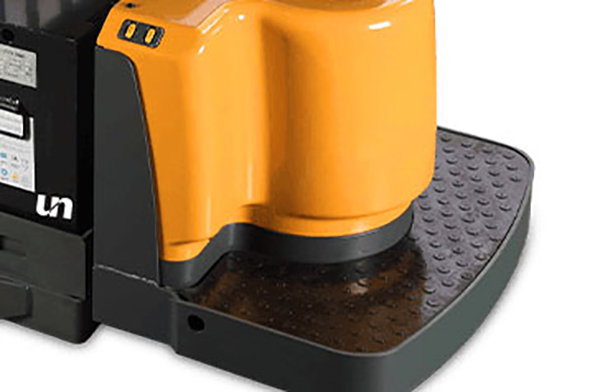

Generous platform

● The roomy platform ensures operator comfort throughout the day.

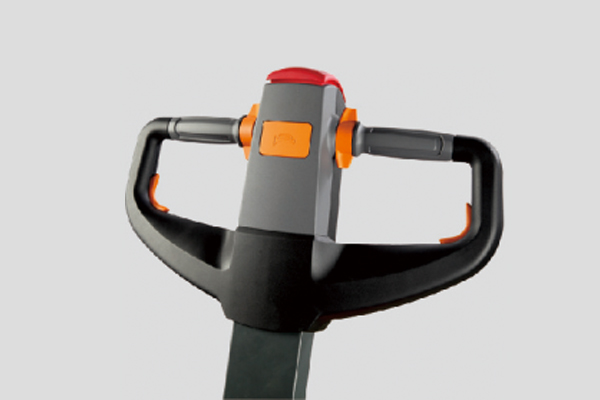

Ergonomic robust German tiller

● The operator friendly robust metal casted German tiller provides maximum of ergonomics and safety in riding-as well as in walking mode.

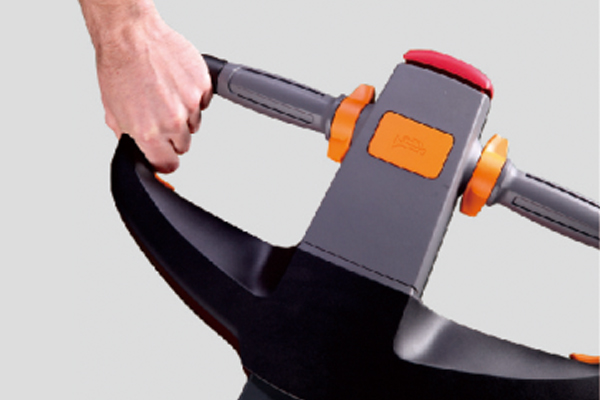

Jog Button

● Jog button on the tiller allows operator to walk beside the truck. Additional side tracker for travelling in tiller direction to increase productivity in order picking operations. The coast mode allows slowly coasting.

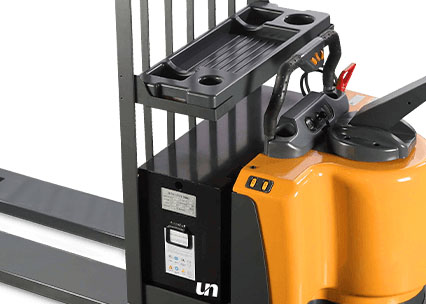

Backrest

● Heavy duty load backrest with a tilt down design to facilitate battery change out.Optional battery rollers provides easier battery change out.

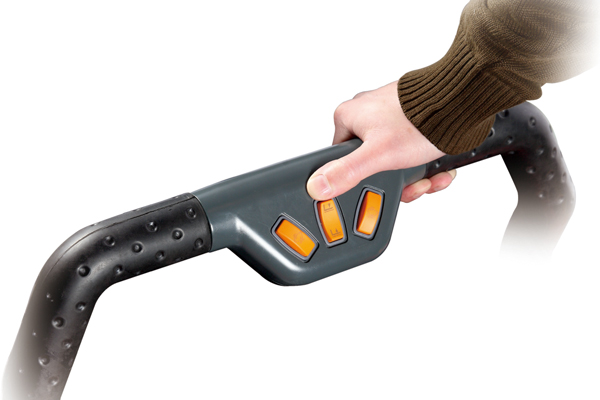

Grab bar with electronic controls

● All control elements ensure safety and productivity. Hey are well ergonomically placed to make operations effortless. The coated grab bar keeps you safe during the whole day.

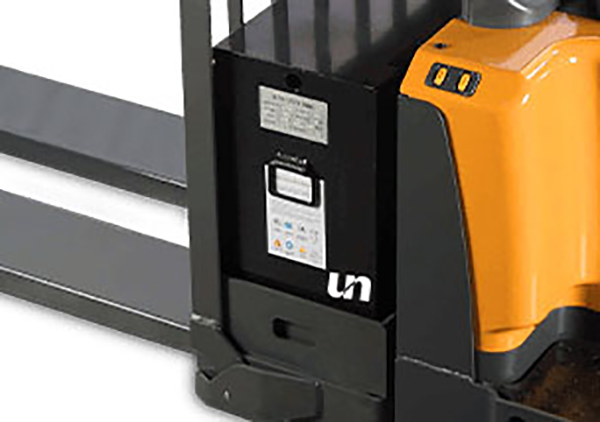

US Tailored Open Battery Compartment

● 13.8” US tailored open battery compartment ready for wide range of industrial batteries, flexible for different battery dimensions.

Manufacturer's type designation

PT27R

PT36R

1.3

Drive

Battery

Battery

1.4

Operator type

Pedestrian

Pedestrian

1.5

Load Capacity / rated load

Q(t)

2.7

3.6

1.6

Load centre distance

c(mm)

600

1220

1.8

Load distance, centre of drive axle to fork

x(mm)

1035

1345

1.9

Wheelbase

y(mm)

1615

2130

Weight

2.1

Service weight

kg

1070

1150

2.2

Axle loading, laden front/rear

kg

1390/2380

1300/3470

2.3

Axle loading, unladen front/rear

kg

830/240

920/250

Tires, chassis

3.1

Tires

Polyurethane(PU)

Polyurethane (PU)

3.2

Tire size,front

∅xw(mm)

∅310x105

∅310x105

3.3

Tire size,rear

∅xw(mm)

∅82x82

∅82x70

3.4

Additional wheels(dimensions)

∅xw(mm)

∅125x60

∅125x60

3.5

Wheels, number front/rear(x=driven wheels)

1 x+2/4

1x+1/8

3.6

Tread, front

b10(mm)

455

455

3.7

Tread, rear

b11(mm)

560/685

585/710

Dimensions

4.4

Lift

h3(mm)

150

150

4.9

Height of tiller in drive position min./ max.

h14(mm)

880/1550

880/1550

4.15

Height, lowered

h13(mm)

83

83

4.19

Overall length

l1(mm)

2330

3350

4.20

Length to face of forks

l2(mm)

1095

1095

4.21

Overall width

b1(mm)

940/960

940/960

4.22

Fork dimensions

s/e/l(mm)

60/230/1220

60/255/2440

4.25

Width across forks

b5(mm)

560/685

585/710

4.32

Ground clearance, centre of wheelbase

m2(mm)

25

25

4.34

Aisle width for pallets 10000X1200 lengthways

Ast(mm)

2700

3900

4.35

Turning radius

Wa(mm)

2145

2660

Performance data

5.1

Travel speed, laden/ unladen

km/h

11/14

9.5/12

5.2

Lift speed, laden/ unladen

m/s

38/49

30/40

5.3

Lowering speed, laden/ unladen

m/s

55/50

45/42

5.8

Max. gradeability, laden/ unladen

%

8/15

6/15

5.10

Service brake

Electromagnetic

Electromagnetic

Electric- engine

6.1

Drive motor rating S2 60min

kW

3.8

3.8

6.2

Lift motor rating at S3 10%

kW

2.2

2.2

6.3

Battery acc. to DIN 43531/35/ 36 A, B, C, no

no,5PZS

no,5PZS

6.4

Battery voltage, nominal capacity K5

V/Ah

24/350

24/350

6.5

Battery weight

kg

320

320

6.6

Energy consumption acc. to VDI cycle

kWh/h

1.83

1.83

Additional data

8.1

Type of drive control

AC speed Control

8.4

Sound level at driver's ear acc. to EN 12053

dB(A)

69

8.6

Steering

Mechanical
