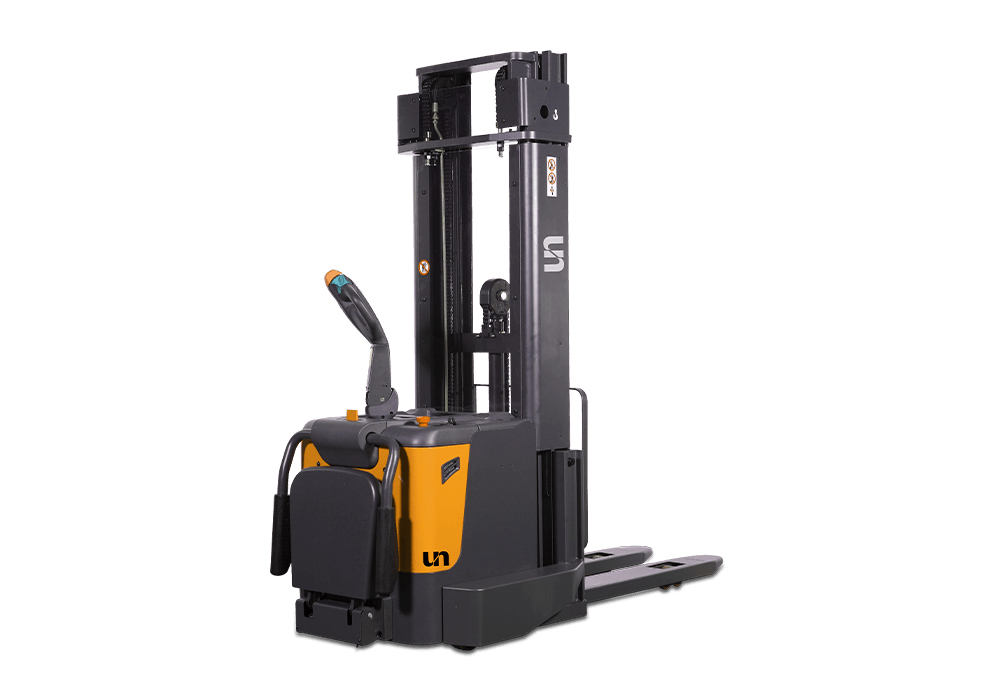

Distinguishing
mark
|
1.2
|
Manufacturer's type designation
|
|
PS15
|
1.3
|
Power (battery ,diesel, petrol, gas, manual)
|
|
5000
|
2900
|
|
Battery
|
1.4
|
Operator type
|
|
Pedestrian
|
1.5
|
Load Capacity/ rated load
|
Q(t)
|
1.5
|
1.6
|
Load centre distance
|
c (mm)
|
600
|
1.8
|
Load distance,centre of drive axle to fork
|
x (mm)
|
751
|
755
|
1.9
|
Wheelbase
|
y (mm)
|
1526
|
1407
|
Weight
|
2.1
|
Service weight
|
kg
|
1596
|
1095
|
2.2
|
Axle loading, laden front/rear
|
kg
|
1345/1663
|
1165/1430
|
2.3
|
Axle loading, unladen front/rear
|
kg
|
955/553
|
735/360
|
Tires, chassis
|
3.1
|
Tires
|
|
Polyurethane(PU)
|
3.2
|
Tire size,front
|
Фxw (mm)
|
Ф230x75
|
3.3
|
Tire size.rear
|
Фxw (mm)
|
Ф80x70
|
3.4
|
Additional wheels(dimensions)
|
Фxw (mm)
|
Ф124x60
|
3.5
|
Wheels,number front/rear(x=driven wheels)
|
|
1X + 2/4
|
3.6
|
Tread, front
|
b10 (mm)
|
766
|
570
|
3.7
|
Tread, rear
|
b11(mm)
|
390/5051)
|

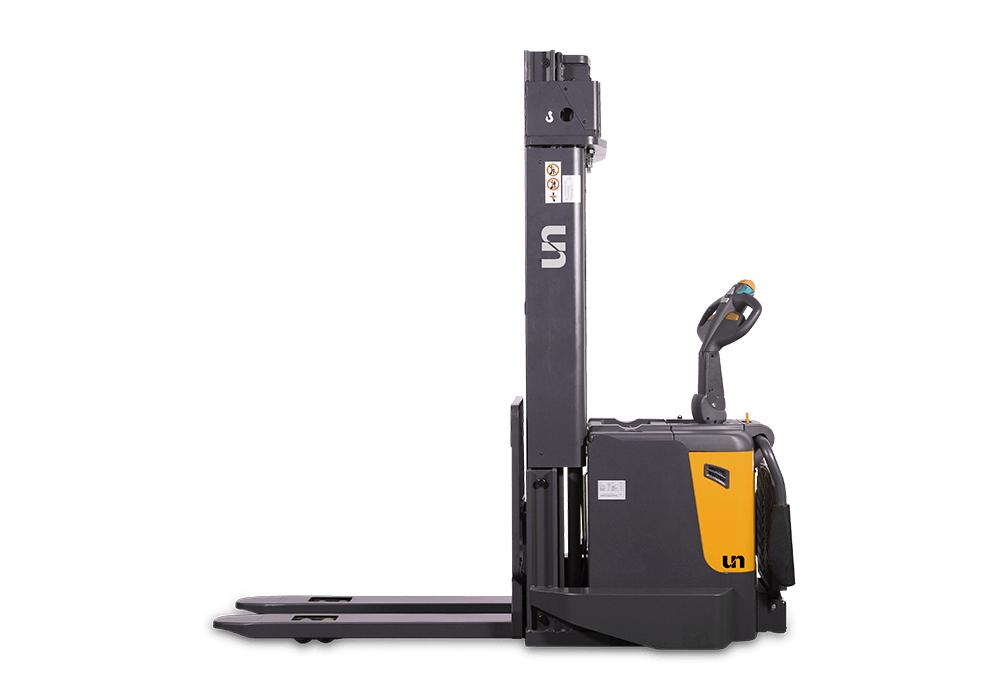

Dimensions
|
4.2
|
Lowered mast height
|
h1 (mm)
|
2220
|
1950
|
4.3
|
Free Lift height
|
h2 (mm)
|
1660
|
150
|
4.4
|
Lift height
|
h3 (mm)
|
4915
|
2815
|
4.5
|
Extended mast height
|
h4 (mm)
|
5520
|
3370
|
4.9
|

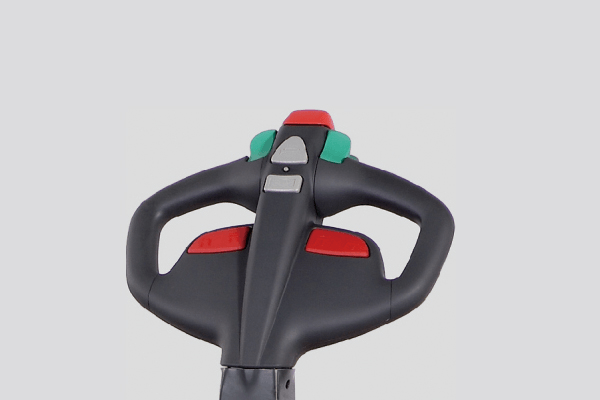

Height of tiller in drive position min./max.
|
h14 (mm)
|
945/1370
|
4.15
|
Height, lowered
|
h13 (mm)
|
85
|
4.19
|
Overall length
|
l1 (mm)
|
21104)
|
19874)
|
4.20
|
Length to face of forks
|
l2(mm)
|
9604)
|
8374)
|
4.21
|
Overall width
|
b1(mm)
|
1000
|
795
|
4.22
|
Fork dimensions
|
s/e/I (mm)
|
60/180/1150
|
4.25
|
Distance between fork-arms
|
b5 (mm)
|
570 /6852)
|
4.32
|
Ground clearance, centre of wheelbase
|
m2 (mm)
|
25
|
4.33
|
Aisle width for pallets 1000X1200 crossways
|
Ast (mm)
|
25674)
|
24474)
|
4.34
|
Aisle width for pallets 800X1200 lengthways
|
Ast (mm)
|
25194)
|
23974)
|
4.35
|
Turning radius
|
Wa (mm)
|
17174)
|
15984)
|
Performance data
|
5.1
|
Travel speed, laden/ unladen
|
km/h
|
6.0/6.0
|
5.2
|
Lift speed, laden/ unladen
|
m/s
|
0.141/0.212
|
0.082/0.1523)
|
5.3
|
Lowering speed, laden/ unladen
|
m/s
|
0.196/0.178
|
0.108/0.0953)
|
5.8
|
Max. gradeability, laden/ unladen
|
%
|
6/12
|
5.10
|

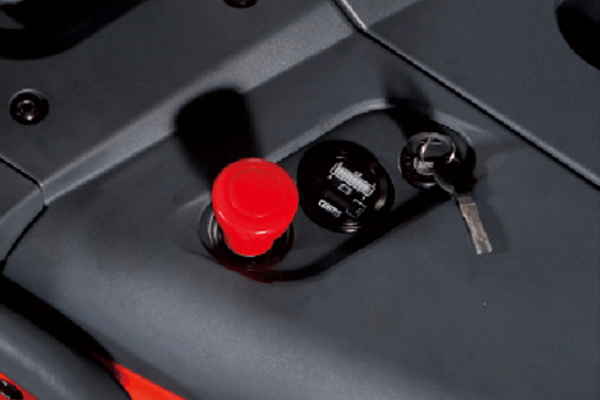

Service brake
|
|
Electromagnetic
|
Electric- engine
|
6.1
|
Drive motor rating S2 60min
|
kW
|
1.3
|
6.2
|
Lift motor rating at S3 4.5%
|
kW
|
3.0
|
2.23)
|
6.3
|

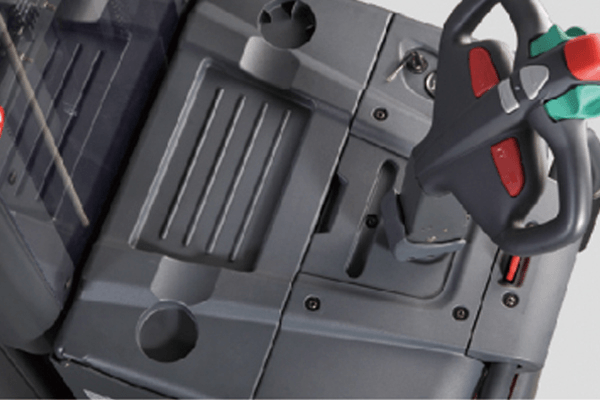

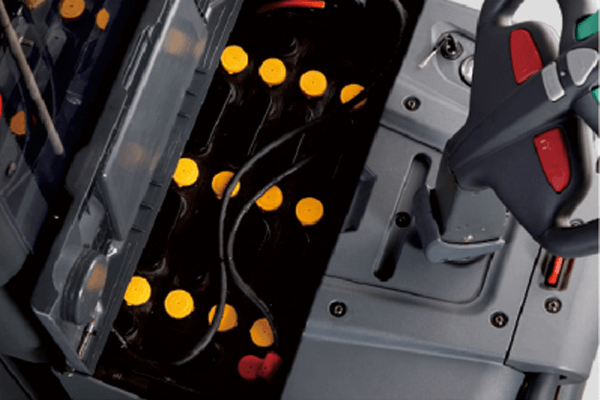

Battery acc. to DIN 43531/35/36 A. B, C, no
|
|
B,3PZS
|
B,2PZS
|
6.4
|
Battery voltage, nominal capacity K5
|
V/Ah
|
24/350
|
24/210
|
6.5
|
Battery weight +/-5%
|
kg
|
288
|
217
|
6.6
|
Energy consumption acc: to VDI cycle
|
kWh/h
|
2.36
|
Additional data
|
8.1
|
Type of drive control
|
|
AC- speed control
|
8.4
|
Sound level at driver's ear acc. to EN 12053
|
dB(A)
|
<69
|
