Distinguishing
mark
|
1.2
|

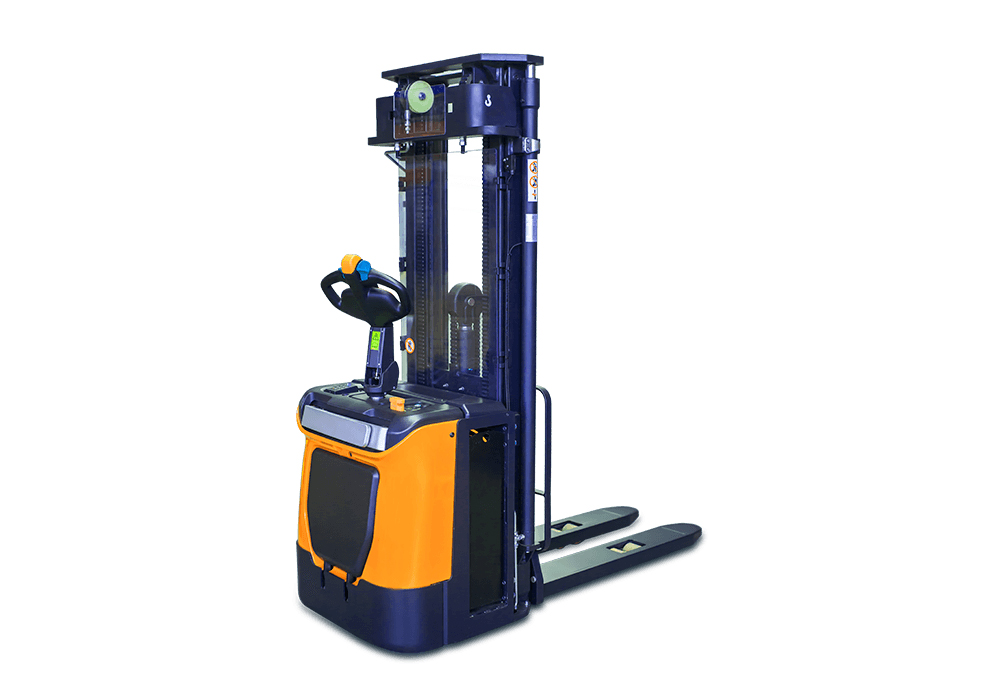

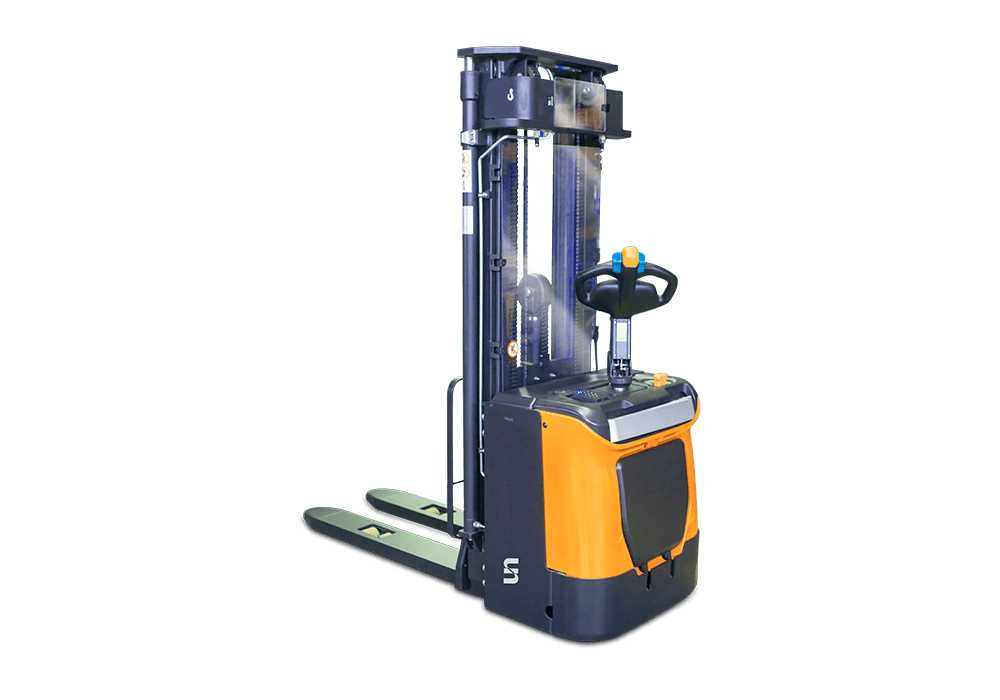

Manufacturer's type designation
|
|
PS12N(3600)
|
PS16N(5500)
|
PS20N(4600)
|
1.3
|
Power (battery ,diesel, petrol, gas, manual)
|
|
Battery
|
1.4
|
Operator type
|
|
Pedestrian
|
1.5
|
Load Capacity / rated load
|
Q(t)
|
1.2
|
1.6
|
2.0
|
1.6
|
Load centre distance
|
c (mm)
|
600
|
1.8
|
Load distance,centre of drive axle to fork
|
x (mm)
|
647
|
1.9
|
Wheelbase
|
y (mm)
|
1167
|
1215
|
1327
|
Weight
|
2.1
|
Service weight
|
kg
|
1080
|
1380
|
1620
|
2.2
|
Axle loading, laden front/rear
|
kg
|
830/1420
|
990/1940
|
1160/2410
|
2.3
|
Axle loading, unladen front/rear
|
kg
|
750/300
|
890/440
|
1040/540
|
Tires, chassis
|
3.1
|
Tires
|
|
Polyurethane(PU)
|
3.2
|
Tire size,front
|
Фxw (mm)
|
Ф230x70
|
3.3
|
Tire size,rear
|
Фxw (mm)
|
Ф84x70
|
3.4
|
Additional wheels(dimensions)
|
Фxw (mm)
|
Ф150x54
|
3.5
|
Wheels,number front/rear(x=driven wheels)
|
|
1x + 1 /4
|
3.6
|
Tread, front
|
b10 (mm)
|
510
|
3.7
|
Tread, rear
|
b11 (mm)
|
390/505
|
Dimensions
|
4.2
|
Lowered mast height
|
h1(mm)
|
2308
|
2410
|
2228
|
4.3
|
Free Lift height
|
h2 (mm)
|
1760
|
1820
|
1520
|
4.4
|
Lift height
|
h3 (mm)
|
3530
|
5430
|
4530
|
4.5
|
Extended mast height
|
h4 (mm)
|
4088
|
6110
|
5208
|
4.9
|

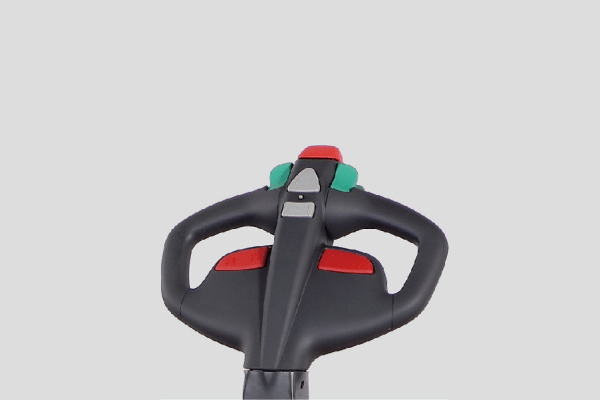

Height of tiller in drive position min./ max.
|
h14 (mm)
|
950/1350
|
4.15
|
Height, lowered
|
h13 (mm)
|
90
|
4.19
|
Overall length
|
l1(mm)
|
18551)
|
18961)
|
20251)
|
4.20
|
Length to face of forks
|
l2(mm)
|
7051)
|
7461)
|
8751)
|
4.21
|
Overall width
|
b1(mm)
|
790
|
4.22
|
Fork dimensions
|
s/e/l (mm)
|
60/180/1150
|
4.25
|
Distance between fork-arms
|
b5 (mm)
|
570 /685
|
4.32
|
Ground clearance, centre of wheelbase
|
m2 (mm)
|
28
|
28
|
23
|
4.33
|
Aisle width for pallets 1000X1200 crossways
|
Ast (mm)
|
22851)
|
23251)
|
24551)
|
4.34
|
Aisle width for pallets 800X1200 lengthways
|
Ast (mm)
|
22501)
|
22901)
|
24201)
|
4.35
|
Turning radius
|
Wa (mm)
|
13801)
|
14201)
|
15501)
|
Performance data
|
5.1
|
Travel speed, laden/ unladen
|
km/h
|
7.0/8.0
|
6.0/7.0
|
6.0/7.0
|
5.2
|
Lift speed, laden/ unladen
|
m/s
|
0.09/0.14
|
0.13/0.20
|
0.13/0.20
|
5.3
|
Lowering speed, laden/ unladen
|
m/s
|
0.25/0.20
|
0.28/0.23
|
0.28/0.23
|
5.8
|
Max. gradeability, laden/ unladen
|
%
|
6/12
|
6/12
|
6/10
|
5.10
|
Service brake
|
|
Electromagnetic
|
Electric- engine
|
6.1
|

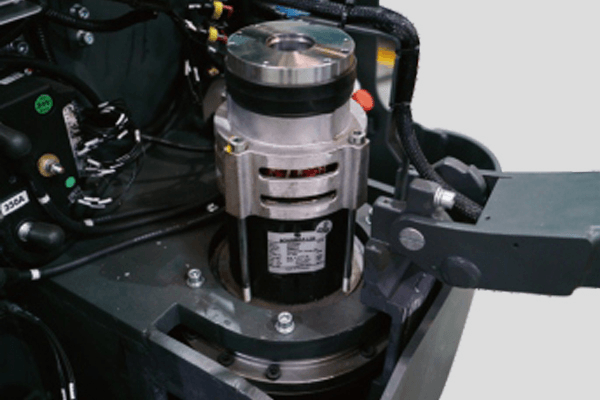

Drive motor rating S2 60min
|
kW
|
1.4
|
6.2
|

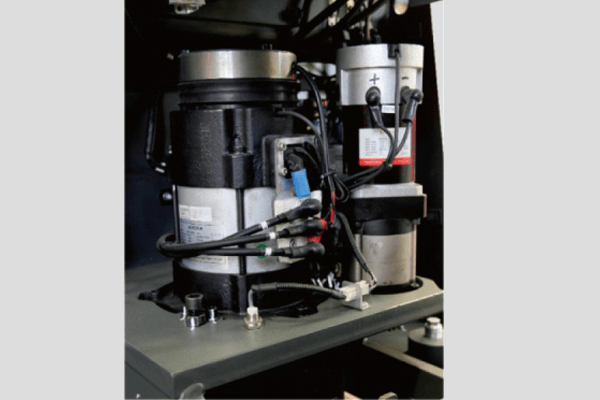

Lift motor rating at S3 4.5%
|
kW
|
1.5/3.2
|
3.2
|
3.2
|
|
Battery acc. to DIN 43531/35/36 A, B, C, no
|
|
2VBS
|
3VBS
|
3PZS
|
6.3
6.4
|
Battery voltage, nominal capacity K5
|
V/Ah
|
24/160-180
|
240/210-270
|
24/270-350
|
6.5
|
Battery weight +/-5%
|
kg
|
155-175
|
185-235
|
235-285
|
6.6
|
Energy consumption acc: to VDI cyder
|
kWh/h
|
0.95
|
1.34
|
1.70
|
Additional data
|
8.1
|

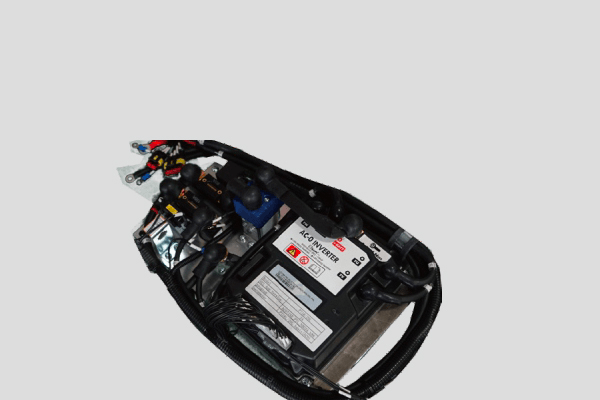

Type of drive control
|
|
AC- speed control
|
8.4
|
Sound level at driver’s ear acc. to EN 12053
|
dB(A)
|
<69
|
