How a 2.0–2.5 Ton Four-Wheel Electric Forklift Improves Material Handling Efficiency

Modern warehouses, distribution centers, manufacturing plants, and logistics facilities require lifting equipment that combines productivity, reliability, safety, and environmental responsibility. The 2.0–2.5 ton FE Series four-wheel electric forklift is designed for this operating environment. It provides the stability and carrying capacity of a conventional counterbalanced forklift while delivering the quiet operation and zero tailpipe emissions associated with electric power.

Developed for medium-intensity indoor handling applications, the FE Series is a fully upgraded four-wheel electric forklift platform. It is available with high-capacity lead-acid or lithium-ion battery systems and uses full alternating-current drive technology. Its adaptive energy management system helps balance power consumption, travel performance, lifting performance, and battery endurance throughout the working cycle.

With a rated load capacity of 2,000 or 2,500 kilograms and a 500-millimeter load center, the forklift is suitable for palletized goods, raw materials, finished products, containers, packaged materials, and general industrial loads. Its four-wheel configuration provides a stable operating foundation, while the compact chassis and tight turning performance help it work efficiently in relatively restricted indoor spaces.

Beyond its operating specifications, the machine reflects the manufacturing capabilities of an established material-handling equipment producer. Its design incorporates a strengthened steering axle, an H-type parallel drive motor arrangement, high-capacity battery options, robust protective structures, accessible service points, and electronic control systems supplied by an experienced industrial controller manufacturer.

This article examines the FE Series forklift in detail, explains its principal advantages, reviews its main technical data, and discusses how its design and production approach help operators achieve dependable material-handling performance.

1. The Role of Electric Forklifts in Modern Material Handling

Forklifts are central to many industrial processes. They move pallets between receiving docks and storage areas, feed production lines, load and unload trucks, and position heavy products in racks or staging zones. A forklift must therefore do more than lift a rated load. It must perform repeated travel, braking, steering, lifting, lowering, and positioning operations while maintaining predictable stability and controllability.

Electric forklifts have become increasingly important because many businesses are seeking to reduce fuel consumption, noise, maintenance requirements, and workplace emissions. In indoor facilities, these benefits can be especially valuable. Warehouses and factories often have limited ventilation, and operators may work near the machine for extended periods. A battery-powered forklift does not produce exhaust emissions during operation, making it more suitable for many enclosed environments.

The FE Series is positioned within this transition toward cleaner and more efficient industrial equipment. Its electric drive system is intended to provide smooth and responsive travel, while the battery and energy management system are designed to support long working periods. The machine is also available with lithium-ion battery technology, which can offer operational advantages for users who require opportunity charging, reduced battery maintenance, or frequent shift utilization.

Electric power does not eliminate the need for careful machine selection. A forklift must be matched to the required load, lift height, floor conditions, aisle width, duty cycle, and charging strategy. The 2.0–2.5 ton FE Series is particularly suitable for users who need more capacity than a compact warehouse truck can provide but do not require a large heavy-duty forklift designed for outdoor industrial loads.

2. Product Overview

The FE Series four-wheel electric forklift is available in configurations rated for 2.0 and 2.5 tons. The principal 2.5-ton configuration uses the model designation FB25-FENQZC in the supplied specification data. Both capacity classes share a common design philosophy and are built around a four-wheel counterbalanced chassis.

The forklift uses a seated operator layout. This configuration is appropriate for applications in which the operator remains on the machine for long periods and must repeatedly travel between storage, production, and dispatch areas. The seated layout also allows the controls, steering wheel, pedals, display, and safety systems to be arranged around a familiar counterbalanced-forklift operating position.

The standard reference configuration includes pneumatic tires, a 3,000-millimeter rated lift height, a 2,200-millimeter overhead guard height, and a 1,180-millimeter overall width. These dimensions allow the forklift to work in many general warehouse and industrial environments while still providing the ground clearance and tire flexibility associated with conventional counterbalanced equipment.

The machine can be configured with different mast types and lift heights. Options include wide-view masts, two-stage full-free-lift wide-view masts, and three-stage full-free-lift wide-view masts. Depending on the selected mast, maximum fork heights extend well beyond 3,000 millimeters. However, rated capacity changes as lift height increases, so the correct load chart must always be consulted before operation.

In practical terms, the FE Series is a general-purpose electric forklift. It is intended to offer a balanced combination of capacity, maneuverability, endurance, operator protection, and serviceability rather than focusing on only one performance characteristic.

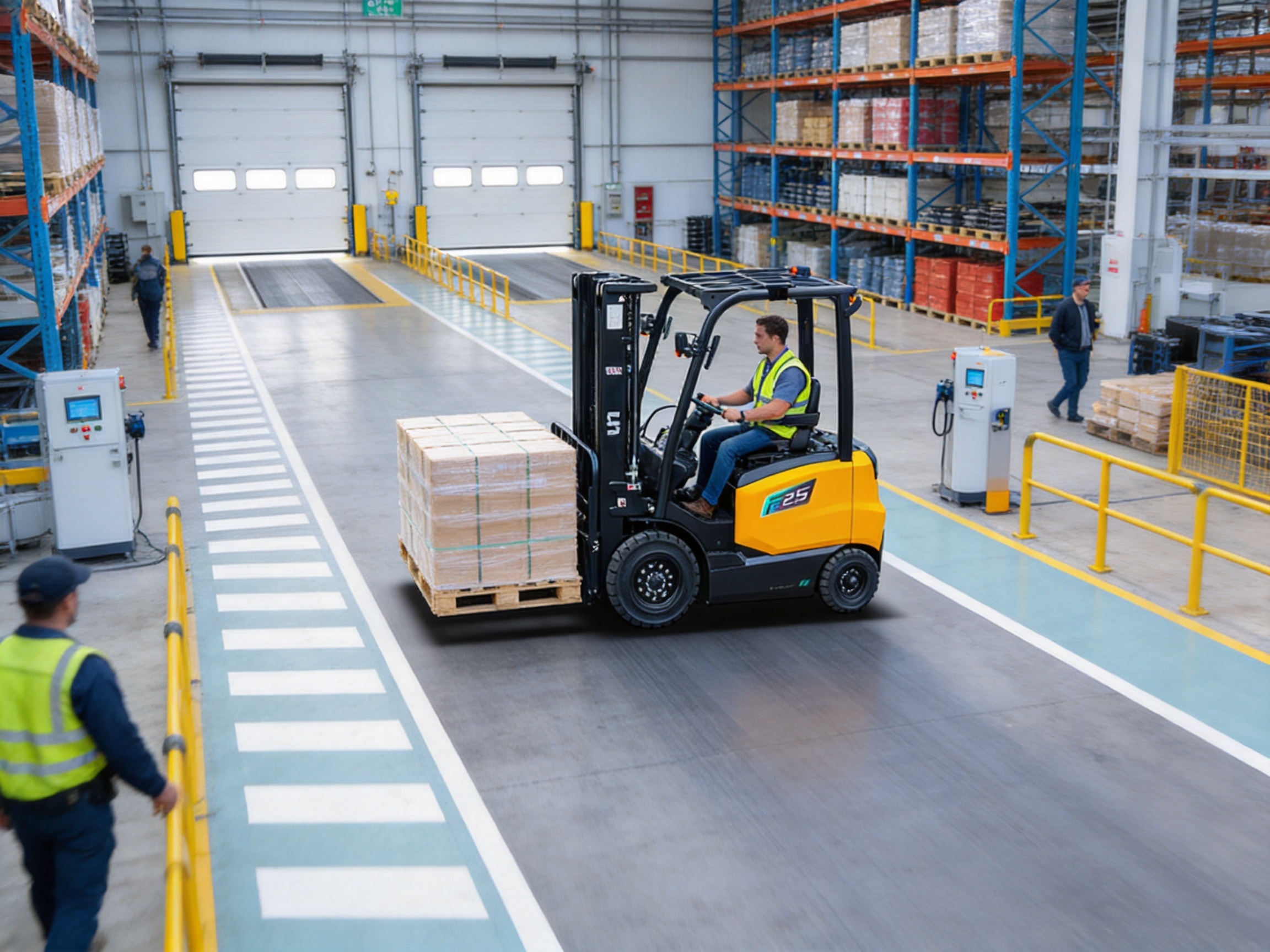

FE Series 2.0T-2.5T 4-Wheel Electric Forklift

3. Main Advantages of the FE Series

3.1 Clean and Quiet Electric Operation

The most immediate benefit of the FE Series is its electric power system. During normal operation, the forklift produces no tailpipe exhaust. This makes it well suited to enclosed warehouses, food and beverage facilities, pharmaceutical storage areas, electronics plants, retail distribution centers, and other sites where air quality is important.

Electric operation also helps reduce workplace noise. Compared with many internal-combustion forklifts, an electric forklift can operate more quietly, especially during low-speed travel and stationary lifting. Lower noise levels can make communication easier and may contribute to a more comfortable environment for operators and nearby employees.

The absence of engine oil, fuel filters, spark-ignition components, exhaust systems, and many other combustion-engine parts can simplify routine maintenance. Maintenance requirements still include tires, brakes, hydraulic components, mast chains, electrical connections, battery systems, and safety devices, but the powertrain contains fewer conventional engine-related service items.

3.2 High-Capacity Battery Options

The FE Series supports high-capacity lead-acid and lithium-ion battery systems. This gives fleet managers greater flexibility when matching the forklift to their operating schedule and investment priorities.

Lead-acid batteries remain widely used because of their established supply chain, familiar maintenance procedures, and competitive initial cost. They can be suitable for single-shift or moderate-intensity operations where charging and battery-change procedures are already established.

Lithium-ion batteries can be advantageous in applications that require frequent use, opportunity charging, reduced battery handling, or minimal routine watering and maintenance. The supplied product information also identifies a battery charging heating function that allows charging at temperatures as low as minus 20 degrees Celsius for the lithium-ion configuration. This feature can be valuable in cold-storage or winter operating conditions, subject to the complete battery manufacturer’s operating instructions.

The choice between lead-acid and lithium-ion technology should be based on duty cycle, charging infrastructure, operating temperature, shift pattern, total cost of ownership, and local service support. By supporting both battery approaches, the FE Series can serve a wider range of customer requirements than a model restricted to one battery technology.

3.3 Full AC Drive Technology

The forklift uses full AC drive technology and a MOS/AC drive control system. AC drive systems are widely used in modern electric forklifts because they can provide smooth acceleration, precise speed control, and effective regenerative braking behavior. They can also support reliable operation across repeated forward and reverse cycles.

The specified drive motor rating for the 2.5-ton reference configuration is 11 kilowatts under the S2-60-minute duty rating. The lift motor is rated at 21 kilowatts under the S3-15-minute rating. These ratings provide the power required for travel and lifting while allowing the machine to be managed according to defined operating-duty conditions.

The adaptive energy management system is designed to coordinate the available battery power with actual operating requirements. Operators may use different speed modes depending on whether they are traveling empty, carrying a full load, working in a restricted aisle, or positioning a pallet precisely. This approach helps avoid using maximum power when it is unnecessary and supports more efficient use of stored battery energy.

3.4 Strong Gradeability and Continuous Operation

The listed maximum gradeability is 15 percent with and without a load. Gradeability is influenced by surface conditions, tire condition, load distribution, battery state of charge, travel direction, and operating technique, but the specification indicates that the forklift is designed to handle moderate ramps and inclines found in industrial facilities.

The maximum drawbar pull for the 2.5-ton configuration is listed as 13,500 newtons. This supports controlled movement under demanding conditions such as starting on a slope, traveling across uneven industrial surfaces, or moving a load over a longer internal route.

Operational continuity depends on more than nominal battery capacity. It also depends on how efficiently the drive system uses power, how often the machine accelerates and stops, how much lifting is performed, and whether the battery is properly charged and maintained. The combination of a high-capacity battery, AC drive technology, and energy management is intended to support stable productivity throughout a working shift.

3.5 Stable Four-Wheel Configuration

A four-wheel counterbalanced forklift provides a broad and stable operating platform. The front axle supports the primary load forces, while the rear steering axle allows directional control. This configuration is familiar to operators and is widely used in warehouses, factories, building-material facilities, and distribution centers.

The FE Series uses an H-type parallel arrangement for the drive motor. This arrangement is designed to contribute to machine stability and balanced power transmission. It also supports a compact drivetrain layout, helping the manufacturer maintain a practical chassis size without compromising the basic four-wheel configuration.

The rated load center is 500 millimeters. This is a common reference point for pallet-handling applications, but capacity must be reduced when the load center increases, the load is unstable, the mast is raised, or an attachment changes the center of gravity. Operators should always use the applicable capacity plate and load chart.

3.6 Tight-Turn Performance

The listed outside turning radius is 2,060 millimeters for the 2.0–2.5 ton reference configuration. This dimension, together with the overall width of 1,180 millimeters, allows the forklift to operate effectively in many general-purpose warehouse aisles.

Tight-turn performance is supported by the steering axle, steering geometry, and load-sensing steering gear. The load-sensing system provides hydraulic flow according to steering demand, which can help reduce unnecessary energy consumption and improve steering response.

A compact turning radius can provide important competitive value. A forklift that requires less space to turn may reduce the need for oversized aisles, increase the number of usable storage positions, and improve travel efficiency. The actual aisle requirement must still be calculated for the selected pallet dimensions, fork length, mast configuration, load overhang, and site layout.

4. Engineering and Manufacturing Strengths

4.1 Established Industrial Manufacturing Experience

The manufacturer behind the FE Series is an established material-handling equipment producer with experience in research and development, manufacturing, sales, and service. Its operations cover a broad product portfolio that includes electric forklifts, internal-combustion forklifts, reach trucks, warehouse equipment, and other industrial handling products.

The company’s production site occupies approximately 53,400 square meters and has an annual production capacity of about 15,000 units. A manufacturing base of this scale can support dedicated production processes, component supply coordination, quality inspection, product testing, and after-sales parts management.

Long-term experience is particularly important in forklift manufacturing because a forklift is a complete industrial system rather than a simple lifting machine. The manufacturer must coordinate frame strength, axle design, hydraulic performance, electrical control, battery packaging, mast geometry, operator ergonomics, and safety protection. Experience across different forklift types allows engineering teams to apply lessons learned from a broader range of operating conditions.

4.2 Research and Development Capability

The company has developed electric forklift technologies and has participated in the formulation of electric forklift industry standards. It has also been associated with the development of reach forklift and very-narrow-aisle equipment in China. These capabilities indicate experience in both conventional counterbalanced forklifts and specialized warehouse vehicles.

For the FE Series, research and development is reflected in several areas. The platform uses a modern AC control architecture, adaptive energy management, a redesigned exterior, improved axle strength, high-capacity batteries, and electronic safety functions. The development objective is not only to increase lifting capacity but also to improve usability, stability, service access, and energy performance.

Research-based product development also supports configuration flexibility. Different customers may require different mast heights, battery technologies, tire types, attachments, travel modes, and cabin or protective options. A manufacturer with a broad engineering organization is better positioned to integrate these variations into a coherent product platform.

4.3 Structural Strength and Steering Axle Design

The steering axle uses a cast axle body with a reported 30 percent increase in strength compared with the previous design reference. A stronger axle body can improve resistance to impact, vibration, and repeated load cycles. This is important because the rear axle is exposed to steering forces, uneven surfaces, reversing impacts, and changing weight distribution as loads are lifted and lowered.

The axle also uses tapered roller bearings. These bearings are designed to handle combined radial and axial loads and can contribute to long-term durability when properly lubricated and maintained. Their use is appropriate for a forklift that must manage steering forces while operating under varying payload conditions.

The high-mounted steering axle design uses flexible connections to improve performance and stability. In an industrial forklift, the axle connection must balance compliance and control. Some flexibility allows the wheels to maintain contact on uneven surfaces, while appropriate structural control helps maintain predictable steering and load behavior.

4.4 Hydraulic System Engineering

The FE Series is equipped with a high-power hydraulic pump motor and a low-noise, high-displacement pump. The hydraulic system supports lifting, tilting, and attachment functions. Its performance affects not only lifting speed but also control quality, sound levels, heat generation, and energy consumption.

The listed lifting speed for the 2.5-ton reference configuration is 350 millimeters per second with a full load and 450 millimeters per second without a load. These figures support efficient pallet positioning while allowing the operator to control the mast during delicate placement tasks.

Proportional lifting functionality allows the operator to regulate hydraulic movement more precisely than a simple fully-on or fully-off control. This can improve pallet positioning, reduce sudden movement, and help protect fragile goods. Smooth hydraulic control is especially useful when stacking products at height or inserting forks into pallets with limited clearance.

The listed operating pressure for attachments is 20.5 megapascals in the 2.5-ton specification. Attachment compatibility must be confirmed for each application because the attachment’s weight, center of gravity, hydraulic flow, and pressure requirements can affect the forklift’s rated capacity and stability.

4.5 Quality-Oriented Production Processes

Advanced forklift manufacturing normally requires a controlled sequence of engineering, fabrication, assembly, and testing operations. The FE Series benefits from a production approach that includes structural fabrication, component integration, electrical installation, hydraulic assembly, mast assembly, battery integration, calibration, and final inspection.

Structural components such as the chassis, overhead guard, mast supports, and axle interfaces must be manufactured to consistent dimensional standards. Accurate welding and machining are important because misalignment can affect mast movement, steering geometry, tire wear, and overall stability.

Electrical production requires careful routing and protection of high-current battery cables, drive motor connections, controller wiring, sensors, and safety circuits. The battery system must be securely mounted and electrically isolated where necessary. Controllers and displays must be configured so that speed modes, braking behavior, lifting functions, fault warnings, and safety interlocks work together correctly.

Hydraulic production requires clean assembly practices. Contamination inside a hydraulic system can damage pumps, valves, cylinders, and seals. Proper hose routing and clamping reduce abrasion and bending stress. Final pressure testing and functional testing help confirm that lifting, tilting, and attachment circuits operate correctly before delivery.

Final production inspection should include travel operation, braking, steering, lifting, mast tilting, warning devices, lighting, parking brake engagement, battery charging behavior, and emergency-related functions. These processes help ensure that the delivered forklift matches its intended specification.

5. Technical Specification Summary

The following table summarizes principal data for the 2.0–2.5 ton four-wheel electric forklift reference configuration. Actual values may vary according to capacity class, battery type, tire selection, mast, attachment, and other options.

Item	Specification
Product type	Four-wheel electric counterbalanced forklift
Rated capacity	2,000–2,500 kilograms
Load center	500 millimeters
Operator position	Seated
Drive system	Electric, full AC drive
Reference battery	48 volts, 600 ampere-hours for the 2.5-ton configuration
Alternative battery technology	Lead-acid or lithium-ion
Drive motor rating	11 kilowatts, S2-60-minute rating
Lift motor rating	21 kilowatts, S3-15-minute rating
Maximum travel speed with load	13 kilometers per hour
Maximum travel speed without load	14 kilometers per hour
Lifting speed with load	350 millimeters per second
Lifting speed without load	450 millimeters per second
Maximum gradeability	15 percent
Outside turning radius	2,060 millimeters
Overall width	1,180 millimeters
Wheelbase	1,520 millimeters
Rated lift height	3,000 millimeters in the reference configuration
Overhead guard height	2,200 millimeters
Reference total weight	4,220 kilograms for the 2.5-ton configuration
Front tire	7.00-12-12PR pneumatic tire
Rear tire	18×7-8-14PR pneumatic tire
Service brake	Hydraulic
Parking brake	Mechanical
Drive controller	MOS/AC control system

The data shows that the FE Series is designed as a balanced industrial machine. It provides a useful combination of load capacity, speed, lift performance, compact dimensions, and battery power. Customers should confirm the exact configuration before purchase because mast height, battery type, tire selection, and attachments can change the final machine weight, capacity, dimensions, and operating behavior.

6. Mast Options and Rated Capacity

Mast selection is one of the most important decisions when specifying a forklift. A mast must provide the required lift height while remaining suitable for building clearances, rack geometry, door heights, and the load capacity needed at elevation.

The FE Series can use a wide-view mast with several maximum fork heights. For the 2.0–2.5 ton range, standard mast options include maximum fork heights of approximately 2,000, 2,500, 2,700, 3,000, 3,300, 3,500, 3,700, 4,000, 4,300, 4,500, 4,700, 5,000, 5,500, and 6,000 millimeters. The exact rated capacity varies according to whether the forklift is the 2.0-ton or 2.5-ton version and according to the selected mast.

At lower lift heights, the 2.5-ton model can retain its rated capacity in the specified configuration. As lift height increases, capacity may be reduced. For example, the supplied capacity data shows that higher mast configurations may have rated capacities below 2,500 kilograms. This is a normal characteristic of counterbalanced forklifts because raising a load increases the combined center of gravity and places greater demands on mast and stability performance.

Two-stage full-free-lift masts are useful where the operator must lift a load substantially before the mast begins to extend. This is valuable inside containers, low-clearance areas, multi-level storage systems, and facilities with overhead obstructions. Three-stage full-free-lift masts provide greater maximum lift heights while retaining substantial free lift, making them appropriate for taller rack systems.

The wide-view design improves visibility through the mast structure. Visibility is important when entering pallets, traveling with a raised load, stacking at height, and working near pedestrians or fixed structures. The operator must still maintain a safe view and travel with the load positioned according to the manufacturer’s instructions.

Attachment Considerations

Attachments such as side shifters, fork positioners, clamps, rotators, and specialized load handlers can increase productivity. However, attachments add weight and move the effective load center forward. The supplied information states that a separated side shifter can reduce load capacity by 150 kilograms, while an integrated side shifter can reduce capacity by 50 kilograms. These values illustrate why attachment-specific capacity ratings are essential.

Before installing an attachment, the operator or fleet manager should confirm the attachment weight, rated capacity, hydraulic requirements, maximum pressure, fork dimensions, mounting interface, and revised capacity plate. The forklift should never be treated as having the same capacity after an attachment is installed unless the revised rating confirms it.

7. Safety and Reliability Features

7.1 Protective Operator Structure

The FE Series uses a robust stamped overhead guard. The overhead guard is designed to help protect the operator from falling objects and load-related hazards within the limits of its rated design. It also contributes to the overall strength and safety perception of the operator compartment.

The design includes a wide-view mast to help the operator see the load and surrounding work area. Visibility is a major factor in forklift safety because restricted sight lines can lead to pallet damage, rack impact, pedestrian incidents, and incorrect load placement.

7.2 Lighting and Visibility

LED lights are included to improve visibility during indoor and low-light operation. LED technology generally provides strong illumination with low electrical consumption and a long service life. The exact lighting arrangement may vary according to the selected specification and local regulations.

Lighting should be considered together with reflective clothing, audible warning devices, facility traffic rules, mirrors, pedestrian separation, floor markings, and operator training. No single equipment feature can replace a complete site-safety program.

7.3 Controlled Speed and Lifting

Multiple speed modes allow the forklift to be adapted to different working conditions. A higher speed mode may be appropriate for open travel routes, while a reduced speed mode may be better for congested aisles, loading zones, pedestrian areas, or precision positioning.

The speed deceleration function helps reduce travel speed in appropriate operating situations. Controlled deceleration can improve operator confidence and reduce abrupt stopping forces on the load. It can also support smoother transitions when the operator releases the accelerator or changes direction.

Proportional lifting helps the operator control the mast more precisely. Smooth control is valuable for fragile goods and high-level storage because sudden lifting or lowering can cause load movement, pallet damage, or instability.

7.4 Braking and Parking

The service brake is hydraulic, while the parking brake is mechanical. A hydraulic service brake provides the operator with a familiar foot-controlled braking method. The mechanical parking brake is intended to hold the forklift when it is stationary, including during temporary stops and parking procedures.

Brake performance depends on correct adjustment, tire condition, floor condition, load distribution, and regular maintenance. Operators should conduct pre-shift inspections and report any change in braking response immediately.

8. Operator Comfort and Usability

Productivity is affected by the operator’s ability to work comfortably and maintain concentration. A forklift used throughout a shift should provide clear controls, predictable steering, smooth acceleration, manageable vibration, and an unobstructed view of the load.

The FE Series has a newly designed exterior with a compact structure, smooth lines, and distinctive colors. While appearance is not a substitute for performance, a modern design can contribute to a clearer visual identity across a company’s equipment fleet. It can also make controls, access points, and safety features easier to organize and recognize.

The seated operator configuration is suitable for repeated travel and extended handling cycles. The steering system uses a load-sensing steering gear, which is designed to provide responsive steering assistance according to operator input. Flexible steering-axle connections can also help the machine maintain stability when operating over normal industrial floor irregularities.

Multiple drive modes allow operating behavior to be adapted to the task. For example, a lower-speed setting may support precise placement in a narrow aisle, while a normal or higher-speed setting may support longer travel routes. The choice of mode should always reflect site conditions, pedestrian traffic, floor quality, and the operator’s training.

9. Maintenance and Serviceability

9.1 Easy Access to Major Systems

The FE Series is designed with service access in mind. The engine-cover area opens fully, even though the machine is electric, providing access to the battery compartment, electrical components, hydraulic equipment, and associated service points. A fully opening electrical control cover helps technicians inspect controllers, wiring, fuses, connectors, and other components.

The floor plate can be removed without tools. This feature can reduce the time required to access lower electrical and mechanical components. Faster access may shorten routine inspection intervals and make it easier for technicians to investigate unusual noises, warning codes, wiring conditions, or hydraulic leaks.

Serviceability is a competitive advantage because machine availability depends on both component durability and repair efficiency. A forklift that is easy to inspect can help maintenance personnel identify developing problems before they result in an extended breakdown.

9.2 Preventive Maintenance

Preventive maintenance should include battery inspection, charging-system checks, tire condition, wheel fasteners, brake performance, steering response, hydraulic oil level, mast chain condition, fork wear, carriage condition, overhead guard integrity, warning devices, and lighting.

For lead-acid batteries, maintenance may include electrolyte level checks, watering according to the battery manufacturer’s instructions, terminal inspection, cleaning, equalization charging, and ventilation management. Lithium-ion batteries generally require a different maintenance approach, including inspection of connectors, battery-management warnings, charging equipment, temperature conditions, and software or diagnostic information.

Mast chains, rollers, cylinders, and fork components must be inspected because they carry and guide the load. Worn forks, damaged heels, stretched chains, leaking cylinders, or abnormal mast movement can create serious safety risks. Maintenance intervals should be based on operating hours, duty cycle, environment, and applicable regulations.

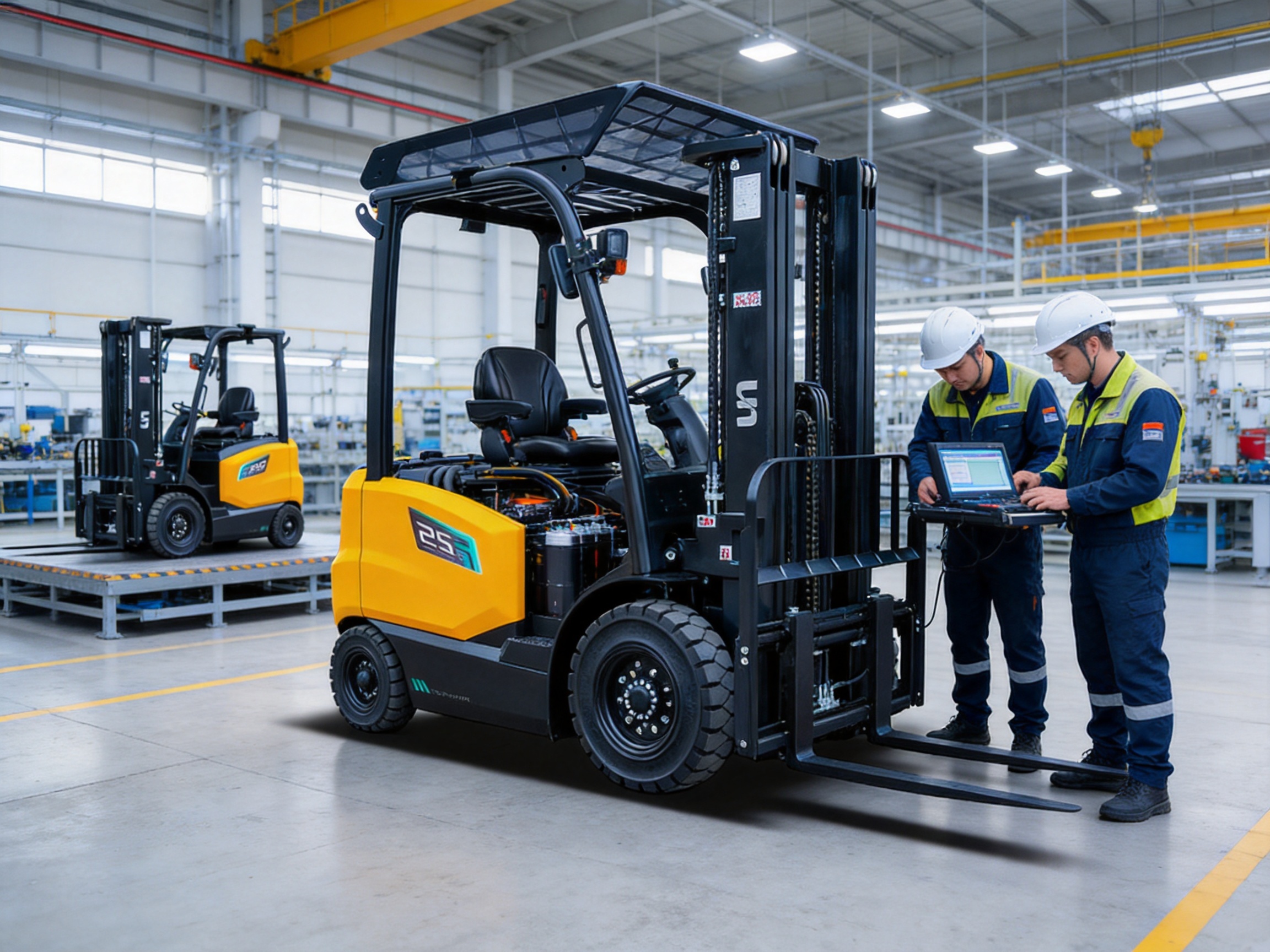

9.3 Diagnostic and Electrical Maintenance

Modern AC electric forklifts depend on electronic controllers and sensors. Technicians should use appropriate diagnostic tools and follow approved procedures when investigating fault codes. High-voltage or high-current battery systems can be hazardous, so battery and controller service should be performed by trained personnel.

Electrical connectors should be protected from moisture, contamination, impact, and excessive bending. Cables must remain properly routed and secured. Any evidence of overheating, corrosion, insulation damage, loose terminals, or abnormal odor should be investigated immediately.

10. Applications and Suitable Working Environments

The FE Series is suitable for medium-intensity indoor handling applications. Typical uses include pallet movement in distribution centers, receiving and dispatch operations, component supply in manufacturing plants, finished-goods handling, warehouse replenishment, packaging facilities, retail logistics, and general industrial storage.

Its electric power system makes it particularly appropriate for enclosed buildings where exhaust emissions are undesirable. The quiet operating characteristics can also benefit facilities where noise control is important, such as multi-use industrial buildings, commercial warehouses, and production environments located near offices or public areas.

The pneumatic tires provide flexibility for sites with smooth outdoor approaches, loading docks, paved yards, and indoor concrete floors. If the forklift will operate primarily on sensitive floors, rough surfaces, or areas where tire marks must be minimized, an alternative tire configuration may need to be considered.

The machine can support standard pallet handling with its 500-millimeter load center and 1,070-millimeter reference fork length. It can also be configured with attachments for specialized loads, provided the capacity and stability implications are properly evaluated.

Warehouse Operations

In warehouses, the forklift can move pallets from receiving areas to storage locations, replenish picking positions, and stage outbound shipments. The turning radius and available mast options support a wide range of rack layouts. Operators should compare the forklift’s required aisle width with the actual pallet orientation and rack clearances before finalizing a facility layout.

Manufacturing Plants

Manufacturing plants often require frequent movement between raw-material stores, production lines, intermediate staging areas, and finished-goods warehouses. The electric forklift can help reduce exhaust emissions around production workers and can operate quietly near assembly areas. Its high lifting capacity and stable four-wheel platform are suitable for machinery components, packaging materials, and palletized production goods.

Loading and Distribution

Distribution facilities require rapid movement, repeated reversing, and accurate pallet placement. The FE Series combines a travel speed of up to 13 kilometers per hour with load and 14 kilometers per hour without load in the reference 2.5-ton configuration. Actual operating speed should be controlled according to floor conditions, traffic patterns, visibility, and local safety rules.

11. Competitive Advantages Over Conventional Alternatives

The FE Series competes with both internal-combustion forklifts and other electric counterbalanced forklifts. Its most important advantage over an internal-combustion alternative is its suitability for indoor operation without tailpipe exhaust. This can reduce the need for exhaust ventilation and may help organizations meet internal environmental objectives.

Compared with smaller three-wheel electric forklifts, the four-wheel FE Series offers a broader stability platform and a higher load range. A three-wheel forklift may be highly maneuverable in narrow aisles, but a four-wheel configuration can be preferable when the application involves heavier loads, longer travel routes, uneven floors, or a greater need for stable counterbalanced performance.

Compared with basic electric forklifts that use simpler control systems, the FE Series provides full AC drive technology, multiple speed modes, adaptive energy management, proportional lifting, and a high-capacity battery platform. These features can improve control, endurance, and operating consistency over repeated work cycles.

Compared with machines designed only around lead-acid batteries, the availability of lithium-ion technology provides additional flexibility. Customers can select the battery type that best matches their charging infrastructure, shift pattern, ambient conditions, and total-cost objectives.

Compared with a forklift that is difficult to service, the FE Series provides a fully opening cover arrangement and tool-free floor-plate removal. These features can reduce inspection time and give service technicians better access to key components.

The machine’s competitive value therefore comes from the combined package rather than from one isolated specification. Capacity, battery choice, AC drive performance, steering-axle strength, hydraulic control, safety equipment, service access, and manufacturer support all contribute to the total operating result.

12. Selecting the Correct Configuration

Before purchasing an FE Series forklift, users should collect accurate information about the application. The first consideration is the heaviest load to be handled, including packaging, pallets, containers, and any attachment. The second is the actual load center. A load that extends forward beyond the standard 500-millimeter reference point can reduce capacity significantly.

The required lift height should be measured from the floor to the highest storage position. Building clearance must be checked against the mast’s lowered and extended heights. If the forklift will work under doorways, sprinkler systems, mezzanines, or low beams, free-lift requirements become especially important.

Travel routes should be reviewed for aisle width, turning space, ramps, floor joints, dock plates, outdoor transitions, and pedestrian crossings. The listed aisle widths are reference values and may not represent the exact requirement for every pallet, rack, attachment, or operating method.

Battery selection should be based on working hours, break periods, available charging locations, ambient temperature, charging time, and fleet size. A lithium-ion battery may be advantageous for multi-shift operations with opportunity charging, while lead-acid may be appropriate for simpler duty cycles with dedicated battery rooms or scheduled charging.

Tire selection is also important. Pneumatic tires provide a useful balance for mixed indoor and paved outdoor operation. Tire specifications should be selected according to surface quality, floor sensitivity, traction requirements, and local operating conditions.

Attachments should be included in the original capacity calculation. A side shifter, fork positioner, clamp, or other attachment can change the machine’s weight and load center. The supplier should provide the correct capacity information for the complete forklift and attachment combination.

13. Fleet Management and Total Cost of Ownership

Purchase price is only one part of forklift economics. Fleet managers should evaluate energy consumption, battery life, maintenance labor, spare parts, tire replacement, operator productivity, downtime, safety performance, and resale or replacement planning.

The FE Series can contribute to lower operating costs through electric energy use, reduced engine-related maintenance, efficient AC drive control, and selectable battery technology. However, actual savings depend on electricity rates, charging behavior, duty cycle, maintenance quality, and the cost of replacement batteries.

Fleet monitoring can help identify inefficient travel patterns, excessive idling, repeated impacts, overloading, and inappropriate speed selection. Operator training is equally important. Smooth acceleration, correct load positioning, controlled turning, and proper charging practices all influence battery endurance and component life.

For larger fleets, standardizing on one forklift platform can simplify operator training, spare-parts management, maintenance procedures, and technician familiarization. The FE Series shares a common design approach across the 2.0 and 2.5 ton capacity classes, which may help a company select different capacities while retaining a consistent operating concept.

14. Safety Responsibilities

Safe forklift operation requires cooperation between the manufacturer, employer, supervisor, maintenance team, and operator. The machine’s safety features support safe work, but they cannot replace training, risk assessment, traffic management, and regular inspection.

Operators should complete pre-shift checks, confirm the rated capacity, inspect forks and attachments, test brakes and steering, verify warning devices, and ensure that the load is stable before traveling. Loads should be carried at a safe travel height and should not obstruct the operator’s view.

Supervisors should establish speed limits, pedestrian separation, charging procedures, parking rules, ramp controls, loading-dock procedures, and restrictions for damaged pallets or unstable loads. Maintenance personnel should follow approved lockout, battery isolation, and hydraulic-service procedures.

Capacity charts must be followed at all times. A forklift rated for 2,500 kilograms at a 500-millimeter load center is not automatically rated for 2,500 kilograms at every load center or lift height. The selected mast, attachment, battery, and load geometry must all be considered.

15. Company Capabilities and Global Support

The manufacturer is a professional material-handling equipment company integrating research and development, production, sales, and service. Its product range includes multiple forklift categories and warehouse equipment, allowing it to serve customers with different capacity, power, and application requirements.

The company has developed a worldwide sales and service network with partners in Europe, South America, North America, Africa, and Asia. International support is important for industrial customers because equipment availability depends on parts supply, technical communication, warranty administration, service response, and local knowledge.

The company also supplies equipment to original-equipment customers and has worked with recognized domestic and overseas industrial organizations. This experience can strengthen manufacturing discipline and encourage consistent documentation, component control, and quality requirements.

Its development of diesel-to-lithium-ion products and standard lithium-ion forklifts demonstrates a commitment to new-energy equipment. The FE Series fits into this broader strategy by combining conventional counterbalanced forklift usability with electric power, energy management, and lithium-ion compatibility.

16. Recommended Operating Practices

To achieve the best results from the FE Series, operators should begin each shift with a structured inspection. The inspection should cover tires, wheels, forks, mast chains, hydraulic hoses, battery condition, warning lights, horn, steering, brakes, parking brake, seat belt, overhead guard, and any visible leaks or damage.

Loads should be centered on the forks whenever possible. Forks should be fully inserted into pallets without striking the load or pallet structure. Operators should avoid sudden acceleration, abrupt turning, high-speed reversing, and traveling with elevated loads.

Charging areas should be clean, properly ventilated where required, and equipped with the correct charger for the selected battery. Lithium-ion and lead-acid batteries have different charging procedures. Operators should not mix chargers, connectors, or charging protocols.

When the forklift is parked, the forks should be lowered, the controls neutralized, the parking brake applied, and the key or access device removed according to site policy. The machine should not be left on a slope unless it is secured according to the applicable operating procedure.

17. Future-Oriented Electric Forklift Design

The direction of forklift development is increasingly influenced by energy efficiency, digital controls, emissions reduction, operator assistance, and lifecycle cost. The FE Series addresses several of these trends through its electric drive, battery flexibility, AC control technology, adaptive energy management, and service-access design.

Future improvements in electric forklifts are likely to include more advanced battery monitoring, fleet connectivity, automated speed control, operator-assistance systems, regenerative energy optimization, and data-based maintenance planning. A modern electrical architecture provides a suitable foundation for integrating such technologies over time.

However, reliable basic performance remains essential. A forklift must still lift safely, travel predictably, steer accurately, stop effectively, and withstand repeated industrial use. The FE Series focuses on these fundamentals while incorporating features intended to improve efficiency and usability.

18. Frequently Asked Questions

Q1. What is the rated capacity of the FE Series forklift?

The FE Series discussed in this article is designed for rated capacities from 2,000 to 2,500 kilograms. The exact capacity depends on the selected model, mast, lift height, attachment, load center, and battery configuration.

Q2. Is the forklift suitable for indoor operation?

Yes. The electric power system produces no tailpipe exhaust during normal operation and is suitable for many indoor warehouses, manufacturing plants, distribution centers, and industrial facilities. Site ventilation, battery charging, floor conditions, and local regulations must still be considered.

Q3. What battery types are available?

The platform supports high-capacity lead-acid and lithium-ion battery systems. The best choice depends on shift length, charging infrastructure, ambient temperature, maintenance preferences, and total operating cost.

Q4. Can the lithium-ion version be charged in cold conditions?

The supplied product information identifies a charging heating function for the lithium-ion battery configuration and states that charging can be performed at temperatures as low as minus 20 degrees Celsius. Operators must follow the final battery manufacturer’s temperature and charging instructions.

Q5. What is the travel speed?

For the reference 2.5-ton configuration, the listed travel speed is 13 kilometers per hour with a full load and 14 kilometers per hour without a load. Actual safe speed depends on the facility, floor, load, visibility, traffic, and site rules.

Q6. What is the maximum lifting height?

The reference configuration has a rated lift height of 3,000 millimeters, but optional wide-view, two-stage full-free-lift, and three-stage full-free-lift masts can provide greater maximum fork heights. Capacity may decrease at higher lift heights.

Q7. What are the main service-access features?

The forklift has a fully opening cover for access to major systems, a fully opening electrical control cover, and a floor plate that can be removed without tools. These features are intended to simplify inspection and maintenance.

Q8. Can the forklift use attachments?

Yes. Attachments can be used when they are compatible with the forklift’s mounting system, hydraulic pressure, hydraulic flow, and capacity rating. Attachment weight and forward load center must be included in the revised capacity assessment.

Q9. Is the forklift suitable for ramps?

The listed maximum gradeability is 15 percent with and without a load. Actual performance depends on surface condition, battery charge, tire condition, load distribution, ramp length, and operating technique. The forklift should be used only on ramps suitable for its configuration.

Q10. How does the FE Series compare with an internal-combustion forklift?

It offers electric operation without tailpipe exhaust, lower operating noise, AC drive control, and the possibility of lithium-ion battery use. An internal-combustion forklift may still be preferable for some heavy outdoor applications, long continuous duty cycles without charging access, or particularly rough terrain. The correct choice depends on the application.

Q11. What makes the four-wheel configuration useful?

The four-wheel layout provides a stable counterbalanced platform for medium-capacity loads and offers familiar handling characteristics. It is suitable for many indoor and paved industrial applications where stability and capacity are more important than the extremely tight maneuverability of a three-wheel design.

Q12. What should be checked before ordering?

Customers should confirm rated load, load center, mast height, free lift, lowered and extended mast dimensions, overhead guard height, aisle width, turning radius, battery type, charging method, tire type, attachment requirements, floor conditions, and local service support.

19. Conclusion

The FE Series 2.0–2.5 ton four-wheel electric forklift is designed to provide a practical balance of lifting capacity, operating stability, energy efficiency, safety, and maintenance accessibility. Its application range covers many medium-intensity indoor handling tasks, from warehouse pallet movement to manufacturing-line supply and distribution operations.

Its principal strengths include full AC drive technology, adaptive energy management, high-capacity lead-acid or lithium-ion battery options, a strengthened steering axle, load-sensing steering, multiple speed modes, proportional lifting, LED lighting, a wide-view mast, and accessible service covers. The machine’s four-wheel counterbalanced layout provides a stable platform for 2,000–2,500 kilogram loads, while its compact dimensions support practical maneuverability in industrial aisles.

The manufacturer’s broader strengths in research, electric forklift development, production capacity, product diversity, international support, and new-energy equipment provide additional value. These capabilities help position the FE Series as more than a standalone forklift model. It is part of a broader material-handling solution intended to support changing industrial requirements.

For customers seeking a quiet, clean, and versatile alternative to conventional fuel-powered forklifts, the FE Series offers a strong candidate. The final configuration should be selected through a detailed review of load characteristics, mast requirements, battery strategy, floor conditions, attachments, duty cycle, and service expectations.

References

1. Product technical data for the FE Series 2.0–2.5 ton four-wheel electric forklift.

2. Manufacturer-provided mast specifications and rated-capacity tables for 2.0–2.5 ton four-wheel electric forklifts.

3. Manufacturer-provided general specifications for four-wheel electric forklift models.

4. General principles of industrial truck load capacity, load centers, mast selection, and attachment rating.

5. General guidance on electric forklift battery selection, charging procedures, preventive maintenance, and operator safety.

6. General engineering practices for forklift chassis design, steering axle construction, hydraulic systems, and AC drive controls.

Product: FE Series 2.0T-2.5T 4-Wheel Electric Forklift
