FE Series 3.0T–3.5T Four-Wheel Electric Forklift: Performance, Safety, and Manufacturing Excellence

The modern material-handling industry is under growing pressure to improve productivity while reducing emissions, operating costs, and workplace risks. Warehouses, production plants, distribution centers, construction-material facilities, and logistics hubs all require lifting equipment that can perform consistently under demanding conditions. At the same time, many operators are moving away from conventional internal-combustion forklifts because of exhaust emissions, indoor air-quality concerns, fuel costs, and increasingly strict environmental standards.

The FE Series 3.0T–3.5T four-wheel electric forklift is designed to address these requirements with a combination of high load capacity, dependable electric performance, ergonomic operation, and robust construction. Developed as a fully upgraded model based on the original V Series platform, this forklift is intended for medium-intensity indoor material-handling applications where reliability, maneuverability, and low operating emissions are essential.

With rated capacities ranging from 3.0 to 3.5 tons, the FE Series occupies an important position between compact electric forklifts and heavier industrial machines. It delivers the lifting strength required for pallets, machinery components, packaged materials, and production loads while retaining the quiet operation and clean working environment associated with electric power. Its four-wheel configuration further improves stability, traction, and operator confidence when handling loads across warehouse floors and industrial work areas.

Product Overview

The FE Series is a seated, four-wheel electric forklift developed for professional material-handling operations. Its electric drive system combines a high-capacity battery, full AC drive technology, and an adaptive energy-management system. Together, these systems support long operating cycles, efficient energy use, smooth acceleration, and reduced interruptions during daily work.

The forklift is available in 3.0-ton and 3.5-ton configurations. The principal specifications for the FB30 and FB35 versions include an 80-volt, 400-Ah battery option, with a lithium-ion alternative rated at 76.8 volts and 280 Ah. Depending on the selected configuration, the forklift can meet the needs of companies that prefer the familiar economics of lead-acid batteries or the fast charging, high energy density, and reduced maintenance associated with lithium-ion technology.

The machine is designed around a 500 mm load center, which is widely used for palletized goods and standard industrial loads. The 3.0-ton configuration has a total weight of approximately 4,840 kg, while the 3.5-ton configuration weighs approximately 5,280 kg. The wheelbase is 1,660 mm, providing a stable foundation for lifting and traveling with substantial loads.

The standard rated lift height is 3,000 mm, while various mast options can be selected for different warehouse clearances and storage requirements. Wide-view, full-free-lift, and three-stage full-free-lift mast configurations allow the forklift to be adapted to low-clearance areas, high-bay storage, loading docks, and production environments.

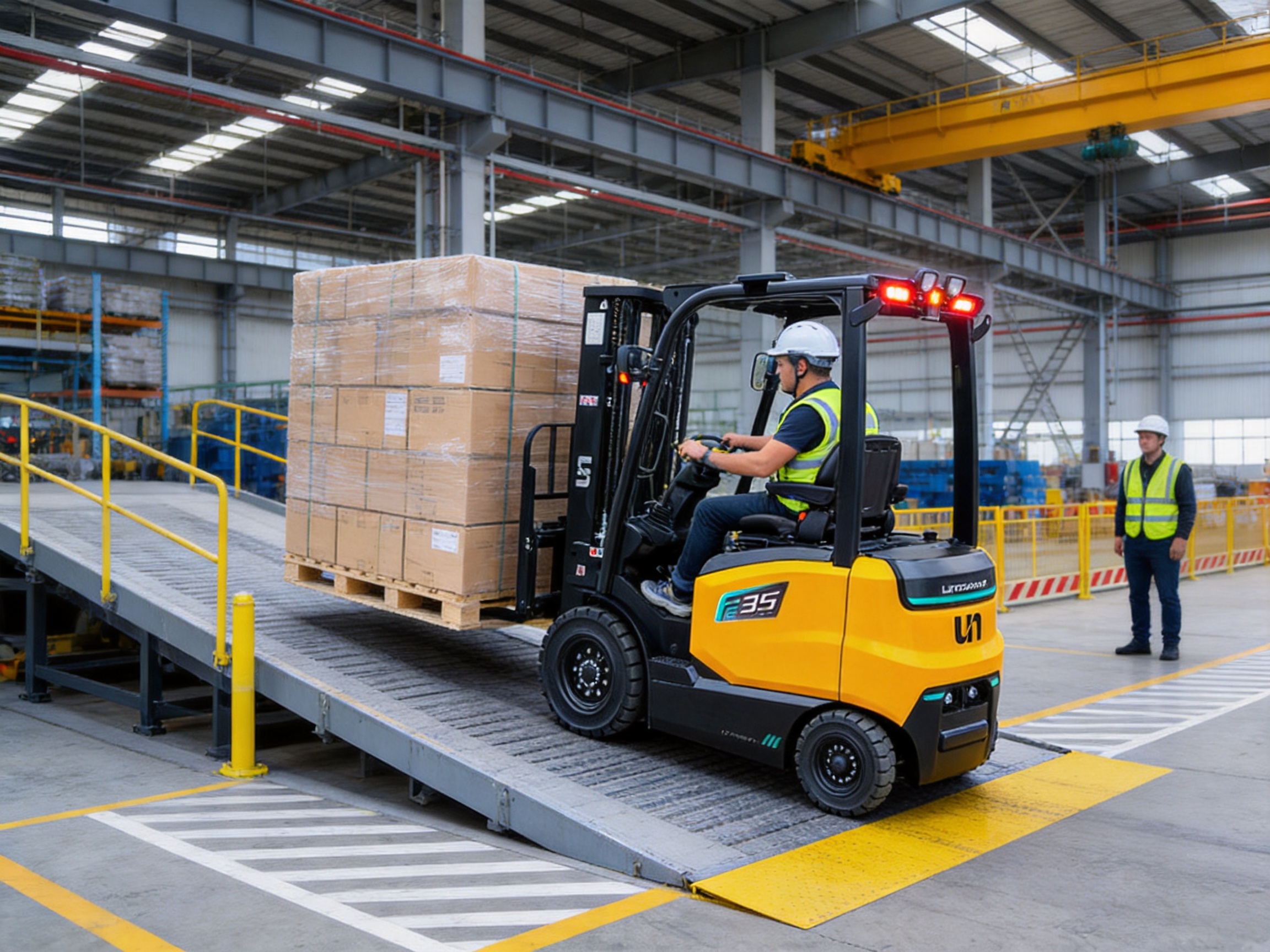

FE Series 3.0T-3.5T 4-Wheel Electric Forklift

Core Advantages of Electric Operation

Zero Tailpipe Emissions for Indoor Workplaces

One of the most important advantages of the FE Series is the absence of tailpipe emissions. Unlike diesel, gasoline, or liquefied petroleum gas forklifts, the electric forklift does not release combustion gases into the working environment. This makes it suitable for warehouses, food-related facilities, pharmaceutical plants, electronics factories, and other applications where air quality is a significant concern.

Cleaner operation can also simplify ventilation requirements. Facilities using internal-combustion equipment may need additional ventilation, exhaust management, or gas-detection systems. An electric forklift reduces these burdens, particularly when it is used indoors for extended periods. The result is a more comfortable environment for operators and other employees working near the equipment.

Lower Noise Levels

Electric drive systems operate with significantly less mechanical and combustion noise than traditional engine-powered forklifts. Reduced noise improves communication between operators, pedestrians, supervisors, and loading personnel. It can also be valuable in facilities where excessive noise affects concentration, product quality, or employee comfort.

Quieter operation is particularly useful in distribution centers that operate through multiple shifts. Employees can work near the forklift without the constant engine noise associated with combustion-powered machines. This contributes to a more controlled and professional workplace.

Energy Efficiency and Operating Continuity

The FE Series uses full AC drive technology and adaptive energy management to control power delivery according to operating conditions. The system can regulate acceleration, travel performance, regenerative braking, and energy consumption more efficiently than a basic electric drive arrangement.

Energy management is especially important in applications with frequent stopping, reversing, lifting, and repositioning. Instead of operating at maximum power continuously, the control system can provide the output required for each task. This helps extend battery operating time and reduces unnecessary energy consumption.

Regenerative braking can also return part of the energy generated during deceleration to the battery. In high-cycle operations, where the forklift repeatedly slows down and accelerates, this feature can contribute to longer working intervals and more efficient battery utilization.

Flexible Battery Choices

The FE Series supports both high-capacity lead-acid and lithium-ion battery systems. This flexibility is important because different businesses have different operating patterns, charging infrastructure, budgets, and maintenance capabilities.

Lead-acid batteries remain an established choice for companies that prioritize proven technology and a lower initial acquisition cost. They can be appropriate for operations with predictable shifts, scheduled charging periods, and access to battery service facilities.

Lithium-ion batteries are advantageous for high-utilization operations that require opportunity charging, reduced maintenance, and stable performance over repeated cycles. Lithium-ion technology generally eliminates routine water filling and can provide more consistent voltage during discharge. The FE Series also includes a battery charging heating function that allows lithium-ion batteries to be charged at temperatures as low as -20°C, subject to the applicable battery configuration and operating instructions.

Performance Designed for Industrial Handling

Powerful Drive and Lift Motors

The FE Series uses an 11 kW drive motor and a 21 kW lift motor in the listed 3.0T–3.5T configuration. These motors provide the power required for loaded travel, ramp operation, lifting, and repeated pallet handling.

The lift motor is matched with a high-power hydraulic pump motor and a low-noise, high-displacement pump. This arrangement supports responsive lifting while maintaining smooth hydraulic operation. The lifting speed is approximately 350 mm per second with a full load and 450 mm per second without a load, depending on the selected configuration and operating conditions.

Fast lifting performance can improve productivity during loading and unloading. However, productivity is not determined by speed alone. Smooth control, accurate positioning, stable mast movement, and predictable stopping are equally important. The FE Series is designed to combine useful speed with controllability, allowing operators to place loads accurately rather than simply moving them quickly.

Stable Four-Wheel Layout

The four-wheel configuration provides a stable platform for heavy loads and uneven operating conditions. The drive motor uses an H-type parallel arrangement, which supports balanced power delivery and contributes to stability during travel.

Stability is also supported by the forklift’s substantial operating weight, low center-of-gravity design, wheelbase, and counterbalanced structure. The 3.0T and 3.5T versions have a wheelbase of 1,660 mm, while their overall width is approximately 1,220 mm. These dimensions provide a practical balance between load stability and maneuverability.

For operators handling dense materials, steel products, machinery parts, stone products, packaged raw materials, or large pallets, four-wheel stability can be a major advantage over smaller three-wheel electric forklifts. A three-wheel forklift may offer a tighter turning radius, but a four-wheel design is often preferred when load stability, traction, and outdoor-to-indoor flexibility are more important than minimum turning space.

Strong Gradeability

The listed maximum gradeability is 15 percent with and without a load. This capability supports operation on ramps, inclined loading areas, and changing floor levels. Gradeability depends on the surface, battery condition, load distribution, tire condition, and operating technique, but the specification indicates that the forklift is designed for more than flat-floor warehouse travel.

The electric drive system provides immediate torque at low speed, which is valuable when starting on a slope or maneuvering with a heavy load. Unlike an engine that may require time to build power, an electric motor can deliver responsive torque directly through the drive system.

Travel Speed and Productivity

The FE Series has a travel speed of approximately 14 km/h without a load and approximately 14 km/h in the summarized FB30 and FB35 specifications under full-load conditions. The detailed configuration data also identifies a full-load travel speed of 14 km/h and a no-load speed of 15 km/h for the larger models.

Multiple speed modes allow the operator or fleet manager to match travel performance to the working environment. Lower-speed modes can be selected in congested areas, near pedestrians, or when precise positioning is required. Higher-speed modes can be used in open travel lanes when conditions permit.

Speed control is particularly valuable because warehouses and factories are rarely uniform environments. A long outdoor transfer route may require a different setting from a narrow aisle beside a production line. Flexible speed modes allow one forklift to support several tasks without compromising safety or efficiency.

Steering, Maneuverability, and Handling Control

Reinforced Steering Axle

The steering axle uses a cast axle body with a reported 30 percent increase in strength compared with the original design. A robust axle is essential because it must absorb steering forces, floor impacts, load transfer, and repeated turning cycles.

Tapered roller bearings improve load capacity and durability by distributing forces across a larger bearing surface. These bearings are well suited to demanding forklift applications because they can handle combined radial and axial loads. Their use supports long-term steering reliability and helps maintain consistent wheel alignment.

The high-mounted steering axle design uses flexible connections to improve performance and stability. This arrangement allows the axle to respond more effectively to floor irregularities while reducing stress transferred to the chassis and operator compartment.

Tight-Turn Performance

The outside turning radius is approximately 2,210 mm for the 3.0-ton configuration and 2,250 mm for the 3.5-ton configuration. These figures provide useful maneuverability for a forklift in this capacity range.

Good turning performance reduces the amount of space required at the end of storage aisles, loading areas, and production lanes. It also helps operators position the machine more efficiently beside pallets and racks. The compact chassis design allows the FE Series to deliver heavy-duty capacity without becoming unnecessarily difficult to maneuver.

The forklift is also equipped with a load-sensing steering gear. This system helps match hydraulic steering assistance to actual steering demand. It can improve steering feel, reduce unnecessary hydraulic energy consumption, and make the forklift easier to control during repetitive operations.

Hydraulic Performance

The hydraulic system is designed for controlled lifting, tilting, and attachment operation. The listed operating pressure for attachments is approximately 20.5 MPa, providing compatibility with a range of hydraulic accessories when the selected attachment and capacity rating are suitable.

Proportional lifting functionality gives the operator better control over mast movement. Rather than providing only fully on or fully off hydraulic action, proportional control allows lifting and lowering speed to be adjusted according to lever movement. This is useful when positioning fragile products, aligning forks with pallets, or placing loads at height.

Hydraulic performance must always be considered together with the rated capacity of the forklift, mast, attachment, load center, and lifting height. The capacity tables supplied with the machine should be consulted before using a side shifter, fork positioner, clamp, or other attachment.

Safety and Reliability Features

Wide-View Mast

Visibility is one of the most important safety factors in forklift design. The FE Series uses a wide-view mast intended to improve the operator’s sightline through and around the lifting structure. Better visibility helps the operator identify pallet openings, rack beams, pedestrians, obstacles, and load edges.

Visibility becomes especially important when stacking at height or working in areas with frequent cross traffic. The mast design is intended to reduce visual obstruction while maintaining the strength required for the rated lifting capacity.

Stamped Overhead Guard

The robust stamped overhead guard protects the operator from falling objects and provides a rigid protective structure above the driving position. Its design contributes to operator safety while preserving practical visibility and cabin access.

The overhead guard height is approximately 2,225 mm for the FB30 and FB35 versions. Before operation, users should confirm that the guard and mast dimensions are compatible with doorways, containers, truck bodies, mezzanines, and other overhead restrictions.

LED Lighting

LED lights provide bright, efficient illumination for low-light areas, night shifts, loading docks, and indoor aisles. LED technology generally offers a long service life and low power consumption compared with traditional lighting systems.

Effective lighting helps improve the visibility of the forklift to pedestrians and other vehicles. It also supports the operator’s ability to identify floor conditions, load markings, rack positions, and travel obstacles.

Speed Deceleration

The speed deceleration function helps control travel speed in situations where the forklift needs to slow down smoothly. Controlled deceleration can reduce abrupt movement, improve load stability, and support safer operation near intersections and working personnel.

Deceleration is particularly useful when the forklift approaches a turn or carries a high load. Smooth speed reduction helps prevent load shifting and reduces stress on the operator and machine.

Mechanical Parking Brake and Hydraulic Service Brake

The service brake is hydraulic, while the parking brake is mechanical. This combination provides responsive braking during travel and a dependable method of securing the forklift when parked.

Operators should always apply the parking brake when leaving the forklift, even on level ground. The machine should be parked with the forks lowered, the controls neutralized, and the power system switched off according to the operating manual.

Ergonomics and Operator Productivity

A forklift is only as productive as the person operating it. The FE Series is designed as a seated forklift, allowing the operator to work through extended shifts with support from a stable driving position and accessible controls.

Multiple speed modes, proportional lifting, load-sensing steering, and responsive AC drive control reduce the amount of physical effort required for repeated operations. These features can help minimize operator fatigue, particularly during long cycles of loading, unloading, reversing, and pallet placement.

The compact structure and smooth exterior lines provide a modern appearance, but the design is also practical. Easy access to the operator area, clear visibility, and intuitive control functions can shorten familiarization time for trained drivers.

Reduced noise and vibration are additional ergonomic advantages of electric operation. When operators are exposed to less engine vibration and lower noise levels, communication and concentration may improve. This is especially valuable in facilities where several forklifts and workers operate in close proximity.

Maintenance and Serviceability

Fully Opening Covers

Routine maintenance is easier when service points are accessible. The FE Series features a fully opening engine cover, providing access to key electrical, battery, hydraulic, and mechanical components. Although an electric forklift does not have a conventional combustion engine, the service cover gives technicians practical access to the machine’s power and control systems.

The electrical control cover also opens fully, allowing inspection and servicing of controllers, wiring, connectors, and related components. Easy access can reduce maintenance time and help technicians identify potential issues before they affect production.

Tool-Free Floor Plate Removal

The tool-free removable floor plate is another practical maintenance feature. It enables technicians to reach lower components without spending unnecessary time removing fasteners or special panels.

Fast access is valuable during daily inspections, battery checks, cleaning, and troubleshooting. It also encourages operators and maintenance teams to perform inspections more consistently, which can improve fleet reliability over the long term.

Reduced Electric Powertrain Maintenance

Compared with internal-combustion forklifts, electric models generally have fewer engine-related service requirements. There is no engine oil, fuel filter, exhaust system, spark plug, or combustion cooling system to maintain. This can reduce routine service tasks and lower the risk of contamination from oil or fuel leakage.

The exact maintenance schedule depends on the battery type, duty cycle, working environment, and manufacturer instructions. Lead-acid batteries require correct charging, electrolyte inspection, terminal maintenance, and ventilation practices. Lithium-ion batteries require proper charging equipment, temperature control, and battery-management procedures.

Battery and Charging Considerations

The choice between lead-acid and lithium-ion power should be based on operating requirements rather than initial purchase price alone. A fleet operating one predictable shift may benefit from scheduled lead-acid charging. A multi-shift operation may achieve greater productivity with lithium-ion batteries and opportunity charging.

The 80-volt, 400-Ah battery option provides a substantial energy reserve for demanding lifting and travel cycles. The lithium-ion option rated at 76.8 volts and 280 Ah offers a different balance between energy density, recharge behavior, and maintenance requirements.

Battery charging areas should be designed according to the selected battery type and local safety requirements. Charging equipment, ventilation, fire protection, access control, and electrical connections should be installed by qualified personnel. Operators should never use damaged cables, unauthorized chargers, or unsuitable extension equipment.

Battery life is affected by temperature, discharge depth, charging frequency, load intensity, and maintenance. Adaptive energy management can help make better use of available power, but correct operating practices remain essential. Avoiding unnecessary high-speed travel, excessive idling, harsh acceleration, and overloading will help protect the battery and drivetrain.

Capacity and Mast Options

The FE Series platform can be configured with different mast types and lift heights. Standard wide-view masts are suitable for common warehouse stacking requirements. Two-stage full-free-lift masts are useful where the forklift must raise a load without significantly increasing the lowered mast height. Three-stage full-free-lift masts support higher storage positions and applications involving containers, high racks, and tall structures.

Capacity decreases as lift height increases in many forklift configurations. This is a normal consequence of mast geometry, load moment, and stability requirements. A forklift may carry its full rated capacity at a lower lift height but require a reduced capacity at the highest mast position.

The following summary illustrates the principal data for the FE Series 3.0-ton and 3.5-ton configurations:

Item	FB30	FB35
Rated load capacity	3,000 kg	3,500 kg
Load center	500 mm	500 mm
Wheelbase	1,660 mm	1,660 mm
Total weight	Approximately 4,840 kg	Approximately 5,280 kg
Overall width	Approximately 1,220 mm	Approximately 1,220 mm
Overhead guard height	Approximately 2,225 mm	Approximately 2,225 mm
Turning radius	Approximately 2,210 mm	Approximately 2,250 mm
Full-load travel speed	Approximately 14 km/h	Approximately 14 km/h
No-load travel speed	Approximately 15 km/h	Approximately 15 km/h
Maximum gradeability	15 percent	15 percent
Battery option	80 V/400 Ah or 76.8 V/280 Ah	80 V/400 Ah or 76.8 V/280 Ah

The values in the table represent the summarized specifications supplied for the principal FE Series configurations. Final performance and capacity depend on mast type, attachment, tire selection, battery configuration, load center, and operating conditions.

Advantages Compared with Conventional Competitors

Compared with Internal-Combustion Forklifts

The most obvious advantage over conventional diesel or gasoline forklifts is the electric powertrain. The FE Series produces no tailpipe emissions during operation, operates more quietly, and can reduce routine engine-related maintenance.

Electric drive systems also provide smooth acceleration and precise low-speed control. This is useful when approaching pallets, entering racks, or operating near people. The absence of gear-shifting interruptions can make travel more predictable and comfortable.

Operating costs can also be favorable, particularly where electricity is less expensive than fuel and where maintenance labor is carefully managed. The total cost advantage depends on electricity prices, battery replacement costs, utilization, charging infrastructure, and local service conditions, but high-use operations often benefit from the efficiency of electric drive technology.

Compared with Smaller Electric Forklifts

Compared with compact electric forklifts in the 1.5-ton or 2.0-ton class, the FE Series provides substantially greater lifting capacity and a stronger chassis. This makes it better suited to heavy pallets, large industrial components, and applications where the machine must work continuously under higher loads.

The four-wheel layout also provides advantages in stability and traction. While smaller forklifts may be more suitable for very narrow aisles, the FE Series offers a more stable platform for demanding handling tasks and mixed indoor-outdoor operations.

Compared with Basic Electric Designs

Some entry-level electric forklifts use simple drive systems with limited energy management, basic hydraulic controls, and fewer speed settings. The FE Series differentiates itself through full AC drive technology, adaptive energy management, multiple speed modes, proportional lifting, load-sensing steering, and compatibility with both lead-acid and lithium-ion battery systems.

These features improve more than technical specifications. They help the forklift adapt to different working conditions and reduce the compromises often associated with a single-purpose machine.

Manufacturing Strength and Engineering Capability

The FE Series is produced by Zhejiang UN Forklift Co., Ltd., a material-handling equipment manufacturer with a history dating back to 1978. The company integrates research and development, production, sales, and service, allowing product design and field support to be connected within one organization.

The company operates a manufacturing facility covering approximately 53,400 square meters and has an annual production capacity of approximately 15,000 units. Its product portfolio includes internal-combustion forklifts, electric forklifts, reach trucks, warehouse equipment, and other material-handling machines.

A broad product portfolio gives a manufacturer valuable experience across different load capacities, drive systems, mast structures, hydraulic layouts, steering axles, and operator environments. This accumulated engineering knowledge contributes to the development of upgraded platforms such as the FE Series.

The company has also developed electric forklift technologies and participated in the formulation of electric forklift industry standards in China. Its history includes the development of reach forklift and very-narrow-aisle technology. These capabilities indicate experience with the design challenges involved in electric propulsion, high-density storage, stability, control systems, and industrial vehicle integration.

Research and Development Integration

Integrated research and development allows product engineers to coordinate mechanical structures, electrical systems, hydraulics, battery layouts, and operator controls at an early stage. This is important because forklift performance depends on the interaction of all these systems.

For example, a larger battery may extend working time but increase machine weight. A stronger mast may improve capacity but affect visibility and overall dimensions. A faster hydraulic pump may improve productivity but increase energy consumption. Effective engineering must balance these factors rather than optimize one specification in isolation.

The FE Series reflects this systems-based approach by combining a reinforced chassis, AC drive, adaptive energy control, battery flexibility, hydraulic performance, and service access in one platform.

Manufacturing Quality and Process Control

Reliable forklift production requires controlled fabrication, accurate welding, consistent assembly, and systematic inspection. Structural components such as the frame, mast, overhead guard, counterweight, and steering axle must be manufactured with attention to dimensional accuracy and load-bearing performance.

Electrical systems require separate quality controls. Battery connectors, high-current cables, control units, sensors, and wiring harnesses must be correctly installed and protected against vibration, dust, moisture, and mechanical damage. AC motor controllers and battery-management systems must also be tested to ensure stable communication and power delivery.

Hydraulic components require inspection for pressure performance, leakage, response, and compatibility with attachments. Braking, steering, lifting, tilting, and safety functions should be checked before the forklift leaves the manufacturing line.

For an international manufacturer, quality control must also account for different regional requirements, operator expectations, charging standards, service conditions, and environmental regulations. A global sales and service network can help transfer field feedback back to engineering and production teams.

Applications for the FE Series

Warehousing and Distribution

The forklift is suitable for moving palletized goods, packaging materials, finished products, and raw materials in distribution centers and storage facilities. Its zero-emission operation and low noise make it suitable for indoor use, while its four-wheel stability supports regular pallet handling.

Manufacturing Plants

Manufacturing facilities often require forklifts to move components between storage areas, production lines, inspection stations, and shipping departments. The FE Series can support these operations while reducing exhaust exposure and minimizing noise near production personnel.

Loading and Unloading

The machine’s load capacity, gradeability, and travel performance make it suitable for loading and unloading trucks, trailers, and containers where the surface is stable and the mast configuration is appropriate. Operators must confirm that the floor, ramp, dock plate, and vehicle structure can support the combined weight of the forklift and load.

Industrial Materials

Heavy packaged products, metal components, machinery assemblies, construction materials, and dense industrial goods can require a forklift in the 3.0-ton to 3.5-ton class. The FE Series provides the capacity and stability needed for these applications while maintaining the environmental advantages of electric operation.

Cold or Temperature-Variable Facilities

With the appropriate lithium-ion battery system and charging equipment, the forklift can support operations in colder environments. The battery charging heating function is designed to permit charging at temperatures down to -20°C under applicable conditions. Operators should follow the battery manufacturer’s requirements for storage, charging, and temperature management.

Fleet Management and Total Cost of Ownership

Purchasing a forklift should involve more than comparing the initial price. Fleet managers should evaluate energy consumption, scheduled maintenance, unscheduled downtime, battery replacement, tire wear, operator productivity, charging infrastructure, and resale value.

The FE Series can contribute to lower total ownership cost through electric energy efficiency, reduced engine maintenance, durable steering components, accessible service points, and flexible battery selection. Its long operating continuity can also reduce the number of spare machines required for a given workload.

Fleet managers should establish a preventive maintenance schedule covering tires, brakes, steering, forks, mast rollers, hydraulic hoses, battery condition, electrical connectors, safety lights, alarms, and overhead protection. A structured inspection program is generally less expensive than responding to failures after they interrupt production.

Data collection can further improve fleet performance. Monitoring operating hours, battery charging behavior, fault codes, tire wear, and maintenance intervals helps identify inefficient practices. Speed modes and operator training can be adjusted based on real operating conditions.

Operator Training and Safe Use

Even a well-designed forklift requires trained operators. Drivers should understand rated capacity, load center, mast operation, attachment effects, stability principles, braking distance, pedestrian awareness, ramp travel, and battery charging procedures.

Loads should be centered on the forks and kept as low as practical during travel. Operators should avoid sudden turns, abrupt braking, excessive speed, and travel with an unstable or poorly secured load. The mast should be tilted according to the load and operating situation, and the capacity plate should be consulted whenever the load center or attachment changes.

Operators should inspect the forklift before each shift. The inspection should include tires, forks, mast chains, hydraulic lines, steering, brakes, lights, warning devices, battery condition, seat belt, overhead guard, and visible signs of leakage or damage.

Pedestrian routes should be clearly identified, and intersections should be approached with caution. Horn use, speed control, lighting, and separation barriers can reduce the risk of interaction between forklifts and pedestrians.

When parked, the forks should be fully lowered, the mast should be placed in a safe position, the parking brake should be applied, and the forklift should be switched off. Charging should be performed only in the designated area with the correct charger and connection procedure.

Why the FE Series Is a Practical Upgrade

The FE Series represents an upgrade not only in powertrain technology but also in overall operating capability. It combines the load strength expected from an industrial forklift with the environmental and efficiency advantages of electric power.

Its reinforced steering axle, tapered roller bearings, H-type drive arrangement, high-capacity battery system, hydraulic performance, and speed-control functions support demanding daily use. Safety features such as the wide-view mast, stamped overhead guard, LED lights, proportional lifting, and speed deceleration help improve control and operator protection.

The choice of lead-acid or lithium-ion battery allows businesses to select a configuration that matches their working schedule. Service-friendly covers and tool-free floor plate removal improve access for inspection and repair. These details may appear simple, but they can have a direct effect on uptime and maintenance cost.

Compared with a conventional internal-combustion forklift, the FE Series offers cleaner operation, lower noise, and reduced engine-related maintenance. Compared with a smaller electric forklift, it provides stronger lifting capability and greater stability. Compared with a basic electric design, it offers more sophisticated drive control, energy management, steering assistance, and operator functions.

Purchasing and Configuration Recommendations

Companies considering the FE Series should begin by identifying the actual load profile. The maximum load, average load, load dimensions, load center, lifting height, travel distance, floor conditions, and number of operating hours should all be documented.

The 3.0-ton version may be appropriate where the typical load is below the maximum capacity and a balance between size, weight, and efficiency is desired. The 3.5-ton version may be preferable where heavier loads are frequent or where additional capacity margin is required.

Mast selection should be based on rack height, doorway clearance, container access, ceiling height, and the need for free lift. A three-stage mast may be required for high storage, while a two-stage full-free-lift mast may be better for work areas with overhead restrictions.

Battery selection should consider shift length, charging time, access to charging infrastructure, temperature, maintenance resources, and total operating cost. Lithium-ion technology can be particularly attractive for intensive multi-shift operations, while lead-acid may be suitable for operations with scheduled breaks and overnight charging.

Attachment selection must be treated as an engineering decision. Side shifters, fork positioners, clamps, and other attachments affect residual capacity, visibility, hydraulic demand, and load center. The correct capacity chart must be reviewed before approval.

Q&A

What is the rated capacity of the FE Series forklift?

The FE Series covered in this article is available in 3.0-ton and 3.5-ton configurations. The FB30 has a rated capacity of 3,000 kg, while the FB35 has a rated capacity of 3,500 kg under the specified load-center and operating conditions.

Is the FE Series suitable for indoor operation?

Yes. Its electric powertrain produces no tailpipe emissions and operates with lower noise than combustion-powered forklifts. These characteristics make it suitable for warehouses, factories, distribution centers, and other indoor applications, provided the floor, ventilation, aisle, and charging requirements are properly addressed.

Which battery options are available?

The listed configurations support a high-capacity lead-acid battery option rated at 80 volts and 400 Ah, as well as a lithium-ion option rated at 76.8 volts and 280 Ah. Final battery availability should be confirmed for the specific model and market.

Can the lithium-ion battery be charged in cold conditions?

The product information identifies a charging heating function that allows the lithium-ion battery to be charged at temperatures as low as -20°C under applicable conditions. Operators must follow the battery and charger manufacturer’s instructions and should not assume that every battery configuration has identical temperature limits.

What is the maximum lifting height?

The standard rated lift height in the main specification is 3,000 mm. Optional mast configurations are available with greater lift heights, including two-stage and three-stage full-free-lift options. Capacity may decrease at higher lift heights, so the applicable capacity chart must always be checked.

What is the travel speed of the forklift?

The summarized specifications indicate approximately 14 km/h with a full load and approximately 15 km/h without a load for the FB30 and FB35 configurations. Actual speed can vary according to operating mode, battery condition, load, floor condition, and safety settings.

What makes the four-wheel design beneficial?

A four-wheel design provides a stable platform for heavier loads, improved traction, and confident handling across industrial floors and ramps. It is particularly useful when load stability is more important than achieving the smallest possible turning radius.

Does the forklift support attachments?

Yes. The hydraulic system has an operating pressure of approximately 20.5 MPa for attachments in the listed configuration. The attachment must be approved for the forklift, and the residual capacity must be calculated because an attachment can change the load center and reduce lifting capacity.

How does the forklift support maintenance?

The FE Series uses a fully opening service cover, a fully opening electrical control cover, and a tool-free removable floor plate. These features provide easier access to electrical, hydraulic, battery, and mechanical components during inspections and maintenance.

Is the FE Series suitable for multi-shift operation?

It can be suitable for multi-shift operations when the battery capacity, charging system, duty cycle, and fleet schedule are correctly matched. Lithium-ion batteries may be advantageous for intensive use because they can support opportunity charging and generally require less routine maintenance than lead-acid batteries.

What should buyers confirm before ordering?

Buyers should confirm the rated capacity, load center, mast type, lifting height, battery type, charging equipment, tire configuration, attachments, dimensions, aisle width, operating temperature, and local service support. The final technical configuration should be reviewed against the intended application before purchase.

Conclusion

The FE Series 3.0T–3.5T four-wheel electric forklift is designed for companies that require industrial lifting strength without the emissions and noise associated with conventional combustion equipment. Its combination of full AC drive technology, adaptive energy management, high-capacity battery systems, reinforced steering components, hydraulic performance, and practical maintenance access makes it a strong solution for medium-intensity indoor handling.

The forklift’s four-wheel architecture supports stability and traction, while multiple speed modes, proportional lifting, load-sensing steering, LED lighting, and speed deceleration improve control and safety. The choice between lead-acid and lithium-ion batteries allows the machine to be adapted to different operating schedules and cost priorities.

Manufacturing experience, integrated research and development, production capability, and international service coverage further strengthen the product proposition. For warehouses, factories, distribution centers, and industrial facilities seeking a cleaner and more efficient material-handling solution, the FE Series provides a balanced combination of capacity, reliability, flexibility, and long-term operating value.

References

1. Zhejiang UN Forklift Co., Ltd., FE Series 3.0T–3.5T Four-Wheel Electric Forklift Product Information.

2. Zhejiang UN Forklift Co., Ltd., Main Specifications and Rated Capacity Tables for Electric Forklift Models.

3. International Organization for Standardization, ISO 3691-1, Industrial Trucks—Safety Requirements and Verification.

4. International Organization for Standardization, ISO 5053-1, Industrial Trucks—Terminology and Classification.

5. International Labour Organization, Safety and Health in the Use of Industrial Trucks.

6. Battery manufacturers’ technical guidance for lead-acid and lithium-ion industrial vehicle batteries.

7. General principles of industrial vehicle preventive maintenance, operator training, and workplace traffic management.

Product: FE Series 3.0T-3.5T 4-Wheel Electric Forklift
