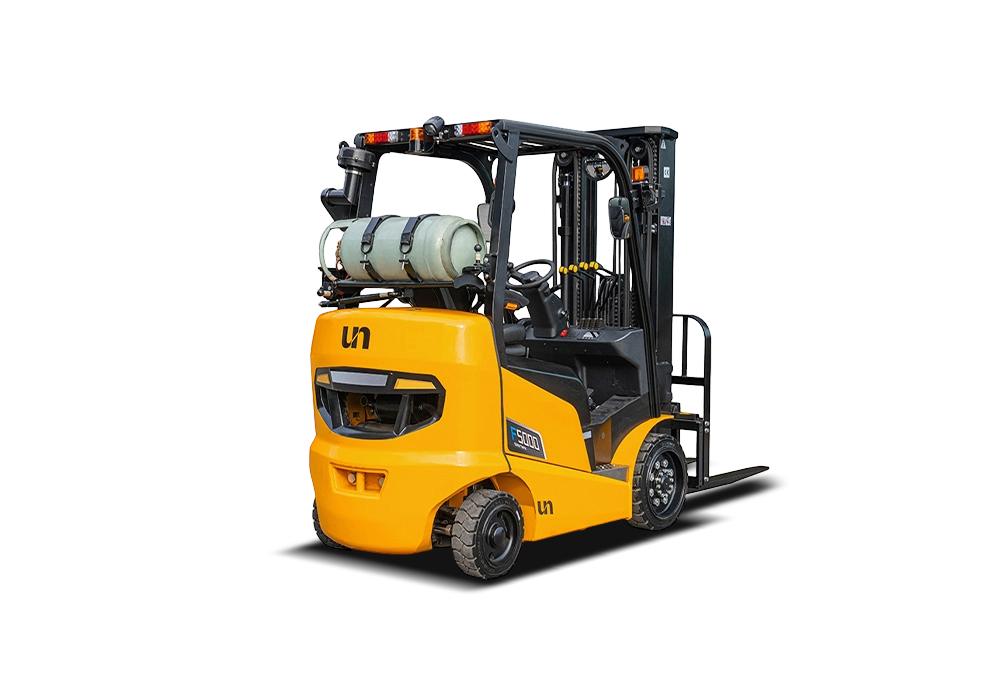

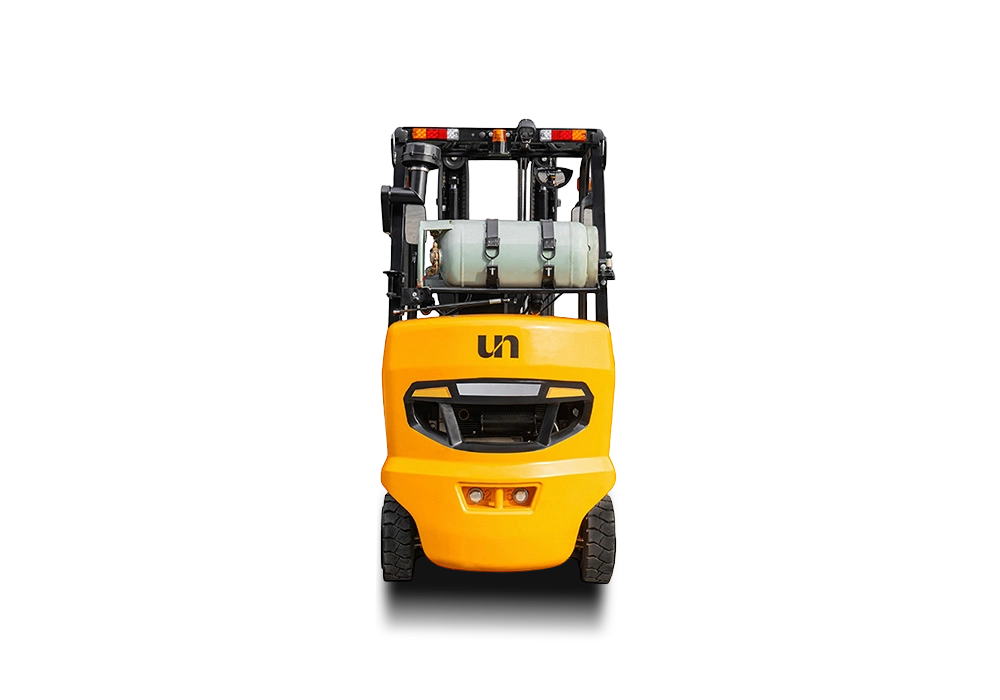

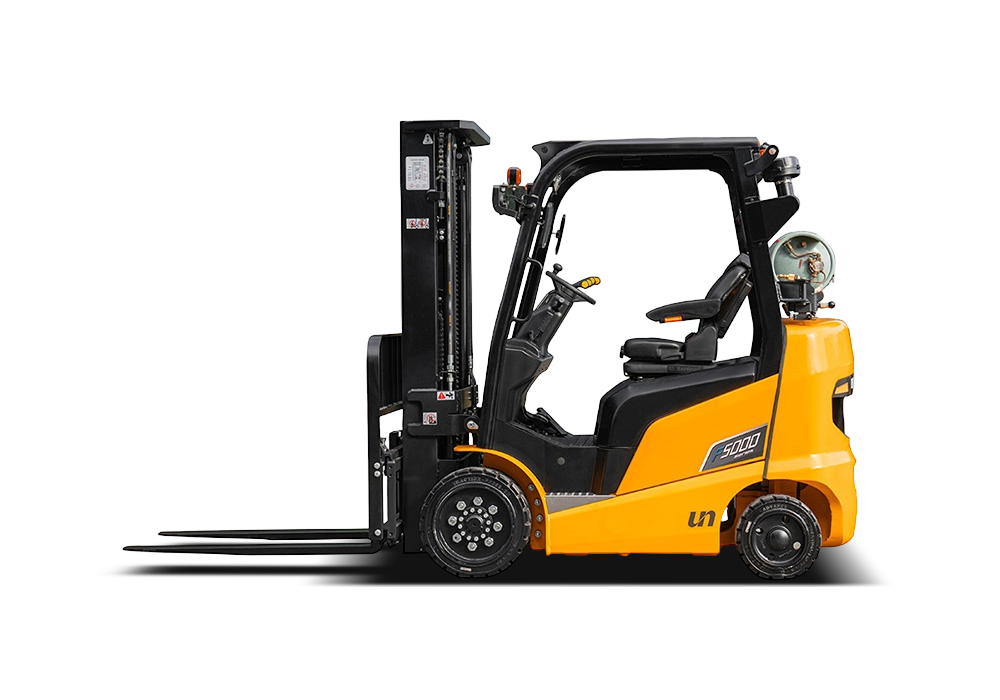

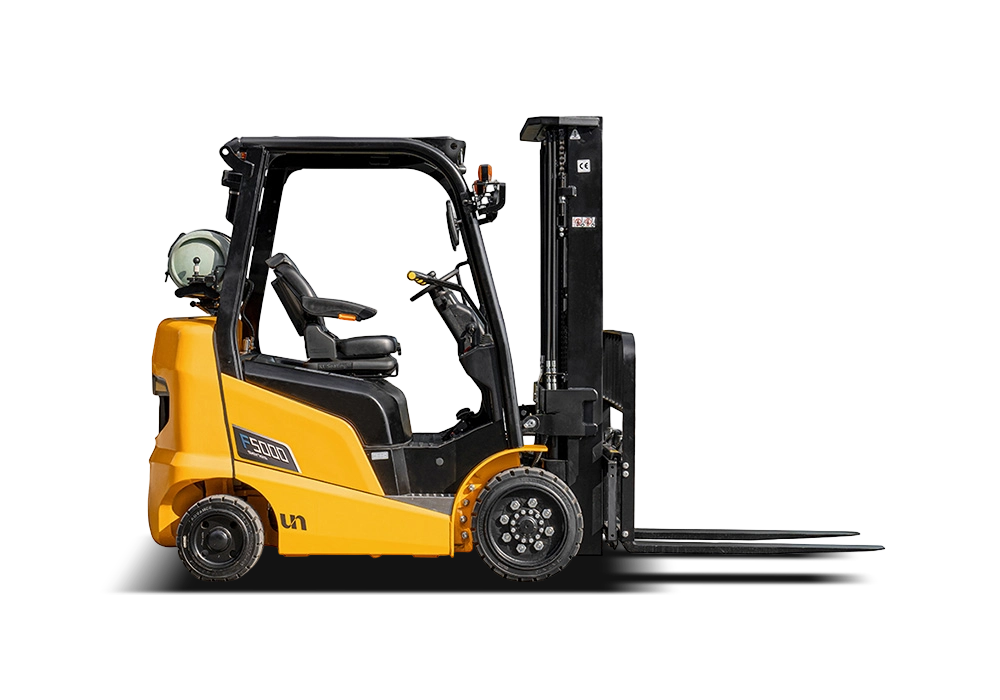

F Series 2.0T-3.2T LPG&Gasoline Forklift
(Cushion Tire)
The F series LPG/Gasoline forklift is UN Forklift's second generation cushion tire forklift with latest innovation, featuring a short wheelbase design. It is compact in structure and precision-engineered for high-density and narrow warehouse applications.
Product Details
MAIN SPECIFICATIONS
|
Model |
FL20T |
FL25T |
FL30T |
FL32T |
||
|
Rated Load Capacity |
Q |
lb（kg） |
4000（1814） |
5000（2268） |
6000（2722） |
6500（2948） |
|
Load Centre |
C |
in（mm） |
24（600） |
24（600） |
24（600） |
24（600） |
|
Length to Face of Fork （Without Fork） |
L1 |
in（mm） |
88（2246） |
91（2302） |
94（2396.5） |
96（2438） |
|
Overall Width |
B1 |
in（mm） |
43（1080） |
43（1080） |
44（1121） |
44（1121） |
|
Overhead Guard Height |
H5 |
in（mm） |
83（2120） |
83（2120） |
83（2120） |
83（2120） |
|
Turning Radius （Outside） |
Wa |
in（mm） |
78（1990） |
78（1990） |
81（2070） |
81（2070） |
|
Travel Speed （No Load） |
mph（km/h） |
9.6（15） |
9.6（15） |
9.7（15.5） |
9.7（15.5） |
|
|
Max.Gradeability |
% |
35.5%/39.30% |
28.9%/31.9% |
24.7%/27.2% |
24%/26.5% |
|
|
Wheelbase |
Y |
in（mm） |
57（1450） |
57（1450） |
57（1450） |
57（1450） |
|
Total Weight |
lb（kg） |
7531（3416） |
8486（3849） |
9637（4371） |
9937（4507） |
|
|
Engine Model |
HMC2.4L/GK25 |
HMC2.4L/GK25 |
HMC2.4L/GK25 |
HMC2.4L/GK25 |
Product Features
-
Compact Design
● It adopts the classic exterior design of the N series IC forklift. With its compact structure and small flexible design, it enables precise operations within confined spaces.
-
High Performance
● Implementation of a load-sensing steering system.
● Integration of a high-angle cast steering axle.
● Equipped with standard SHIMADZU multi-way valves.
● Equipped with OPS.
● Equipped with a high-power certified GK25 or HMC2.4L engine.
● Widening the gear transmission box to enhance durability.
-
Safety & Reliability
● Adoption of a suspended micro-motion braking mechanism and a submerged tilt cylinder.
● Utilization the new narrow-groove steel mast to reduce the overall vehicle weight & enhance visibility.
● Utilization of a small-diameter steering wheel, electro-hydraulic gear shift and ratchet type handbrake.
● Equipped with a fully suspension seat to enhance comfort.
● Multifunctional LCD instrument panel, offering real-time monitoring.
-
Easy Maintenance
● Increased hood opening angle provides a more spacious working environment for inspection and maintenance tasks.
● Detachable left and right guard plates for convenient maintenance.
● Standard-equipped with swing down LPG tank bracket, allowing for easy replacement of the fuel tank.
-
Energy Efficiency & Environmental Friendly
● Implementation of an optimized hydraulic system underscores energy efficiency, reducing overall fuel consumption.
● Engine emissions comply with the latest EPA/CARB regulations in the United States.
